Toyota Kluger L/V
2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522110 · Japan
Discontinued model
Data version 2007-10
Fuel Tank & Tube
89 part groups · 4 illustrations

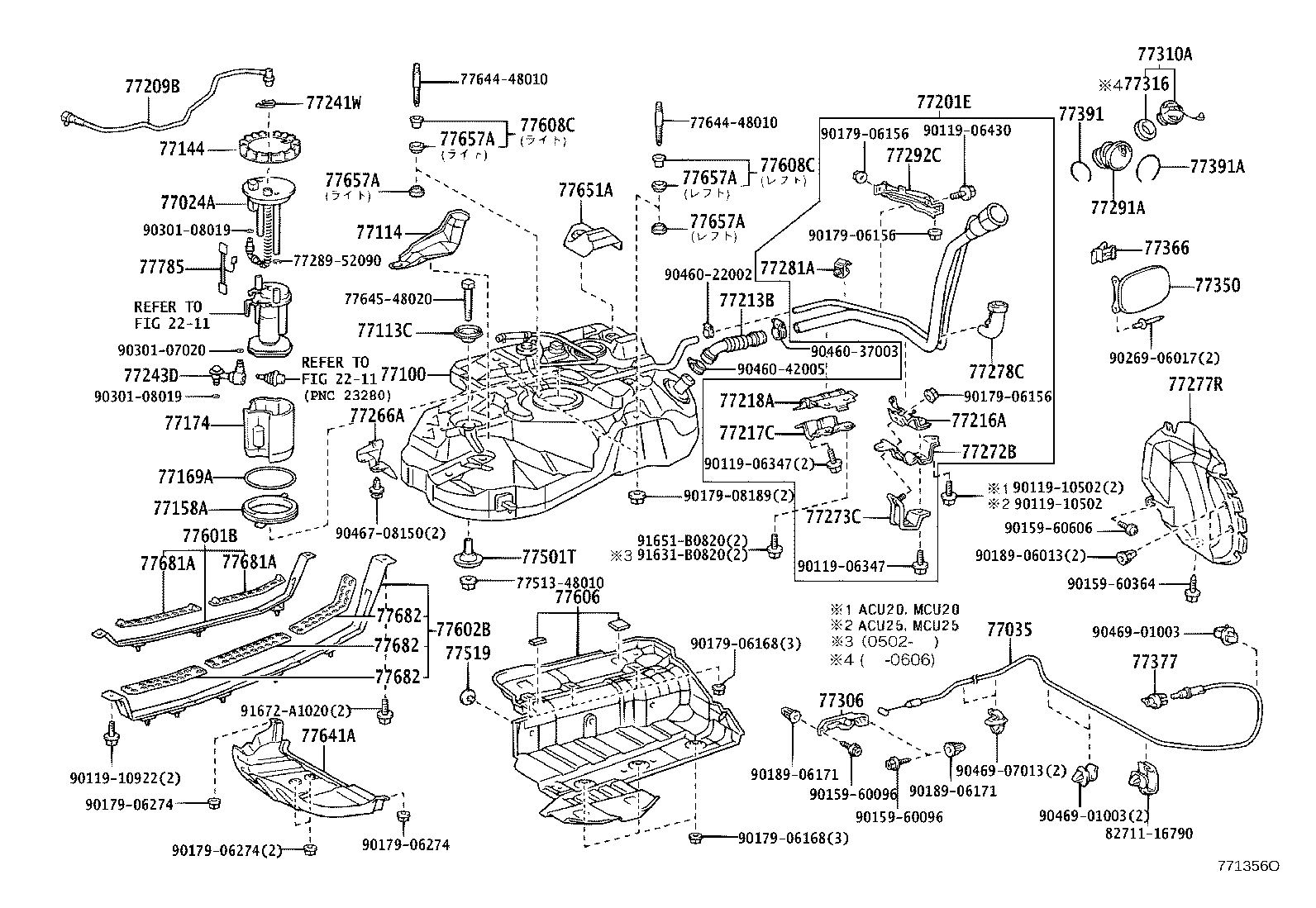

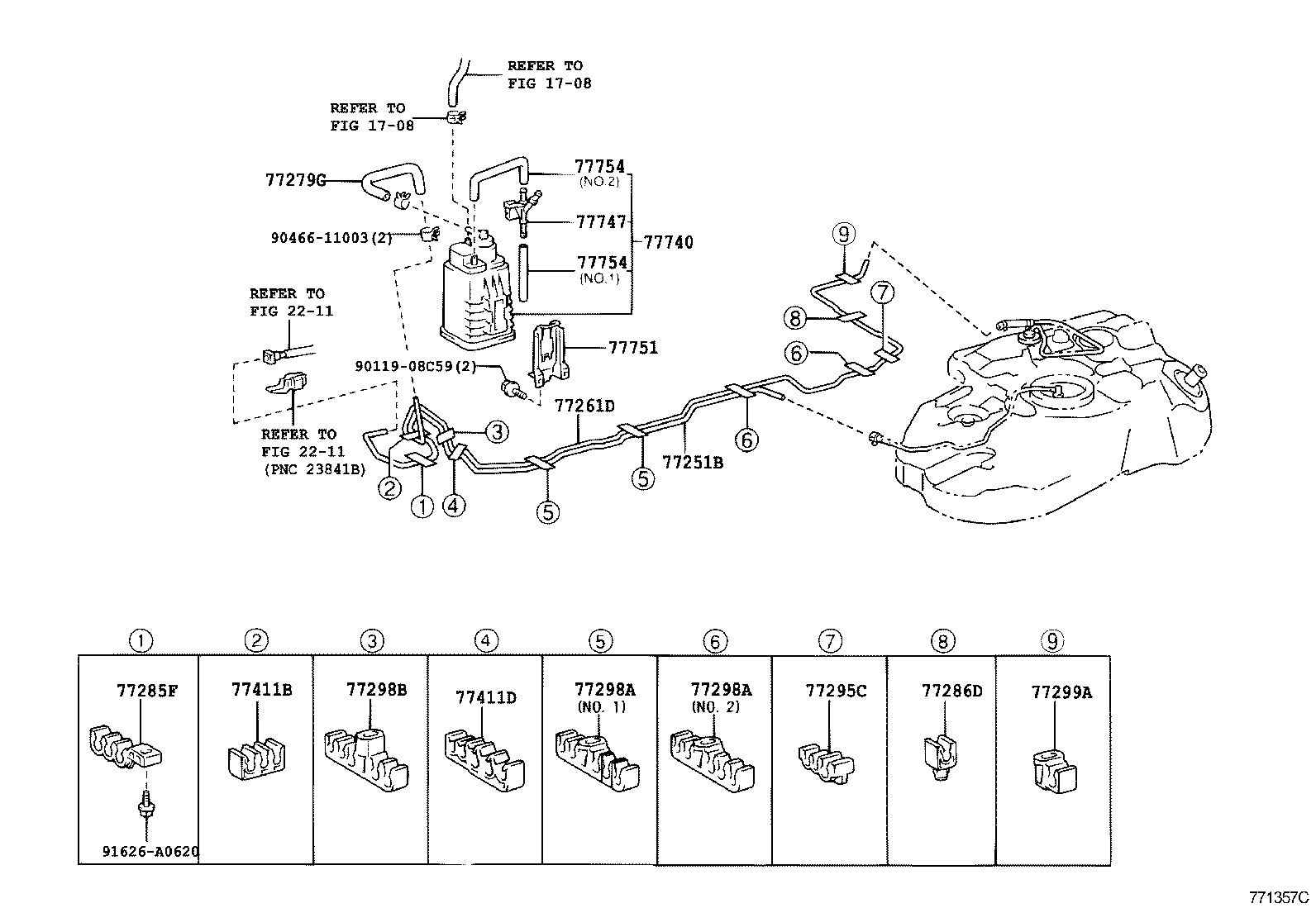

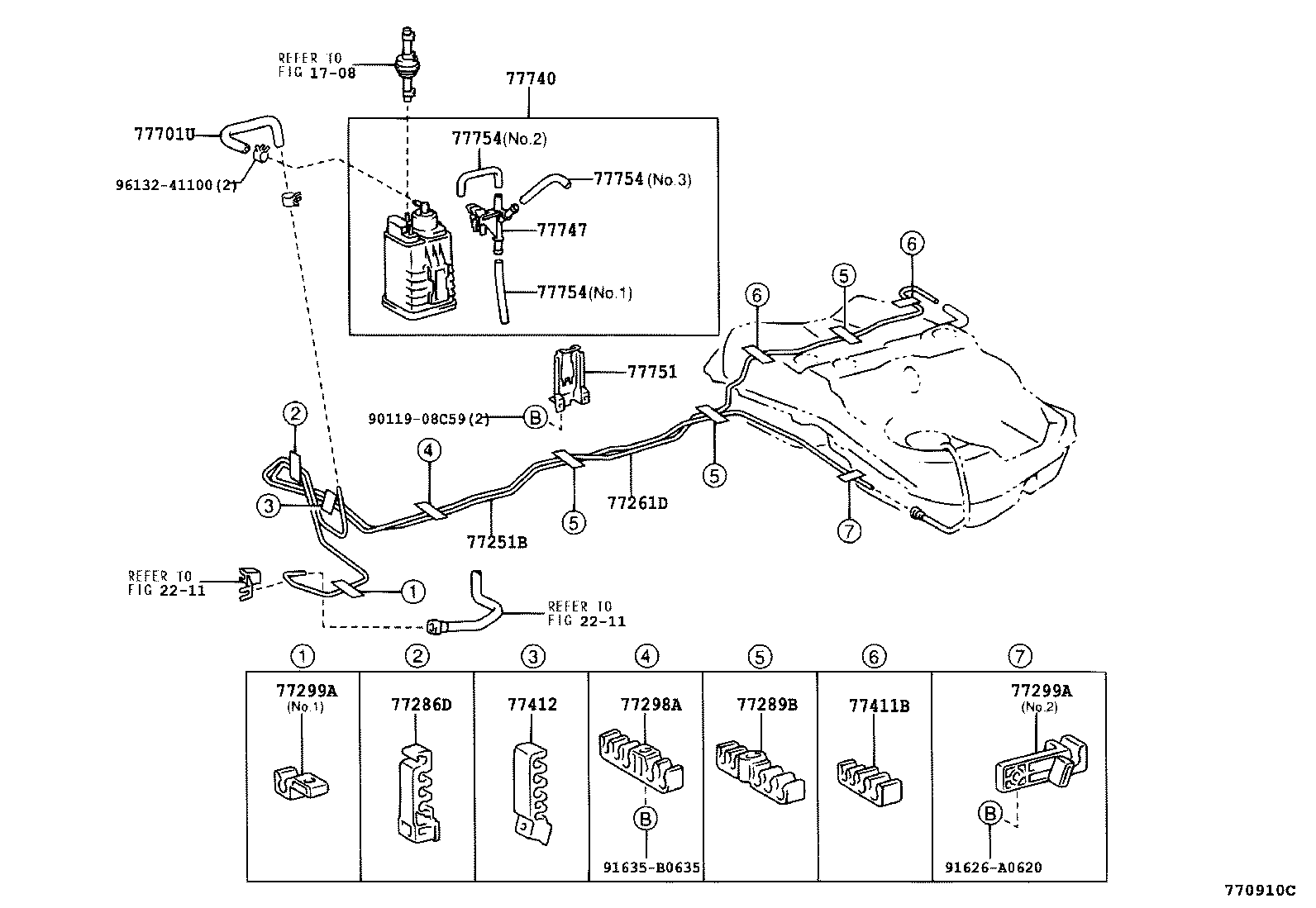

Part groups
| PNC | Description |
|---|---|
| 64131A | Bracket, Fuel Tank Protector, Upper NO.1 |
| 64132A | Bracket, Fuel Tank Protector, Upper NO.2 |
| 77012 | Tube Sub-assy, Fuel Tank Breather |
| 77018F | Hose, Fuel Tank Evaporation Vent |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77100B | Gasket(FOR FUEL TANK) |
| 77113C | Plate, Fuel Tank Side |
| 77114 | Plate, Fuel Tank Side, Rear |
| 77144 | Retainer, Fuel Pump Gauge |
| 77156A | Plate, Breather Tube Support, NO.2 |
| 77158A | Support, Tank Suction Tube |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77174 | Support, Fuel Suction, NO.1 |
| 77175 | Support, Fuel Suction, NO.2 |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77179B | Gasket, Fuel Tank Evaporation Vent Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77202A | Hose, Fuel, NO.1 (FOR BREATHER TUBE) |
| 77209B | Tube Sub-assy, Fuel Pump |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77217B | Hose, Fuel Tank Inlet |
| 77217C | Support, Fuel Tank Filler Pipe, NO.2 |
| 77218 | Plate, Fuel Inlet Pipe Set |
| 77218A | Support, Fuel Tank Filler Pipe, NO.3 |
| 77219 | Cover, Fuel Tank Filler Pipe |
| 77229C | Clamp, Breather Tube |
| 77241W | Clip, Tube Joint |
| 77243D | Joint, Fuel Tube, NO.1 |
| 77251B | Tube, Fuel Main |
| 77261D | Tube, Fuel Tank TO Canister |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77272B | Support, Breather Tube, NO.1 |
| 77273C | Support, Breather Tube, NO.2 |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77278C | Protector, Fuel Tank Filler Pipe, NO.2 |
| 77279G | Hose, Fuel, NO.2 |
| 77281A | Clamp, Fuel Filler Pipe |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77292C | Shield, Fuel Tank Filler Pipe, NO.2 |
| 77295C | Grommet, Fuel Tube |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77298B | Clamp, Fuel Tube, NO.4 |
| 77299A | Clamp, Fuel Tube, NO.5 |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77340A | Valve Assy, Fuel Cut Off W/Tube |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77411B | Support, Fuel Tube Grommet, NO.1 |
| 77411D | Support, Fuel Tube Grommet, NO.2 |
| 77412 | Support, Fuel Tube Grommet, NO.2 |
| 77414 | Support, Fuel Tube Grommet, NO.4 |
| 77420 | Valve Assy, Fuel Cut Off, NO.2 |
| 77501T | Bracket Sub-assy, Fuel Tank |
| 77519 | Spacer, Fuel Tank Bracket |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77608C | Cushion Set, Fuel Tank |
| 77613A | Bracket, Fuel Tank Band, NO.1 |
| 77631A | Protector, Fuel Tank, Lower Center |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77642A | Protector, Fuel Tank, NO.2 |
| 77645A | Retainer, Fuel Tank Protector |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77657A | Cushion, Fuel Tank, NO.5 |
| 77658A | Protector, Fuel Tank Edge, NO.1 |
| 77681A | Seat, Fuel Tank Band |
| 77682 | Seat, Fuel Tank Band, LH |
| 77701U | Hose, Fuel (FOR CHECK VALVE) |
| 77740 | Canister Assy, Charcoal |
| 77747 | Pipe, Charcoal Canister, NO.1 |
| 77751 | Bracket, Charcoal Canister Base |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
