Toyota Kluger L/V
2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522110 · Japan
Discontinued model
Data version 2007-10
Interior Lamp

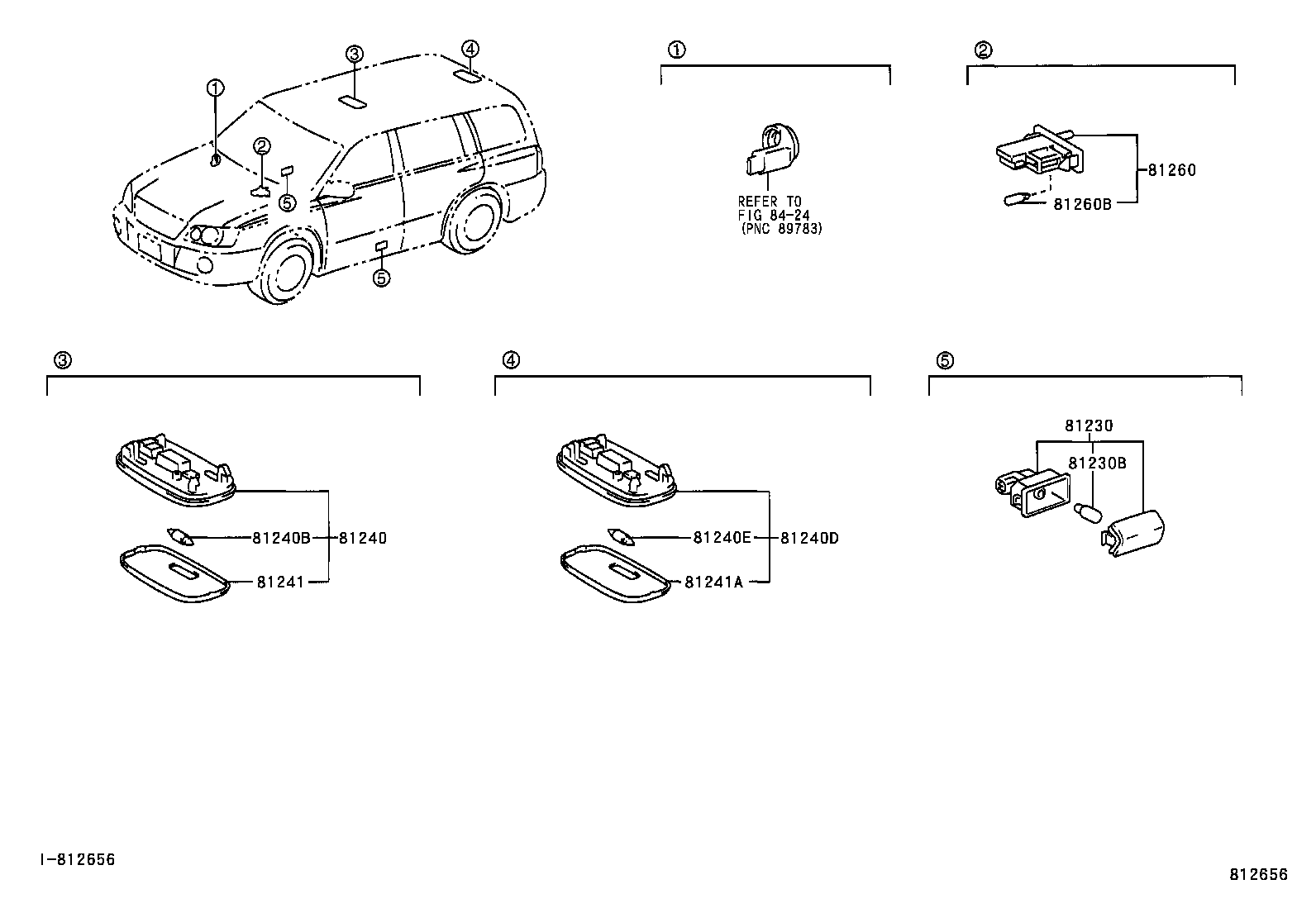

15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81240D | Lamp Assy, Room, NO.2 |
| 81240E | Bulb, Room Lamp, NO.2 |
| 81241 | Lens, Room Lamp, NO.1 |
| 81241A | Lens, Room Lamp, NO.2 |
| 81260 | Lamp Assy, Glove Box |
| 81260B | Bulb(FOR GLOVE BOX) |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81340H | Lamp Assy, Vanity, RH |
| 81340J | Lamp Assy, Vanity, LH |
| 81870D | Lamp Assy, Key Cylinder |
| 81870E | Bulb, Key Cylinder Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
