Toyota Kluger L/V

2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522110 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

50 part groups · 14 illustrations

Illustrations

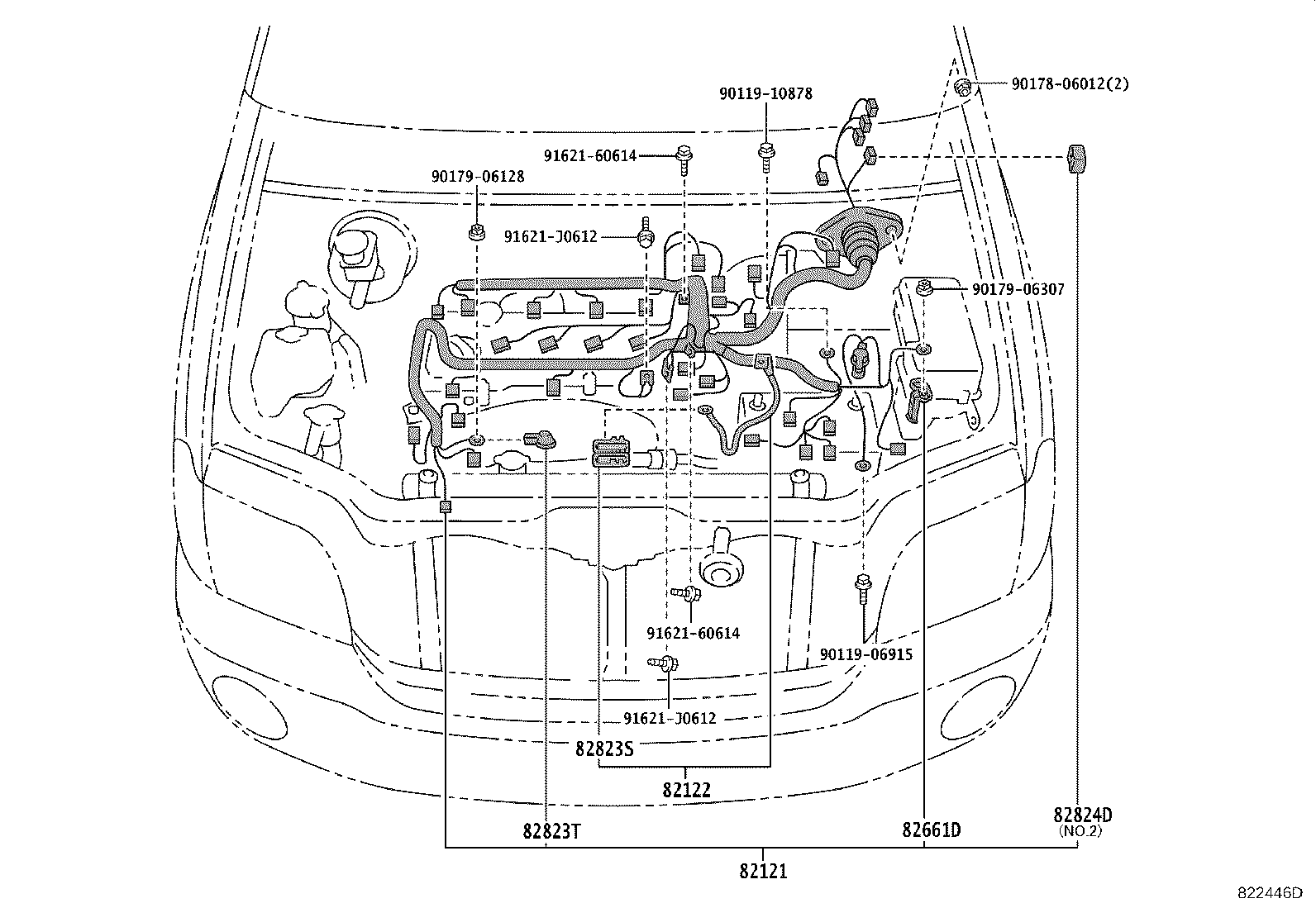

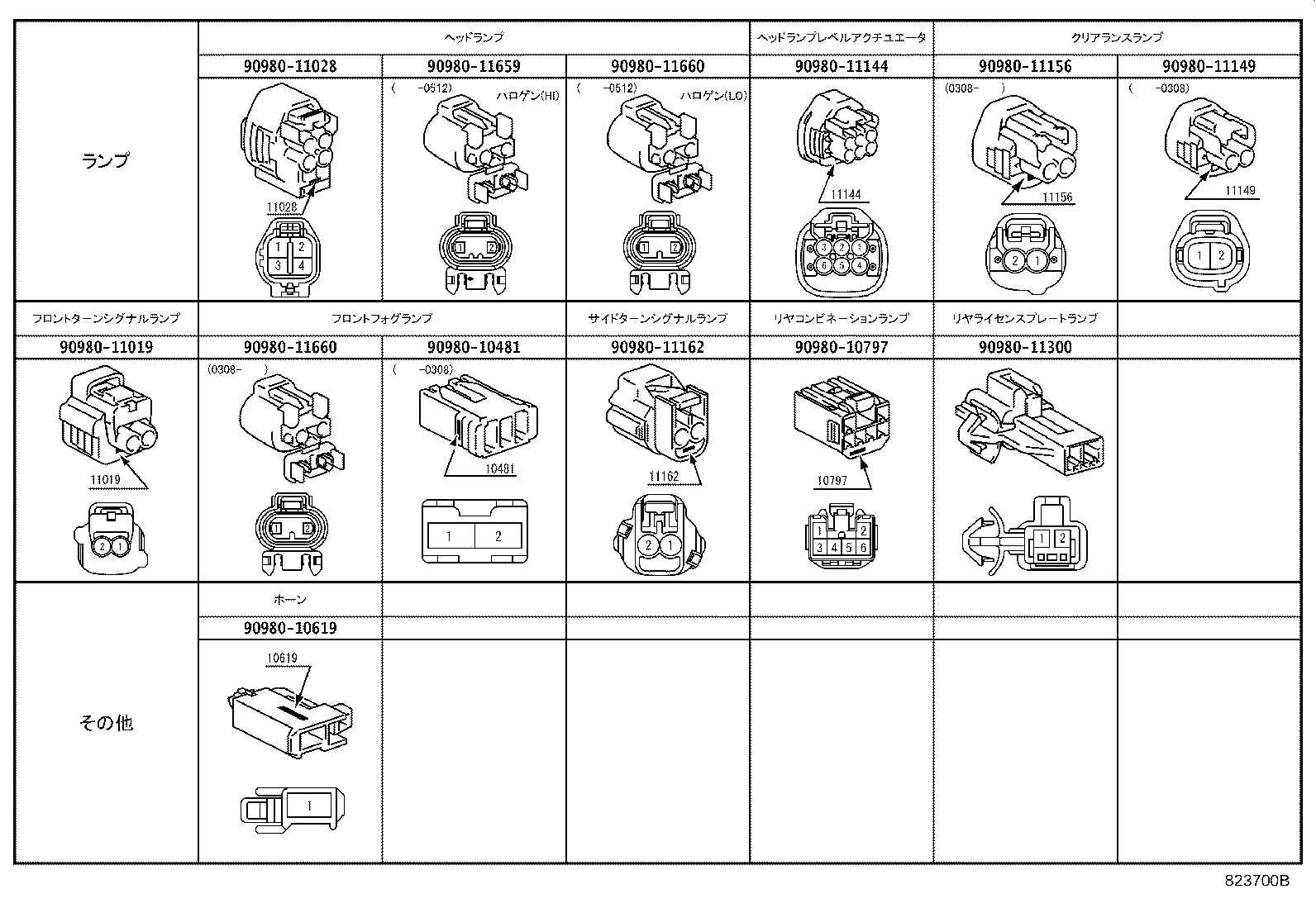

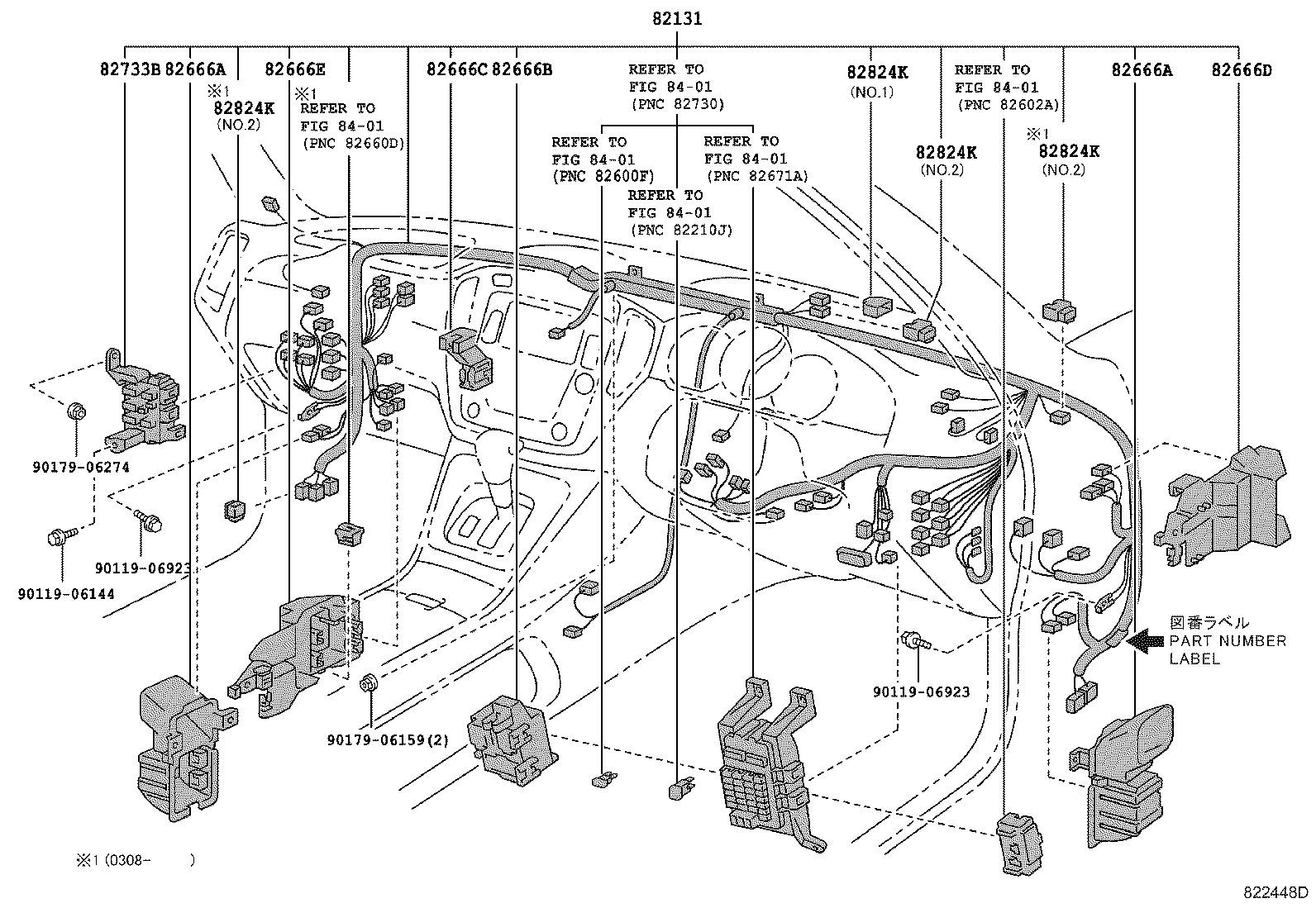

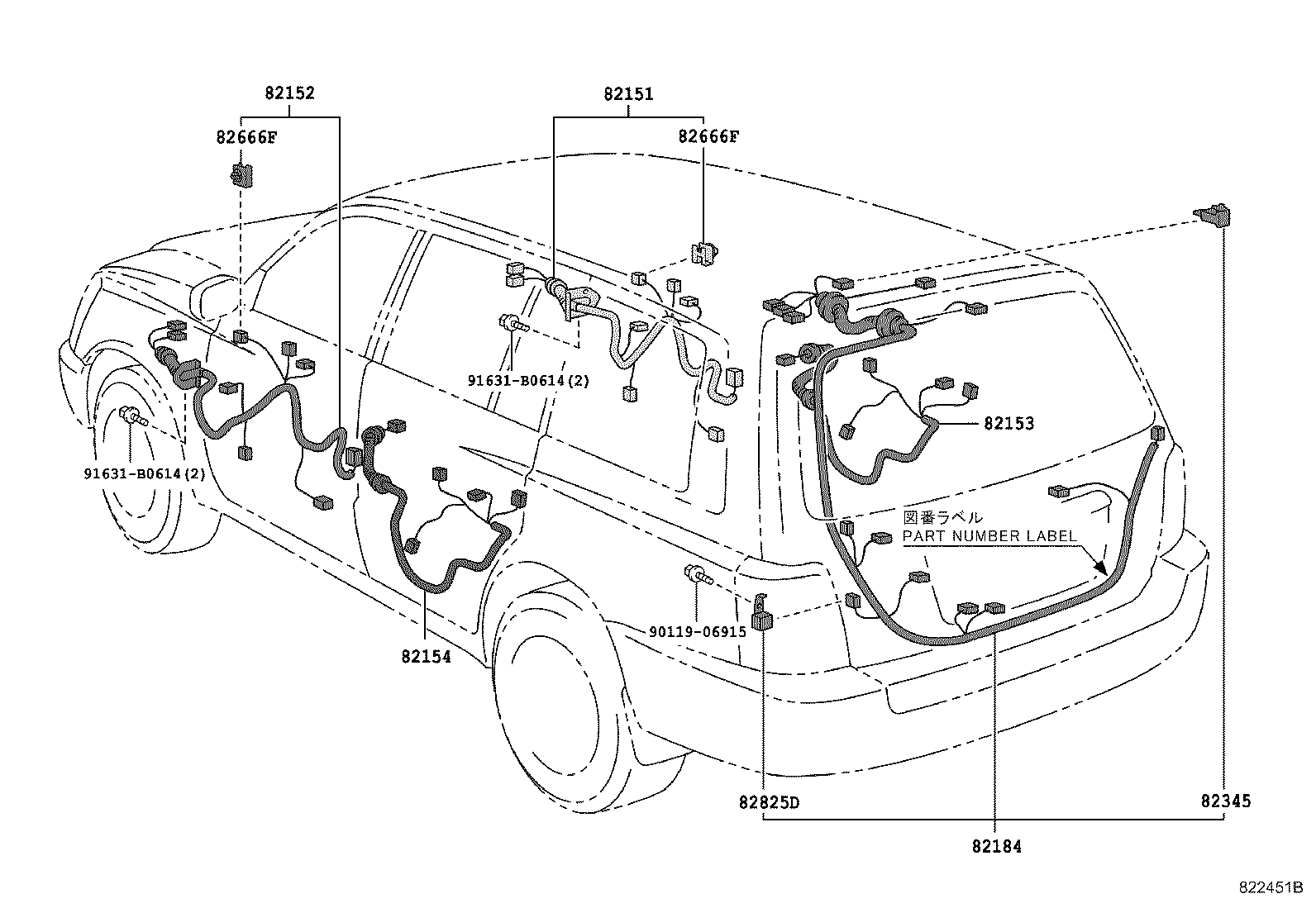

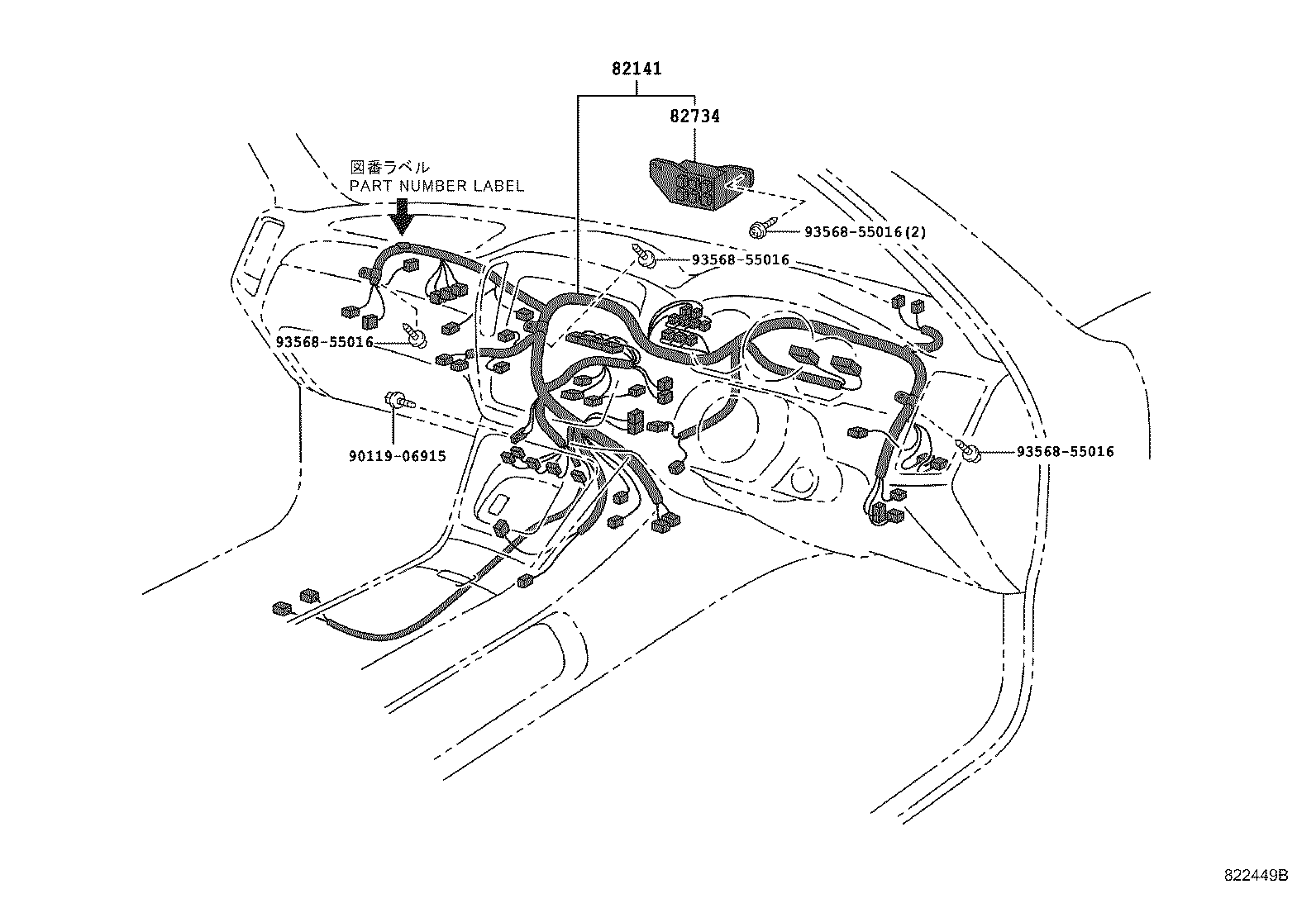

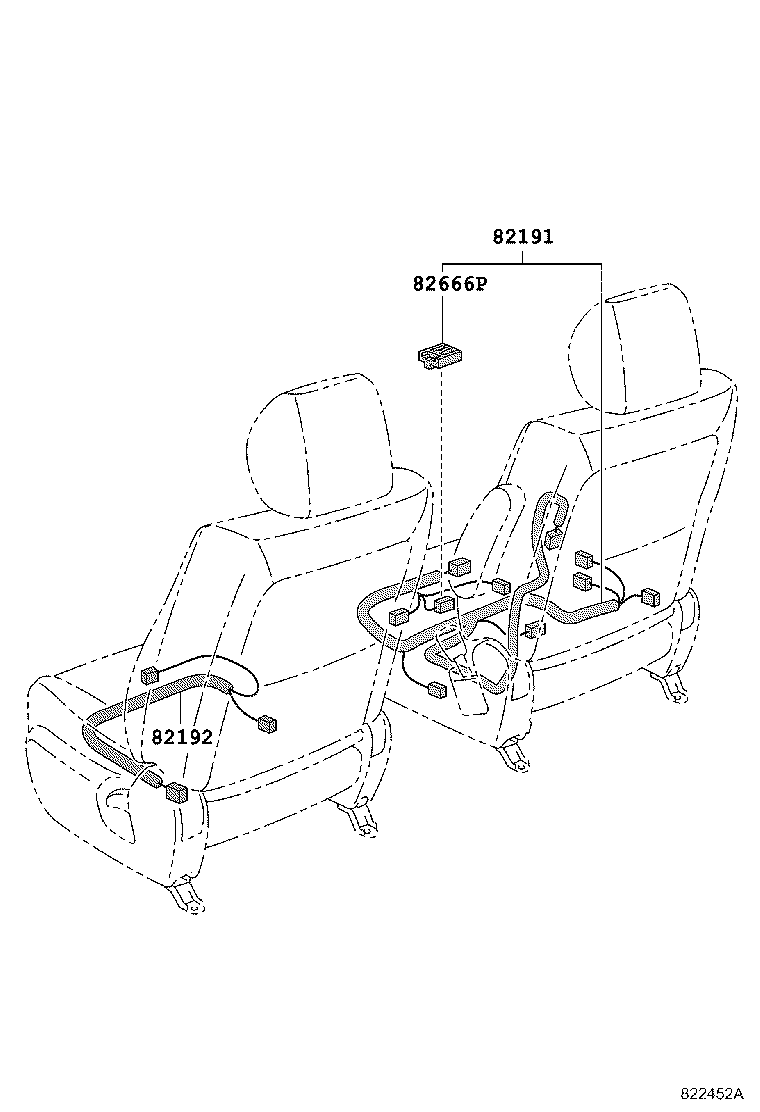

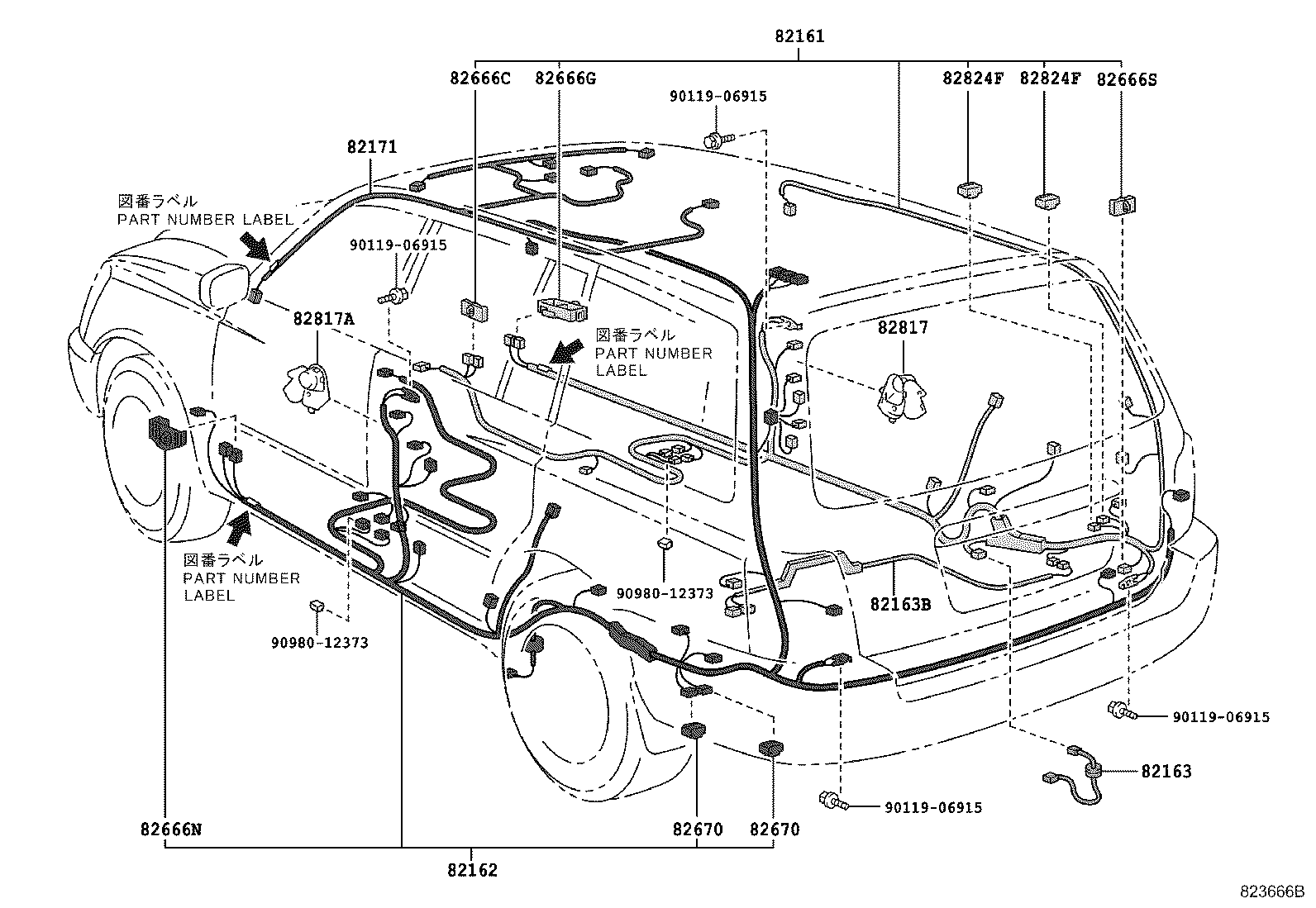

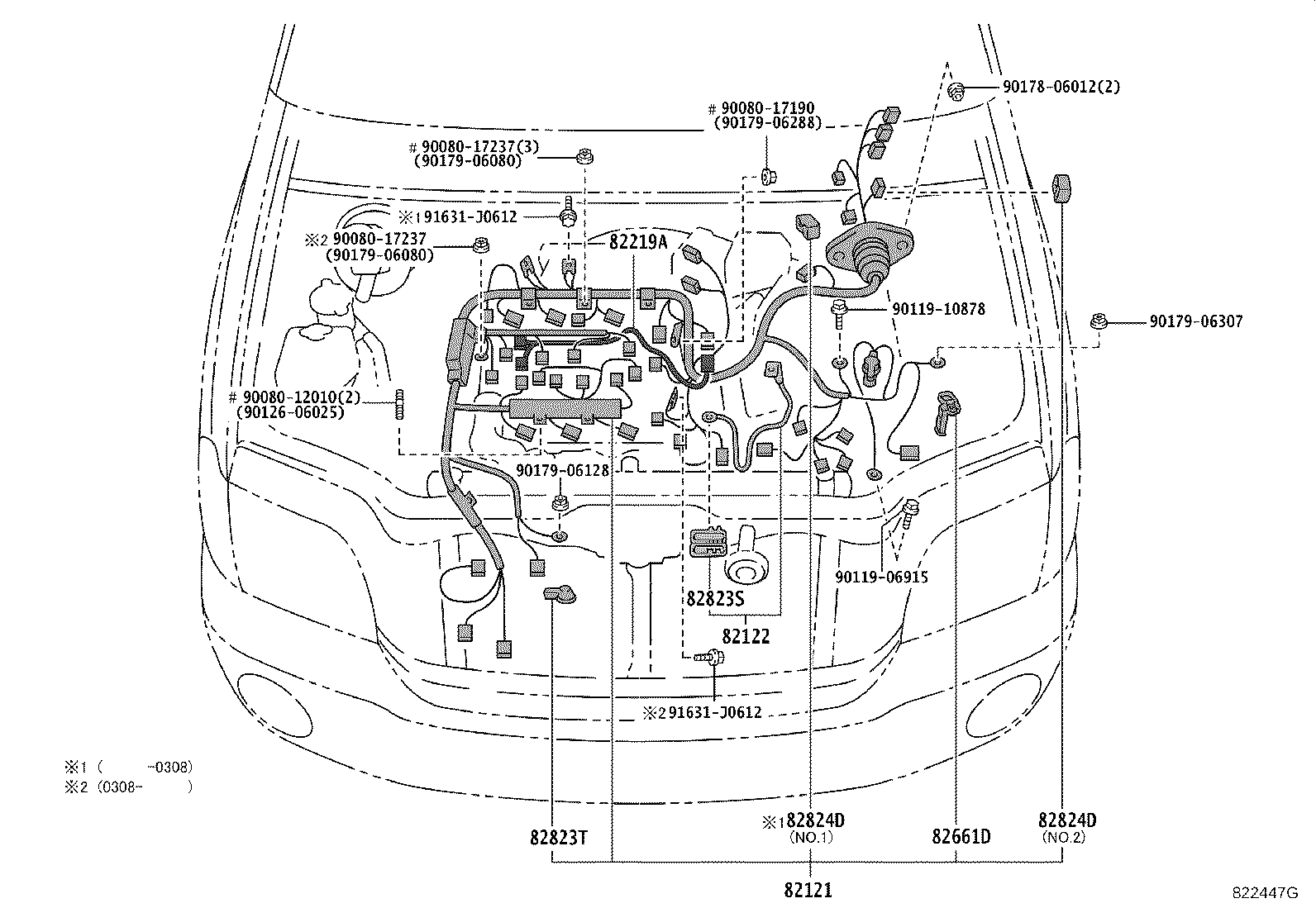

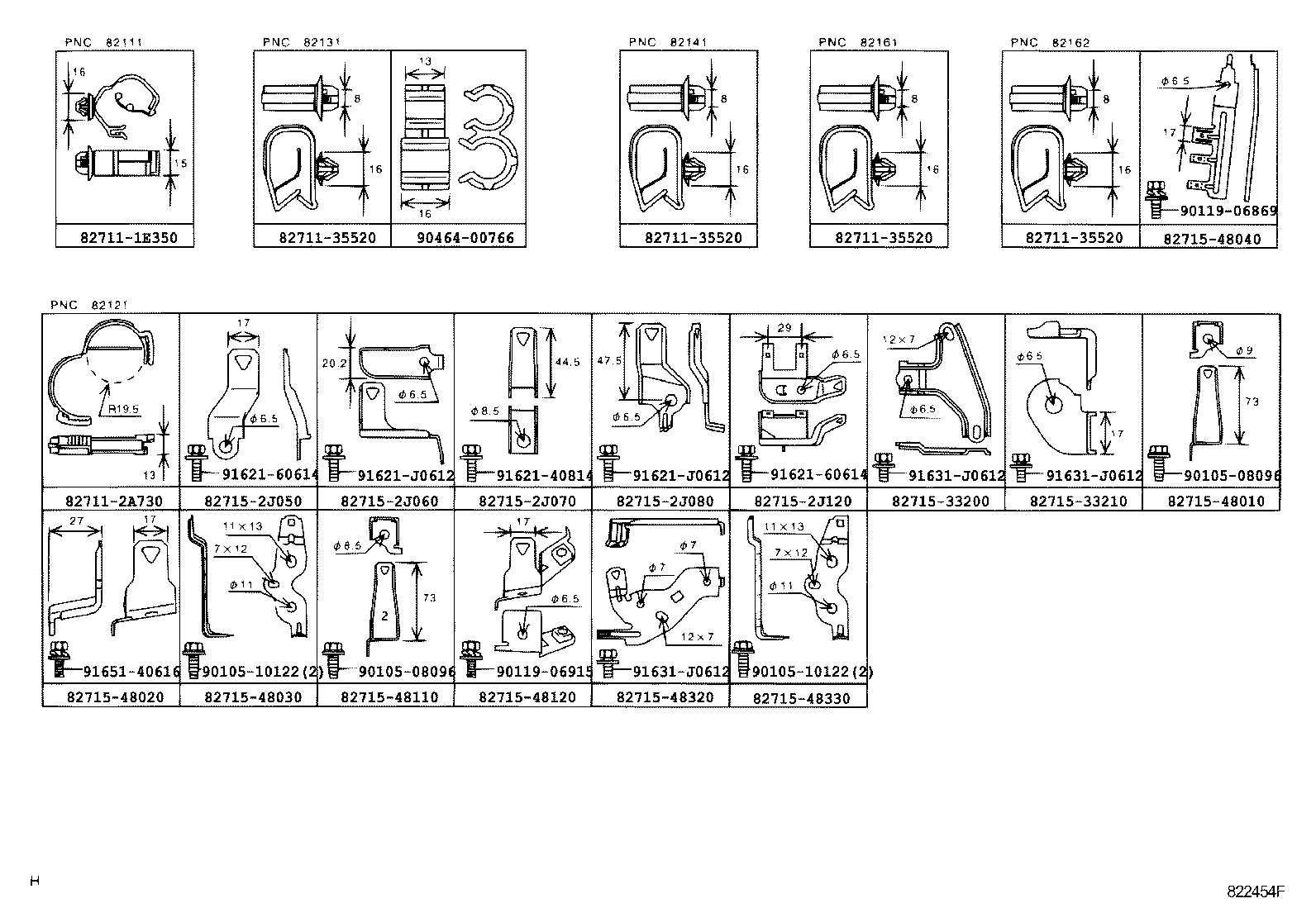

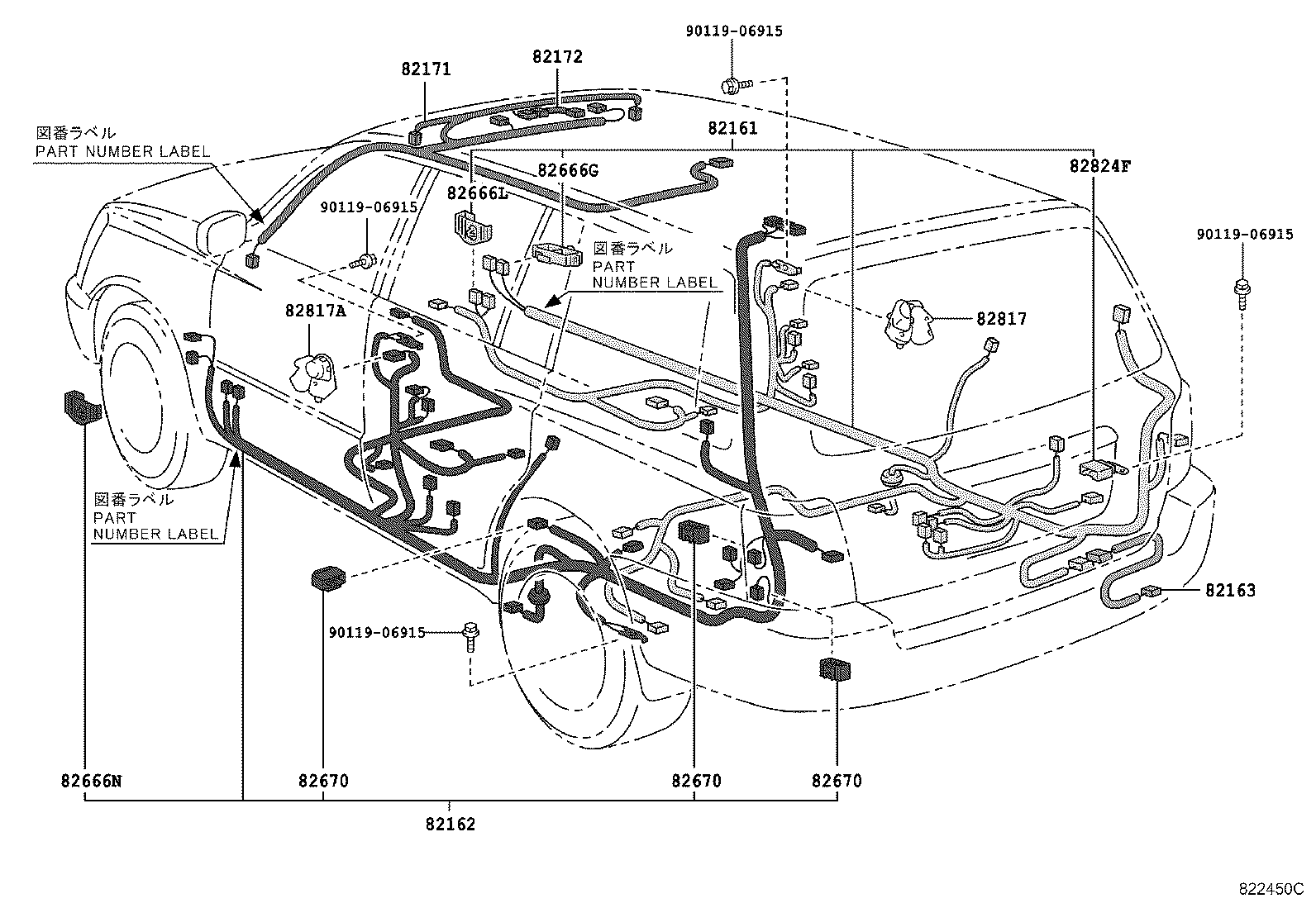

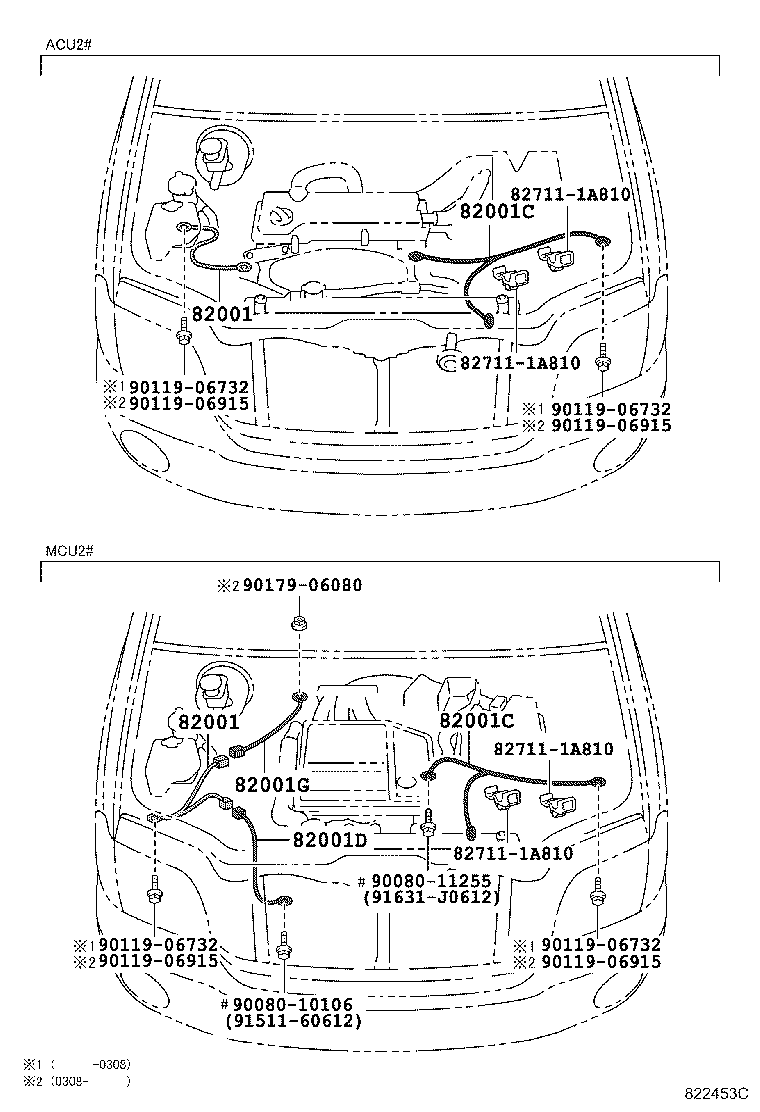

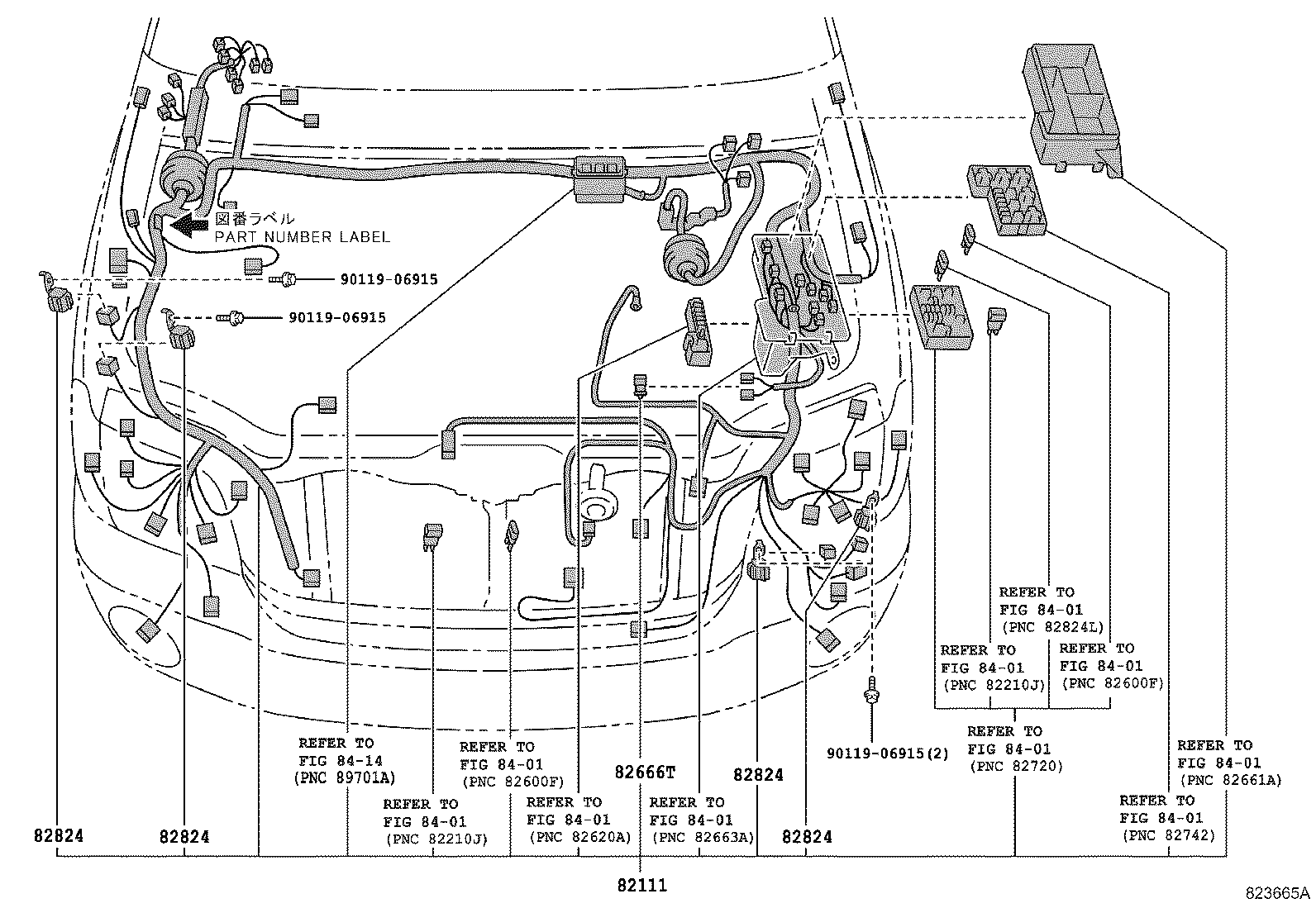

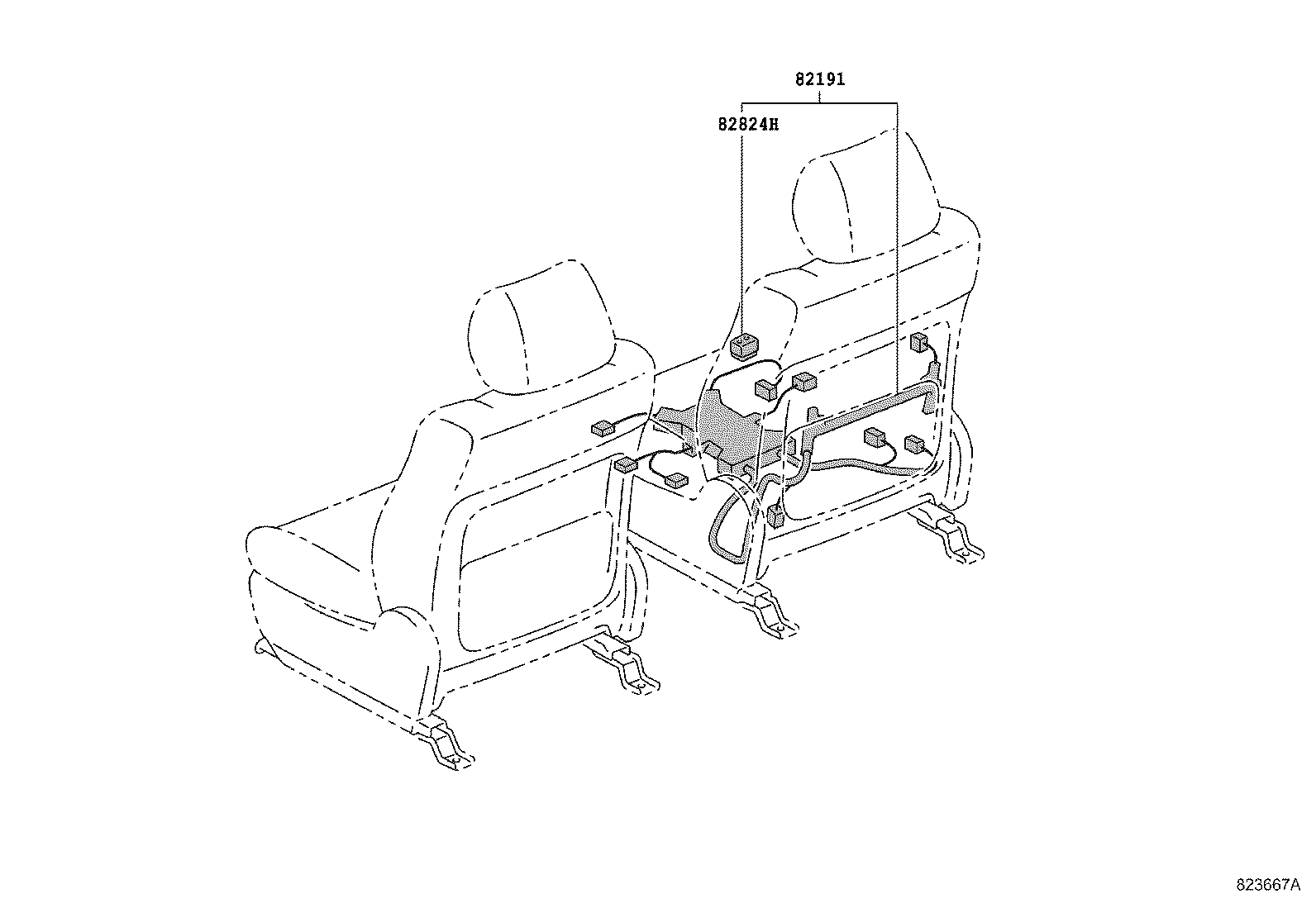

Figure 822445C 822445C 2000-11 → 2003-08 Figure 823665A 823665A 2003-08 → — Figure 822446D 822446D 2000-11 → — Figure 822447G 822447G 2000-11 → — Figure 822448D 822448D 2000-11 → — Figure 822449B 822449B 2000-11 → — Figure 822451B 822451B 2000-11 → — Figure 822450C 822450C 2000-11 → 2003-08 Figure 823666B 823666B 2003-08 → — Figure 822452A 822452A 2000-11 → 2003-08 Figure 823667A 823667A 2003-08 → — Figure 822454F 822454F 2000-11 → — Figure 822453C 822453C 2000-11 → — Figure 823700B 823700B 2000-11 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82001G Cable, Bond, NO.4
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82163B Wire, Floor NO.5
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82345 Diode
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82670 Block Assy, Junction, NO.1
82733B Block, Passenger Side Junction
82734 Block, Center Junction
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824F Connector, Wiring Harness
82824H Connector, Wiring Harness
82824K Connector, Wiring Harness
82825D Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
