Toyota Kluger L/V
2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522110 · Japan
Discontinued model
Data version 2007-10

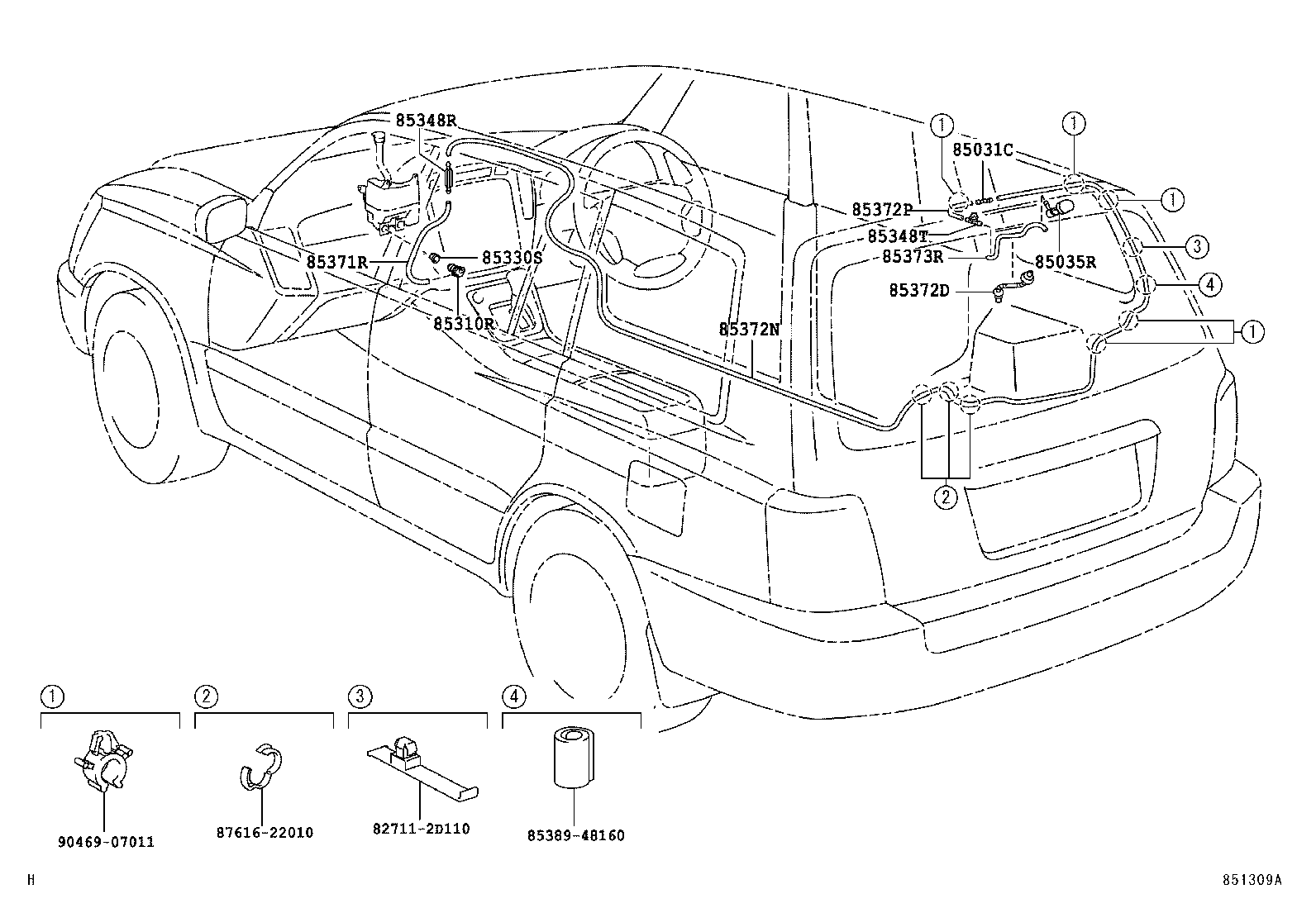

Rear Washer
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85031C | Valve Sub-assy, Washer |
| 85035R | Nozzle Sub-assy, Rear Washer |
| 85310R | Motor Assy, Rear Washer |
| 85330S | Bush, Rear Washer Jar |
| 85348R | Joint, Rear Washer Hose, NO.1 |
| 85348T | Joint, Rear Washer Hose, NO.2 |
| 85371R | Hose, Rear Washer (FROM MOTOR TO JOINT) |
| 85372D | Grommet, Rear Washer Hose |
| 85372N | Hose, Rear Washer (FROM JOINT TO JOINT), NO.1 |
| 85372P | Hose, Rear Washer (FROM JOINT TO JOINT), NO.2 |
| 85373R | Hose, Rear Washer (FROM JOINT TO NOZZLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
