Toyota Kluger L/V

2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522110 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

17 part groups · 5 illustrations

Illustrations

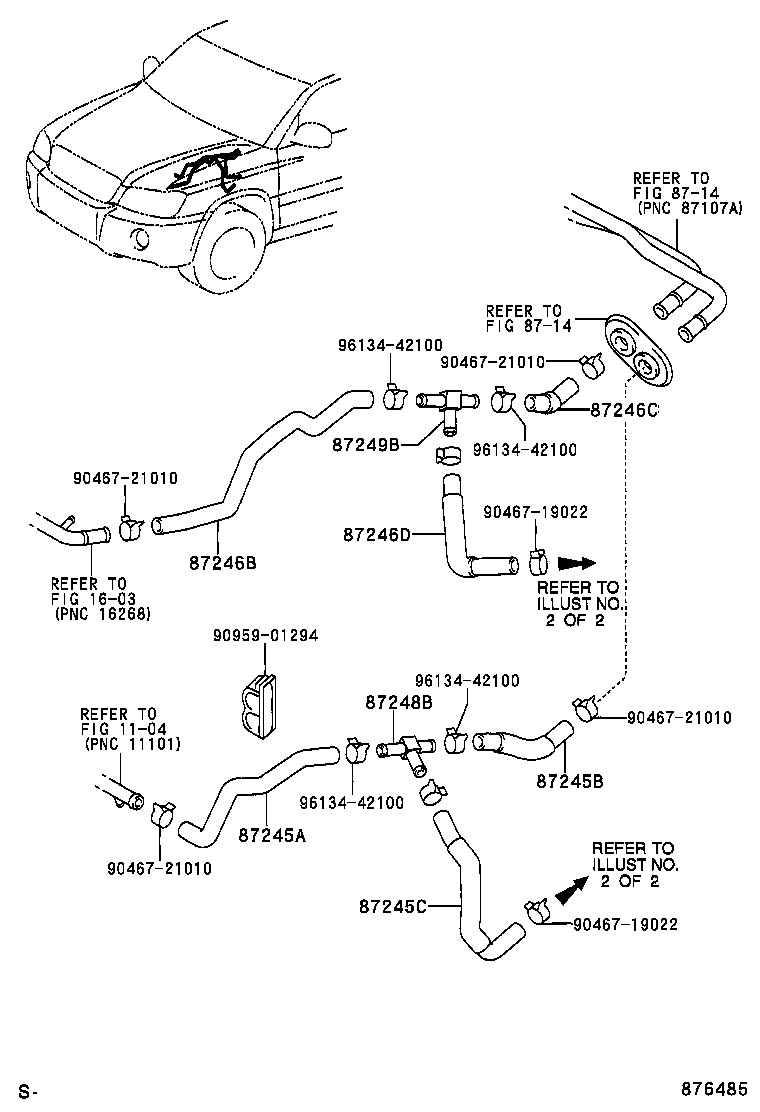

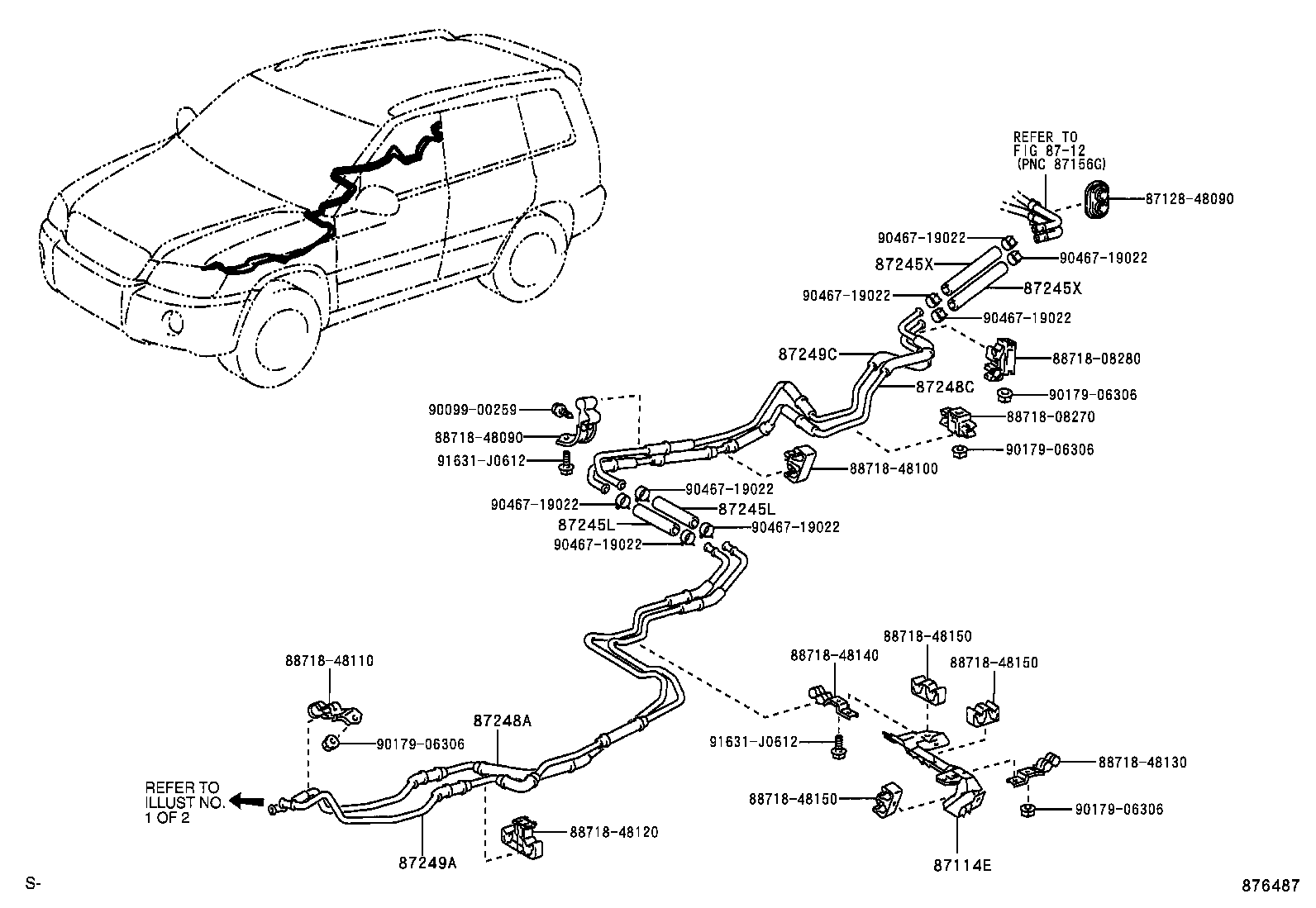

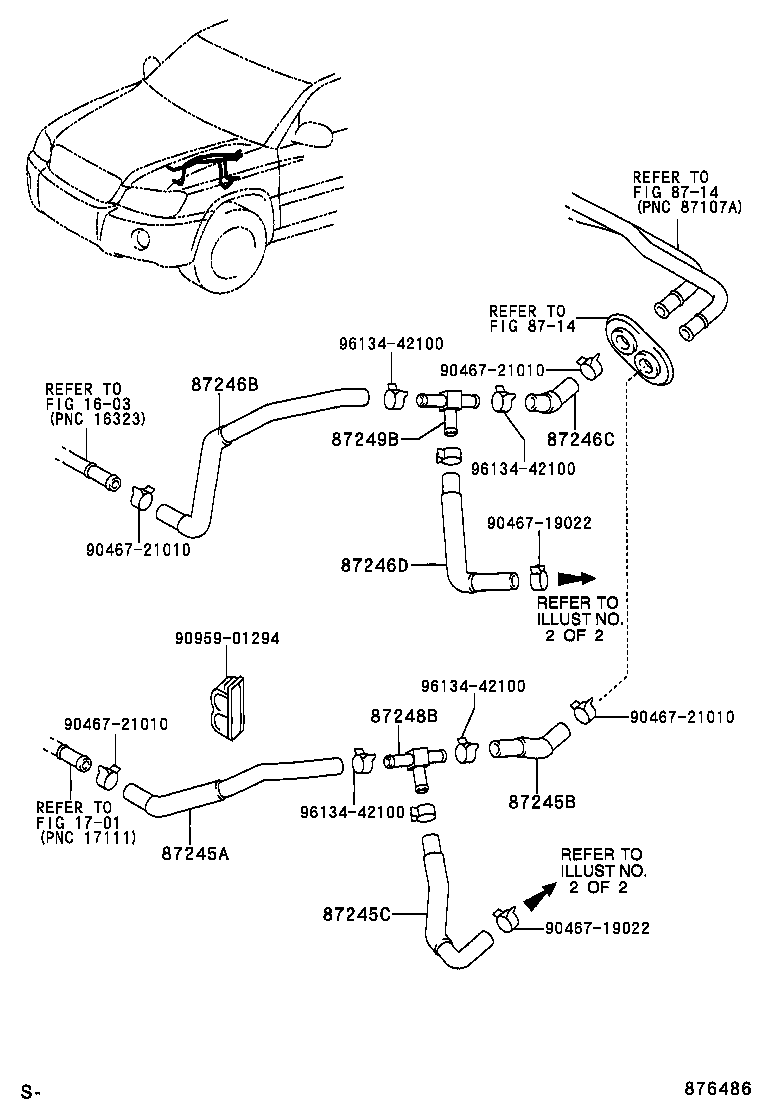

Figure 874565A 874565A 2000-11 → — Figure 874566A 874566A 2000-11 → — Figure 876485 876485 2003-08 → — Figure 876486 876486 2003-08 → — Figure 876487 876487 2003-08 → —

Part groups

PNCDescription
87114E Cover, Heater, NO.1
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245L Hose, Heater Water, L
87245X Hose, Heater Water
87246 Hose, Heater Water, Outlet
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
