Toyota Kluger L/V

2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522110 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

8 part groups · 4 illustrations

Illustrations

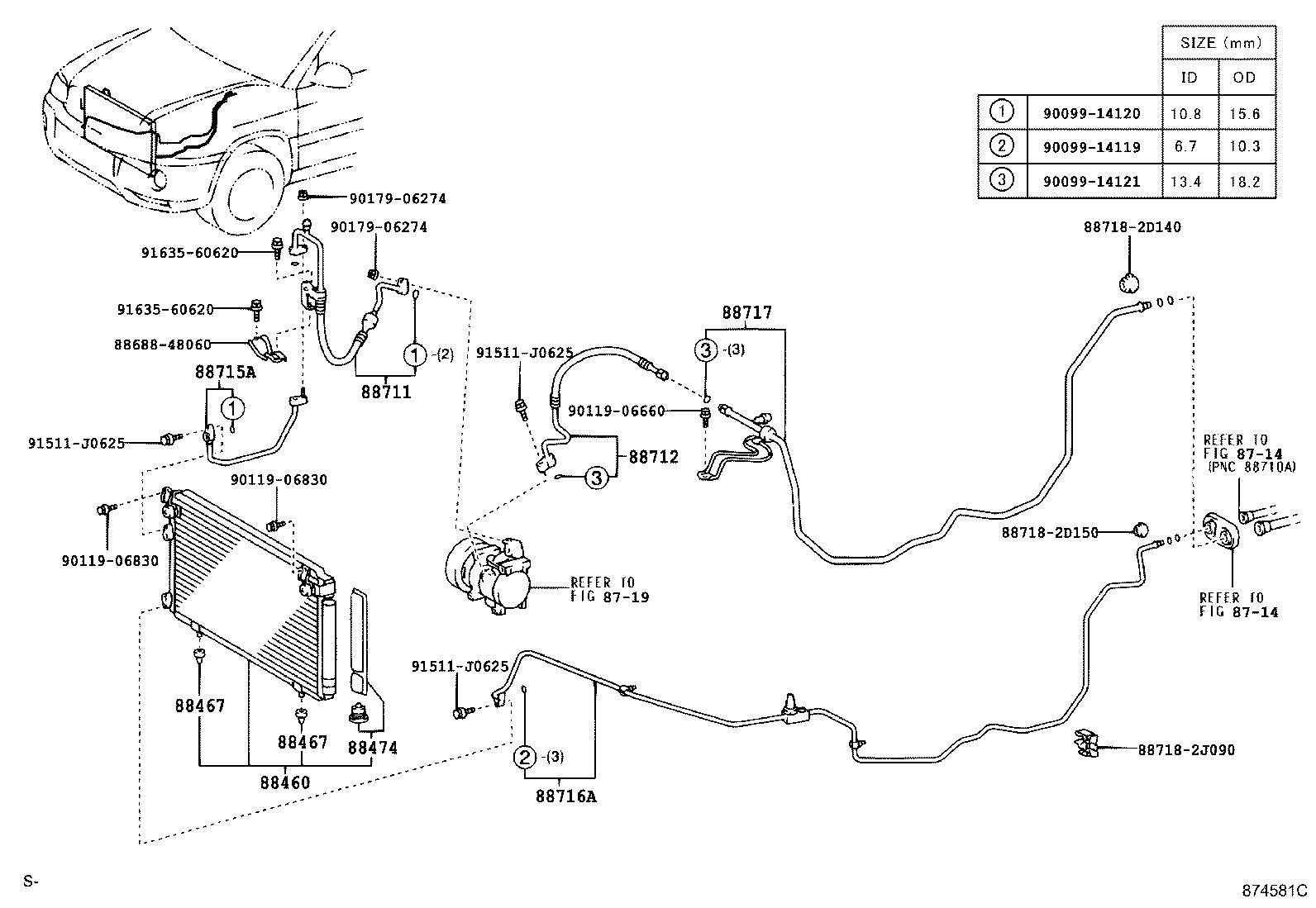

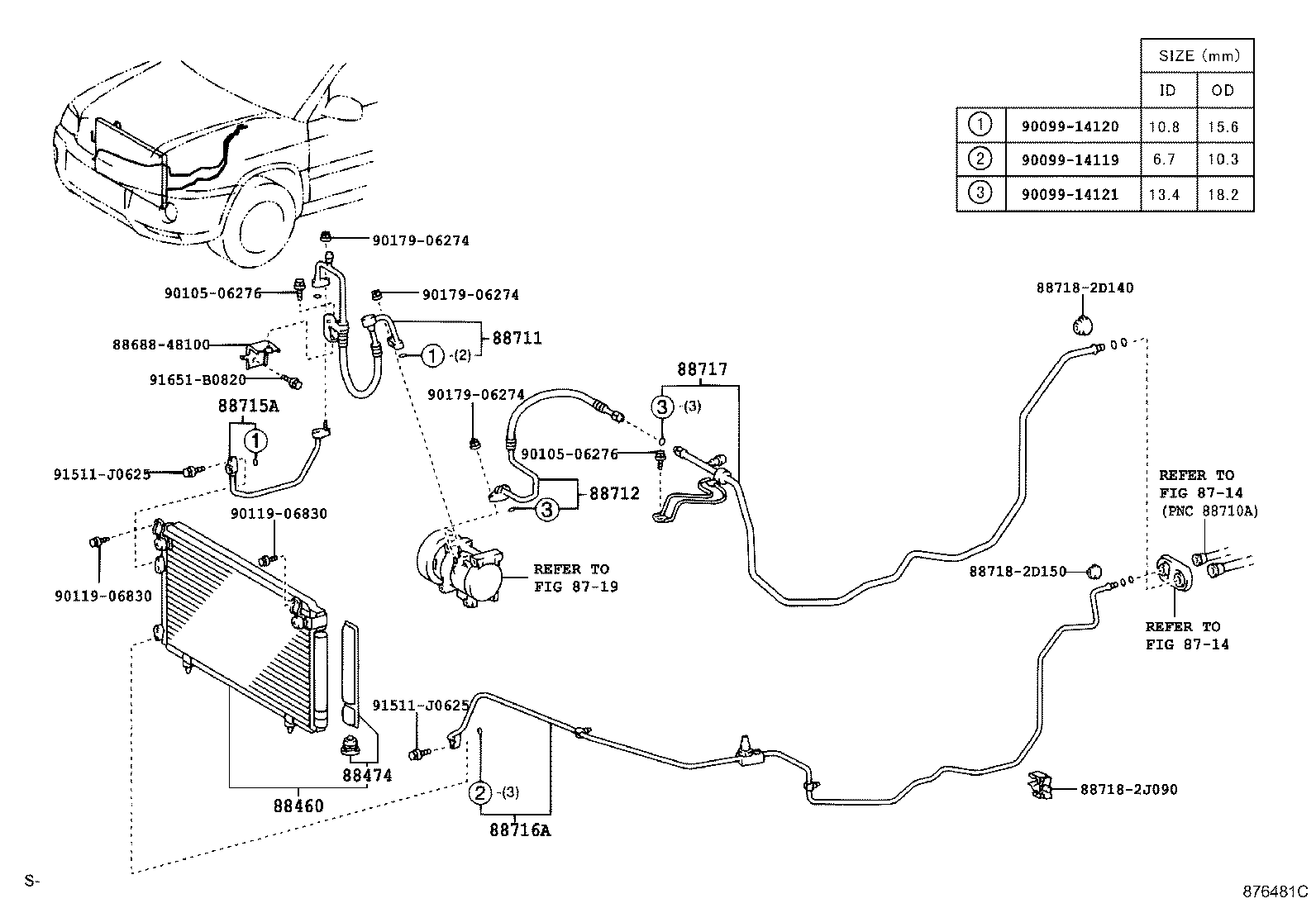

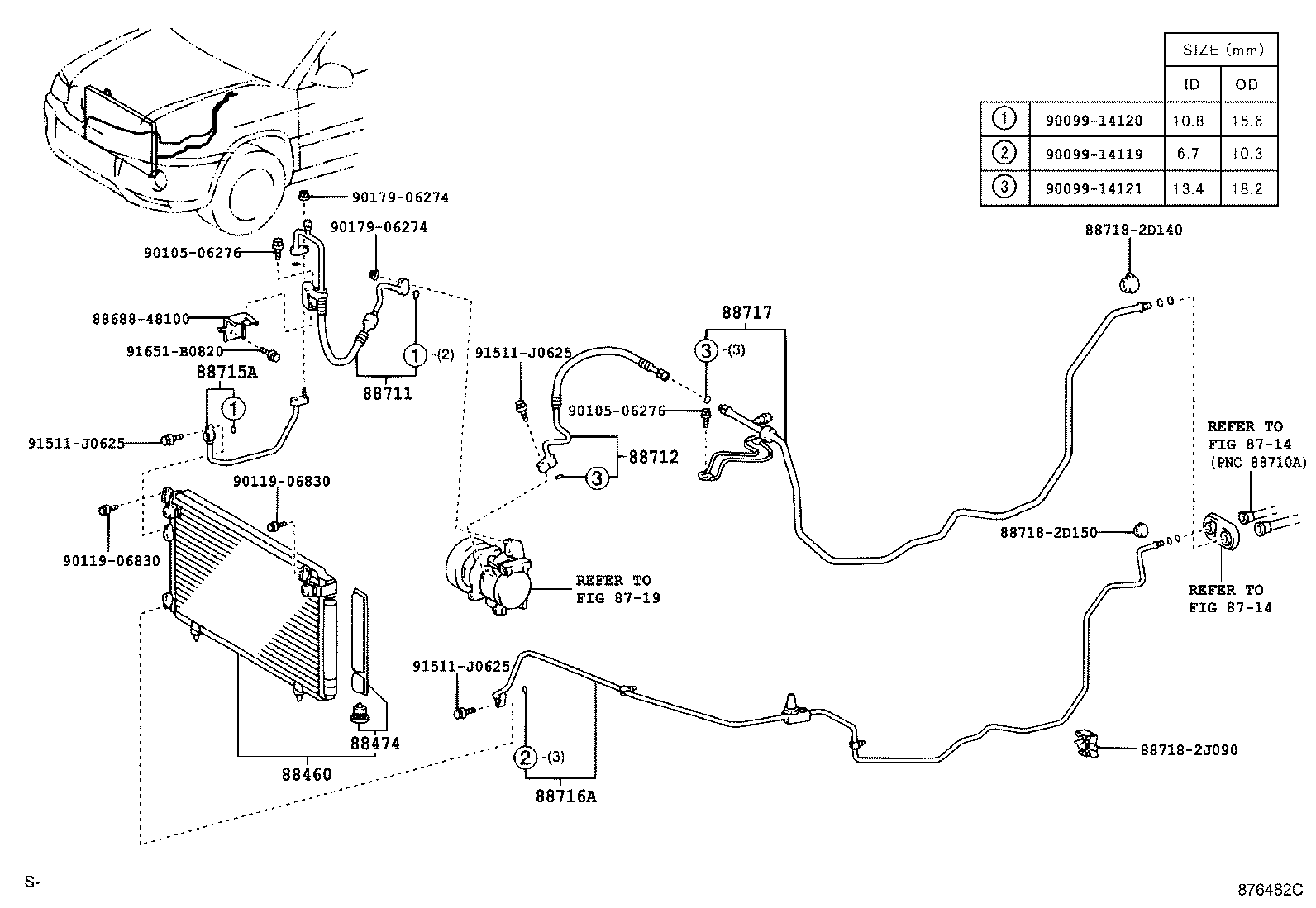

Figure 874580C 874580C 2000-11 → 2003-08 Figure 874581C 874581C 2000-11 → 2003-08 Figure 876481C 876481C 2003-08 → — Figure 876482C 876482C 2003-08 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88717 Pipe, Cooler Refrigerant Suction, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
