Toyota Kluger L/V
2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522110 · Japan
Discontinued model
Data version 2007-10

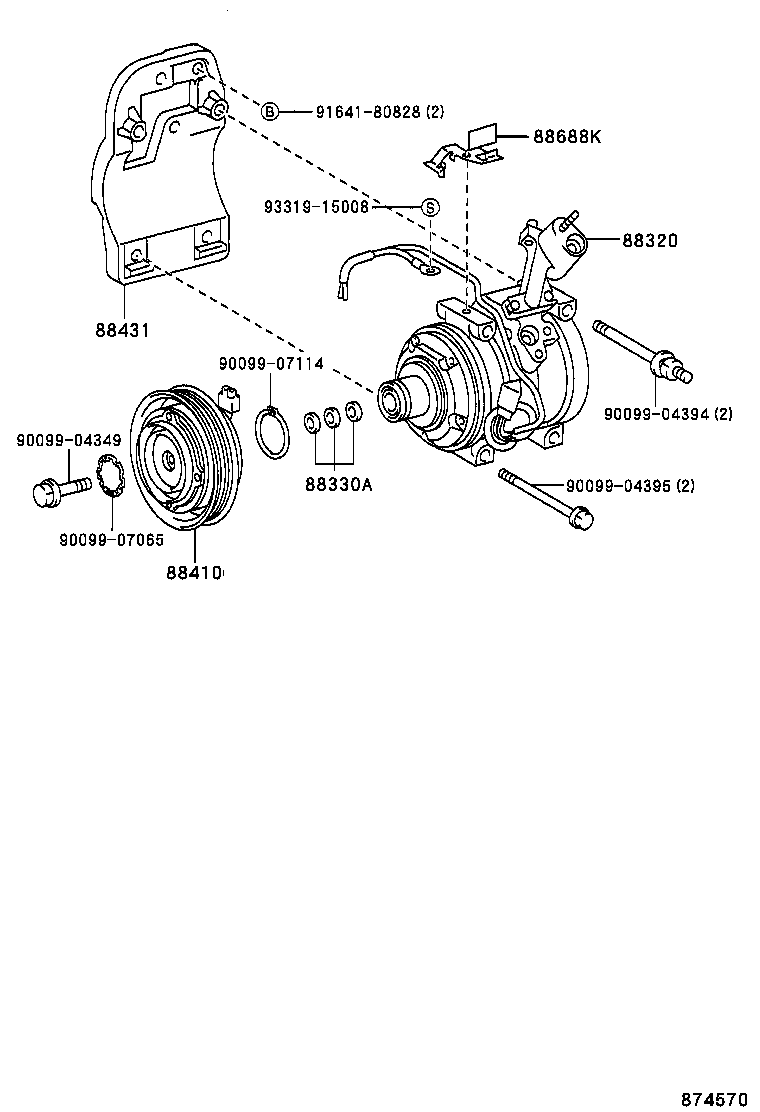

Heating & Air Conditioning - Compressor
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88688K | Bracket, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
