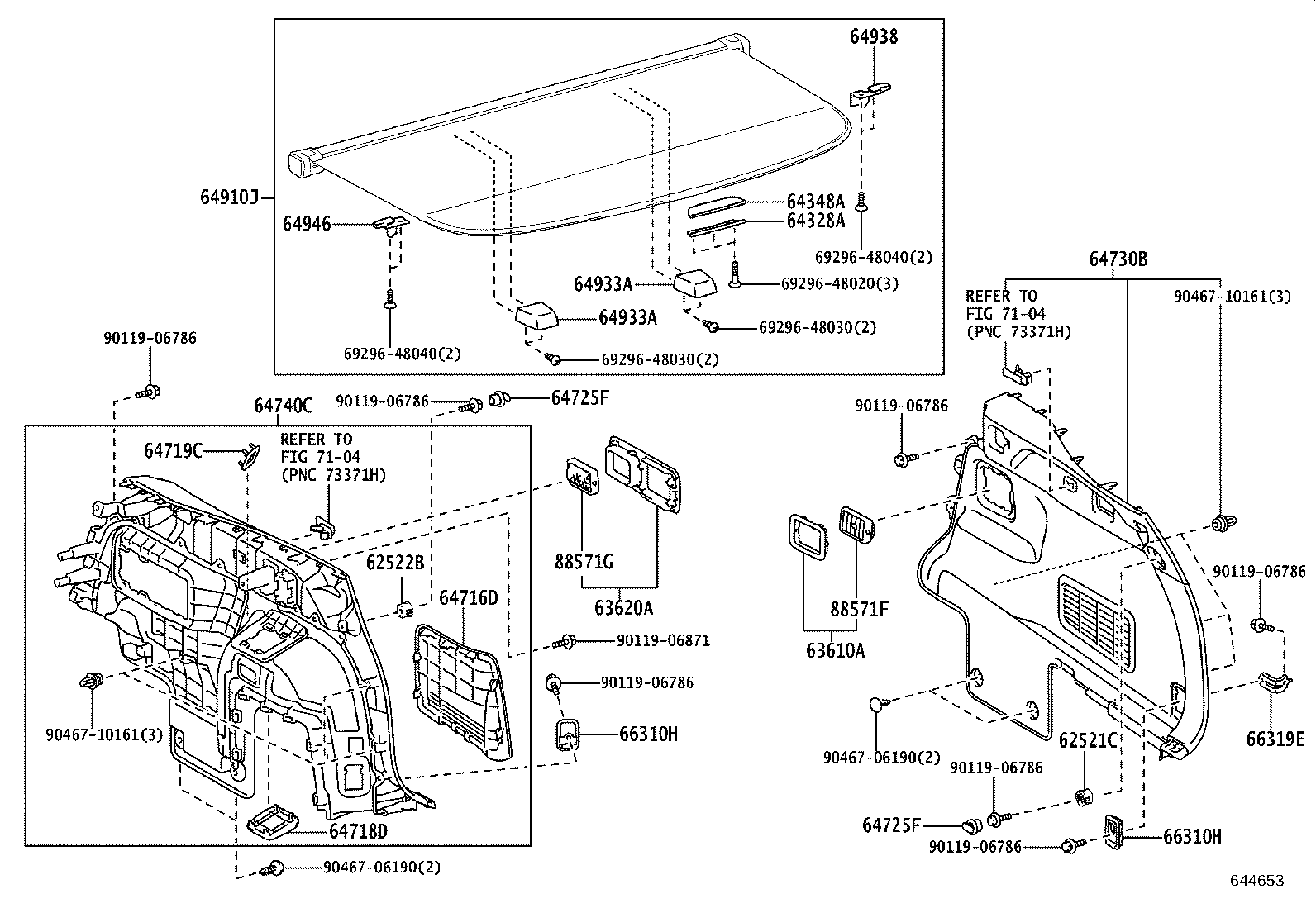

Exploded illustration 644653 7104 — not listed in this catalogue 6929648030 — not listed in this catalogue 6929648020 — not listed in this catalogue 6929648040 — not listed in this catalogue 6929648040 — not listed in this catalogue 6929648030 — not listed in this catalogue 63610A — REGISTER ASSY, AIR OUTLET, RH (5 parts) 63620A — REGISTER ASSY, AIR OUTLET, LH (5 parts) 64328A — COVER, PACKAGE TRAY TRIM CLAMP (5 parts) 64348A — KNOB, PACKAGE TRAY TRIM (5 parts) 64716D — COVER, DECK TRIM, REAR (5 parts) 64718D — COVER, DECK TRIM SERVICE HOLE (5 parts) 64719C — COVER, DECK TRIM POCKET (6 parts) 64725F — HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 (5 parts) 64725F — HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 (5 parts) 64730B — PANEL ASSY, DECK TRIM SIDE, RH (5 parts) 64910J — COVER ASSY, TONNEAU (5 parts) 64933A — BRACKET, TONNEAU COVER HOLDER, RH (5 parts) 64933A — BRACKET, TONNEAU COVER HOLDER, RH (5 parts) 64938 — HOOK, TONNEAU COVER, A (5 parts) 64946 — HOOK, TONNEAU COVER, B (5 parts) 66310H — HOOK ASSY, ROPE (5 parts) 66310H — HOOK ASSY, ROPE (5 parts) 66319E — BRACKET, ROPE HOOK, RH (2 parts) 9011906871 — not listed in this catalogue 9046706190 — not listed in this catalogue 9046706190 — not listed in this catalogue 9046710161 — not listed in this catalogue 7104 — not listed in this catalogue 9046710161 — not listed in this catalogue 9011906786 — not listed in this catalogue 9011906786 — not listed in this catalogue 9011906786 — not listed in this catalogue 9011906786 — not listed in this catalogue 9011906786 — not listed in this catalogue 9011906786 — not listed in this catalogue 9011906786 — not listed in this catalogue 64740C — PANEL ASSY, DECK TRIM SIDE, LH (6 parts) 88571G — GRILLE, COOLER AIR OUTLET, LH (5 parts) 88571F — GRILLE, COOLER AIR OUTLET, RH (5 parts) 62521C — COVER, QUARTER TRIM RH (5 parts) 62522B — COVER, QUARTER TRIM LH (5 parts)
644653 · 23 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
99 parts on this figure
Part number Description Fitment Price
62521C — Cover, Quarter Trim RH
62521-48020-C0 note Cover, Quarter Trim RH
2017-12 → 2019-08 ended
GYL26 ¥310
62521-48020-E0 note Cover, Quarter Trim RH
2017-12 → 2019-08 ended
GYL26 ¥380
62521-48020-C0 note Cover, Quarter Trim RH
2020-07 → —
GYL26 ¥310
62521-48020-C0 note Cover, Quarter Trim RH
2019-08 → 2020-07 ended
GYL26 ¥310
62521-48020-E0 note Cover, Quarter Trim RH
2019-08 → 2020-07 ended
GYL26 ¥380
62522B — Cover, Quarter Trim LH
62521-48020-C0 note Cover, Quarter Trim LH
2017-12 → 2019-08 ended
GYL26 ¥310
62521-48020-E0 note Cover, Quarter Trim LH
2017-12 → 2019-08 ended
GYL26 ¥380
62521-48020-C0 note Cover, Quarter Trim LH
2019-08 → 2020-07 ended
GYL26 ¥310
62521-48020-C0 note Cover, Quarter Trim LH
2020-07 → —
GYL26 ¥310
62521-48020-E0 note Cover, Quarter Trim LH
2019-08 → 2020-07 ended
GYL26 ¥380
63610A — Register Assy, Air Outlet, RH
63610-48010-C0 note Register Assy, Air Outlet, RH
2017-12 → 2019-08 ended
GYL26 ¥2,490
63610-48010-E0 note Register Assy, Air Outlet, RH
2017-12 → 2019-08 ended
GYL26 ¥2,990
63610-48010-C0 note Register Assy, Air Outlet, RH
2020-07 → —
GYL26 ¥2,490
63610-48010-C0 note Register Assy, Air Outlet, RH
2019-08 → 2020-07 ended
GYL26 ¥2,490
63610-48010-E0 note Register Assy, Air Outlet, RH
2019-08 → 2020-07 ended
GYL26 ¥2,990
63620A — Register Assy, Air Outlet, LH
63620-48010-C0 note Register Assy, Air Outlet, LH
2017-12 → 2019-08 ended
GYL26 ¥3,550
63620-48010-E0 note Register Assy, Air Outlet, LH
2017-12 → 2019-08 ended
GYL26 ¥4,260
63620-48010-C0 note Register Assy, Air Outlet, LH
2019-08 → 2020-07 ended
GYL26 ¥3,550
63620-48010-C0 note Register Assy, Air Outlet, LH
2020-07 → —
GYL26 ¥3,550
63620-48010-E0 note Register Assy, Air Outlet, LH
2019-08 → 2020-07 ended
GYL26 ¥4,260
64328A — Cover, Package Tray Trim Clamp
64328-48010-C0 note Cover, Package Tray Trim Clamp
2017-12 → 2019-08 ended
GYL26 ¥620
64328-48010-E0 note Cover, Package Tray Trim Clamp
2017-12 → 2019-08 ended
GYL26 ¥750
64328-48010-C0 note Cover, Package Tray Trim Clamp
2019-08 → 2020-07 ended
GYL26 ¥620
64328-48010-C0 note Cover, Package Tray Trim Clamp
2020-07 → —
GYL26 ¥620
64328-48010-E0 note Cover, Package Tray Trim Clamp
2019-08 → 2020-07 ended
GYL26 ¥750
64348A — Knob, Package Tray Trim
64348-48010-C0 note Knob, Package Tray Trim
2017-12 → 2019-08 ended
GYL26 ¥620
64348-48010-E0 note Knob, Package Tray Trim
2017-12 → 2019-08 ended
GYL26 ¥750
64348-48010-C0 note Knob, Package Tray Trim
2019-08 → 2020-07 ended
GYL26 ¥620
64348-48010-C0 note Knob, Package Tray Trim
2020-07 → —
GYL26 ¥620
64348-48010-E0 note Knob, Package Tray Trim
2019-08 → 2020-07 ended
GYL26 ¥750
64716D — Cover, Deck Trim, Rear
64716-48040-C0 note Cover, Deck Trim, Rear
2017-12 → 2019-08 ended
GYL26 ¥4,390
64716-48040-E0 note Cover, Deck Trim, Rear
2017-12 → 2019-08 ended
GYL26 ¥5,300
64716-48040-C0 note Cover, Deck Trim, Rear
2019-08 → 2020-07 ended
GYL26 ¥4,390
64716-48040-C0 note Cover, Deck Trim, Rear
2020-07 → —
GYL26 ¥4,390
64716-48040-E0 note Cover, Deck Trim, Rear
2019-08 → 2020-07 ended
GYL26 ¥5,300
64718D — Cover, Deck Trim Service Hole
64718-48020-C0 note Cover, Deck Trim Service Hole
2017-12 → 2019-08 ended
GYL26 ¥740
64718-48020-E0 note Cover, Deck Trim Service Hole
2017-12 → 2019-08 ended
GYL26 ¥890
64718-48020-C0 note Cover, Deck Trim Service Hole
2019-08 → 2020-07 ended
GYL26 ¥740
64718-48020-C0 note Cover, Deck Trim Service Hole
2020-07 → —
GYL26 ¥740
64718-48020-E0 note Cover, Deck Trim Service Hole
2019-08 → 2020-07 ended
GYL26 ¥890
64719C — Cover, Deck Trim Pocket
64719-48010-C1 note Cover, Deck Trim Pocket
2017-12 → 2019-08 ended
GYL26 ¥410
64719-48010-E0 note Cover, Deck Trim Pocket
2017-12 → 2019-08 ended
GYL26 ¥500
64719-48010-C1 note Cover, Deck Trim Pocket
2019-08 → 2020-07 ended
GYL26 ¥410
64719-48010-C1 note Cover, Deck Trim Pocket
2020-07 → —
GYL26 ¥410
64719-48010-E0 note Cover, Deck Trim Pocket
2019-08 → 2020-07 ended
GYL26 ¥500
64719-48020-C0 note Cover, Deck Trim Pocket
2020-07 → —
GYL26 —
64725F — Hook, Luggage Compartment Trim, NO.1
64725-48020-C0 note Hook, Luggage Compartment Trim, NO.1
2017-12 → 2019-08 ended
GYL26 ¥300
64725-48020-E0 note Hook, Luggage Compartment Trim, NO.1
2017-12 → 2019-08 ended
GYL26 ¥360
64725-48020-C0 note Hook, Luggage Compartment Trim, NO.1
2019-08 → 2020-07 ended
GYL26 ¥300
64725-48020-C0 note Hook, Luggage Compartment Trim, NO.1
2020-07 → —
GYL26 ¥300
64725-48020-E0 note Hook, Luggage Compartment Trim, NO.1
2019-08 → 2020-07 ended
GYL26 ¥360
64730B — Panel Assy, Deck Trim Side, RH
64730-48170-C0 note Panel Assy, Deck Trim Side, RH
2017-12 → 2019-08 ended
GYL26 ¥19,300
64730-48170-E0 note Panel Assy, Deck Trim Side, RH
2017-12 → 2019-08 ended
GYL26 ¥23,200
64730-48170-C0 note Panel Assy, Deck Trim Side, RH
2019-08 → 2020-07 ended
GYL26 ¥19,300
64730-48170-C0 note Panel Assy, Deck Trim Side, RH
2020-07 → —
GYL26 ¥19,300
64730-48170-E0 note Panel Assy, Deck Trim Side, RH
2019-08 → 2020-07 ended
GYL26 ¥23,200
64740C — Panel Assy, Deck Trim Side, LH
64740-48160-C2 note Panel Assy, Deck Trim Side, LH
2017-12 → 2019-08 ended
GYL26 ¥21,600
64740-48160-E1 note Panel Assy, Deck Trim Side, LH
2017-12 → 2019-08 ended
GYL26 ¥26,000
64740-48160-C2 note Panel Assy, Deck Trim Side, LH
2019-08 → 2020-07 ended
GYL26 ¥21,600
64740-48160-C2 note Panel Assy, Deck Trim Side, LH
2020-07 → —
GYL26 ¥21,600
64740-48160-E1 note Panel Assy, Deck Trim Side, LH
2019-08 → 2020-07 ended
GYL26 ¥26,000
64740-48220-C0 note Panel Assy, Deck Trim Side, LH
2020-07 → —
GYL26 ¥21,600
64910J — Cover Assy, Tonneau
64910-48150-C0 note Cover Assy, Tonneau
2017-12 → 2019-08 ended
GYL26 ¥26,400
64910-48150-E0 note Cover Assy, Tonneau
2017-12 → 2019-08 ended
GYL26 ¥31,700
64910-48150-C0 note Cover Assy, Tonneau
2019-08 → 2020-07 ended
GYL26 ¥26,400
64910-48150-C0 note Cover Assy, Tonneau
2020-07 → —
GYL26 ¥26,400
64910-48150-E0 note Cover Assy, Tonneau
2019-08 → 2020-07 ended
GYL26 ¥31,700
64933A — Bracket, Tonneau Cover Holder, RH
64933-48011-C0 note Bracket, Tonneau Cover Holder, RH
2017-12 → 2019-08 ended
GYL26 ¥880
64933-48011-E0 note Bracket, Tonneau Cover Holder, RH
2017-12 → 2019-08 ended
GYL26 ¥1,060
64933-48011-C0 note Bracket, Tonneau Cover Holder, RH
2019-08 → 2020-07 ended
GYL26 ¥880
64933-48011-C0 note Bracket, Tonneau Cover Holder, RH
2020-07 → —
GYL26 ¥880
64933-48011-E0 note Bracket, Tonneau Cover Holder, RH
2019-08 → 2020-07 ended
GYL26 ¥1,060
64938 — Hook, Tonneau Cover, A
64938-48011-C0 note Hook, Tonneau Cover, A
2017-12 → 2019-08 ended
GYL26 ¥880
64938-48011-E0 note Hook, Tonneau Cover, A
2017-12 → 2019-08 ended
GYL26 ¥1,060
64938-48011-C0 note Hook, Tonneau Cover, A
2019-08 → 2020-07 ended
GYL26 ¥880
64938-48011-C0 note Hook, Tonneau Cover, A
2020-07 → —
GYL26 ¥880
64938-48011-E0 note Hook, Tonneau Cover, A
2019-08 → 2020-07 ended
GYL26 ¥1,060
64946 — Hook, Tonneau Cover, B
64946-48011-C0 note Hook, Tonneau Cover, B
2017-12 → 2019-08 ended
GYL26 ¥880
64946-48011-E0 note Hook, Tonneau Cover, B
2017-12 → 2019-08 ended
GYL26 ¥1,060
64946-48011-C0 note Hook, Tonneau Cover, B
2019-08 → 2020-07 ended
GYL26 ¥880
64946-48011-C0 note Hook, Tonneau Cover, B
2020-07 → —
GYL26 ¥880
64946-48011-E0 note Hook, Tonneau Cover, B
2019-08 → 2020-07 ended
GYL26 ¥1,060
66310H — Hook Assy, Rope
66310-30011-C1 note Hook Assy, Rope
2017-12 → 2019-08 ended
GYL26 ¥1,320
66310-30011-E4 note Hook Assy, Rope
2017-12 → 2019-08 ended
GYL26 ¥1,760
66310-30011-C1 note Hook Assy, Rope
2019-08 → 2020-07 ended
GYL26 ¥1,320
66310-30011-C1 note Hook Assy, Rope
2020-07 → —
GYL26 ¥1,320
66310-30011-E4 note Hook Assy, Rope
2019-08 → 2020-07 ended
GYL26 ¥1,760
66319E — Bracket, Rope Hook, RH
66319-48010 Bracket, Rope Hook, RH
2017-12 → 2019-08 ended
GYL26 ¥410
66319-48010 Bracket, Rope Hook, RH
2019-08 → —
GYL26 ¥410
88571F — Grille, Cooler Air Outlet, RH
88571-48010-C0 note Grille, Cooler Air Outlet, RH
2017-12 → 2019-08 ended
GYL26 ¥1,540
88571-48010-E0 note Grille, Cooler Air Outlet, RH
2017-12 → 2019-08 ended
GYL26 ¥1,850
88571-48010-C0 note Grille, Cooler Air Outlet, RH
2019-08 → 2020-07 ended
GYL26 ¥1,540
88571-48010-C0 note Grille, Cooler Air Outlet, RH
2020-07 → —
GYL26 ¥1,540
88571-48010-E0 note Grille, Cooler Air Outlet, RH
2019-08 → 2020-07 ended
GYL26 ¥1,850
88571G — Grille, Cooler Air Outlet, LH
88571-48010-C0 note Grille, Cooler Air Outlet, LH
2017-12 → 2019-08 ended
GYL26 ¥1,540
88571-48010-E0 note Grille, Cooler Air Outlet, LH
2017-12 → 2019-08 ended
GYL26 ¥1,850
88571-48010-C0 note Grille, Cooler Air Outlet, LH
2019-08 → 2020-07 ended
GYL26 ¥1,540
88571-48010-C0 note Grille, Cooler Air Outlet, LH
2020-07 → —
GYL26 ¥1,540
88571-48010-E0 note Grille, Cooler Air Outlet, LH
2019-08 → 2020-07 ended
GYL26 ¥1,850
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
