Toyota Lexus RX450HL

2017-12 → 2022-09 · chassis GYL26 · catalogue 522130 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

14 part groups · 2 illustrations

Illustrations

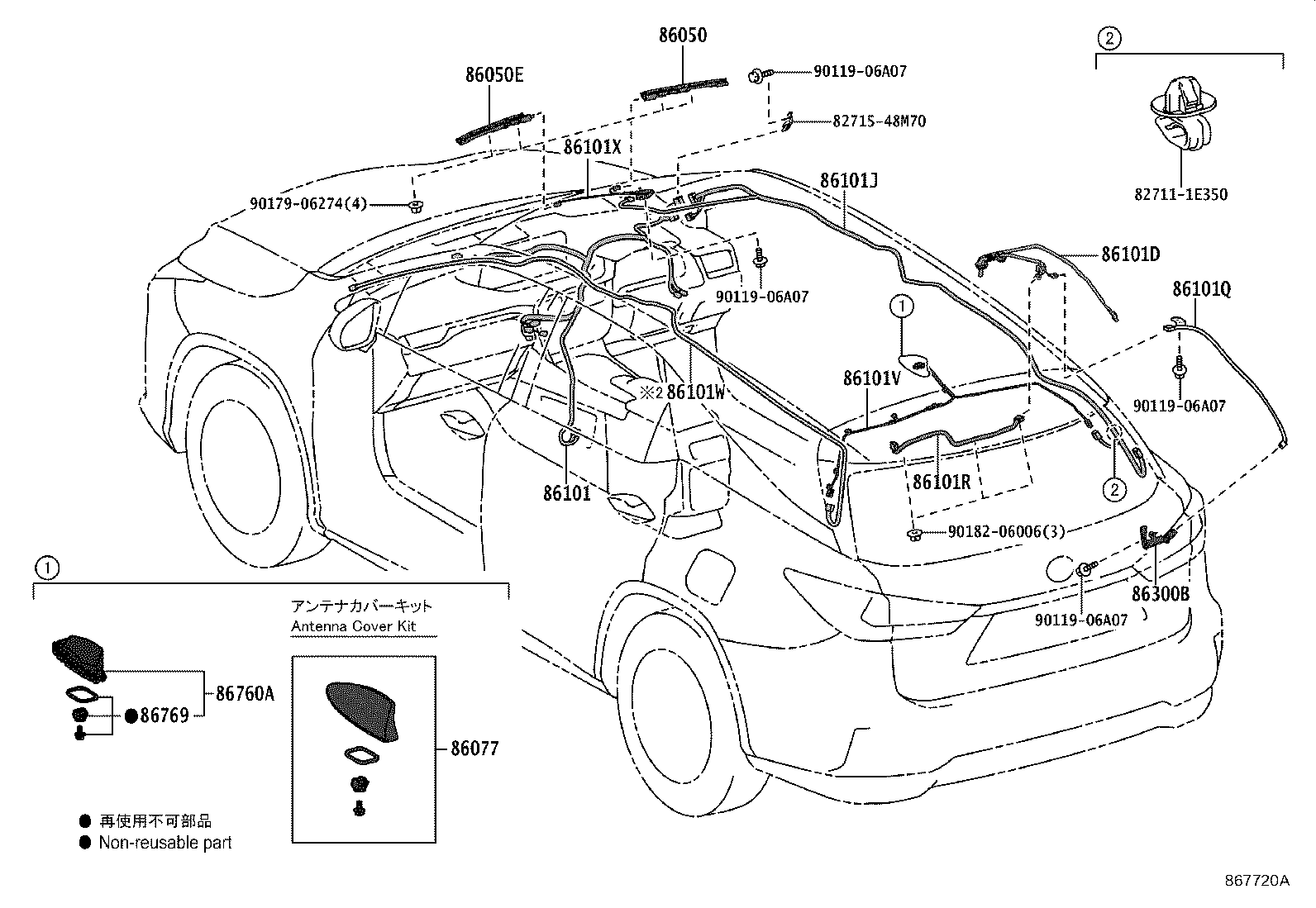

Figure 867159B 867159B 2017-12 → 2019-08 Figure 867720A 867720A 2019-08 → —

Part groups

PNCDescription
86050 Antenna Assy, Television
86050E Antenna Assy, Television
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86101R Cord Sub-assy, Antenna, NO.5
86101V Cord Sub-assy, Antenna, NO.6
86101W Cord Sub-assy, Antenna, NO.7
86101X Cord Sub-assy, Antenna, NO.8
86300B Antenna Assy, Amplifier, NO.1
86760A Antenna Assy, Telephone
86769 Housing, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
