Toyota Lexus RX450HL
2017-12 → 2022-09 · chassis GYL26 · catalogue 522130 · Japan
Supported model
Data version 2023-05
Telephone & Mayday

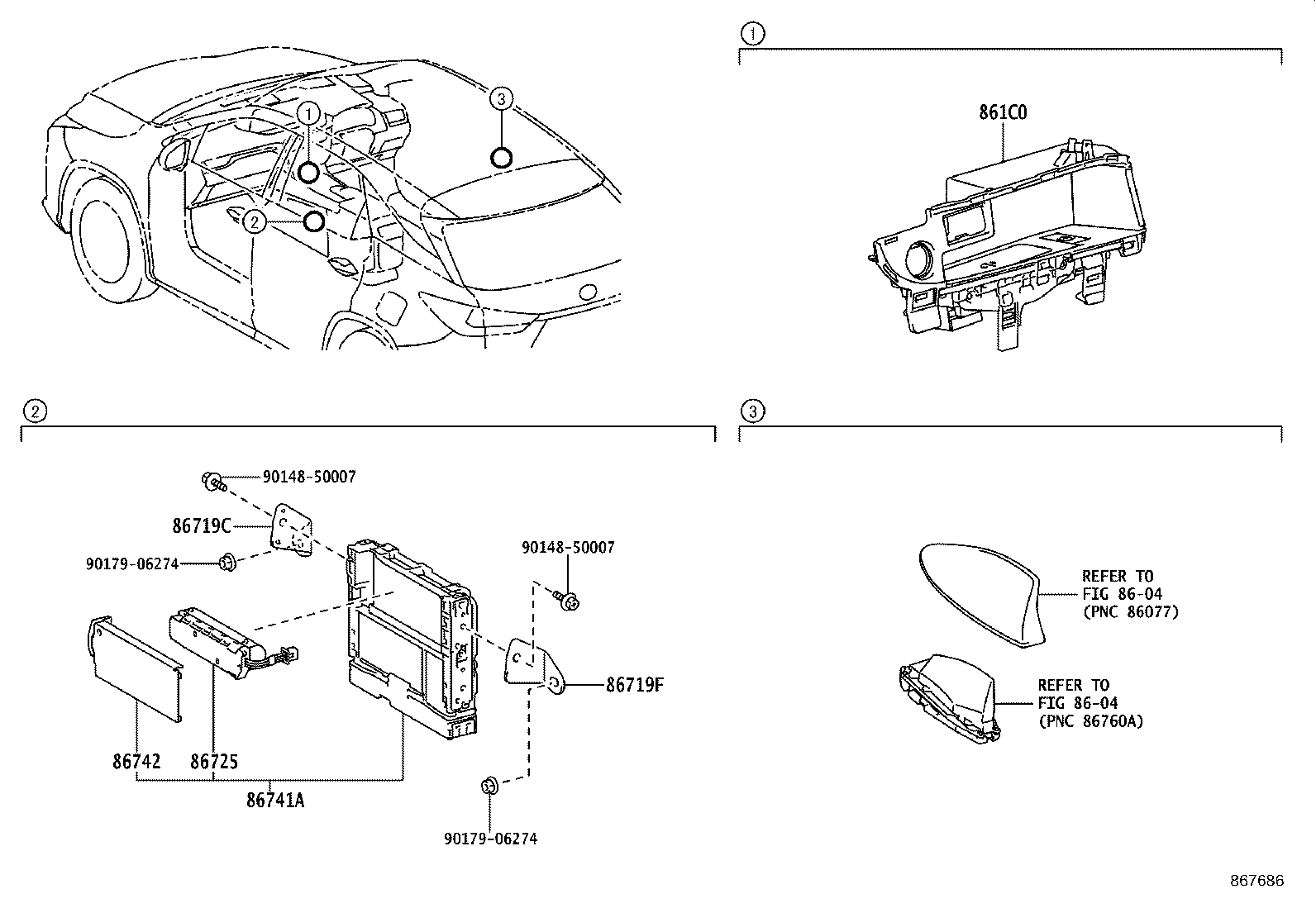

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 861C0 | Cradle Assy, Mobile Wireless Charger |
| 86719C | Bracket, Telephone NO.3 |
| 86719F | Bracket, Telephone NO.4 |
| 86725 | Battery, Mobilephone |
| 86740 | Transceiver Assy, Telephone |
| 86741A | Transceiver, Telematics |
| 86742 | Cover, Transceiver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
