Toyota Harrier HV

2005-03 → 2012-06 · chassis MHU38 · catalogue 524110 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

14 part groups · 2 illustrations

Illustrations

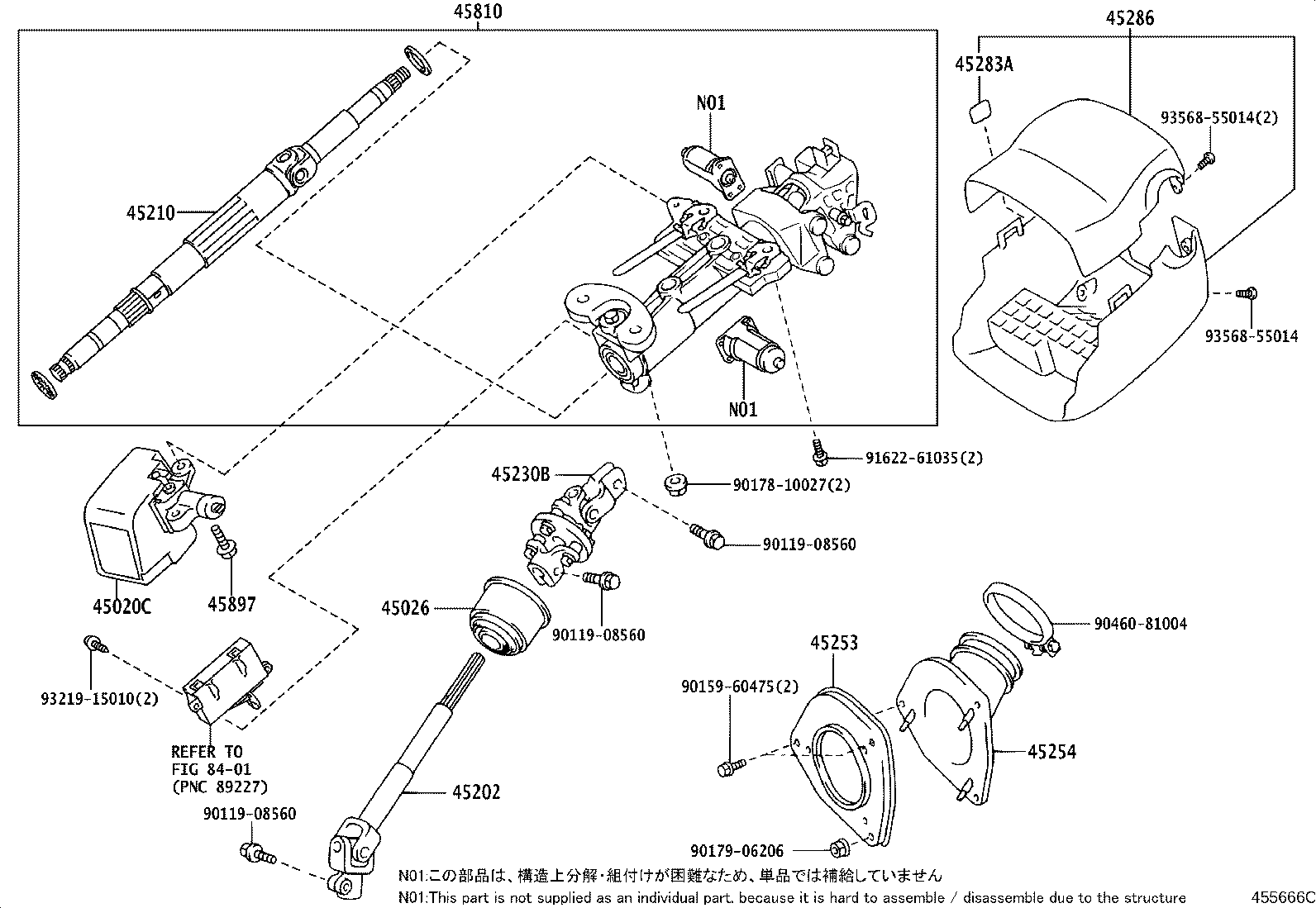

Figure 454188F 454188F 2005-03 → 2010-11 Figure 455666C 455666C 2010-11 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45026 Cover Sub-assy, Steering Column Hole, NO.2
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45202 Shaft Sub-assy, Steering Intermediate
45210 Shaft Assy, Steering Main
45230B Joint Assy, Steering Shaft Universal
45250 Column Assy, Steering
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45263 Ring, Steering Column, NO.1
45283A Plate, Beam Change & Turn Signal Caution
45286 Cover, Steering Column
45810 Gear Assy, Tilt Steering, W/Motor
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
