Toyota Harrier HV
2005-03 → 2012-06 · chassis MHU38 · catalogue 524110 · Japan
Supported model
Data version 2013-01

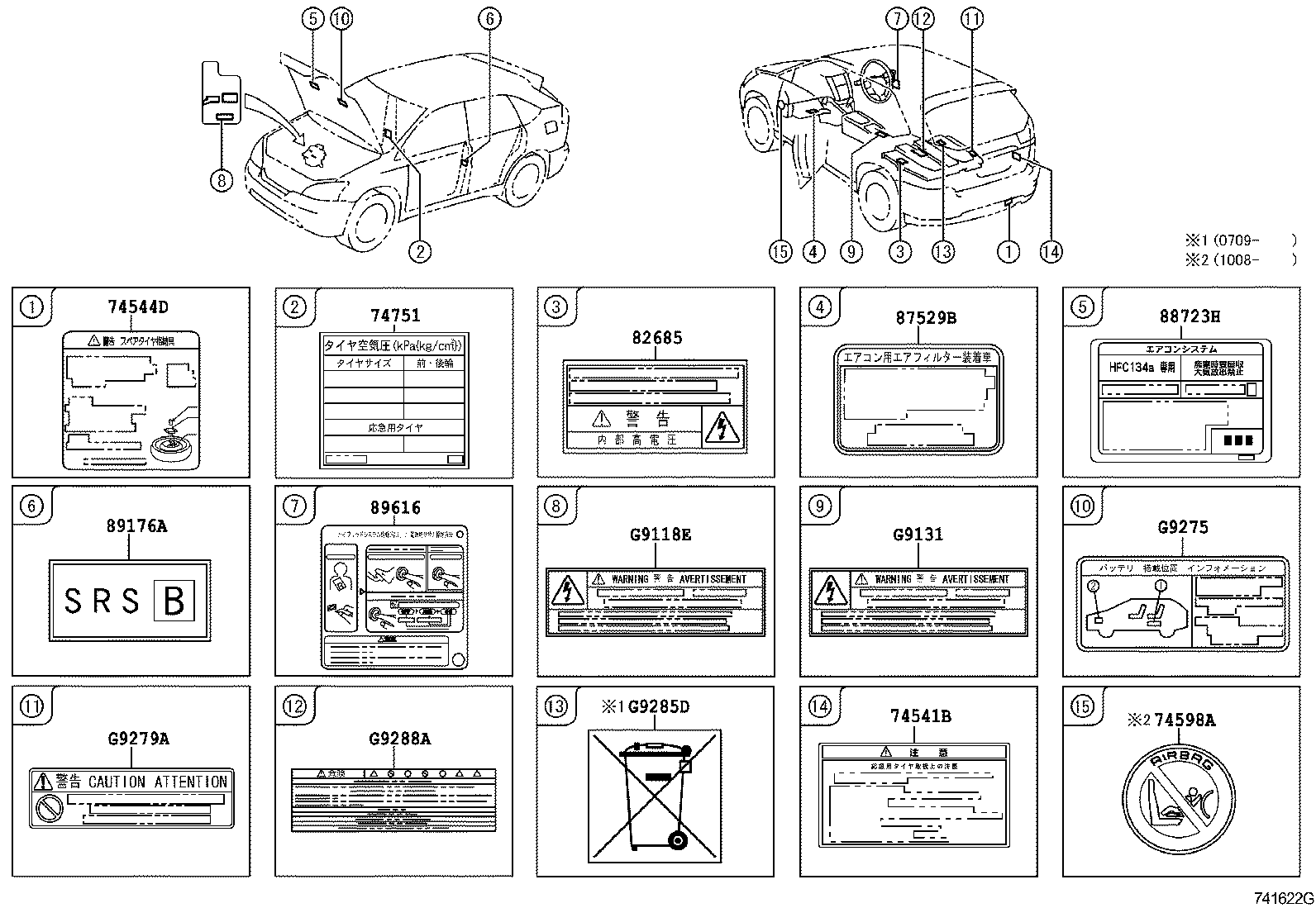

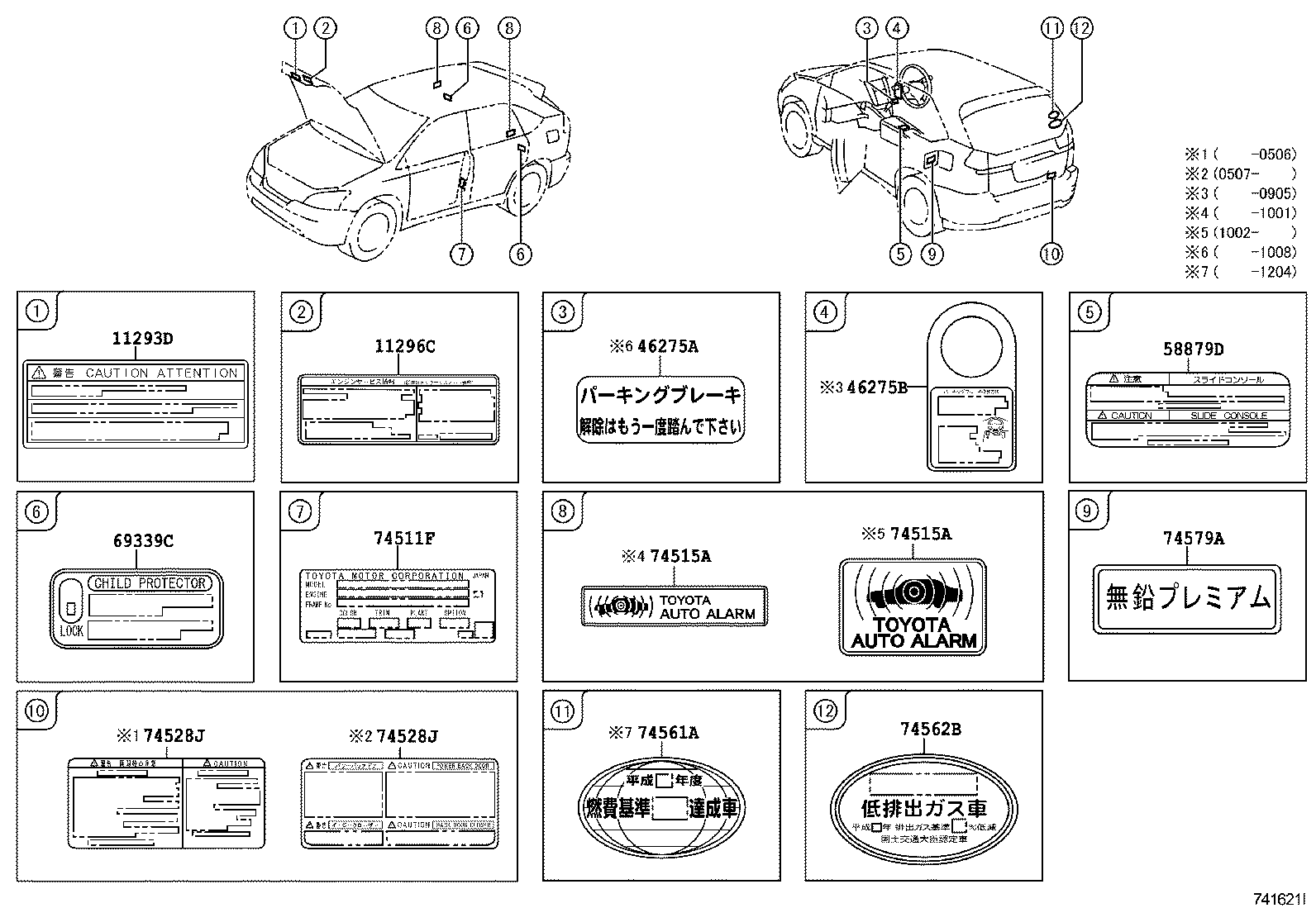

Caution Plate (EXTERIOR & INTERIOR)
31 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11293D | Label, Engine Caution |
| 11296C | Label, Engine Service Information |
| 16448A | Plate, Radiator Caution |
| 16793E | Label, Cooling Fan Caution |
| 17791A | Label, Maintenance Information |
| 46275A | Label, Parking Brake Release Information, NO.1 |
| 46275B | Label, Parking Brake Release Information, NO.2 |
| 58879D | Label, Console Door Lock Caution |
| 69339C | Label, Child Protector Information |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515A | Plate, Theft Warning |
| 74528J | Label, Power Back Door Caution |
| 74541B | Plate, Compact Spare Tire Caution |
| 74544D | Plate, Tire Carrier Caution |
| 74561A | Label, Fuel Consumption Information |
| 74562B | Label, Emission Information |
| 74579A | Label, Unleaded Fuel Information |
| 74598A | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 82685 | Plate, Caution |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| 88723H | Label, Cooler Service Caution |
| 89176A | Label, Airbag Deployment Information |
| 89616 | Label, Push Start Information |
| G9118E | Label, Electric Vehicle Unit Controller Caution, NO.1 |
| G9131 | Label, Electric Vehicle Emission Control Information |
| G9275 | Label, Battery Caution, NO.1 |
| G9279A | Label, Battery Caution,NO.4 |
| G9285D | Label, HV Battery Information, NO.1 |
| G9288A | Label, Battery Carging Notice |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
