Toyota Harrier HV

2005-03 → 2012-06 · chassis MHU38 · catalogue 524110 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inverter Cooling

5 part groups · 2 illustrations

Illustrations

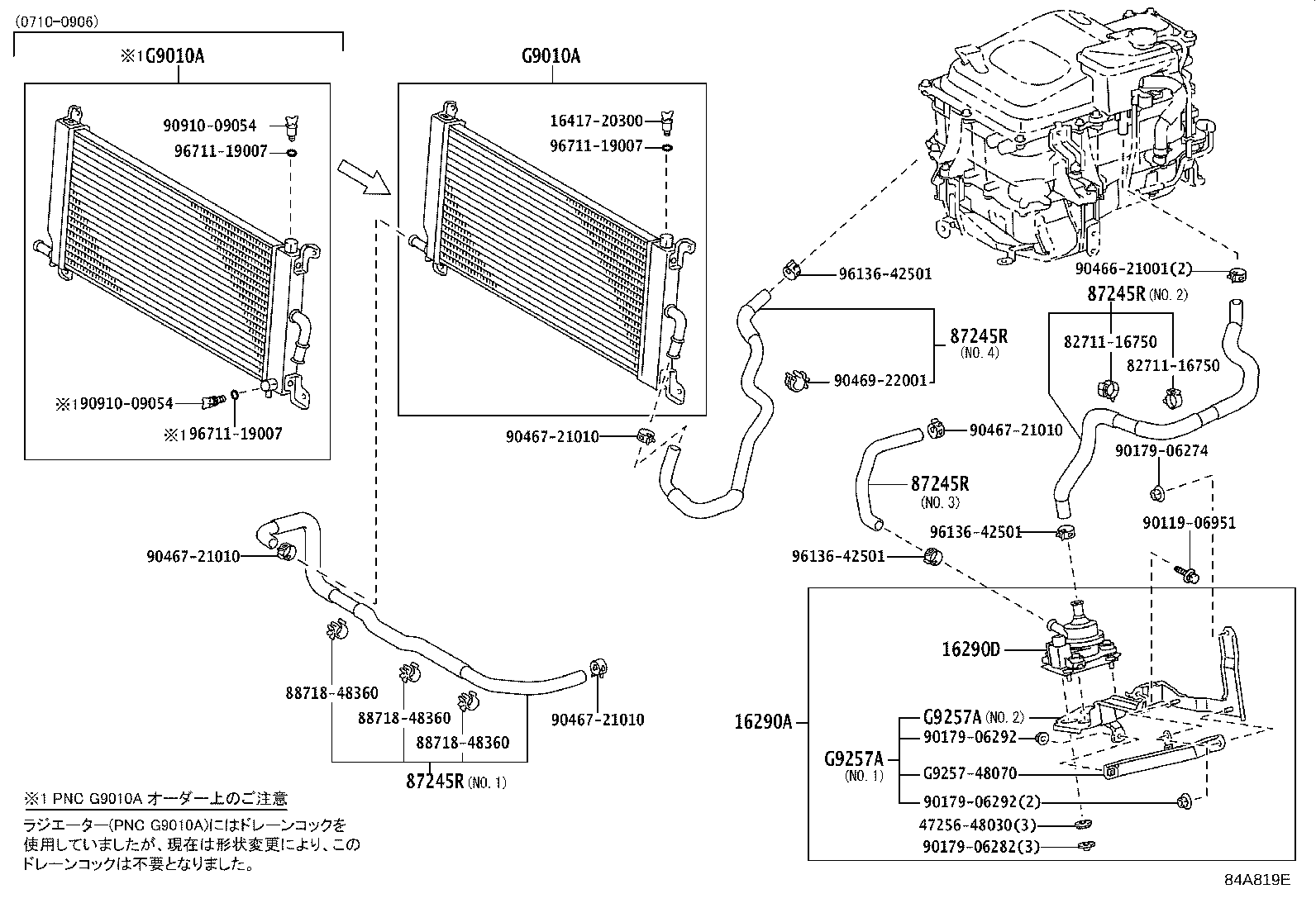

Figure 849852H 849852H 2005-03 → 2007-10 Figure 84A819E 84A819E 2007-10 → —

Part groups

PNCDescription
16290A Pump Assy, Water W/Motor & Bracket
16290D Pump Assy, Water W/Motor
87245R Hose, Water
G9010A Radiator Assy
G9257A Bracket, Inverter, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
