Toyota Harrier HV
2005-03 → 2012-06 · chassis MHU38 · catalogue 524110 · Japan
Supported model
Data version 2013-01
Radio Receiver & Amplifier & Condenser
6 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

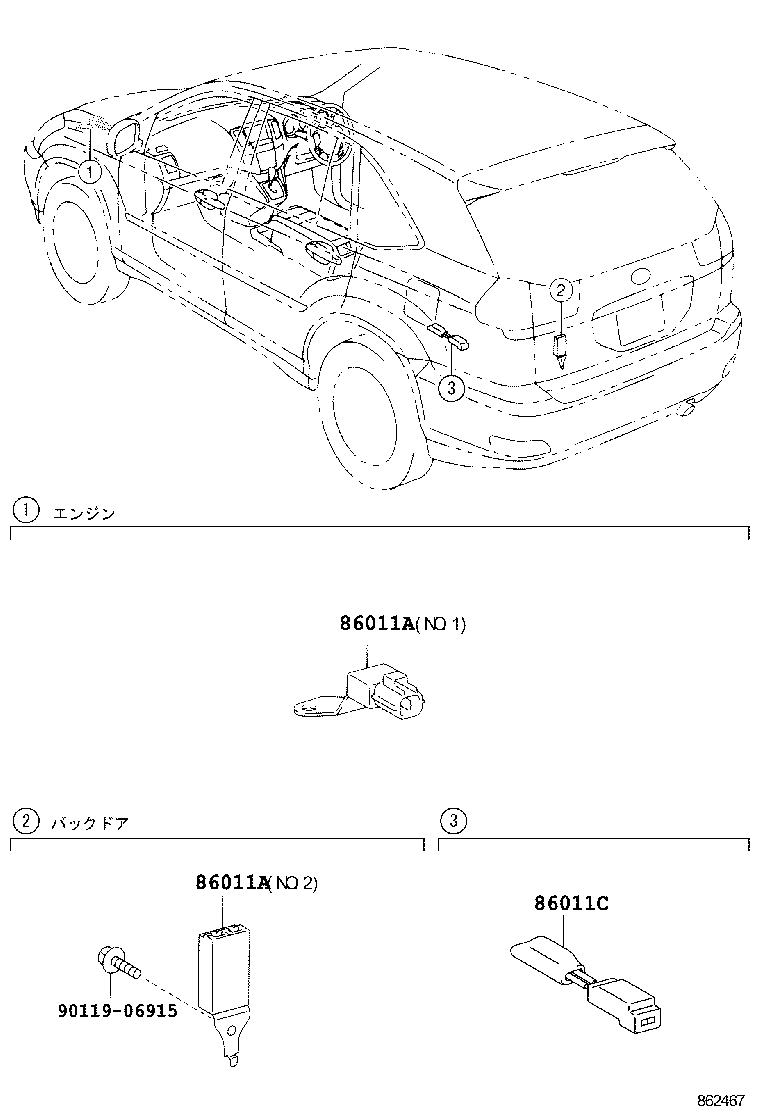

| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |

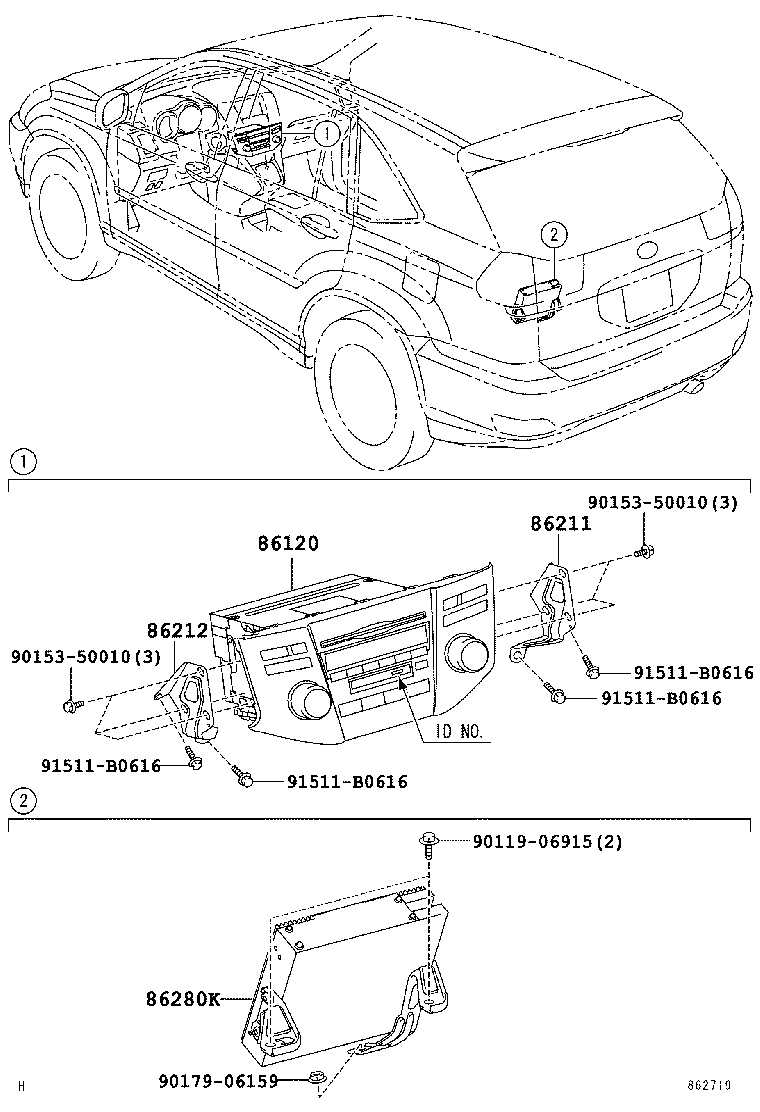

| 86120 | Receiver Assy, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86280K | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
