Toyota Harrier HV

2005-03 → 2012-06 · chassis MHU38 · catalogue 524110 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

11 part groups · 2 illustrations

Illustrations

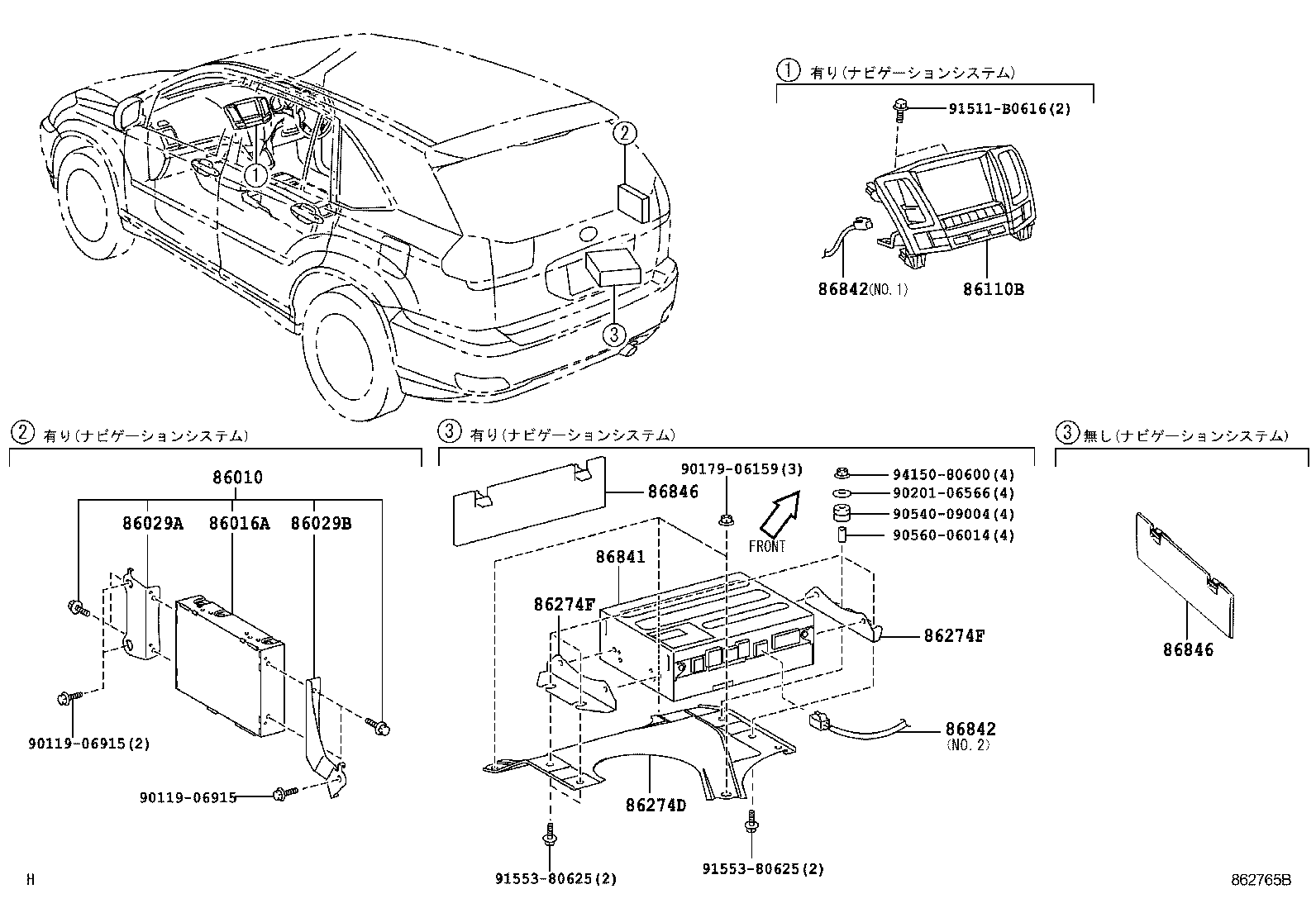

Figure 862454B 862454B 2005-03 → 2006-08 Figure 862765B 862765B 2006-08 → —

Part groups

PNCDescription
86010 Tuner Assy, Television
86016A Parts Set, Television Tuner
86029A Bracket Set, Television, NO.1
86029B Bracket Set, Television, NO.2
86110B Multi-display Assy
86271 Disc, Disc Player
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86846 Plate, Navigation Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
