Toyota Harrier HV

2005-03 → 2012-06 · chassis MHU38 · catalogue 524110 · Japan

Supported model Data version 2013-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

7 part groups · 4 illustrations

Illustrations

Figure 861908C

861908C 2005-03 → —

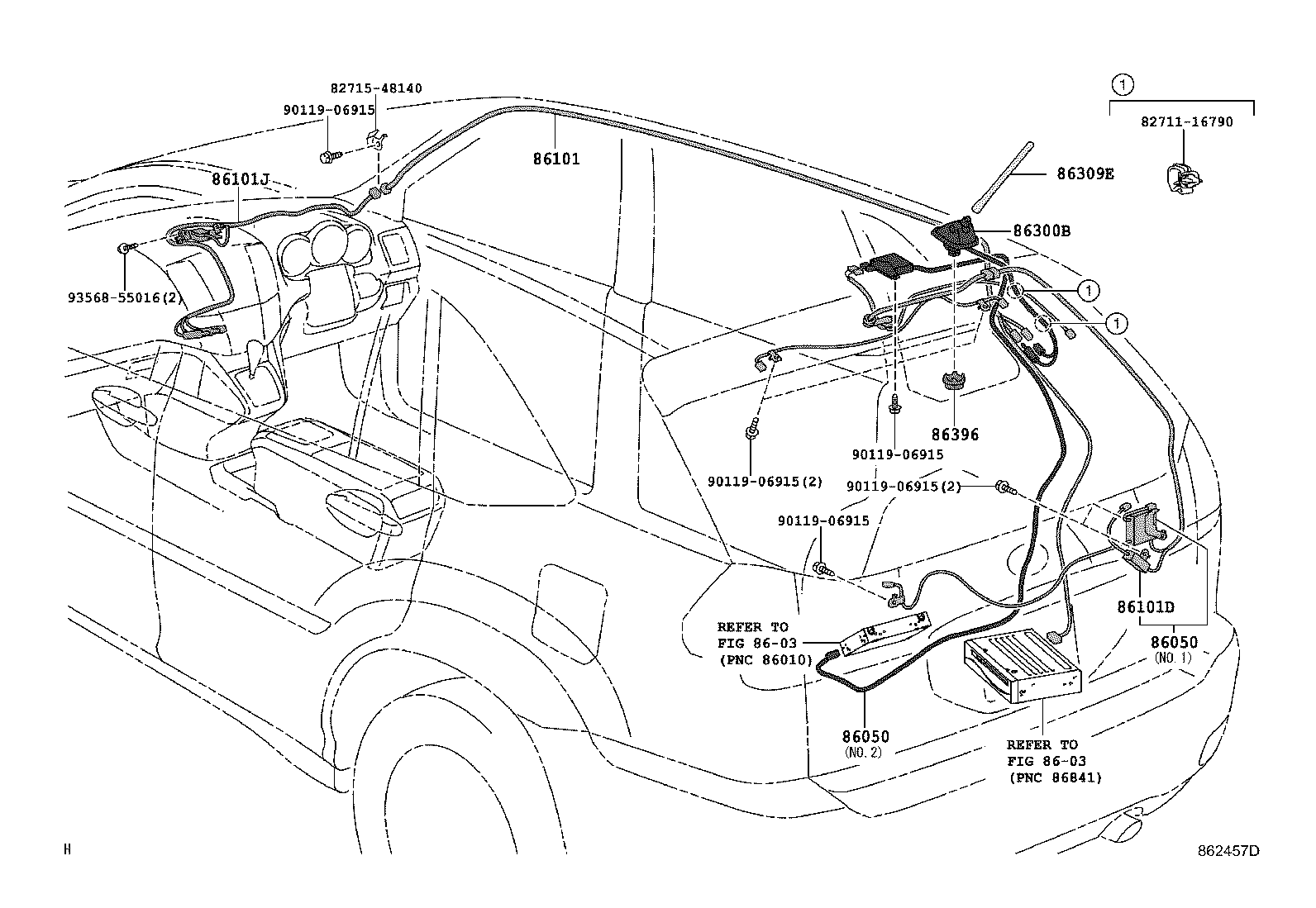

Figure 862457D

862457D 2005-03 → 2006-08

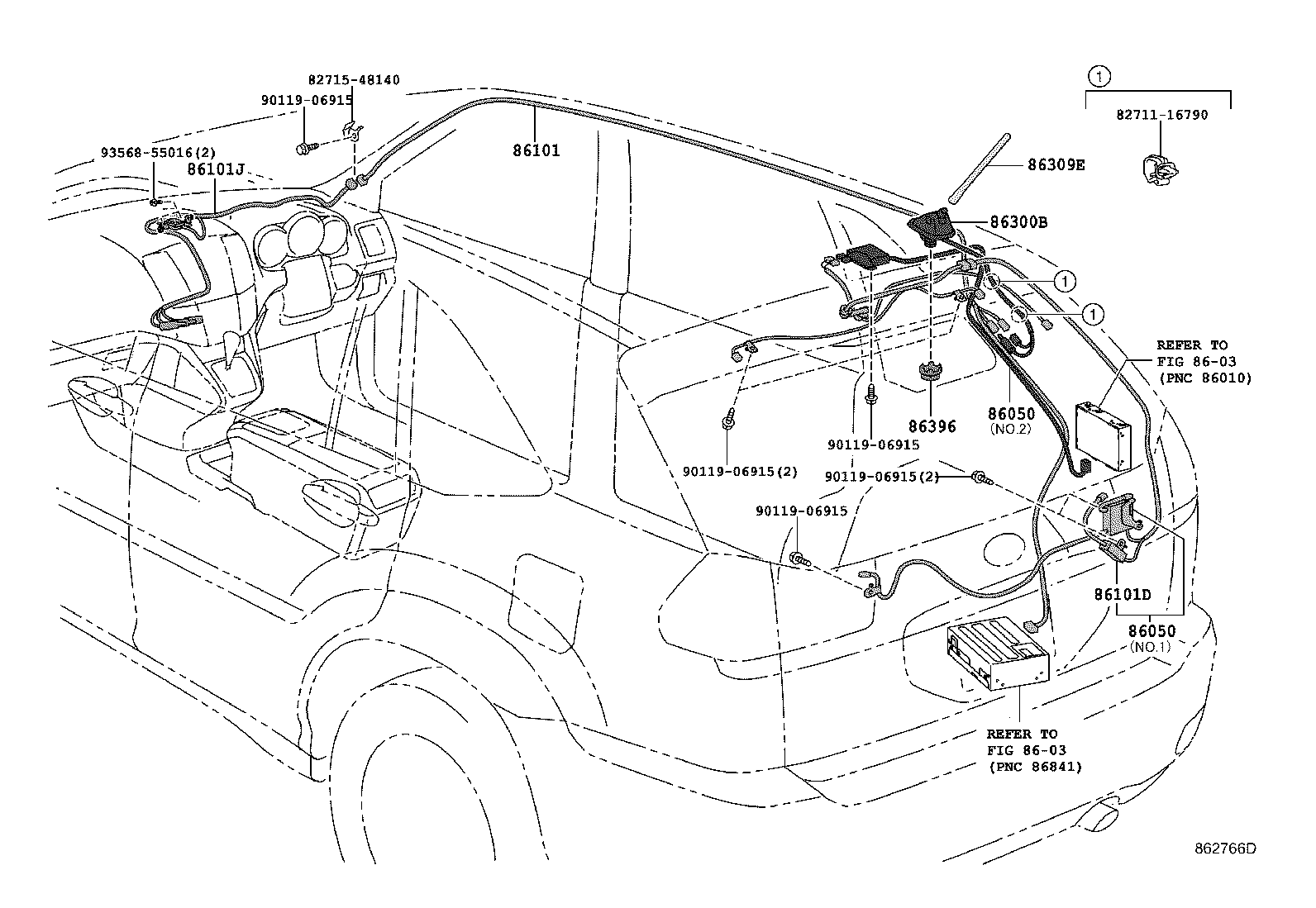

Figure 862766D

862766D 2006-08 → 2010-08

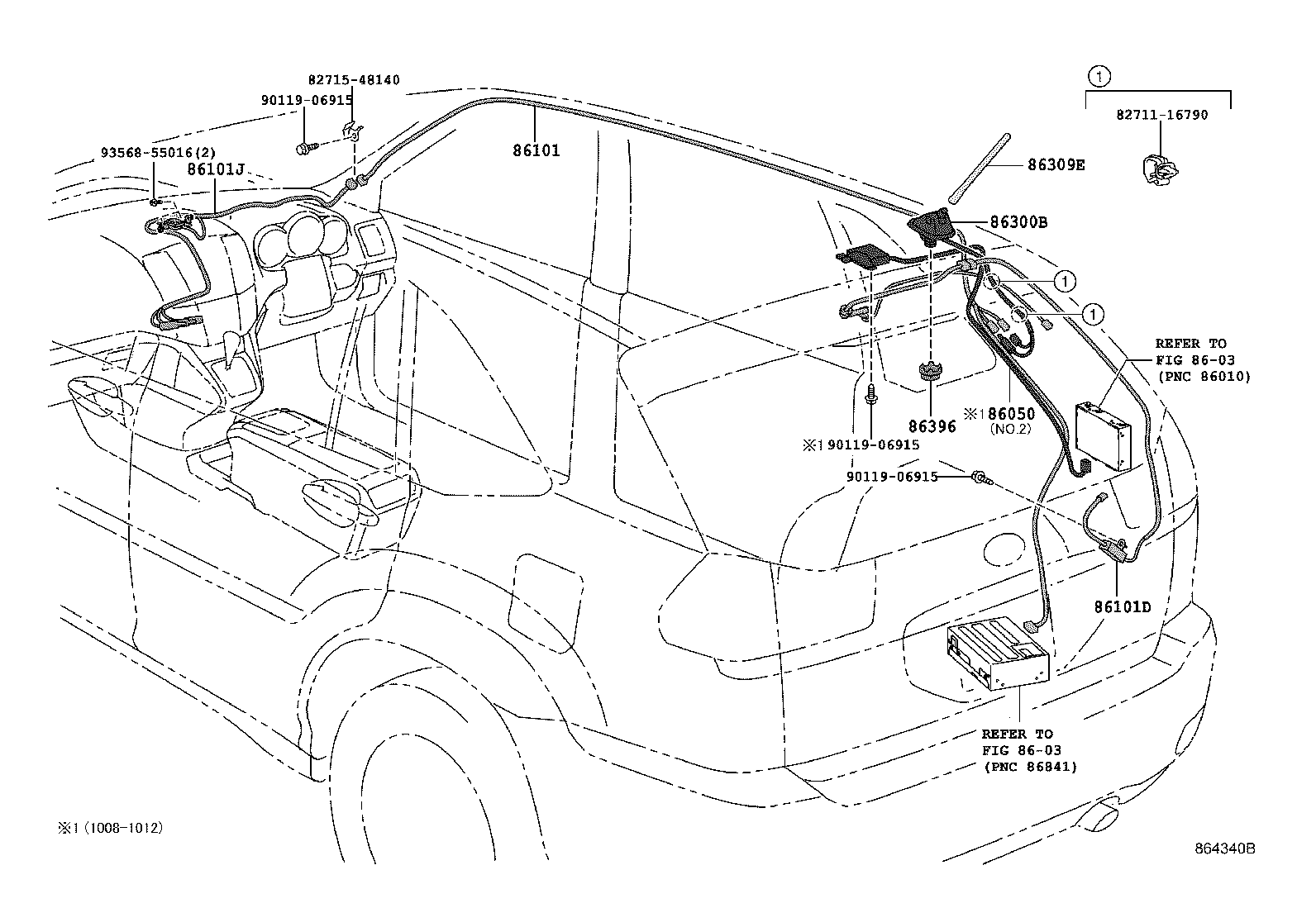

Figure 864340B

864340B 2010-08 → —

Part groups

PNC	Description
86050	Antenna Assy, Television
86101	Cord Sub-assy, Antenna
86101D	Cord Sub-assy, Antenna, NO.3
86101J	Cord Sub-assy, Antenna, NO.2
86300B	Antenna Assy, Amplifier, NO.1
86309E	Pole Sub-assy, Roof Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
