Toyota Harrier

2020-06 → present · chassis AXUH8#,AXUP85,MXUA8# · catalogue 524120 · Japan

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 4 illustrations

Illustrations

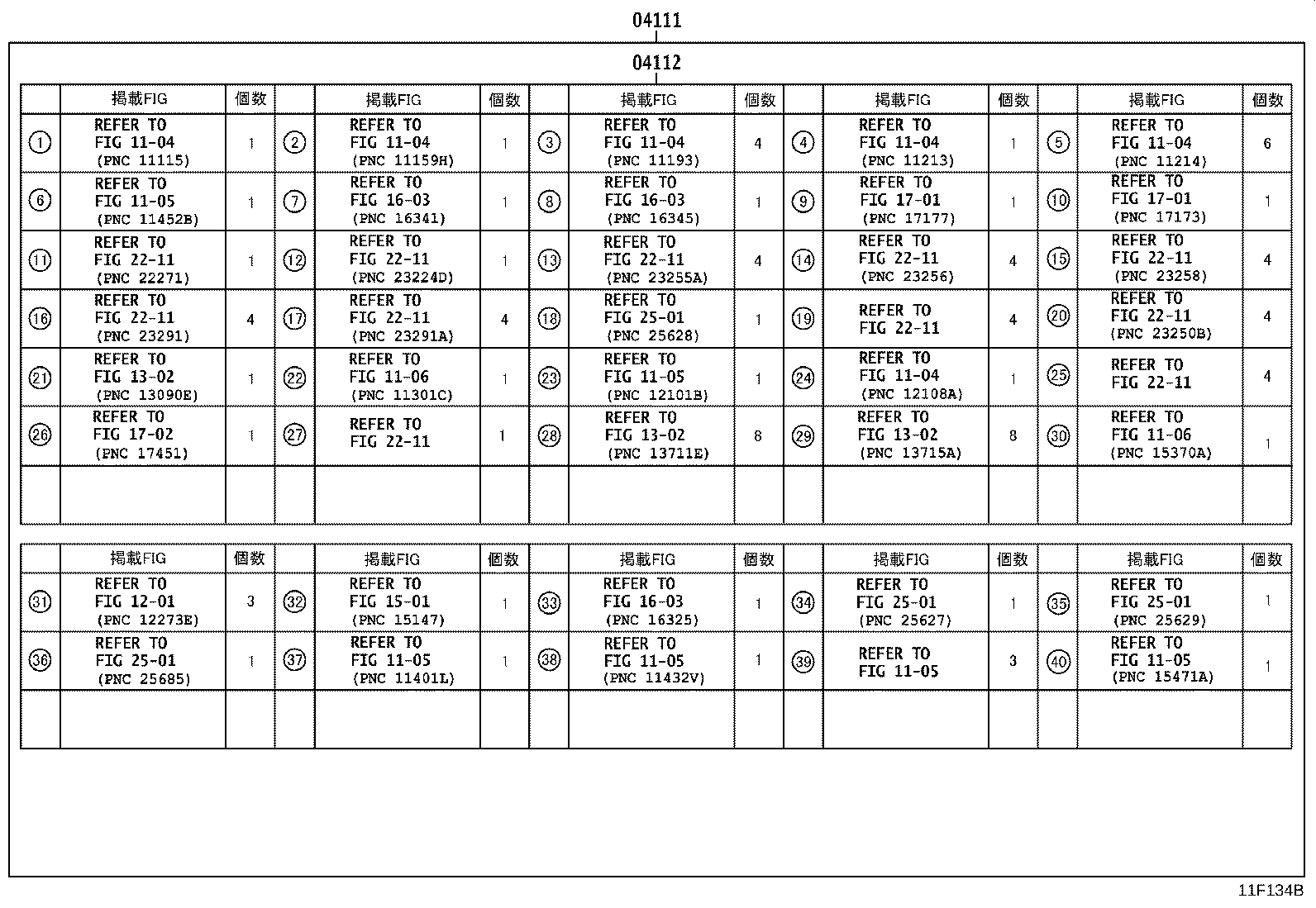

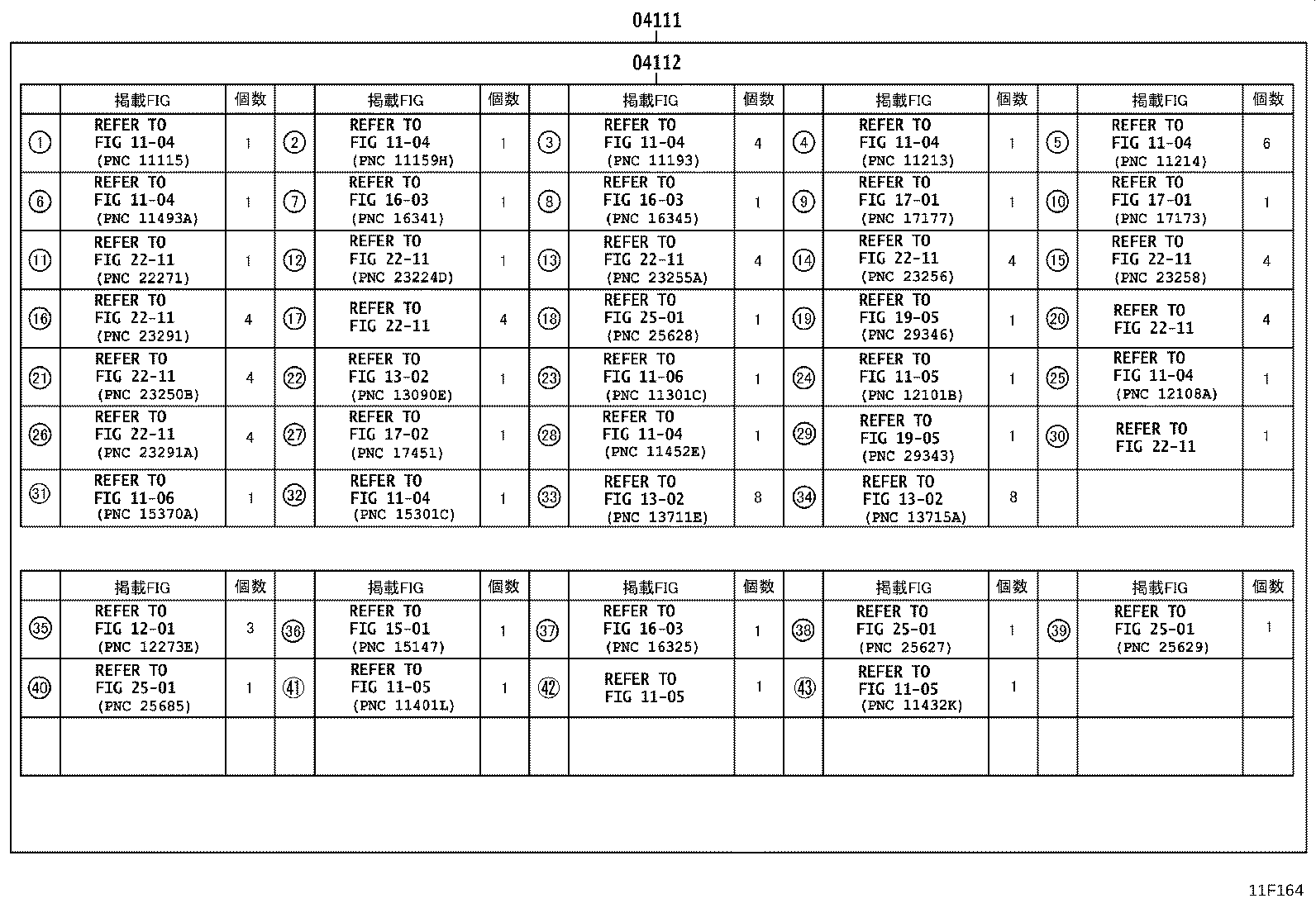

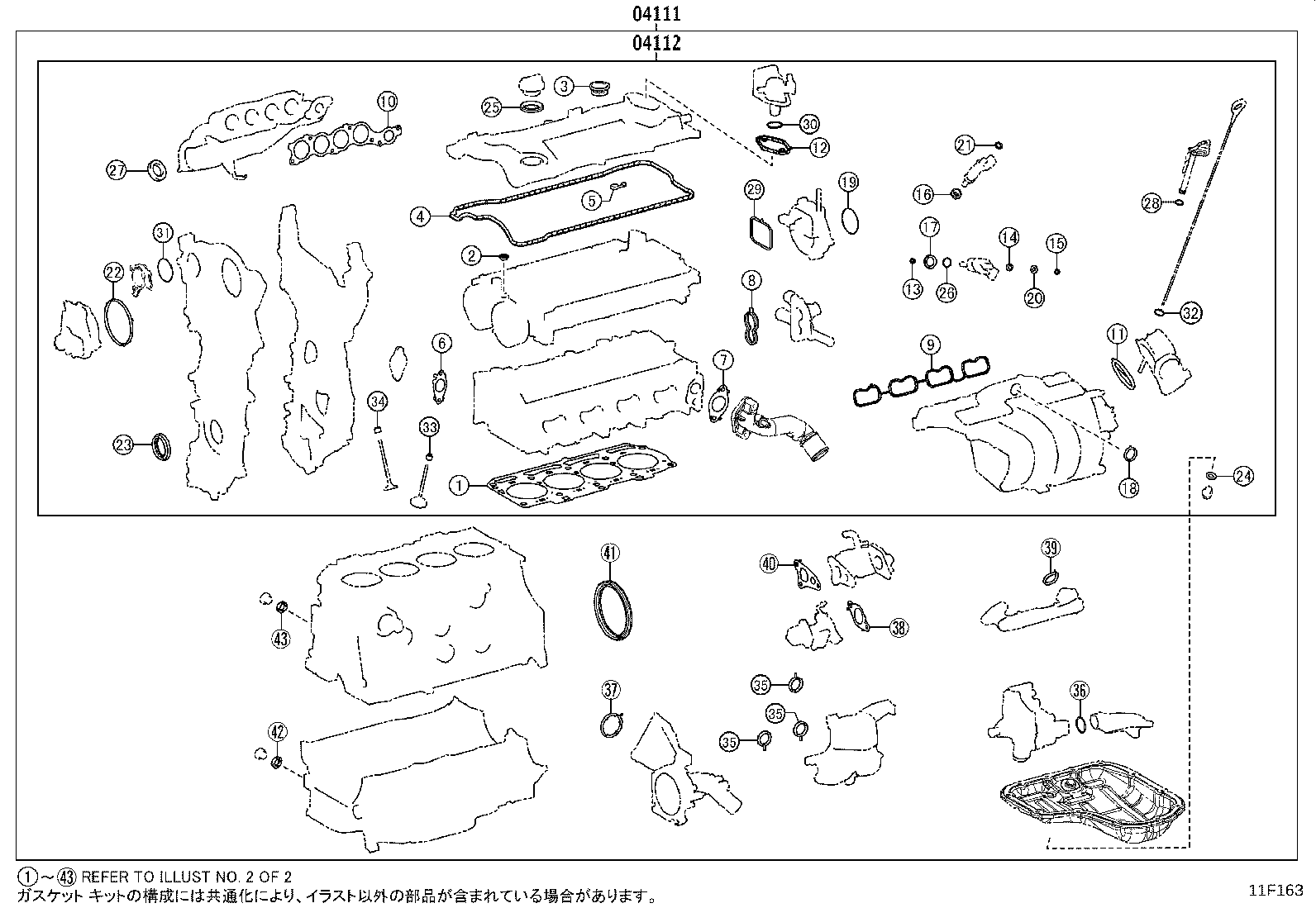

Figure 11F133A 11F133A 2020-06 → — Figure 11F134B 11F134B 2020-06 → — Figure 11F163 11F163 2020-06 → — Figure 11F164 11F164 2020-06 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
