Brake Pedal & Bracket

5 part groups · 3 illustrations

Illustrations

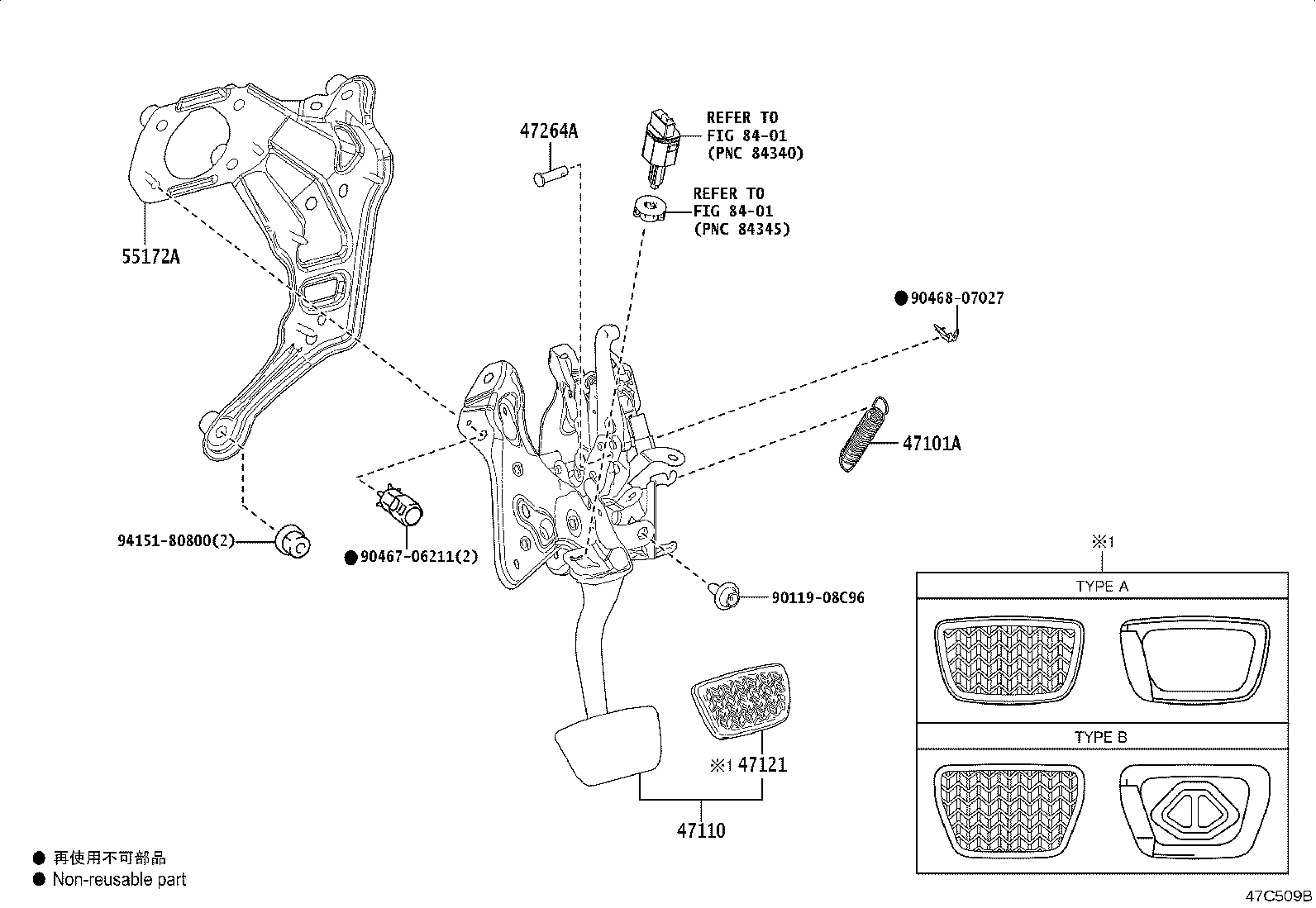

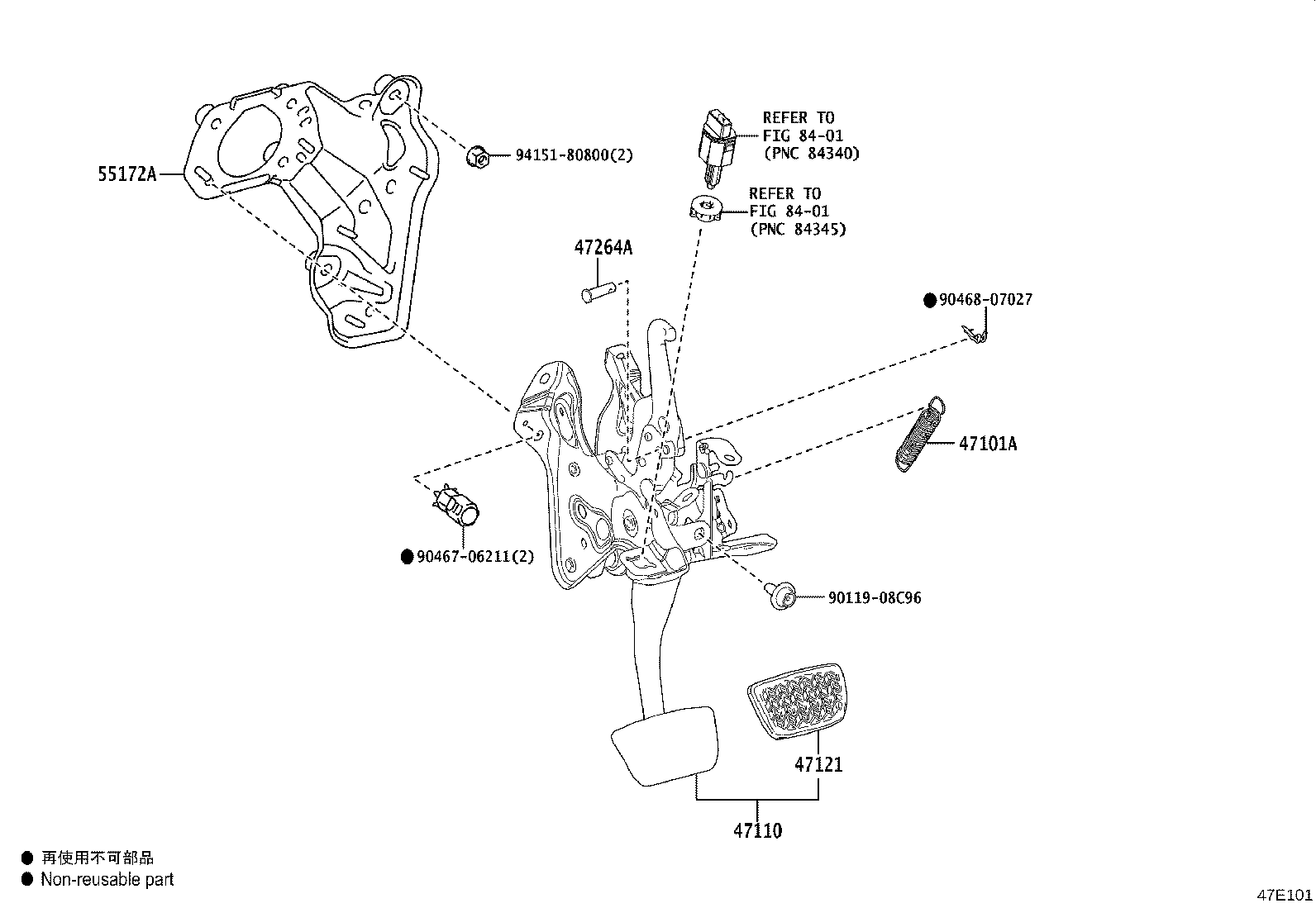

Figure 47C510B 47C510B 2020-06 → — Figure 47C509B 47C509B 2020-06 → — Figure 47E101 47E101 2022-10 → —

Part groups

PNCDescription
47101A Spring(FOR BRAKE PEDAL RETURN)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47264A Pin(FOR PUSH ROD)
55172A Base, Brake Pedal Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
