Toyota Harrier

2020-06 → present · chassis AXUH8#,AXUP85,MXUA8# · catalogue 524120 · Japan

Supported model Data version 2022-10

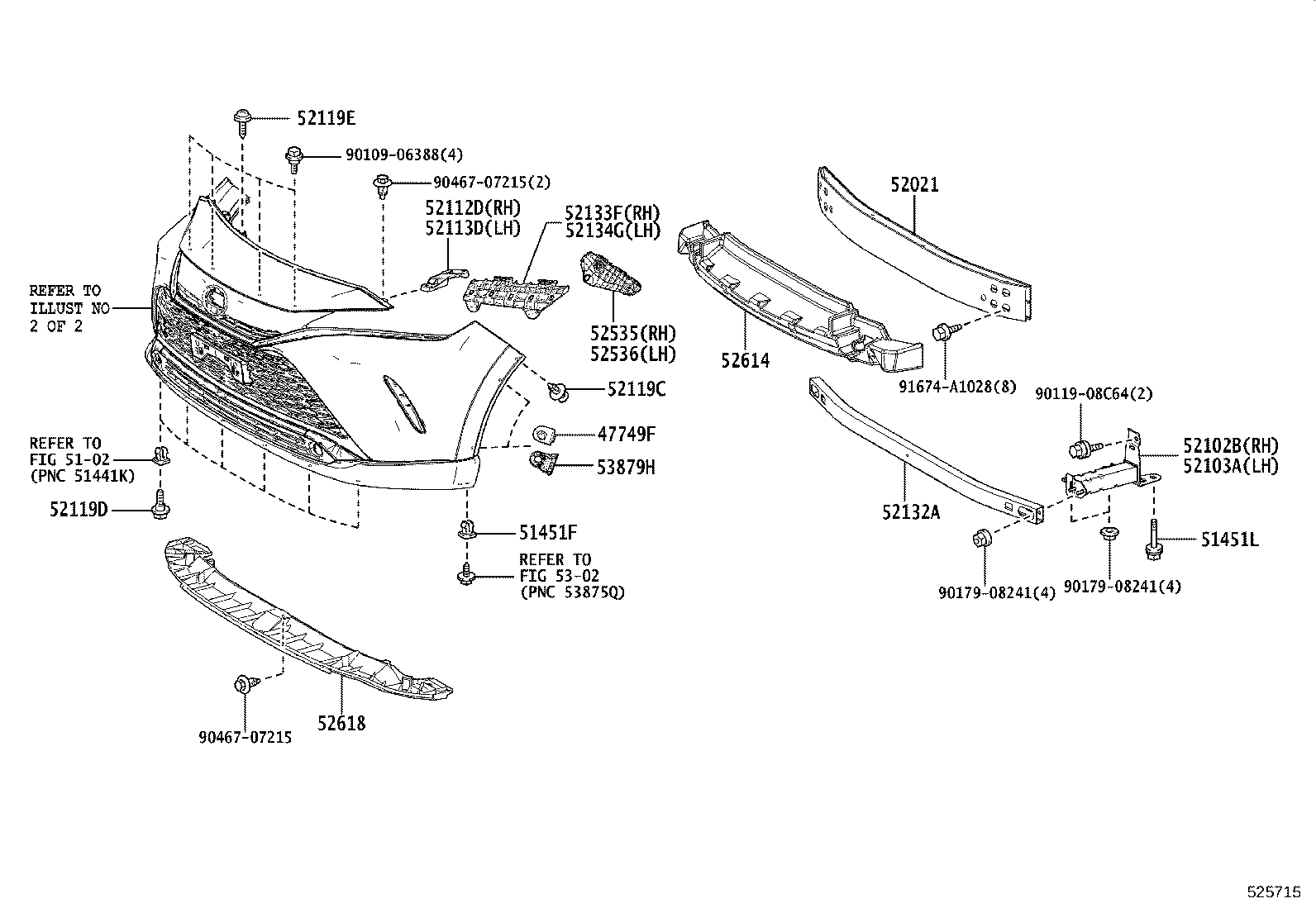

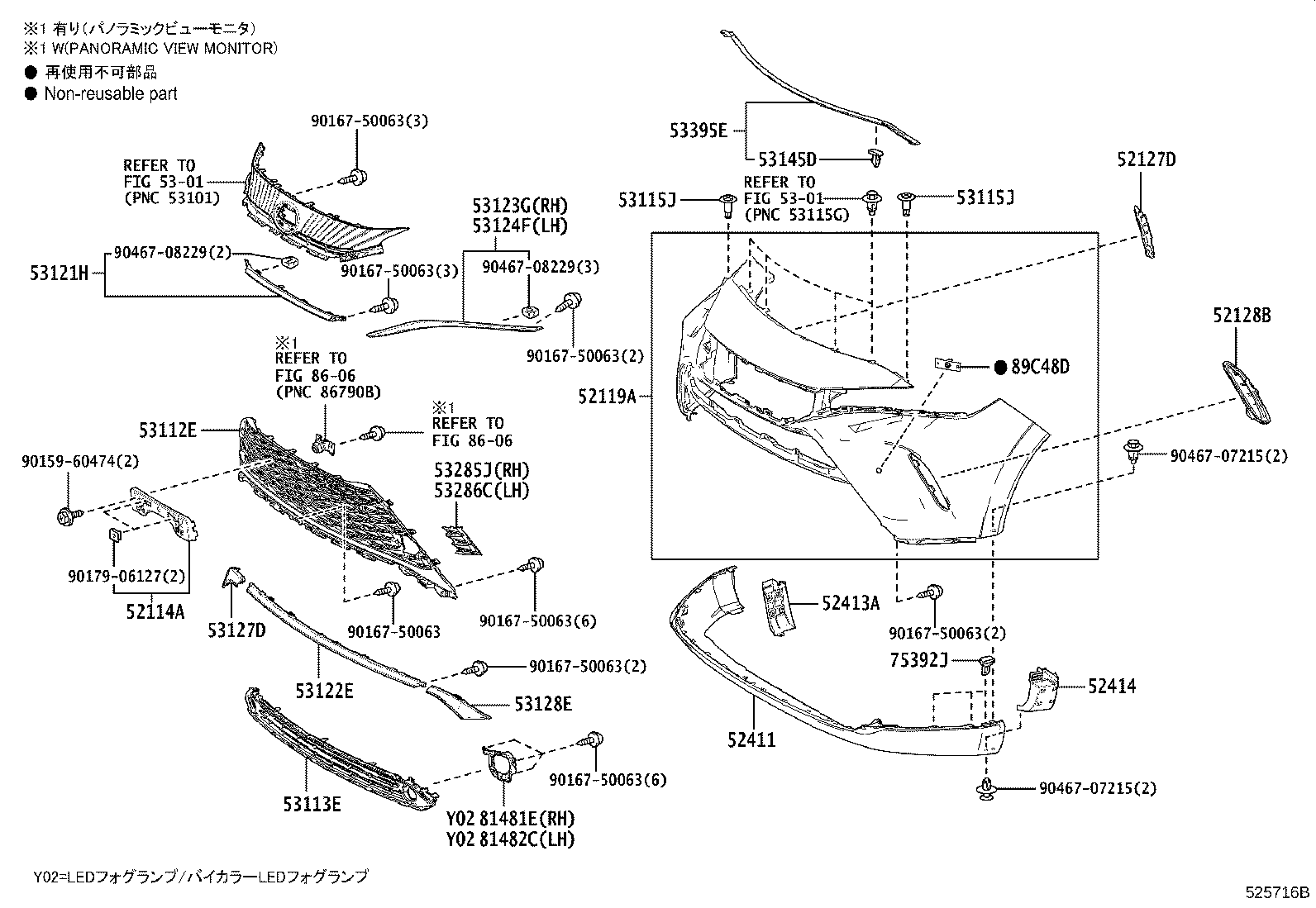

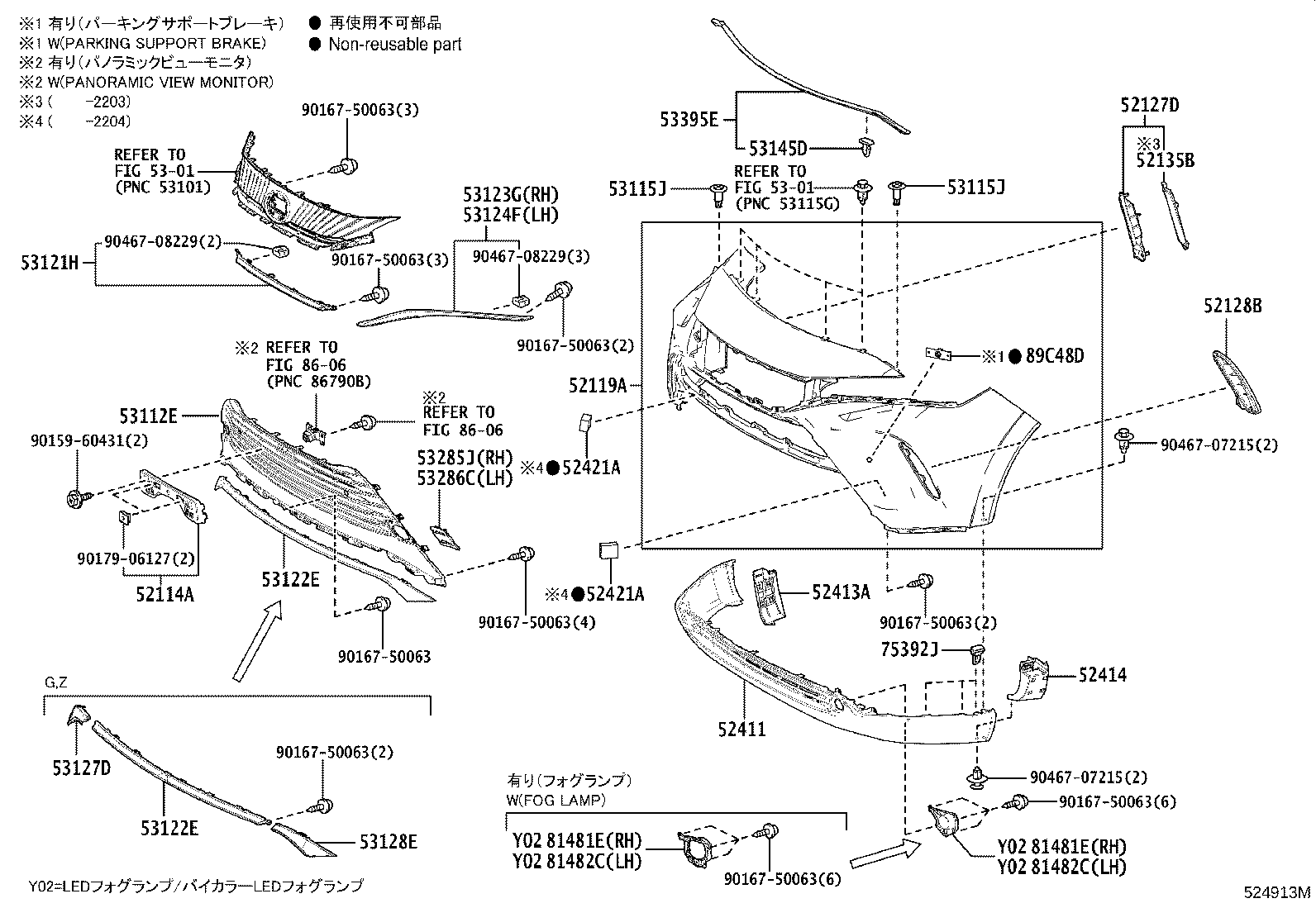

Front Bumper & Bumper Stay

45 part groups · 4 illustrations

PNC	Description
47749F	Clip, Pin Hold
51451F	Grommet, NO.1
51451L	Bolt, NO.1
52021	Reinforcement Sub-assy, Front Bumper
52102B	Extension Sub-assy, Front Bumper, RH
52103A	Extension Sub-assy, Front Bumper, LH
52112D	Extension, Front Bumper, RH
52113D	Extension, Front Bumper, LH
52114A	Bracket, Front Bumper Extension Mounting
52119A	Cover, Front Bumper
52119C	Clip, Front Bumper Cover
52119D	Screw, NO.1
52119E	Screw, NO.2
52127D	Cover, Front Bumper Hole, RH
52128B	Cover, Front Bumper Hole, LH
52132A	Reinforcement, Front Bumper, NO.2
52133F	Bracket, Front Bumper, RH
52134G	Bracket, Front Bumper, LH
52135B	Bracket, Front Bumper, NO.1 RH
52411	Guard, Front Bumper
52413A	Pad, Front Bumper Guard, RH
52414	Pad, Front Bumper Guard, LH
52421A	Pad, Front Bumper
52535	Retainer, Front Bumper Side, RH
52536	Retainer, Front Bumper Side, LH
52614	Absorber, Front Bumper Energy, NO.2
52618	Absorber, Front Bumper, Lower
53112E	Grille, Radiator, Lower NO.1
53113E	Grille, Radiator, Lower NO.2
53115J	Clip, Radiator Grille Bracket
53121H	Moulding, Radiator Grille, NO.1
53122E	Moulding, Radiator Grille, Lower
53123G	Moulding, Radiator Grille Side, RH
53124F	Moulding, Radiator Grille Side, LH
53127D	Grille, Radiator, Lower Side RH
53128E	Grille, Radiator, Lower Side LH
53145D	Clip, Radiator Grille
53285J	Cover, Front Bumper Arm Hole, RH
53286C	Cover, Front Bumper Arm Hole, LH
53395E	Seal, Hood TO Front End Panel
53879H	Retainer, Front Fender Liner
75392J	Retainer, Outside Moulding
81481E	Cover, Fog Lamp, RH
81482C	Cover, Fog Lamp, LH
89C48D	Retainer, Ultrasonic Sensor, Front Corner

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
