Toyota Harrier

2020-06 → present · chassis AXUH8#,AXUP85,MXUA8# · catalogue 524120 · Japan

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

18 part groups · 2 illustrations

Illustrations

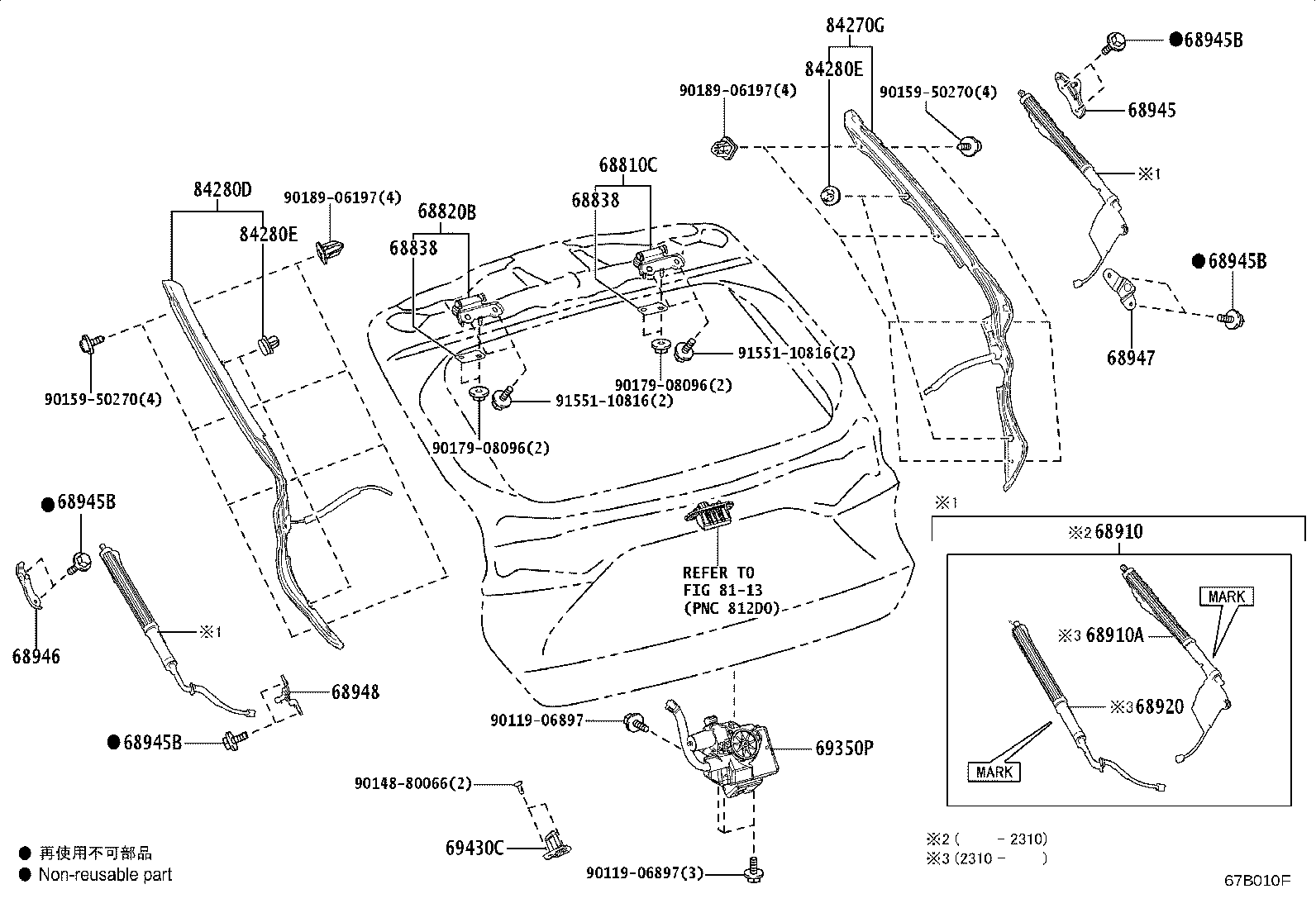

Figure 67B009E 67B009E 2020-06 → — Figure 67B010F 67B010F 2020-06 → —

Part groups

PNCDescription
68810C Hinge Assy, Back Door, RH
68820B Hinge Assy, Back Door, LH
68838 Pad, Back Door Hinge, NO.1
68910 Unit Assy, Power Back Door
68910A Unit Assy Set, Power Back Door, RH
68920 Unit Assy Set, Power Back Door, LH
68945 Bracket, Back Door Damper Stay, Upper RH
68945B Bolt, Back Door Damper Stay Bracket
68946 Bracket, Back Door Damper Stay, Upper LH
68947 Bracket, Back Door Damper Stay, Lower RH
68948 Bracket, Back Door Damper Stay, Lower LH
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
69350P Lock Assy, Back Door, W/Courtesy Lamp Switch
69430C Striker Assy, Back Door Lock
84270G Sensor Assy, Power Back Door, RH
84280D Sensor Assy, Power Back Door, LH
84280E Clip (FOR POWER BACK DOOR SENSOR, LH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
