Toyota Harrier

2020-06 → present · chassis AXUH8#,AXUP85,MXUA8# · catalogue 524120 · Japan

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

16 part groups · 3 illustrations

Illustrations

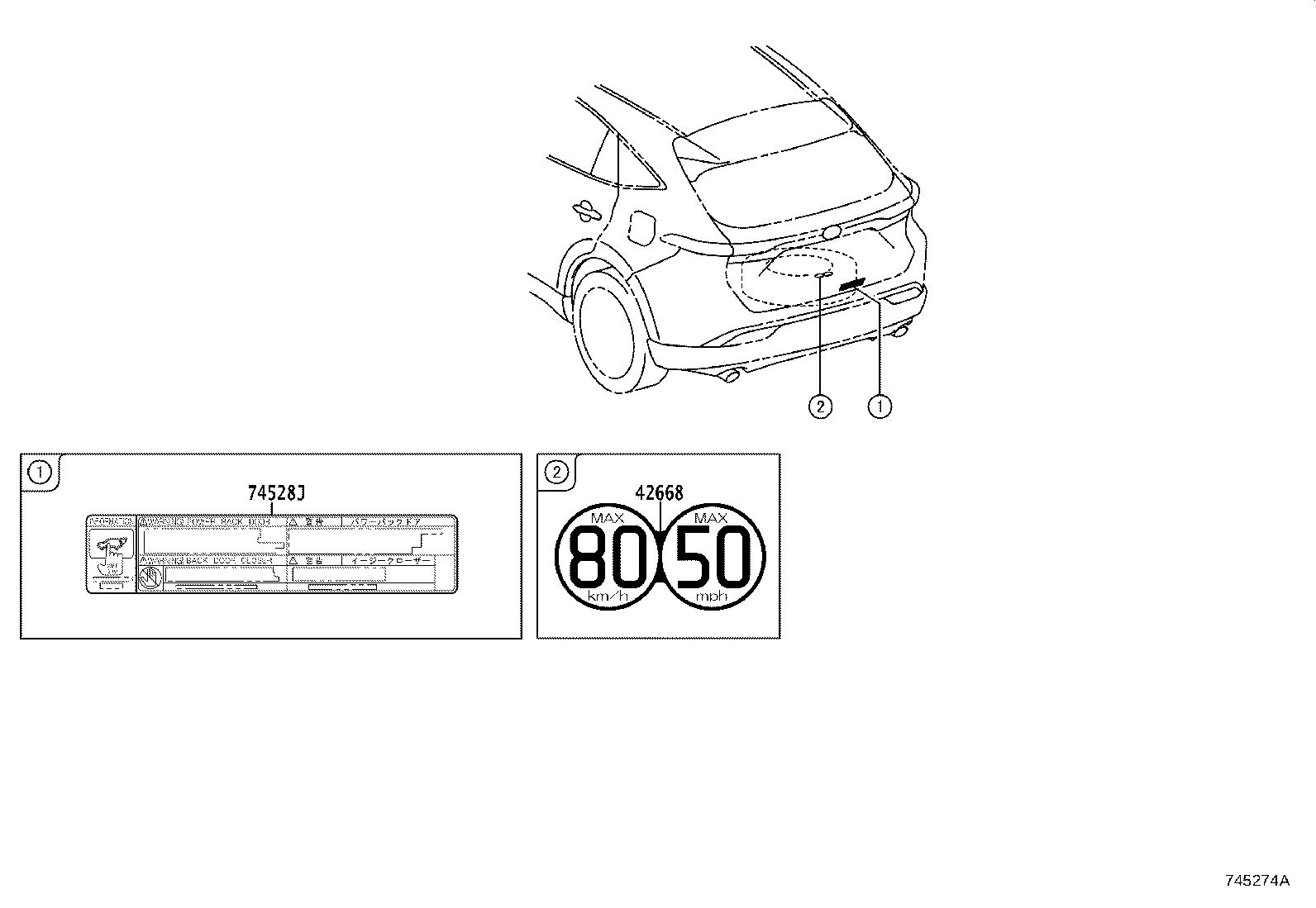

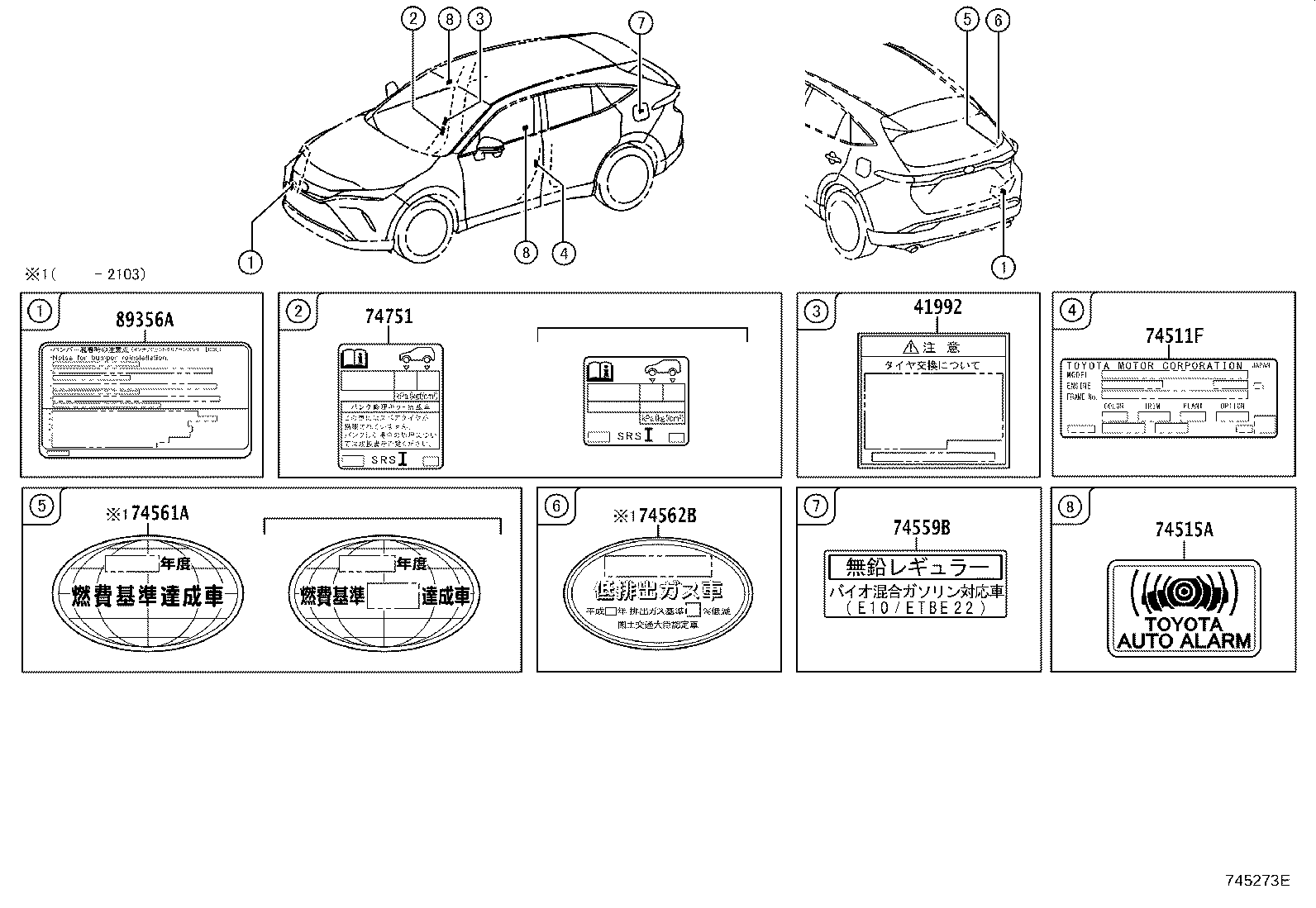

Figure 745272D 745272D 2020-06 → — Figure 745273E 745273E 2020-06 → — Figure 745274A 745274A 2020-06 → —

Part groups

PNCDescription
11293D Label, Engine Caution
11296C Label, Engine Service Information
16793B Label, Cooling Fan Information
41992 Label, Differential Notice
42668 Label, Compact Spare Tire Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515A Plate, Theft Warning
74528J Label, Power Back Door Caution
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74751 Label, Tire Pressure Information
88723H Label, Cooler Service Caution
89356A Label, Clearance Warning Information
G9275 Label, Battery Caution, NO.1
G92A1 Label, Hybrid Coolant System Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
