Toyota Harrier

2020-06 → present · chassis AXUH8#,AXUP85,MXUA8# · catalogue 524120 · Japan

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

8 part groups · 5 illustrations

Illustrations

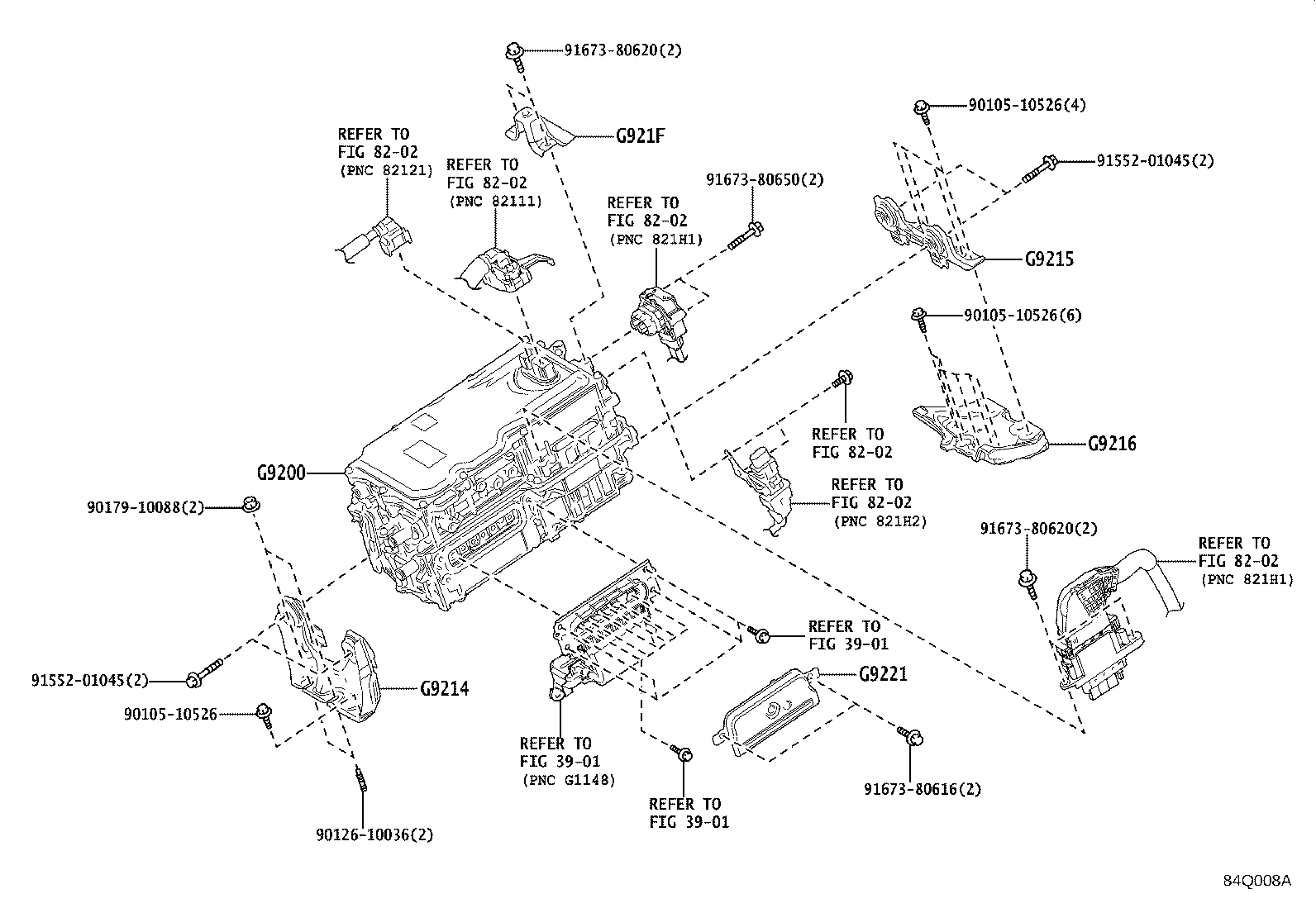

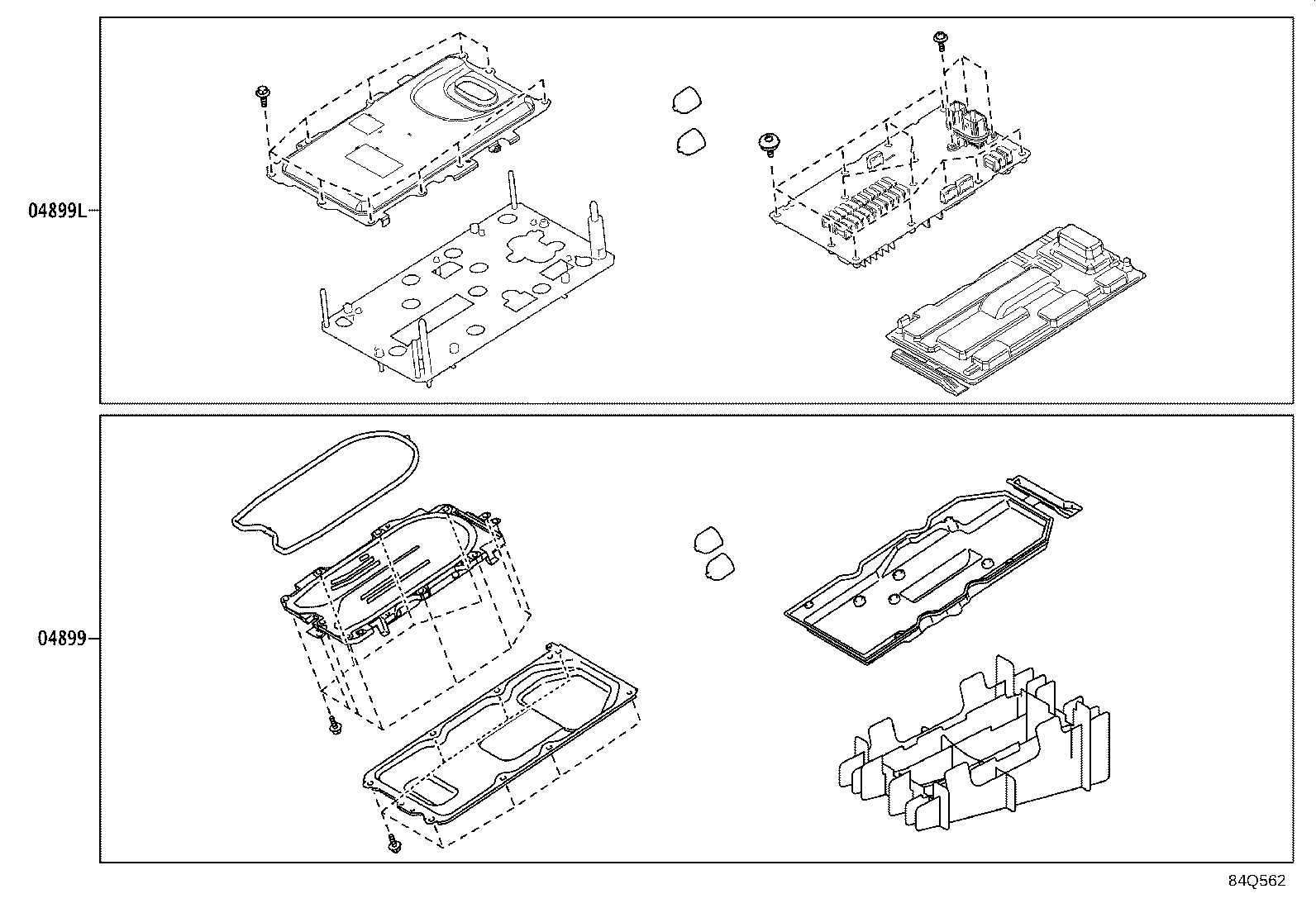

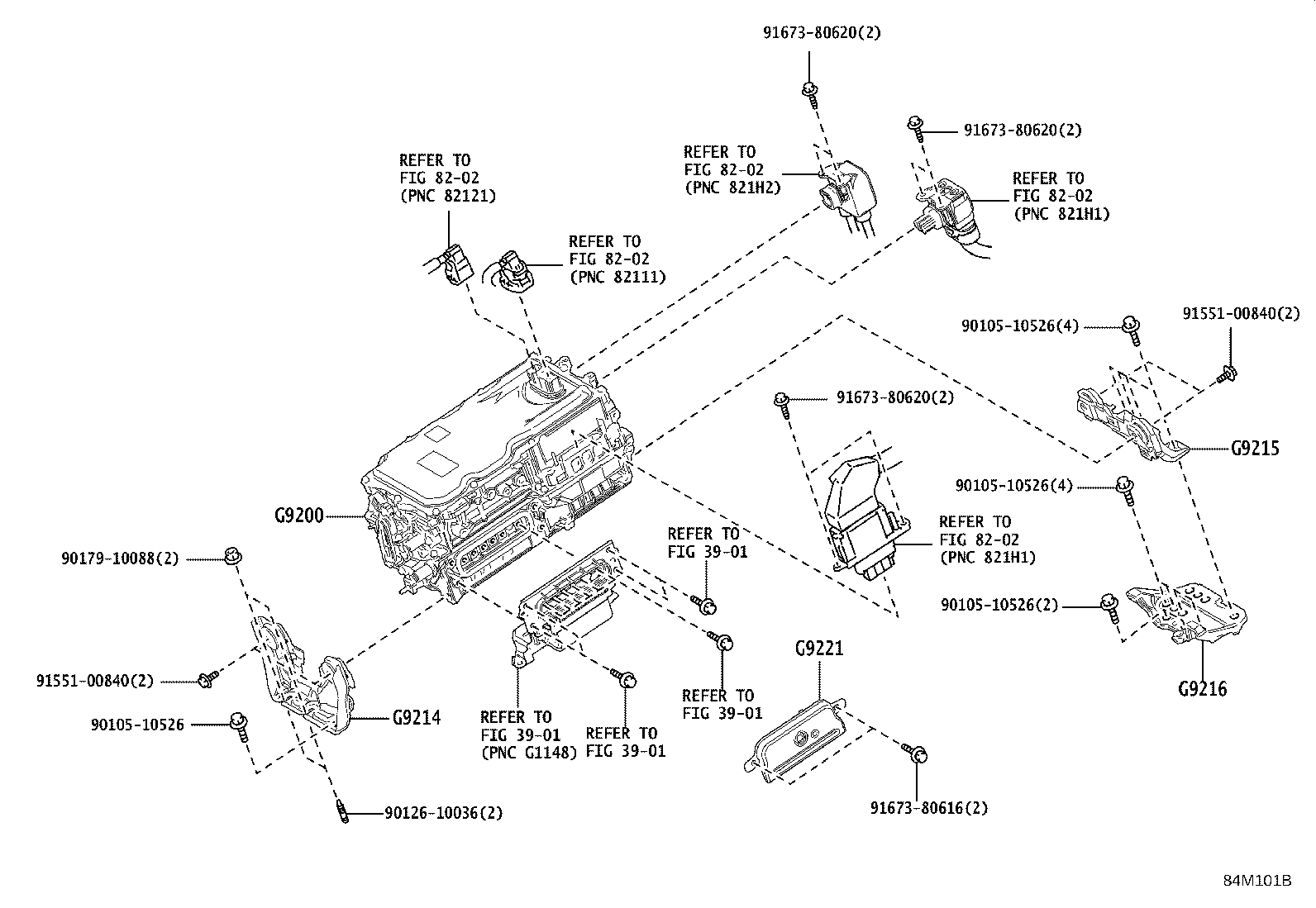

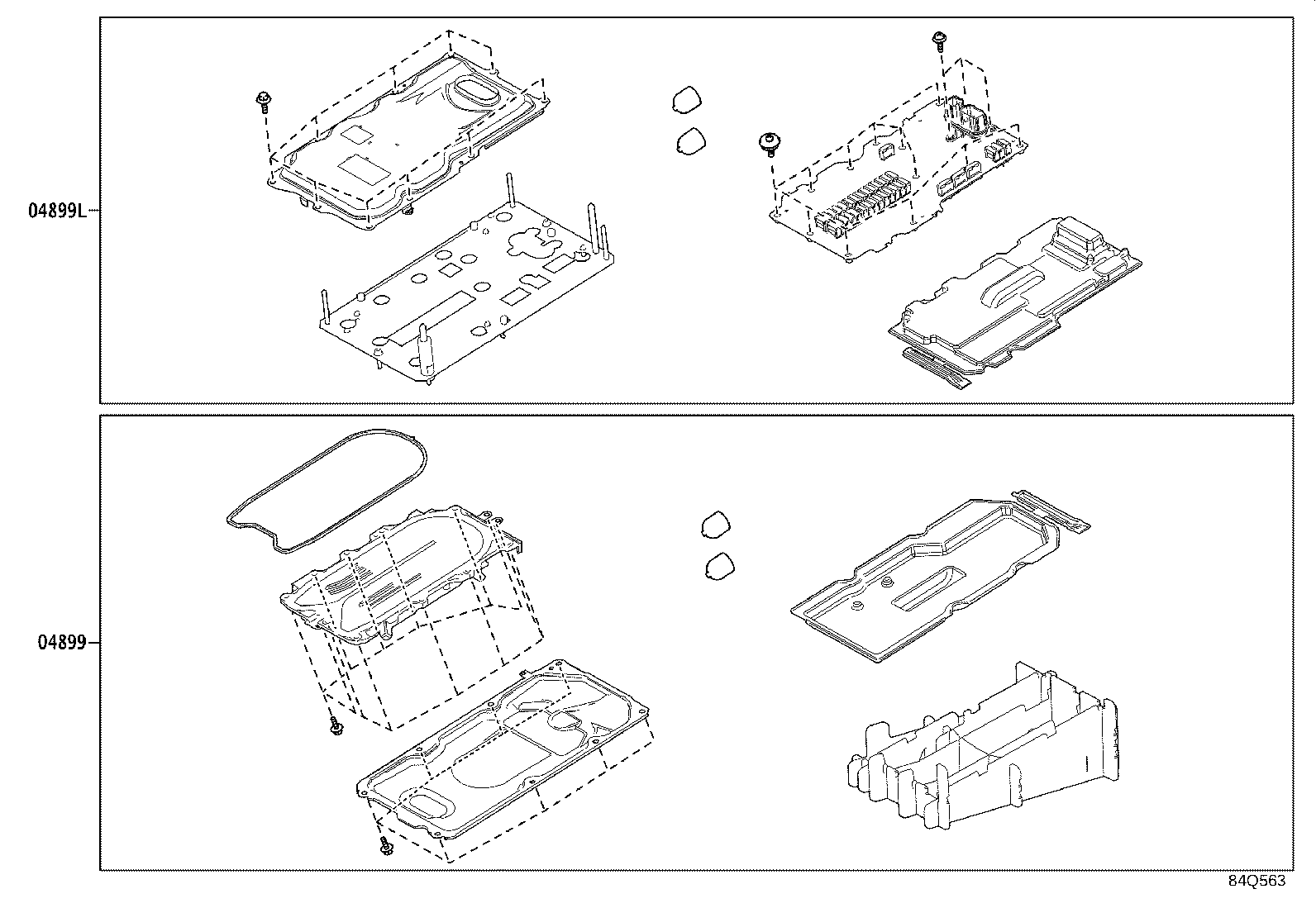

Figure 84M102A 84M102A 2020-06 → — Figure 84M101B 84M101B 2020-06 → — Figure 84Q008A 84Q008A 2022-10 → — Figure 84Q562 84Q562 2020-06 → — Figure 84Q563 84Q563 2020-06 → —

Part groups

PNCDescription
04899 Converter Kit, HV
04899L Computer Kit, Motor Generator Control
G9200 Inverter Assy, W/Converter
G9214 Bracket, Inverter, NO.1
G9215 Bracket, Inverter, NO.2
G9216 Bracket, Inverter, NO.3
G921F Protector, Inverter, NO.2
G9221 Cover, Inverter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
