Toyota Harrier
2020-06 → present · chassis AXUH8#,AXUP85,MXUA8# · catalogue 524120 · Japan
Supported model
Data version 2022-10

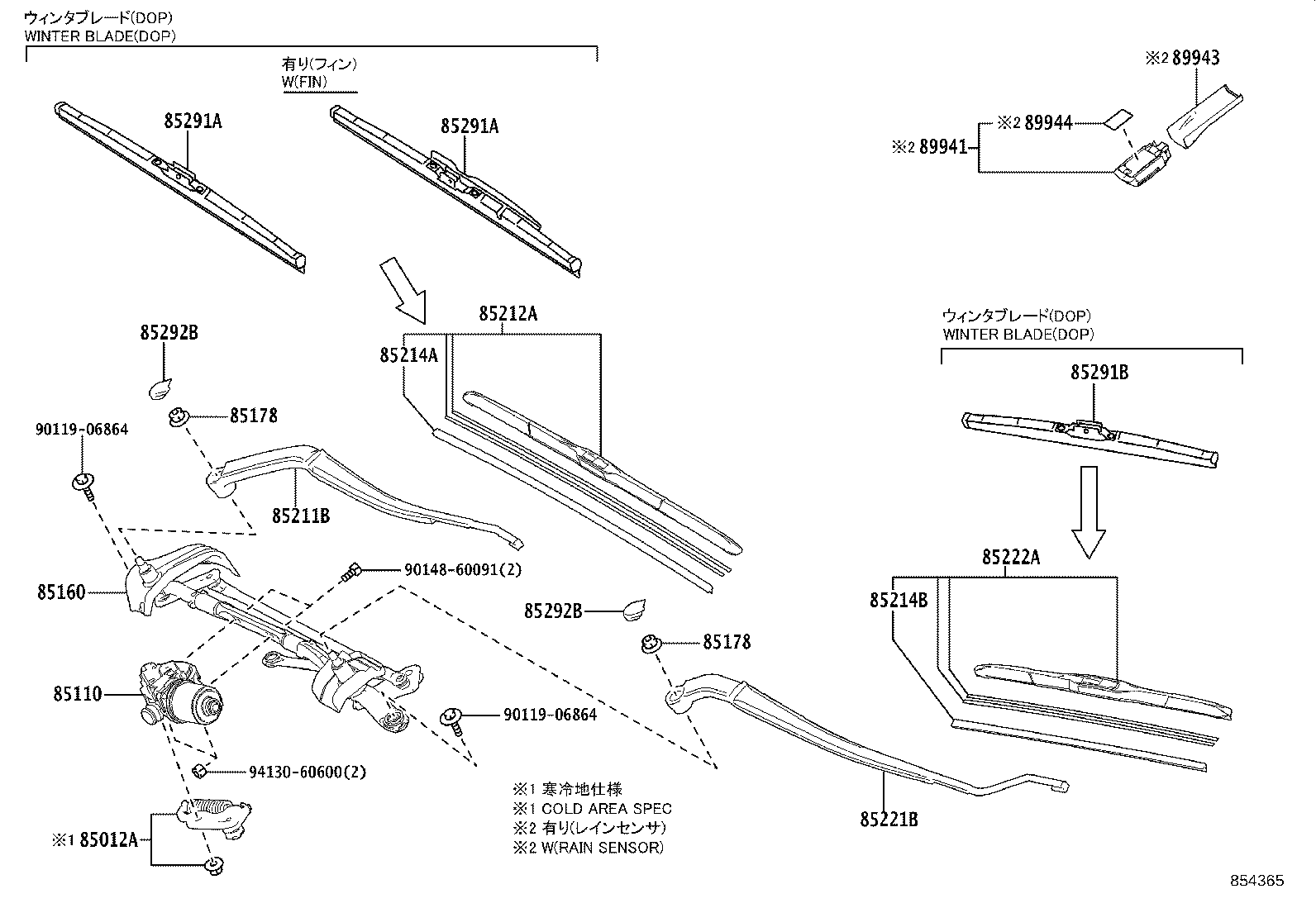

Windshield Wiper
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85012A | Crank Sub-assy, Front Wiper |
| 85110 | Motor Assy, Windshield Wiper |
| 85160 | Link Assy, Windshield Wiper |
| 85178 | Nut (FOR FRONT WIPER ARM SETTING) |
| 85211B | Arm, Front Wiper, RH |
| 85212A | Blade, FR Wiper, RH |
| 85213B | Rubber, Wiper Blade, RH(FOR GLASS COAT) |
| 85213C | Rubber, Wiper Blade, LH(FOR GLASS COAT) |
| 85214A | Rubber, Wiper, RH |
| 85214B | Rubber, Wiper, LH |
| 85221B | Arm, Front Wiper, LH |
| 85222A | Blade, FR Wiper, LH |
| 85291A | Blade, Front Wiper, Winter, RH |
| 85291B | Blade, Front Wiper, Winter, LH |
| 85292B | Cap, Front Wiper Arm Head |
| 89941 | Sensor, Rain |
| 89943 | Cover, Rain Sensor |
| 89944 | Tape, Rain Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
