Toyota Harrier

2020-06 → present · chassis AXUH8#,AXUP85,MXUA8# · catalogue 524120 · Japan

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

21 part groups · 2 illustrations

Illustrations

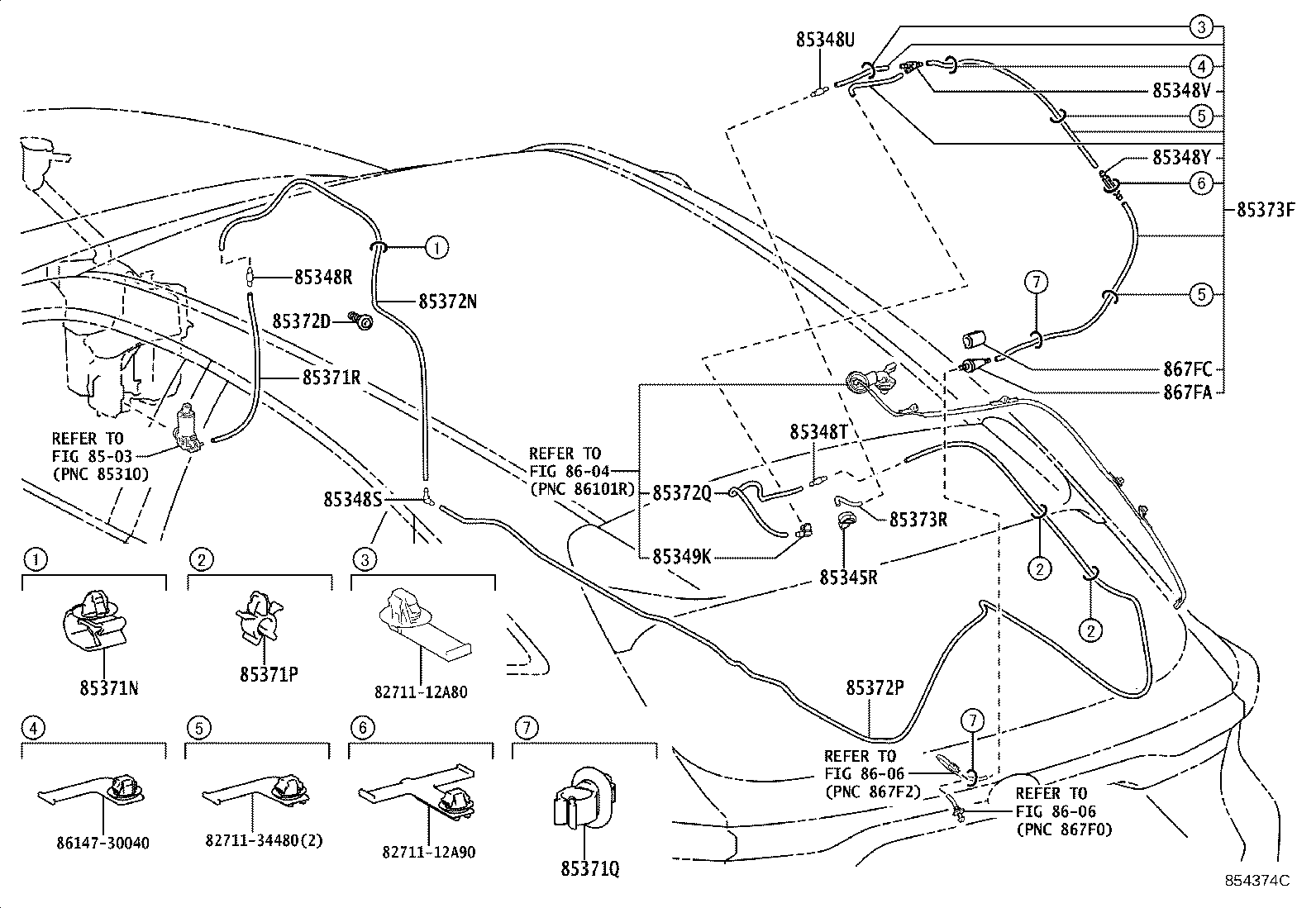

Figure 854373B 854373B 2020-06 → — Figure 854374C 854374C 2020-06 → —

Part groups

PNCDescription
85345R Nozzle, Rear Washer
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85348T Joint, Rear Washer Hose, NO.2
85348U Joint, Rear Washer Hose, NO.3
85348V Joint, Rear Washer Hose, NO.4
85348Y Joint, Rear Washer Hose, NO.5
85349K Joint, Rear Washer Elbow, NO.2
85371N Clamp, Rear Washer Hose
85371P Clamp, Rear Washer Hose, NO.2
85371Q Clamp, Rear Washer Hose, NO.3
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85372D Grommet, Rear Washer Hose
85372N Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85372P Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
85372Q Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
85372T Grommet, Washer
85373F Hose, Rear Washer(FROM JOINT TO JOINT), NO.8
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
867FA Filter, Cleaner Hose
867FC Cushion, Cleaner Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
