Toyota Harrier
2020-06 → present · chassis AXUH8#,AXUP85,MXUA8# · catalogue 524120 · Japan
Supported model
Data version 2022-10
Navigation & Front Monitor Display
20 part groups · 4 illustrations

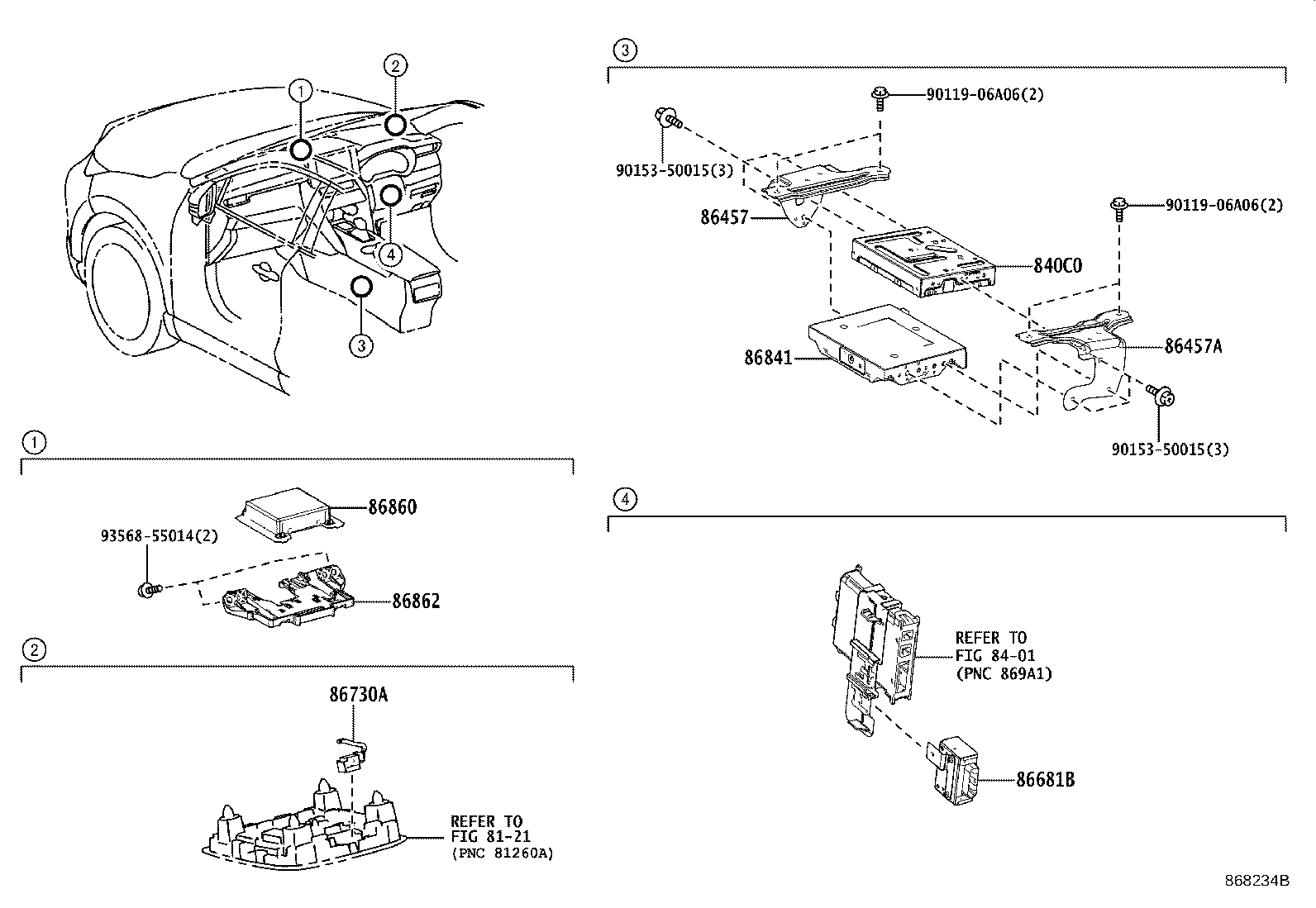

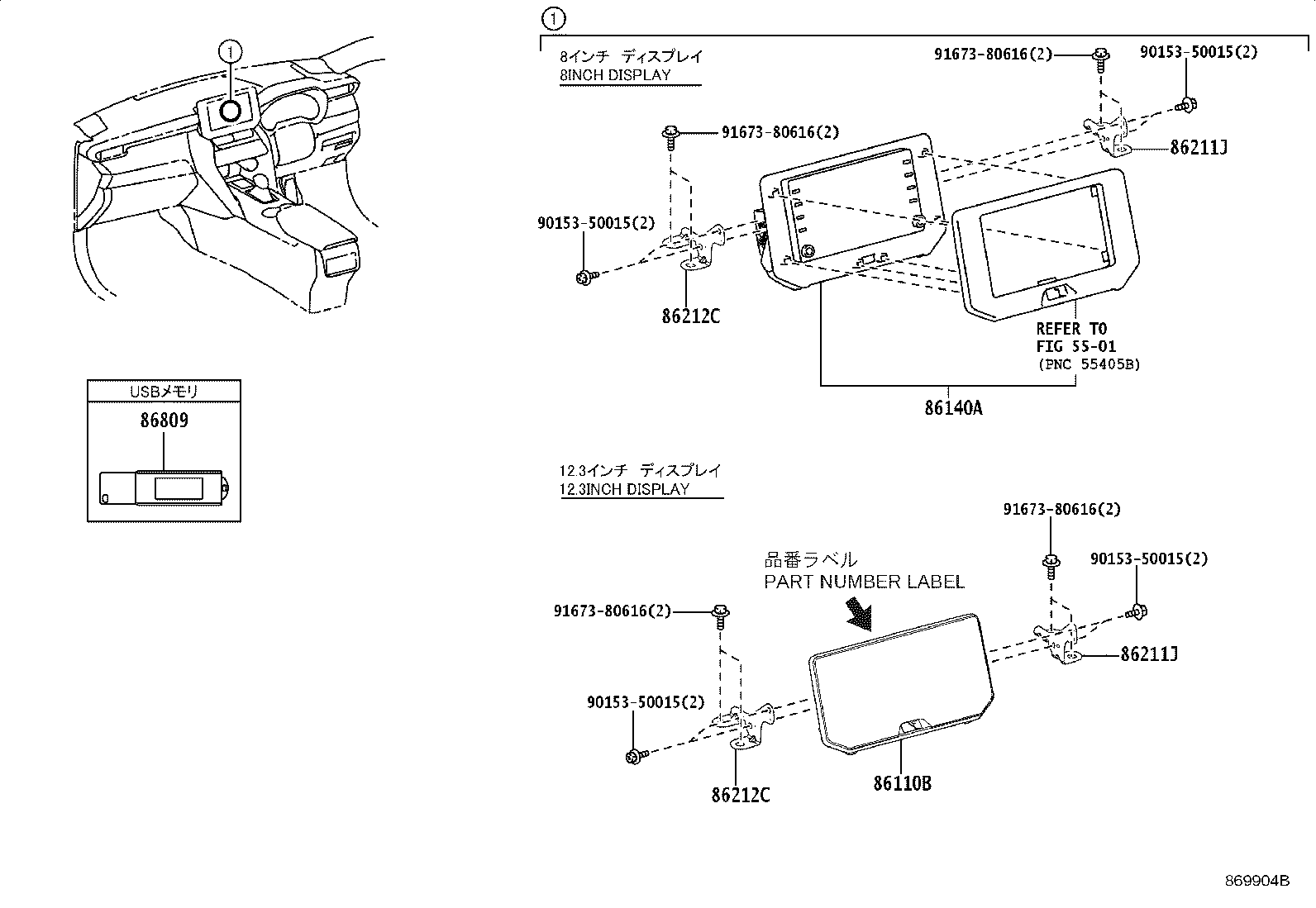

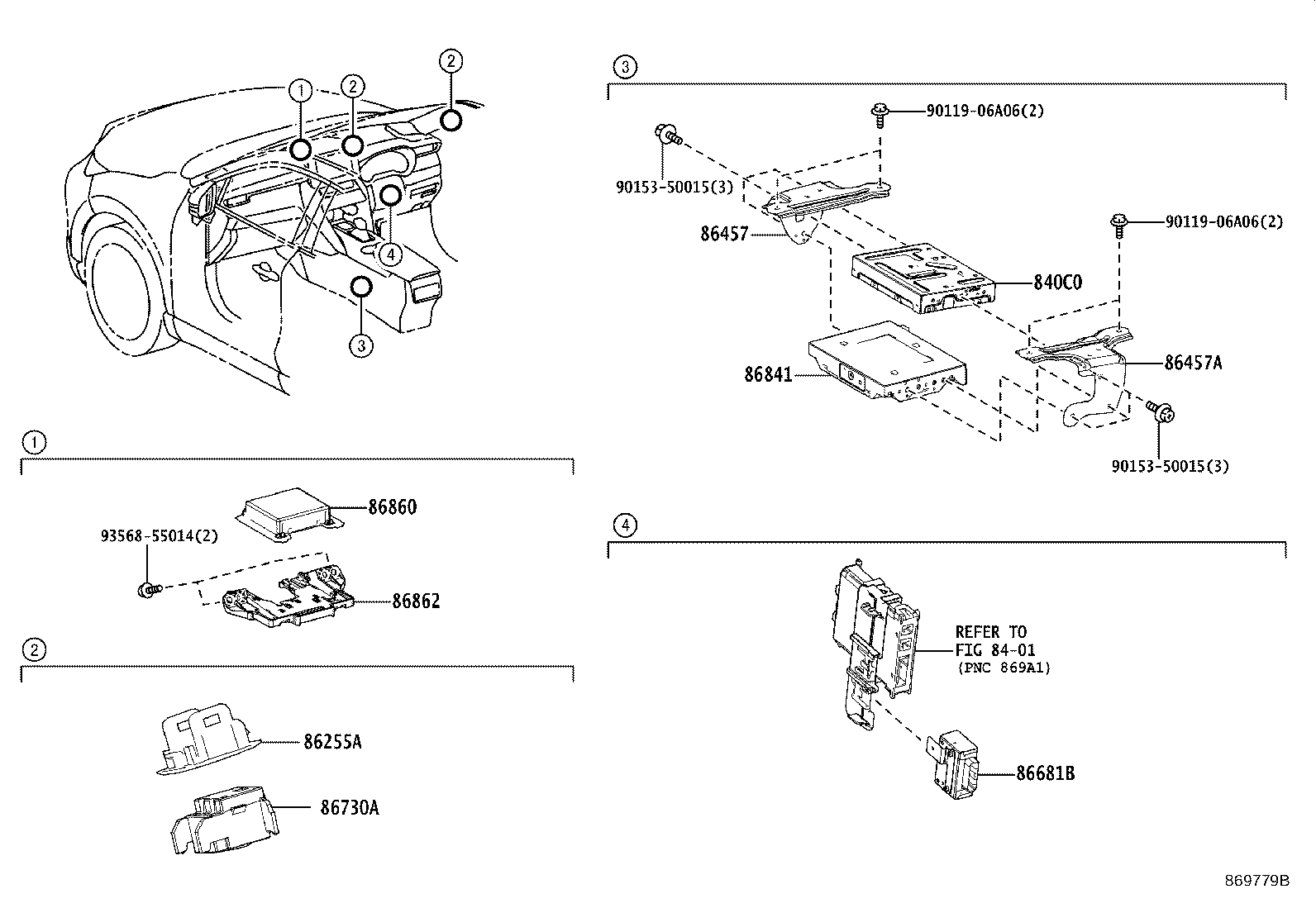

Part groups
| PNC | Description |
|---|---|
| 82711M | Clamp, Wiring Harness |
| 840C0 | Control Assy, Integration |
| 86007 | Computer Set, Navigation |
| 86017C | Fitting Set, Navigation Setting |
| 86110B | Multi-display Assy |
| 86140A | Receiver Assy, Radio & Display |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86211M | Bracket, Radio Receiver, NO.3 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86212F | Bracket, Radio Receiver, NO.4 |
| 86255A | Case, Microphone, NO.1 |
| 86457 | Bracket, Multi-media Module NO.1 |
| 86457A | Bracket, Multi-media Module NO.2 |
| 86681B | Divider, Antenna |
| 86730A | Microphone Assy, Telephone |
| 86809 | Usb Set, Usb Memory Navigation Data |
| 86841 | Computer, Navigation |
| 86842 | Wire, Navigation, NO.1 |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
