Toyota Harrier
2020-06 → present · chassis AXUH8#,AXUP85,MXUA8# · catalogue 524120 · Japan
Supported model
Data version 2022-10
Mirror
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 8780A | Memory Card Set, Inner Rear View Mirror |
| 87810 | Mirror Assy, Inner Rear View |
| 87908 | Actuator Assy, Outer Mirror, RH |
| 87909 | Actuator Assy, Outer Mirror, LH |

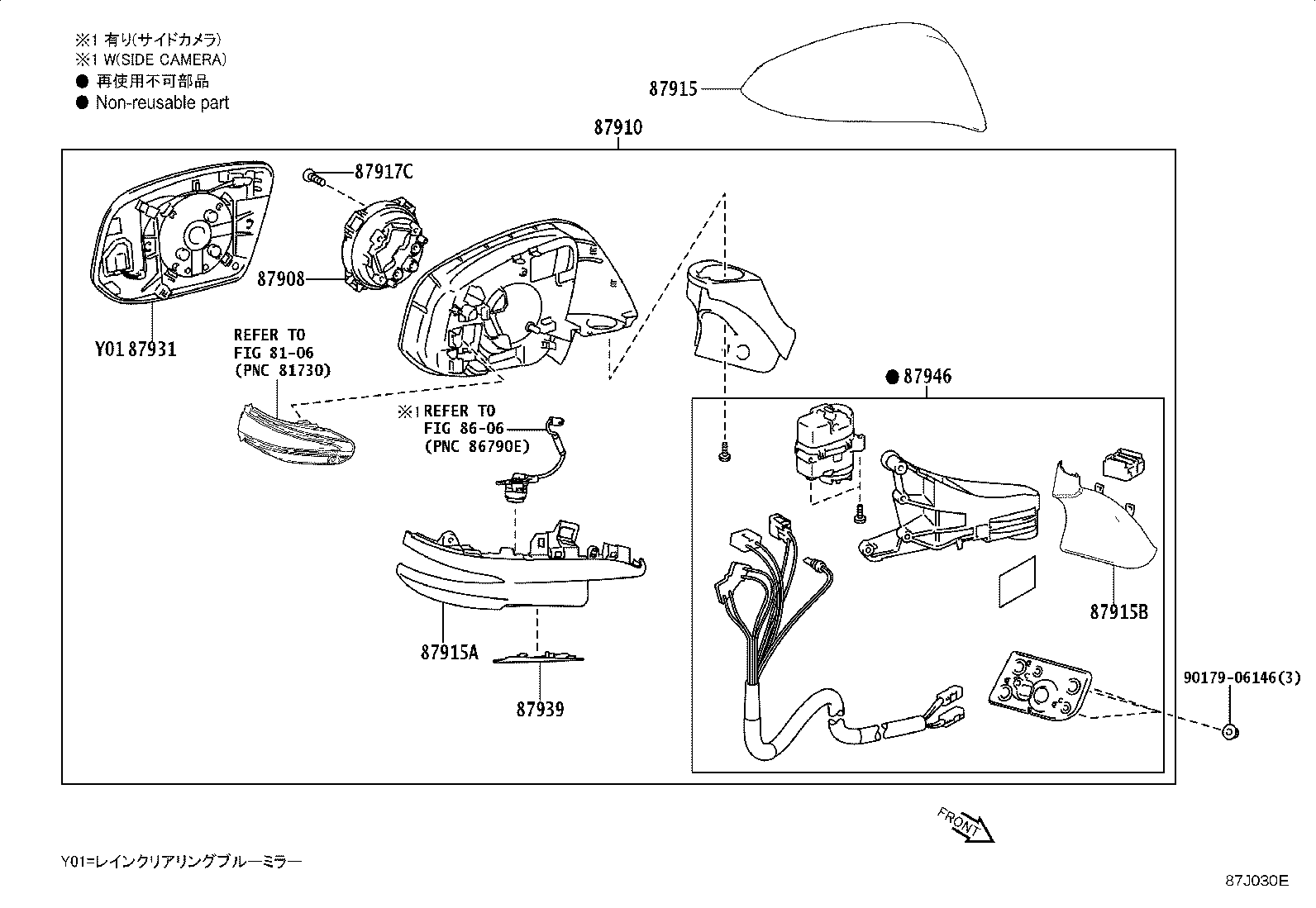

| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87915A | Cover, Outer Mirror, RH |
| 87915B | Cover, Outer Mirror, Lower RH |
| 87917C | Screw, Outer Mirror |
| 87931 | Outer Mirror, RH |
| 87939 | Cover, Outer Mirror Hole, RH |

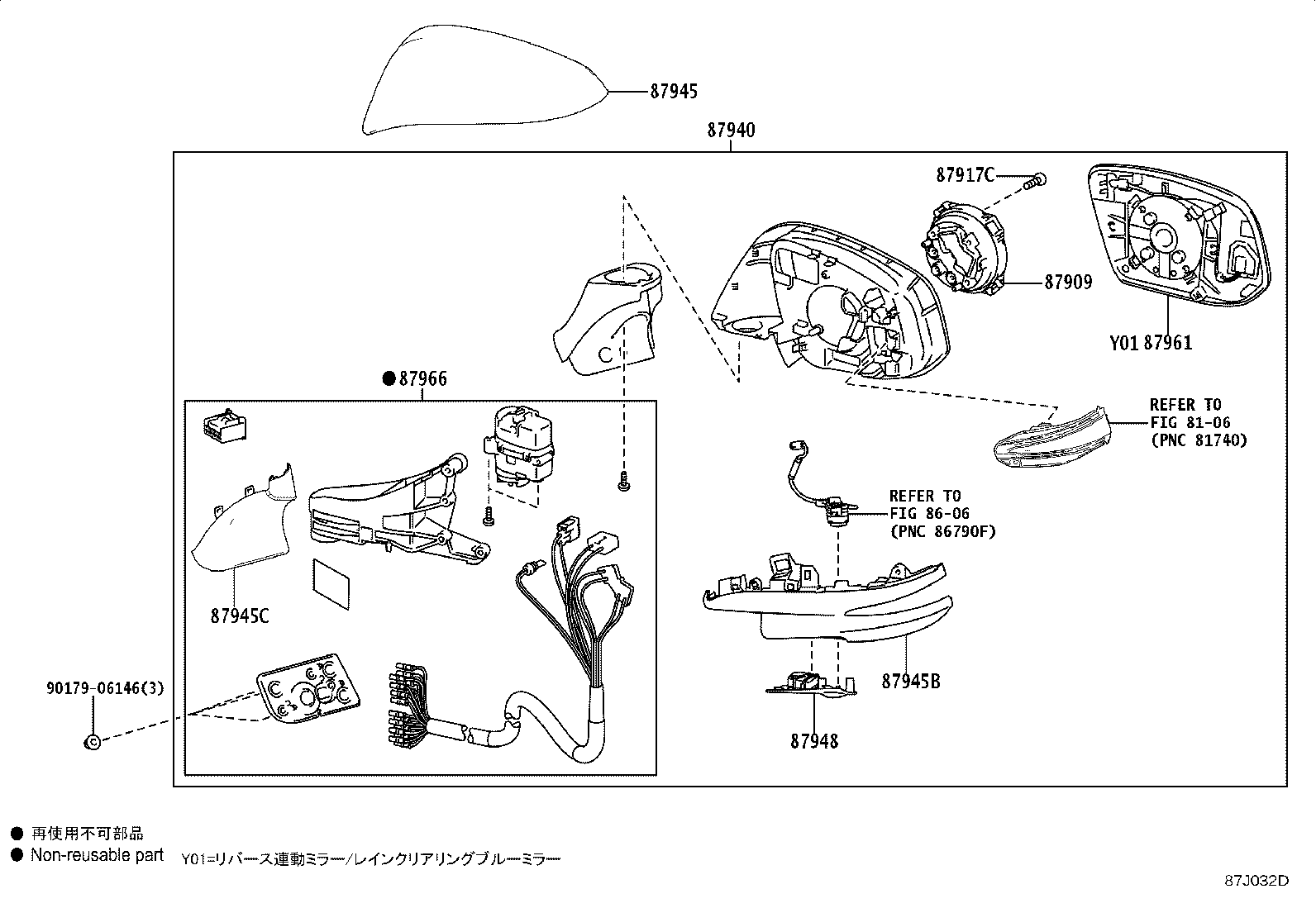

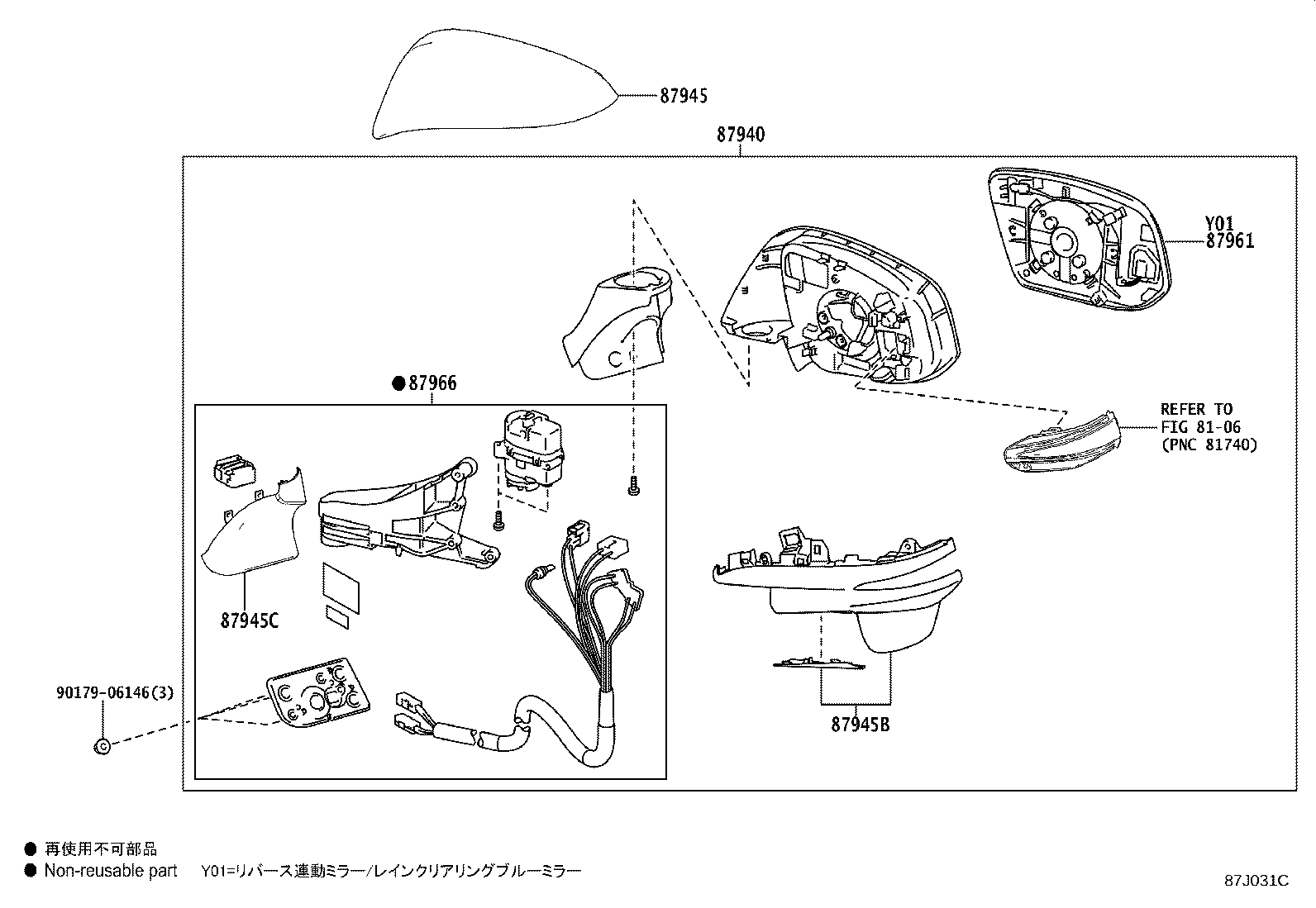

| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87945B | Cover, Outer Mirror, LH |
| 87945C | Cover, Outer Mirror, Lower LH |
| 87946 | Retractor, Outer Mirror, RH |
| 87948 | Cover, Outer Mirror Hole, LH |
| 87961 | Mirror Outer, LH |
| 87966 | Retractor, Outer Mirror, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
