Toyota Harrier

2020-06 → present · chassis AXUH8#,AXUP85,MXUA8# · catalogue 524120 · Japan

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

2 part groups · 3 illustrations

Illustrations

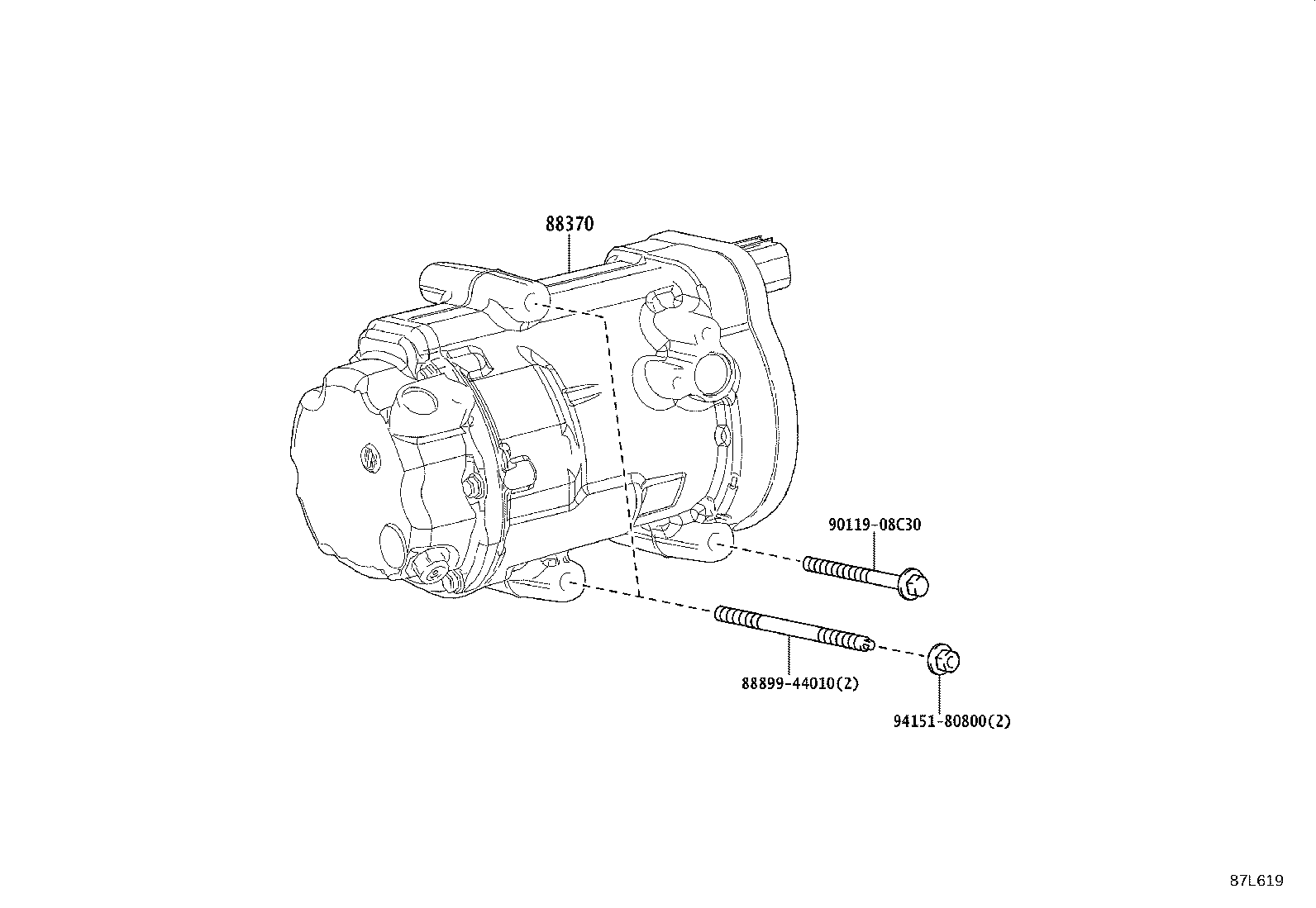

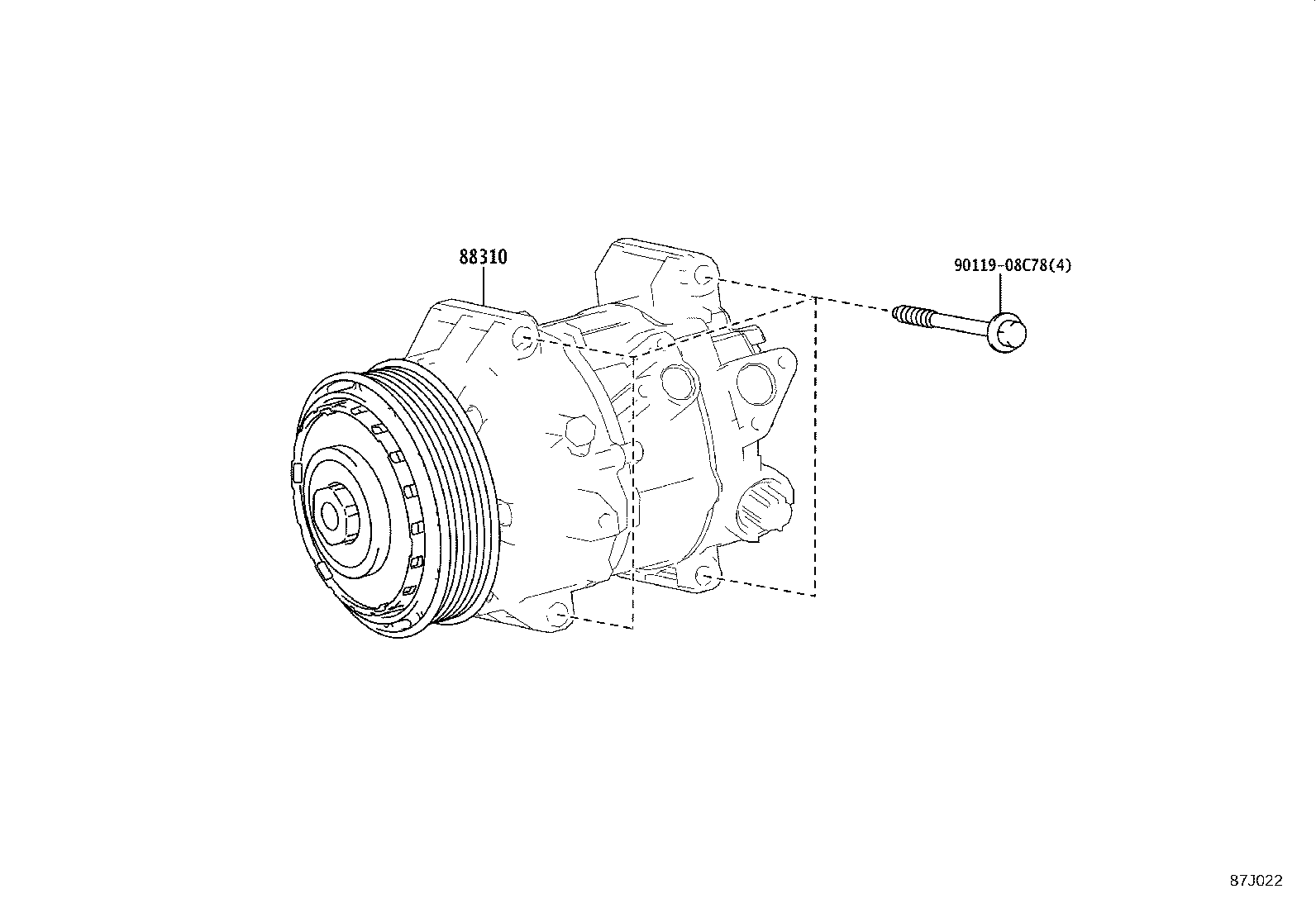

Figure 87J021B 87J021B 2020-06 → — Figure 87L619 87L619 2022-10 → — Figure 87J022 87J022 2020-06 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88370 Compressor Assy, W/Motor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
