Toyota Kluger HV

2005-03 → 2007-05 · chassis MHU28 · catalogue 525110 · Japan

Supported model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

28 part groups · 3 illustrations

Illustrations

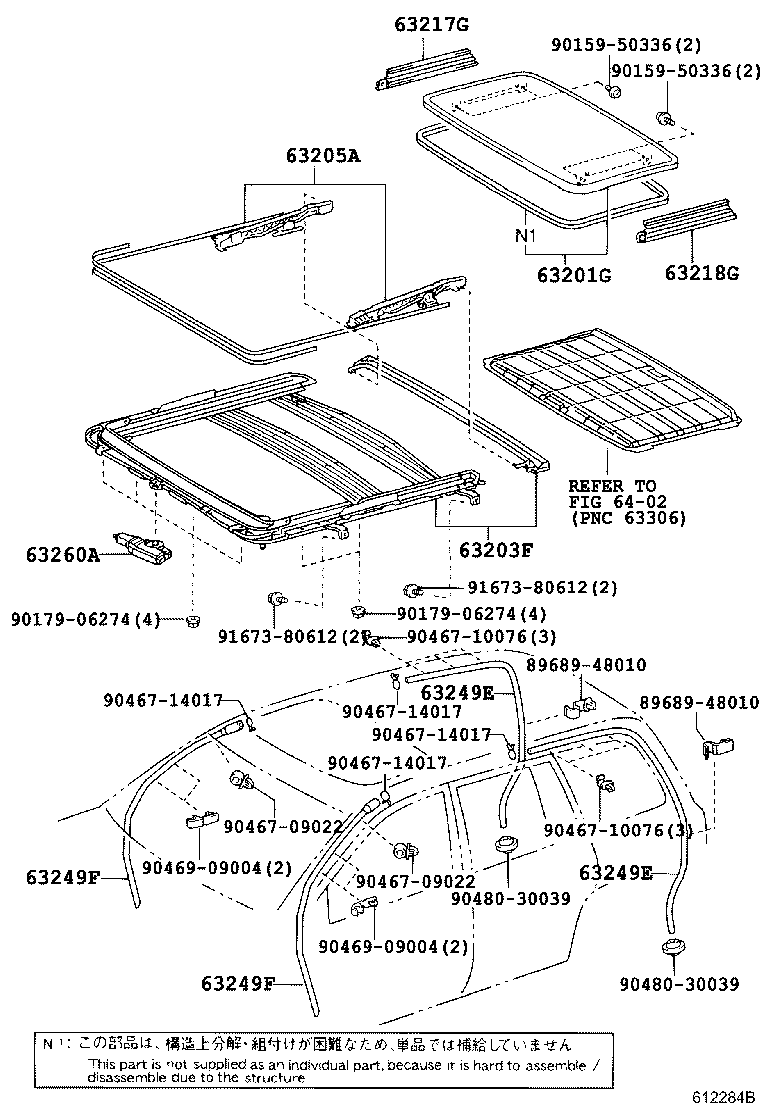

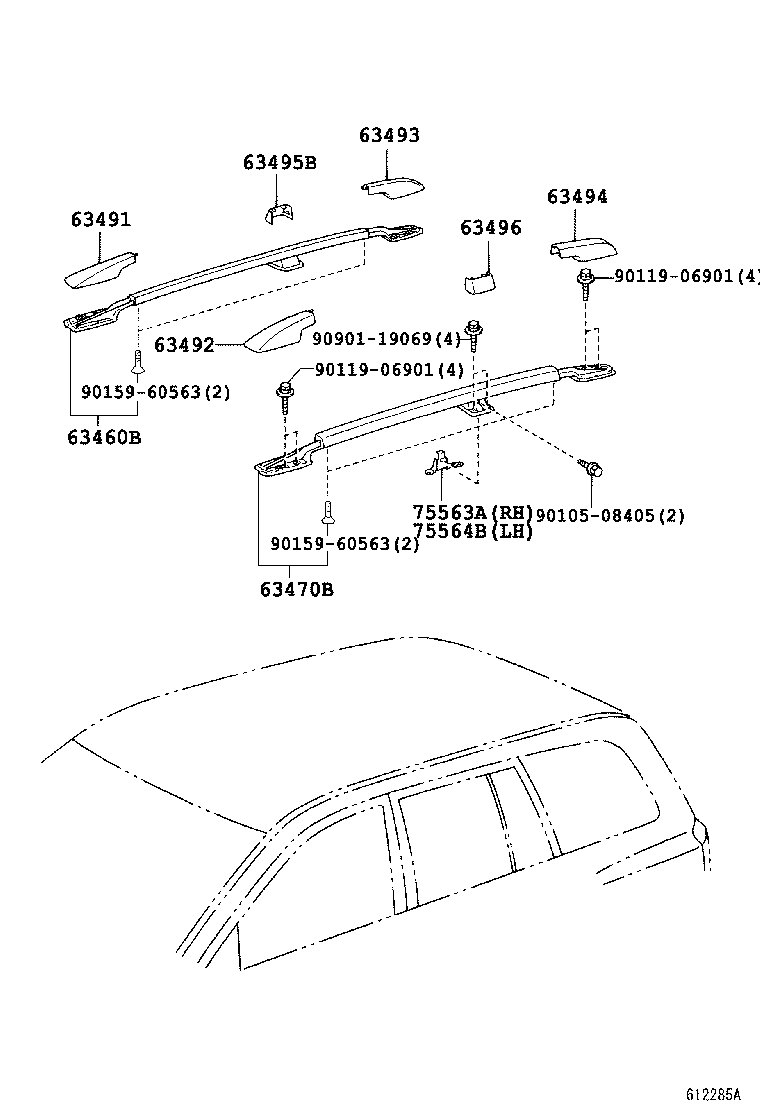

Figure 612283 612283 2005-03 → — Figure 612284B 612284B 2005-03 → — Figure 612285A 612285A 2005-03 → —

Part groups

PNCDescription
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63132 Panel, Windshield Header, Inner
63139 Bracket, Dome Lamp, NO.3
63141H Reinforcement, Roof Panel, Center
63142A Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63201G Glass Sub-assy, Sliding Roof
63203F Housing Sub-assy, Sliding Roof
63205A Cable Sub-assy, Sliding Roof Drive
63217G Garnish, Sliding Roof Side, RH
63218G Garnish, Sliding Roof Side, LH
63249E Hose, Sliding Roof Drain
63249F Hose, Sliding Roof Drain
63260A Gear Sub-assy, Sliding Roof Drive
63460B Rack Assy, Roof, RH
63470B Rack Assy, Roof, LH
63491 Cover, Roof Rack Leg, Front RH
63492 Cover, Roof Rack Leg, Front LH
63493 Cover, Roof Rack Leg, Rear RH
63494 Cover, Roof Rack Leg, Rear LH
63495B Cover, Roof Rack Leg, Center RH
63496 Cover, Roof Rack Leg, Center LH
75563A Retainer, Roof Drip Side Finish Moulding, NO.1
75564B Retainer, Roof Drip Side Finish Moulding, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
