Toyota Kluger HV

2005-03 → 2007-05 · chassis MHU28 · catalogue 525110 · Japan

Supported model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

25 part groups · 2 illustrations

Illustrations

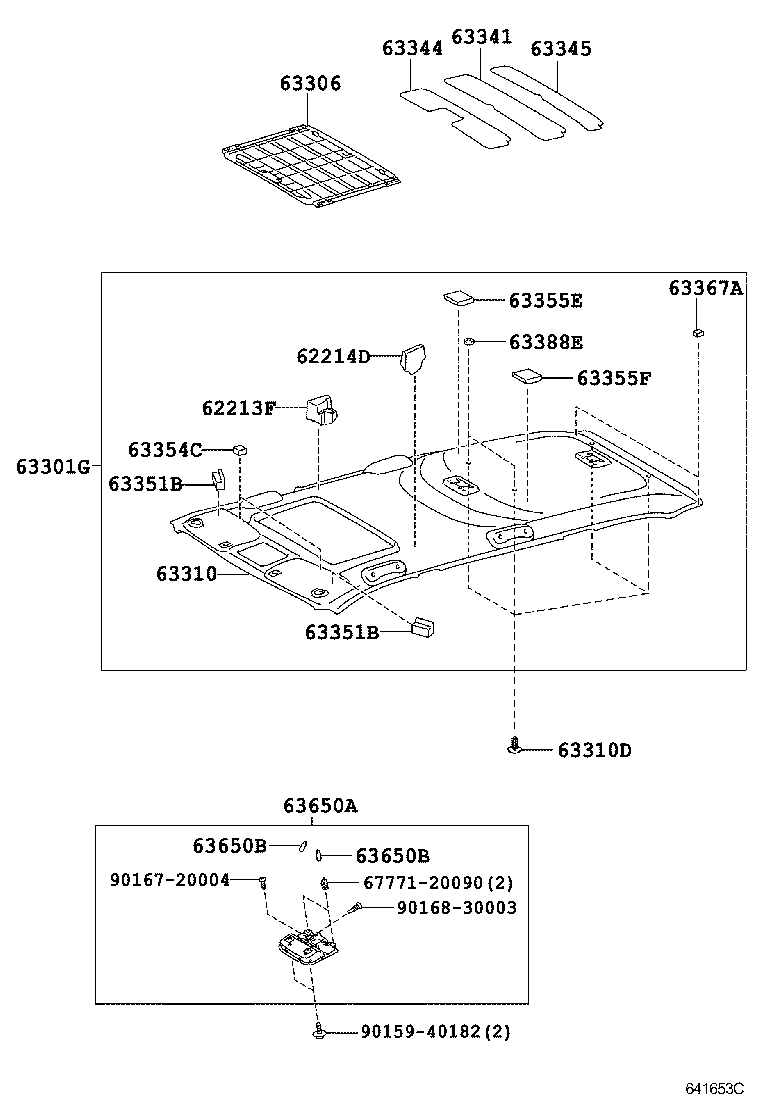

Figure 641652C 641652C 2005-03 → — Figure 641653C 641653C 2005-03 → —

Part groups

PNCDescription
62213F Pad, Front Pillar Garnish, RH
62214D Pad, Front Pillar Garnish, LH
63301G Headlining Sub-assy, Roof, Front
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63344 Pad, Roof Silencer, NO.4
63345 Pad, Roof Silencer, NO.5
63351B Pad, Roof Headlining
63352D Pad, Roof Headlining, NO.2
63354C Pad, Roof Headlining Front Side
63355C Pad, Roof Headlining, RH
63355D Pad, Roof Headlining, LH
63355E Pad, Roof Headlining, NO.2 RH
63355F Pad, Roof Headlining, NO.2 LH
63367A Support, Roof Headlining, C NO.1
63388E Stopper, Roof Headlining Trim Clip
63650A Box Assy, Roof Console
63650B Bulb, Roof Console Box
63665 Spacer, Roof Headlining
66415B Spacer, Side Rail, Rear NO.2 RH
66416 Spacer, Side Rail, Rear NO.3 RH
66426B Spacer, Side Rail, Rear NO.3 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
