Toyota Kluger HV
2005-03 → 2007-05 · chassis MHU28 · catalogue 525110 · Japan
Supported model
Data version 2007-10

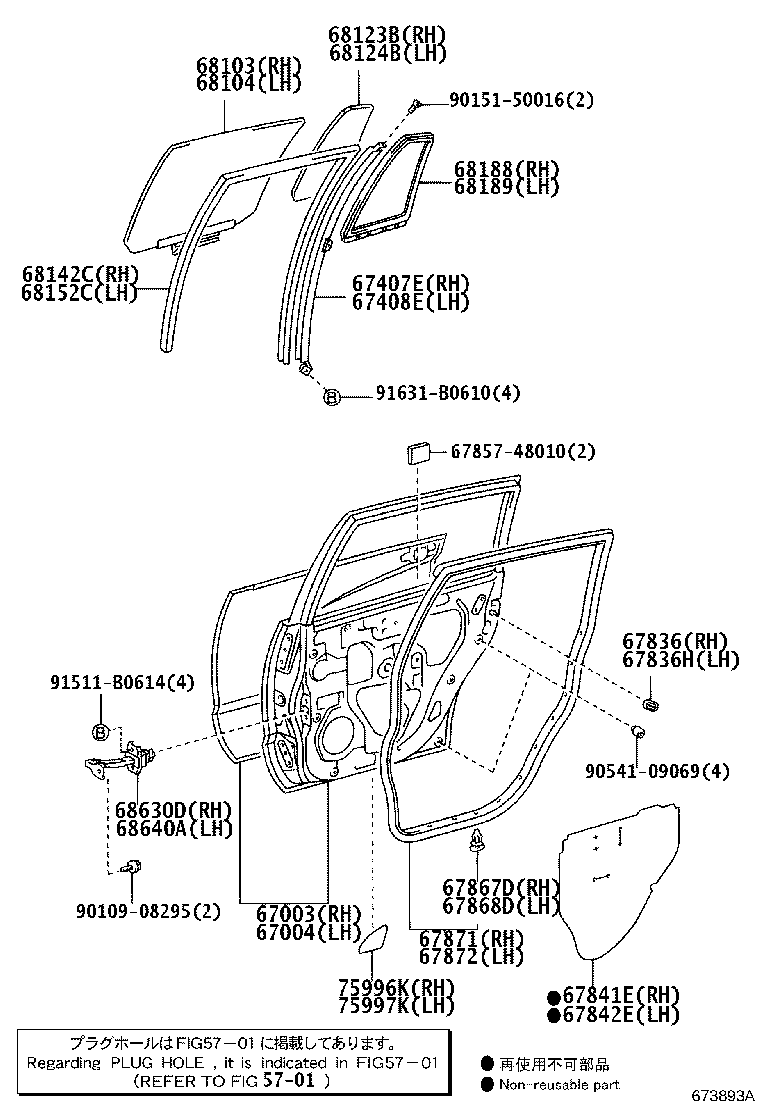

Rear Door Panel & Glass
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67836 | Cover, Rear Door Lock Child Protection, RH |
| 67836H | Cover, Rear Door Lock Child Protection, LH |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124B | Glass, Rear Door Quarter Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
| 74811F | Handle, Door Pull |
| 75996K | Stripe, Rear Body, RH |
| 75997K | Stripe, Rear Body, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
