Toyota Kluger HV

2005-03 → 2007-05 · chassis MHU28 · catalogue 525110 · Japan

Supported model Data version 2007-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

6 part groups · 2 illustrations

Illustrations

Figure 862435C

862435C 2005-03 → —

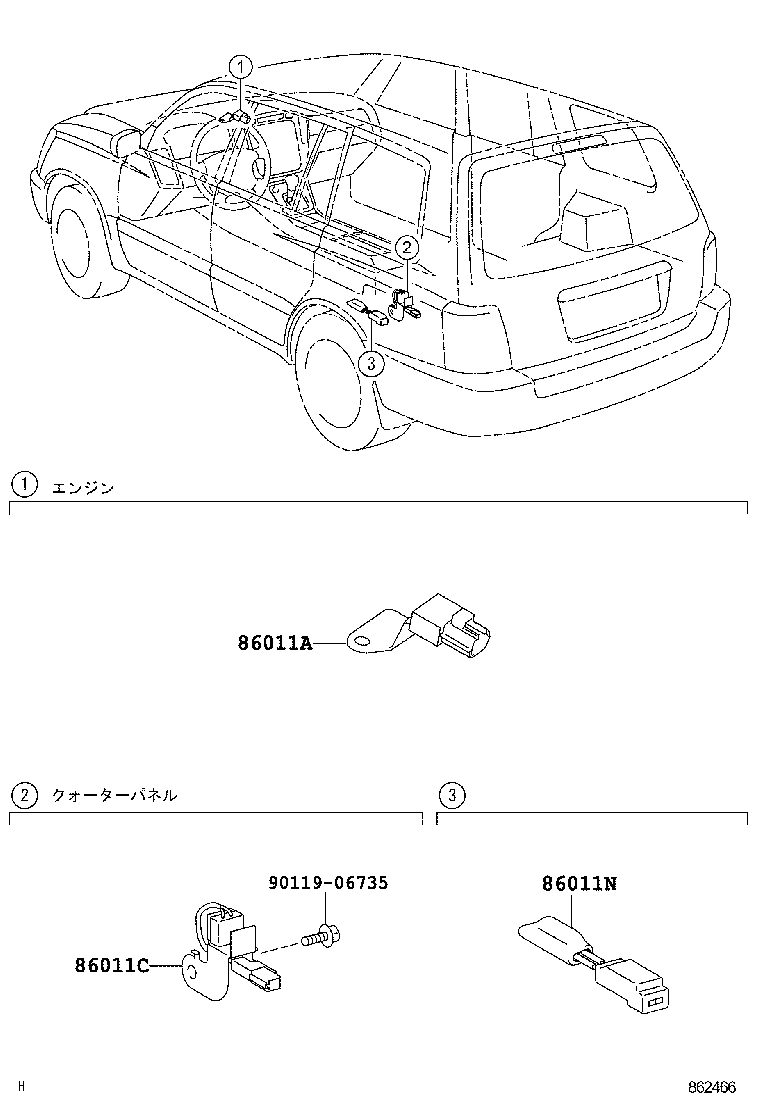

862466 2005-03 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86011C	Filter, Noise
86011N	Filter, Noise
86120	Receiver Assy, Radio
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
