Toyota Kluger HV

2005-03 → 2007-05 · chassis MHU28 · catalogue 525110 · Japan

Supported model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

16 part groups · 3 illustrations

Illustrations

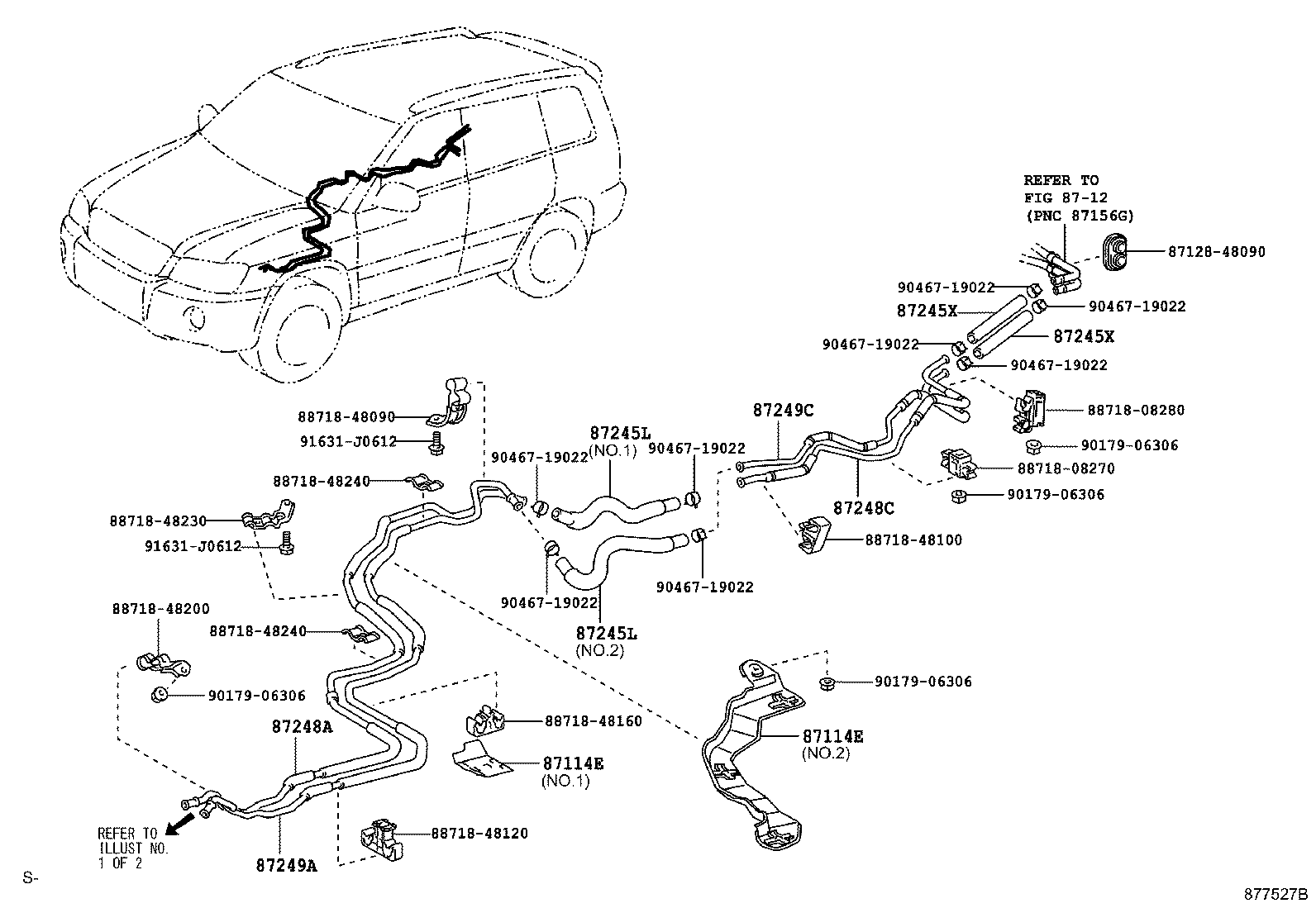

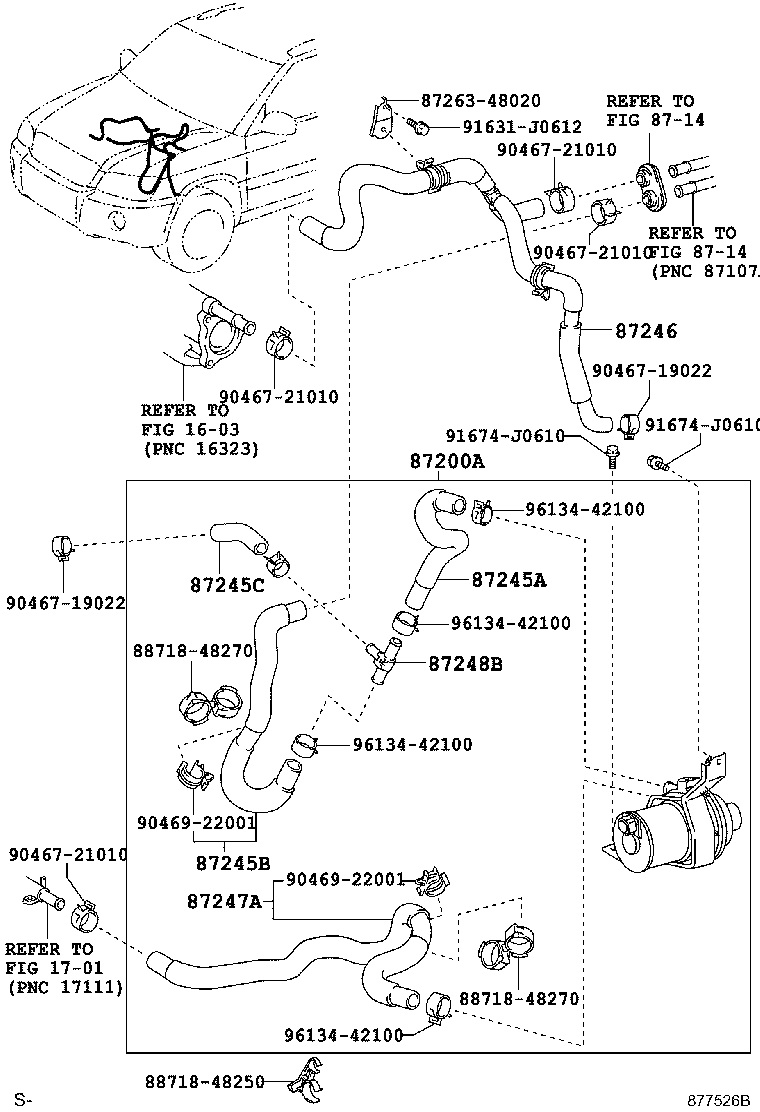

Figure 877525A 877525A 2005-03 → — Figure 877526B 877526B 2005-03 → — Figure 877527B 877527B 2005-03 → —

Part groups

PNCDescription
87114E Cover, Heater, NO.1
87200A Pump Assy, Water(FOR HEATER)
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245L Hose, Heater Water, L
87245X Hose, Heater Water
87246 Hose, Heater Water, Outlet
87247A Hose, Heater Water, A
87247B Hose, Heater Water, B
87247C Hose, Heater Water, C
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87249A Pipe, Heater Water Outlet, A
87249C Pipe, Heater Water Outlet, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
