Toyota Lexus NX Series

2014-07 → 2021-09 · chassis AGZ1#,AYZ1# · catalogue 527110 · Japan

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

15 part groups · 2 illustrations

Illustrations

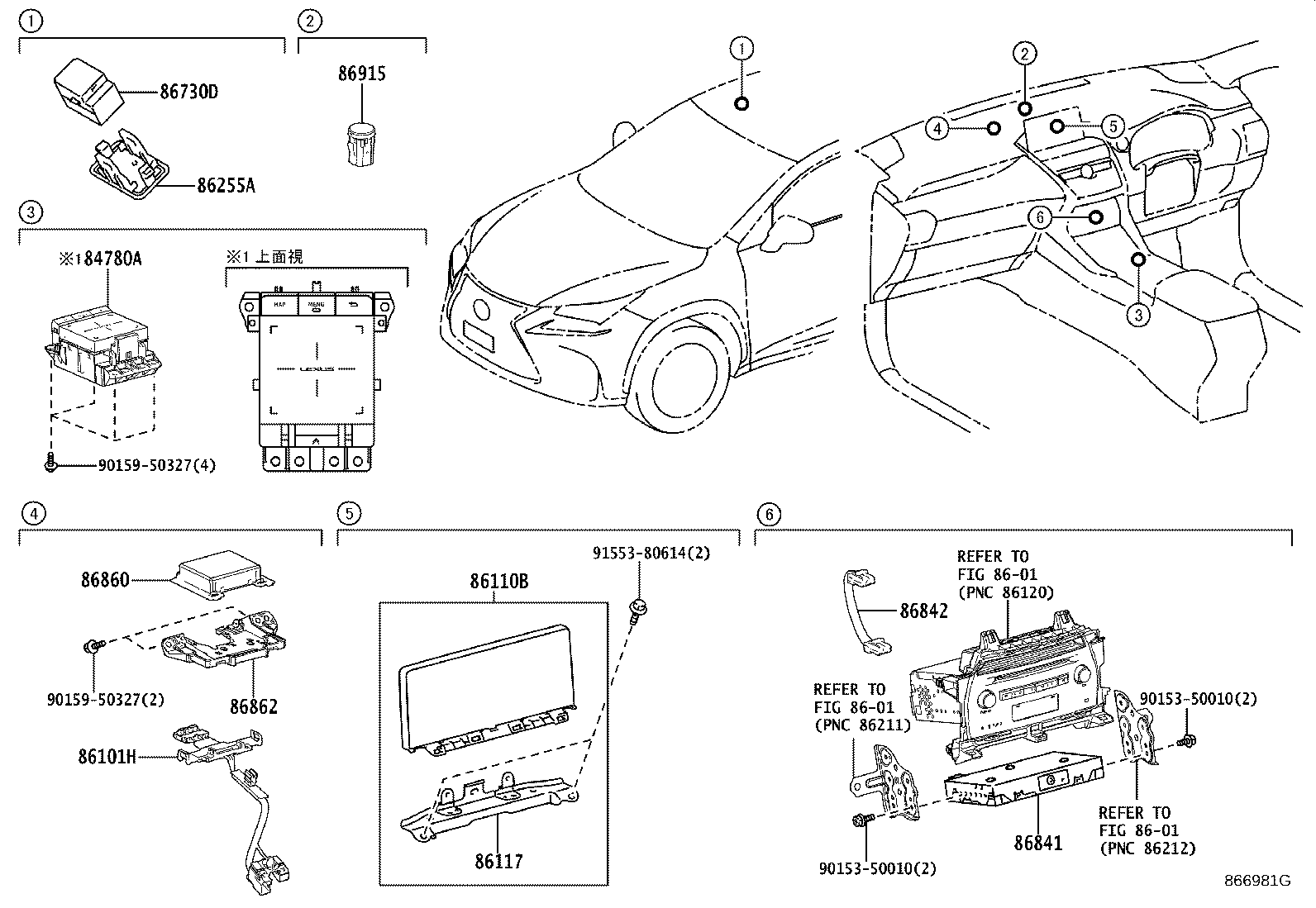

Figure 865810E 865810E 2014-07 → 2017-09 Figure 866981G 866981G 2017-09 → —

Part groups

PNCDescription
84780A Controller Assy, Remote Operation
86101H Cord Sub-assy, Antenna
86110B Multi-display Assy
86117 Bracket, Multi-display Controller, A
86134A Parts, Multi-display
86255A Case, Microphone, NO.1
86271 Disc, Disc Player
86273B Adapter, Disc Player
86730A Microphone Assy, Telephone
86730D Microphone Assy, Telephone, NO.2
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
86915 Transceiver, Optical Beacon
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
