Toyota Lexus NX Series

2021-10 → present · chassis AAZA2#,AAZH2#,TAZA25 · catalogue 527120 · Japan

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

21 part groups · 6 illustrations

Illustrations

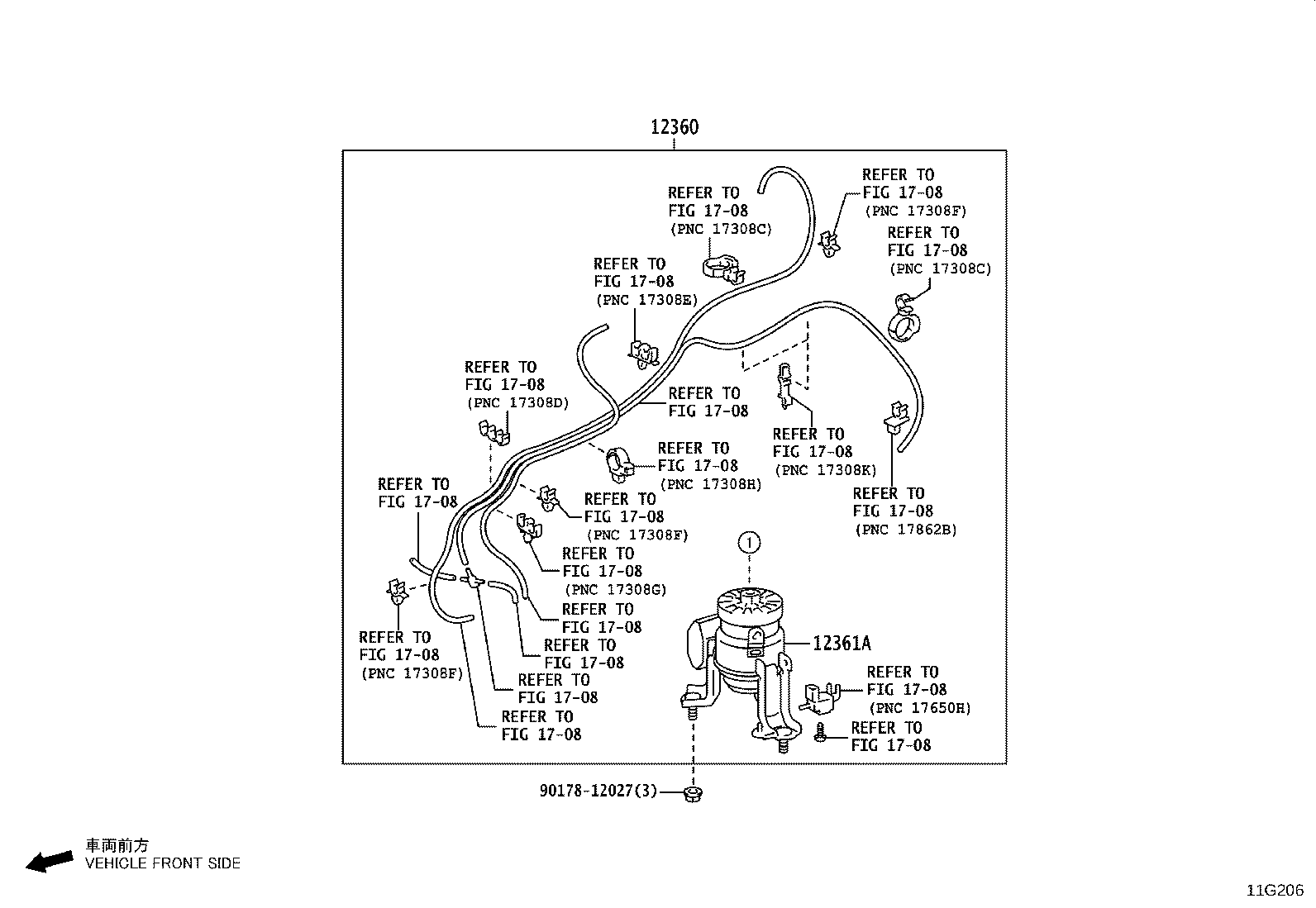

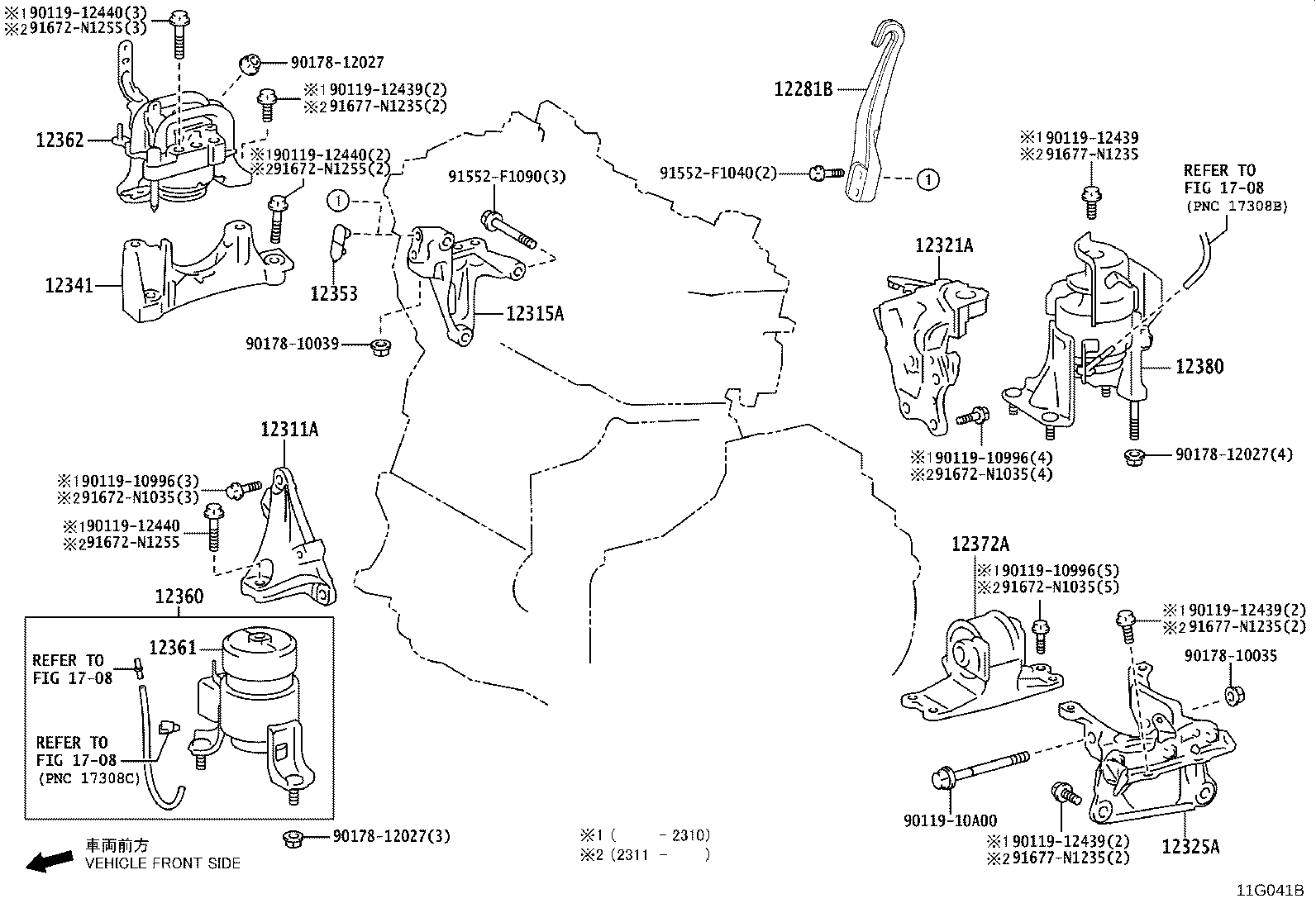

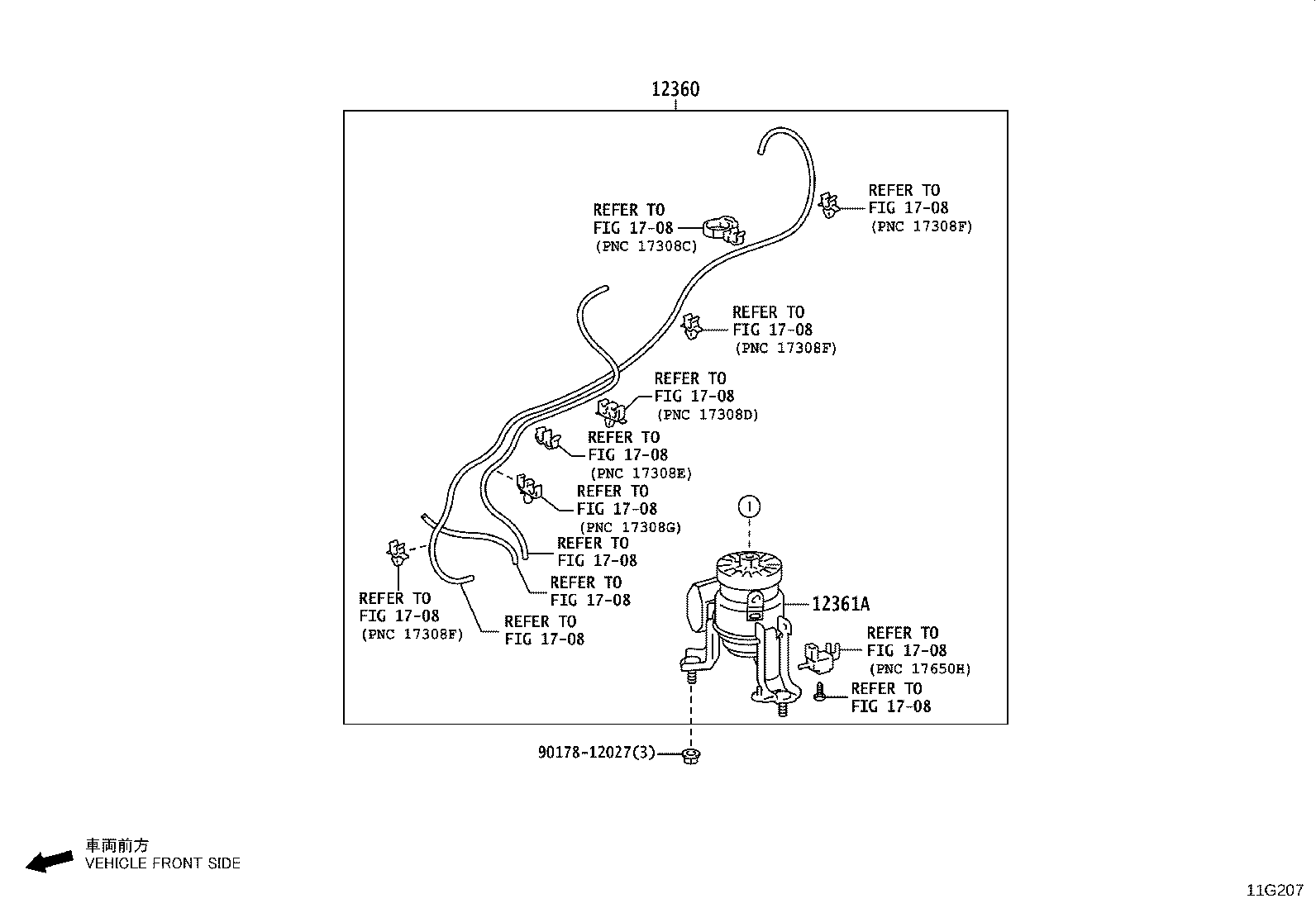

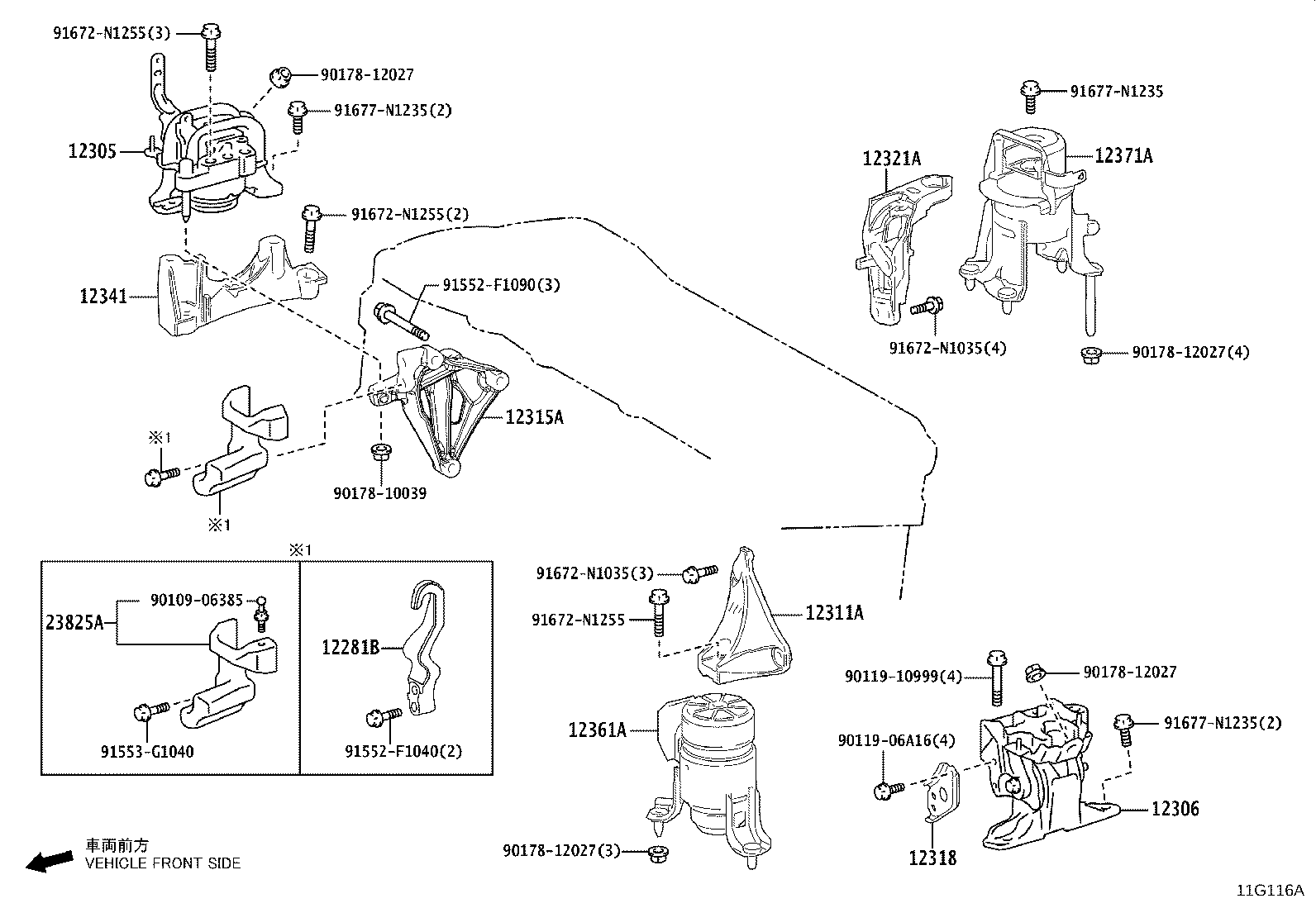

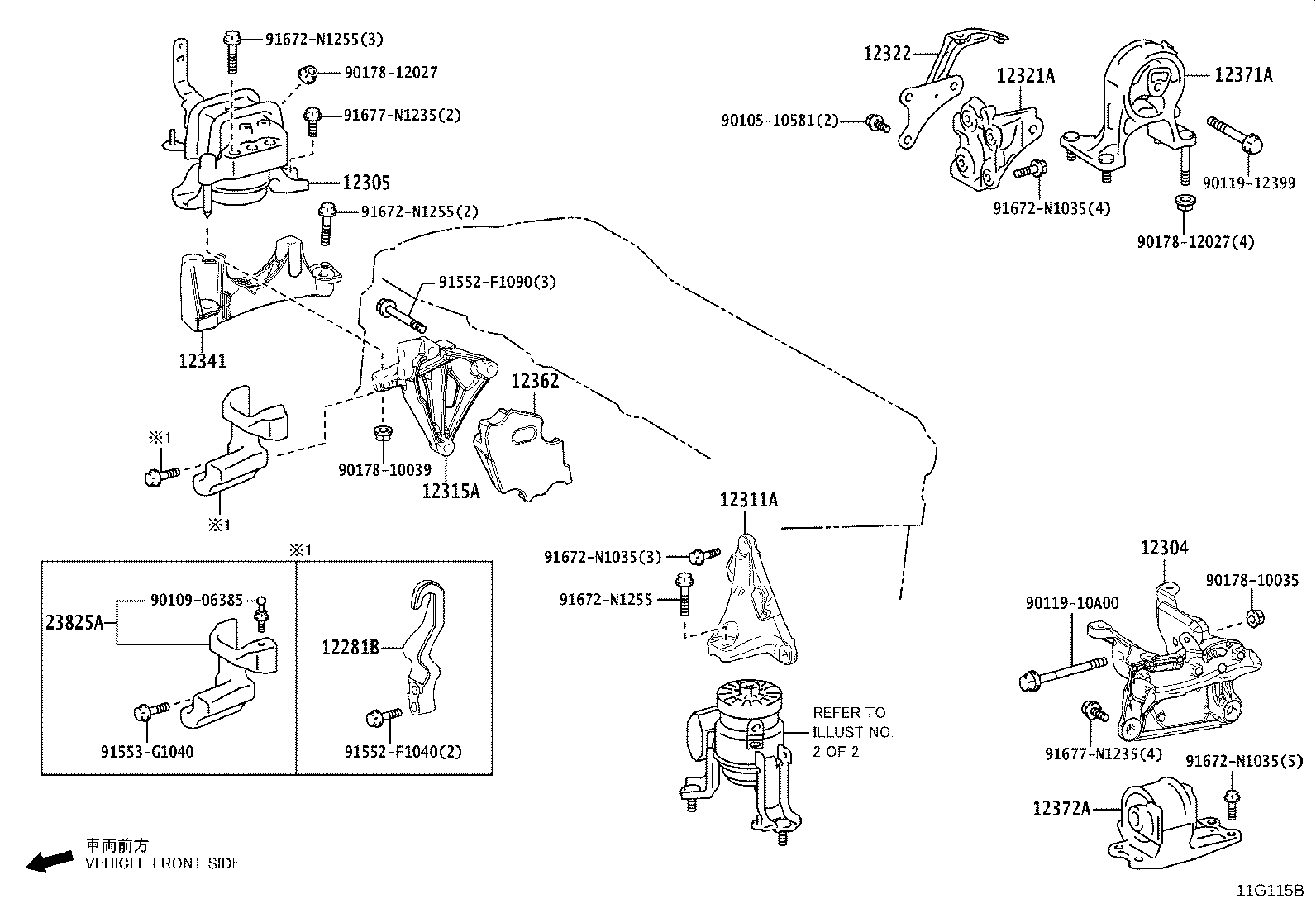

Figure 11G114B 11G114B 2021-11 → — Figure 11G206 11G206 2021-11 → — Figure 11G115B 11G115B 2021-11 → — Figure 11G207 11G207 2021-11 → — Figure 11G116B 11G116B 2021-11 → — Figure 11G041B 11G041B 2021-11 → —

Part groups

PNCDescription
12281B Hanger, Engine, NO.1
12303 Bracket Sub-assy, Engine Mounting, Rear
12304 Bracket Sub-assy, Engine Mounting, LH
12305 Insulator Sub-assy, Engine Mounting, RH
12306 Insulator Sub-assy, Engine Mounting, LH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12318 Stay, Engine Mounting, LH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12322 Bracket, Engine Mounting, Rear NO.2
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12341 Spacer, Engine Mounting
12353 Cap, Engine Mounting Bracket
12360 Insulator Assy, Engine Mounting, Front
12361 Insulator, Engine Mounting, Front
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12380 Insulator Assy, Engine Mounting, Rear
23825A Guard, Fuel Delivery
