Toyota Lexus NX Series

2021-10 → present · chassis AAZA2#,AAZH2#,TAZA25 · catalogue 527120 · Japan

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

31 part groups · 6 illustrations

Illustrations

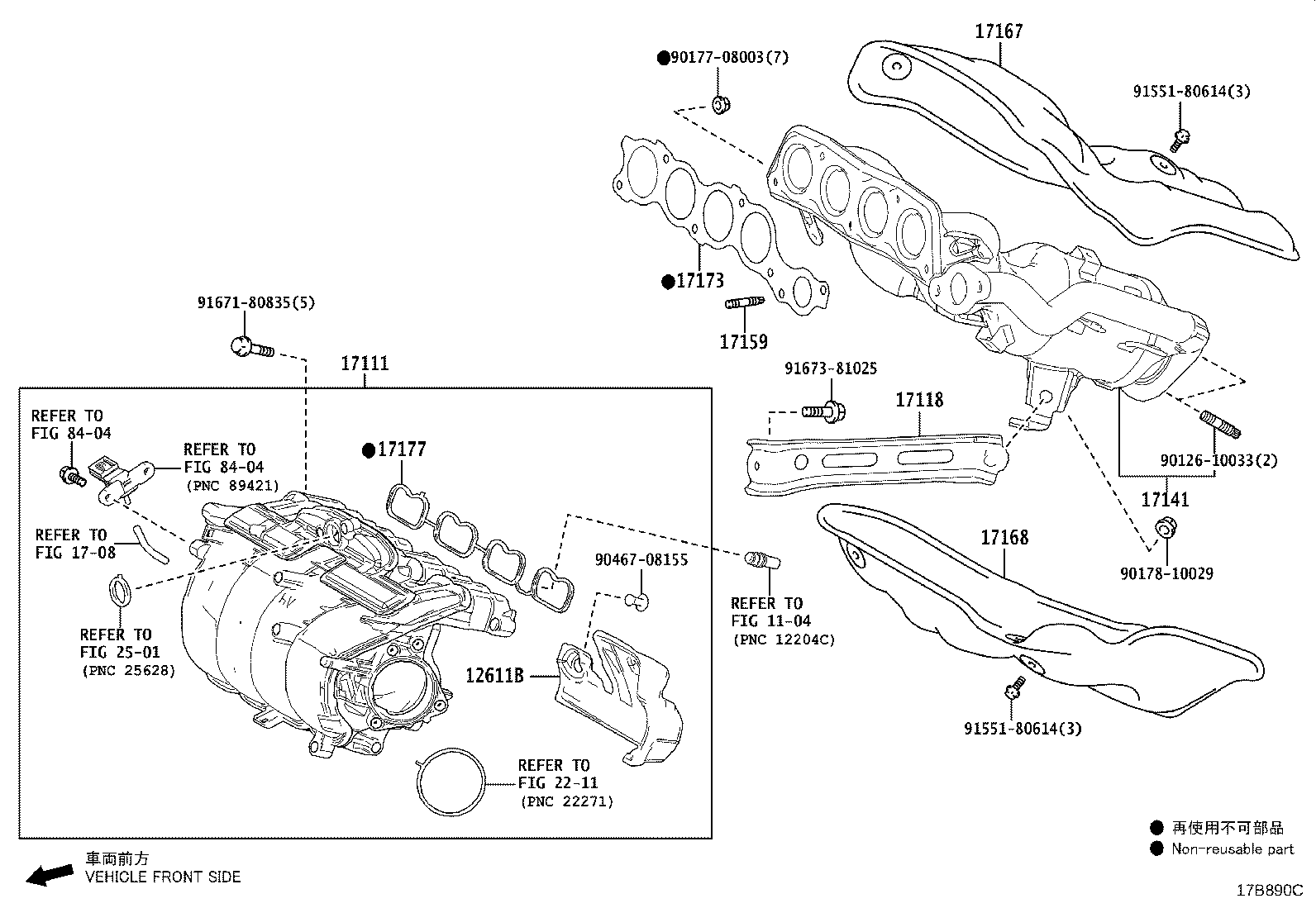

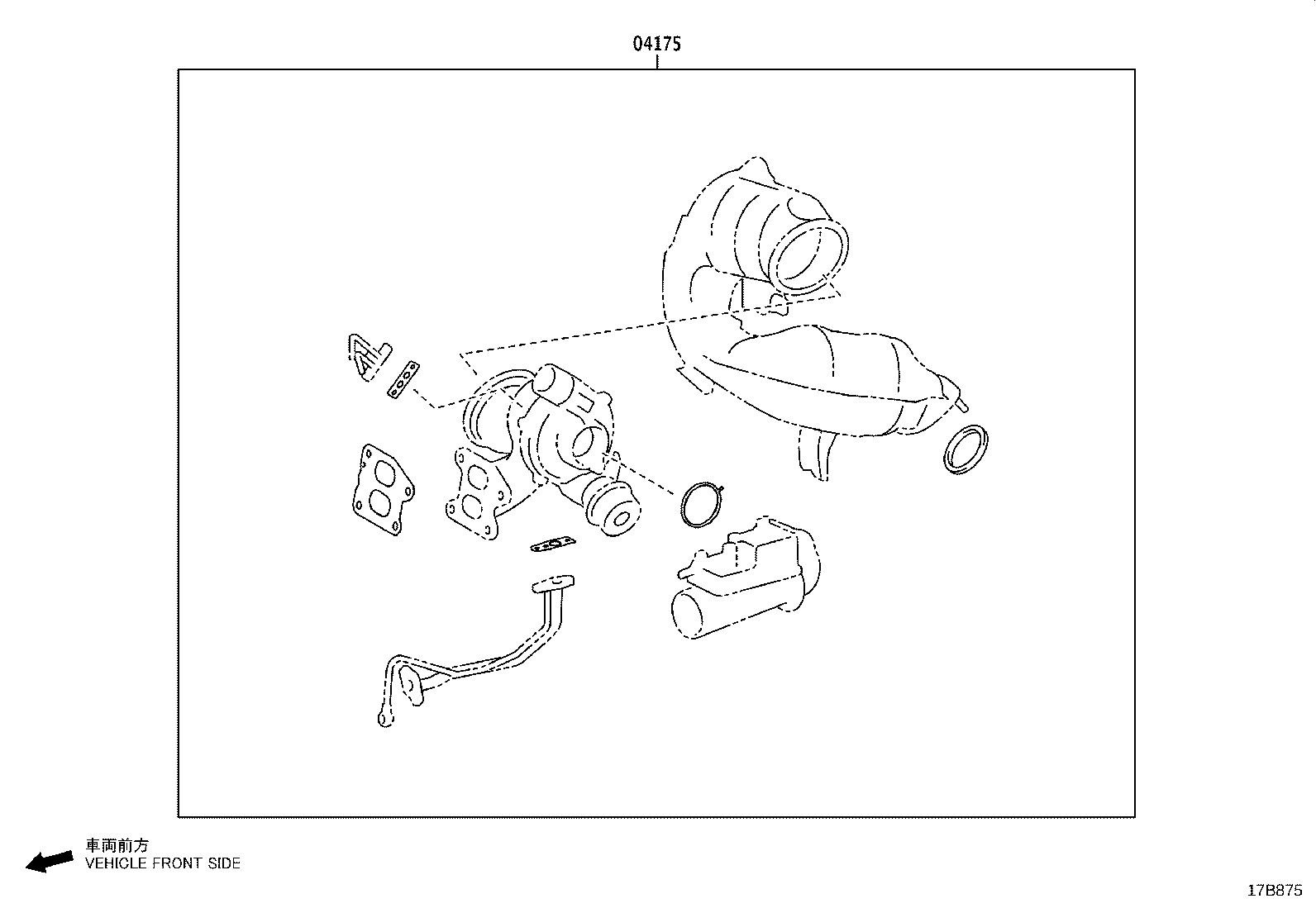

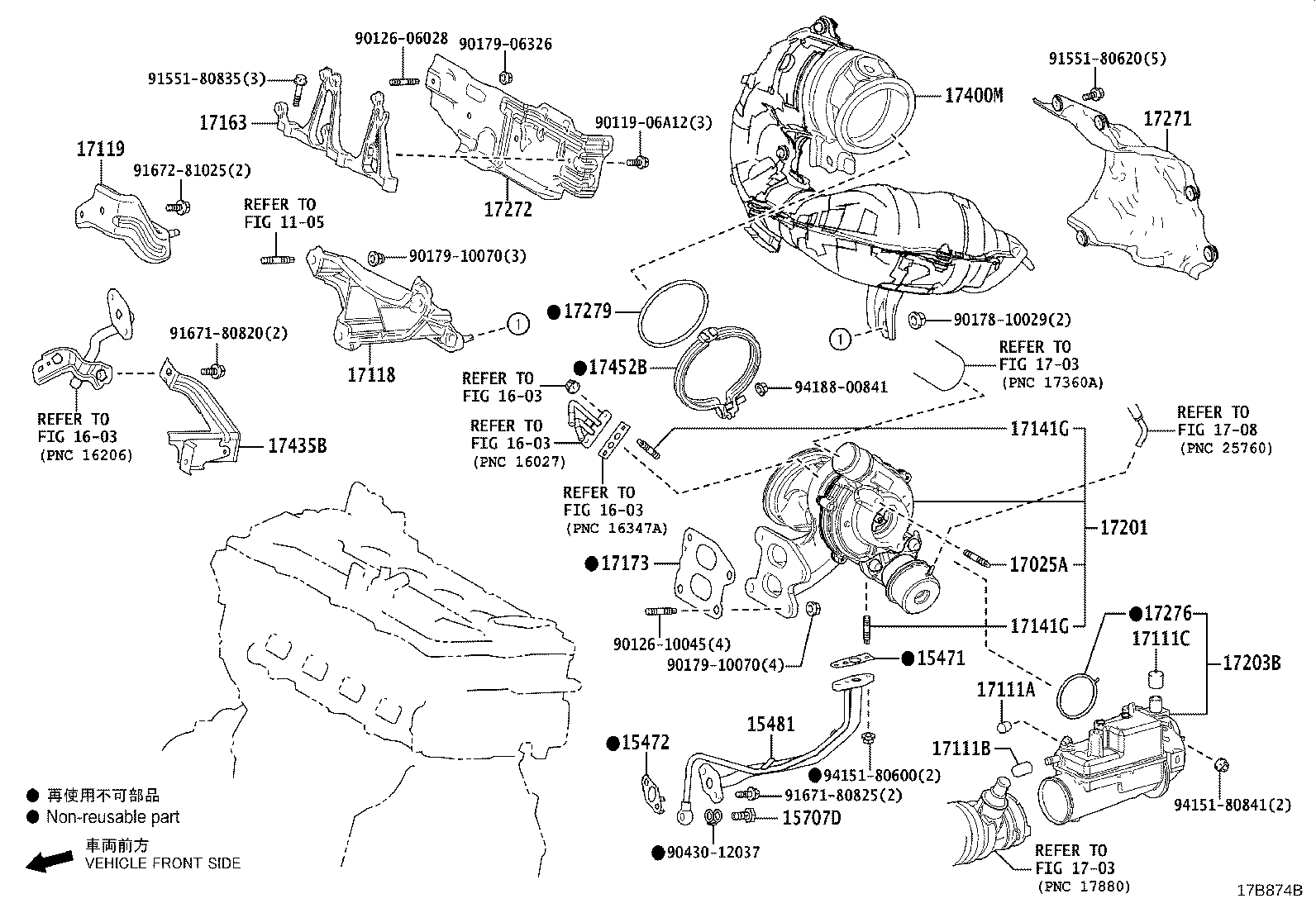

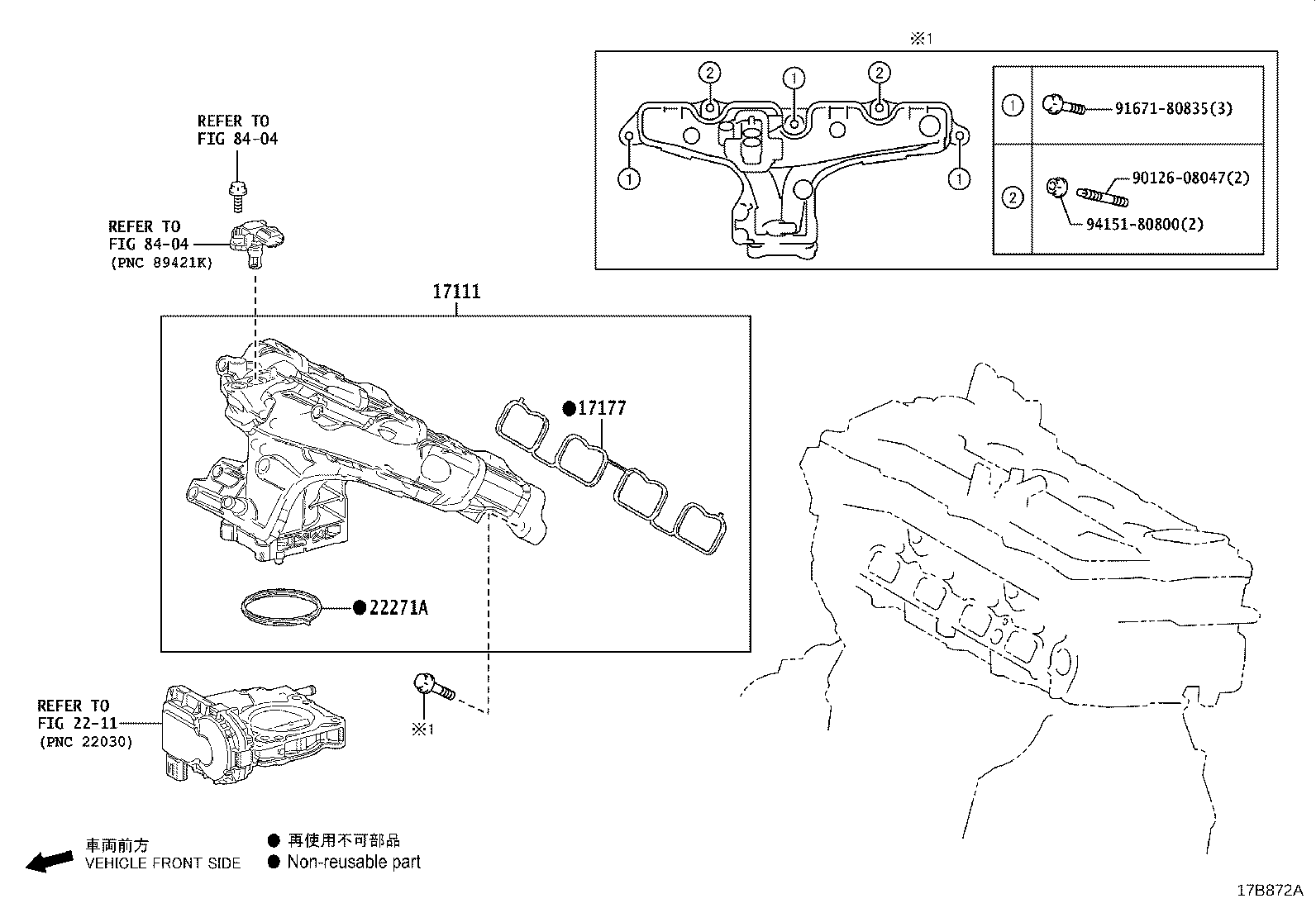

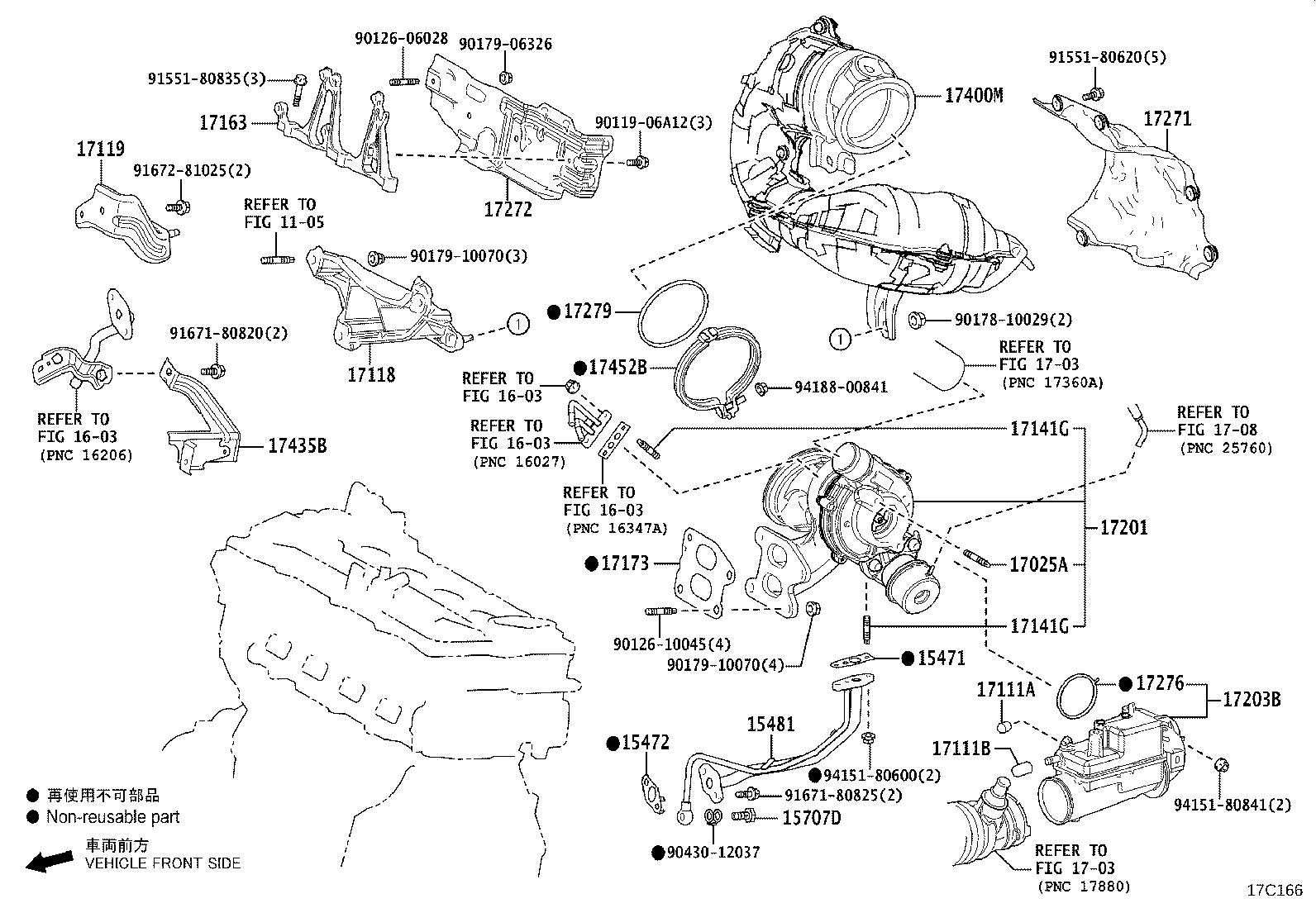

Figure 17B889C 17B889C 2021-11 → — Figure 17B890C 17B890C 2021-11 → — Figure 17B872A 17B872A 2021-11 → — Figure 17C166 17C166 2021-11 → 2022-07 Figure 17B874B 17B874B 2022-07 → — Figure 17B875 17B875 2021-11 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
12611B Cover, Engine, NO.1
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
15481 Pipe, Turbo Oil, NO.1
15707D Bolt, Union(FOR OIL PIPE)
17025A Bolt, Stud(FOR TURBINE HOUSING)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111C Plug, NO.3
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141G Bolt, Stud(FOR TURBOCHARGER)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17163 Bracket, Heat Insulator, NO.1
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17201 Turbocharger Sub-assy
17203B Elbow Sub-assy, Compressor Inlet
17271 Insulator, Turbo, NO.1
17272 Insulator, Turbo, NO.2
17276 Gasket, Compressor Inlet
17279 Gasket, Turbine Outlet Elbow
17400M Converter Assy, W/Catalyst, RH
17435B Insulator, Exhaust Pipe Heat
17452B Clamp, Exhaust Pipe
22271A Gasket, Throttle Body
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
