Vacuum Pump

6 part groups · 2 illustrations

Illustrations

Figure 196095C

196095C 2021-11 → —

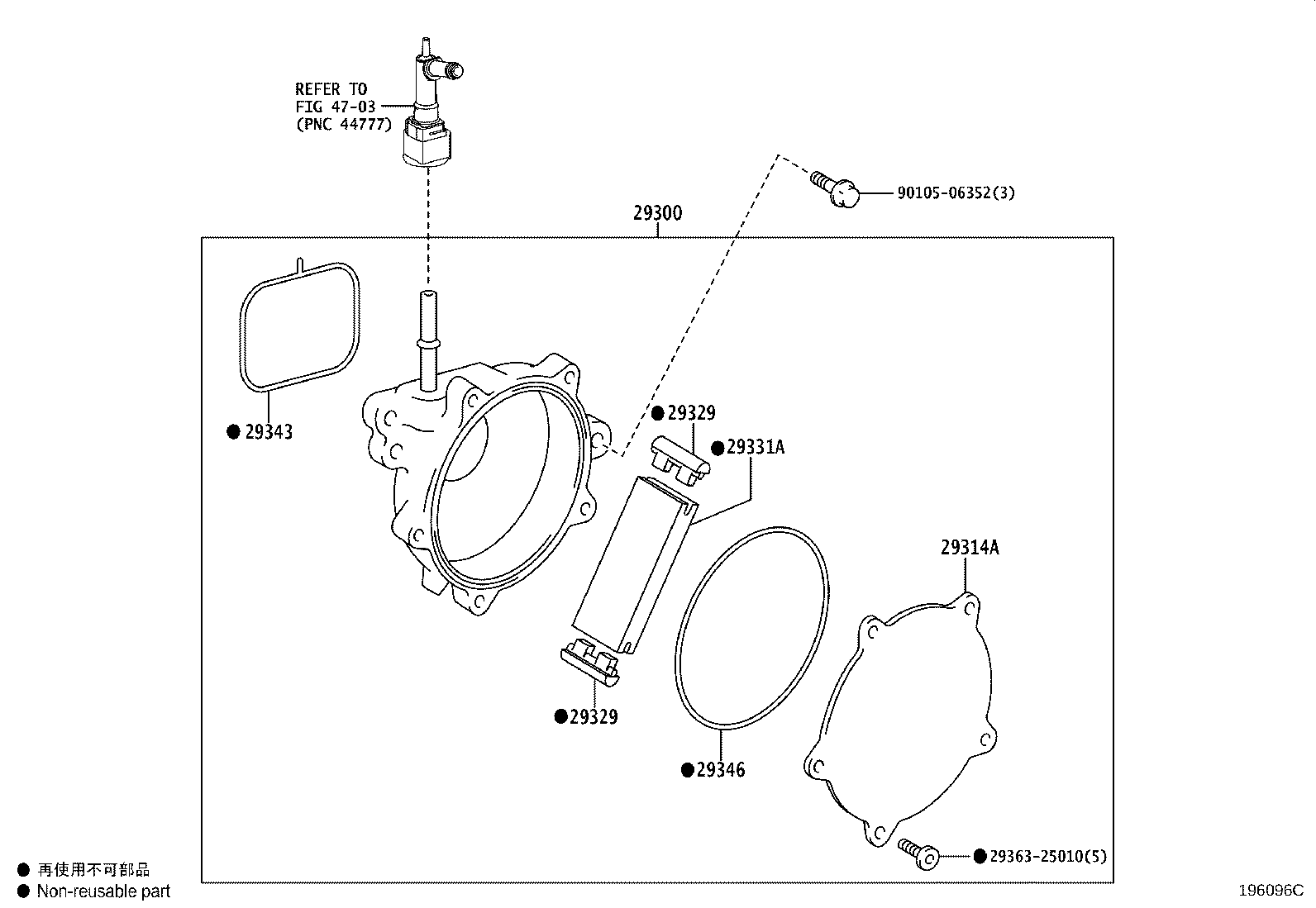

Figure 196096C

196096C 2021-11 → —

Part groups

PNC	Description
29300	Pump Assy, Vacuum
29314A	Cover, End
29329	Cap, Vacuum Pump Vane
29331A	Vane, Vacuum Pump
29343	Ring, O Vacuum Pump, NO.1
29346	Ring, O Vacuum Pump Cover

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
