Toyota Lexus NX Series

2021-10 → present · chassis AAZA2#,AAZH2#,TAZA25 · catalogue 527120 · Japan

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Housing & Differential

8 part groups · 3 illustrations

Illustrations

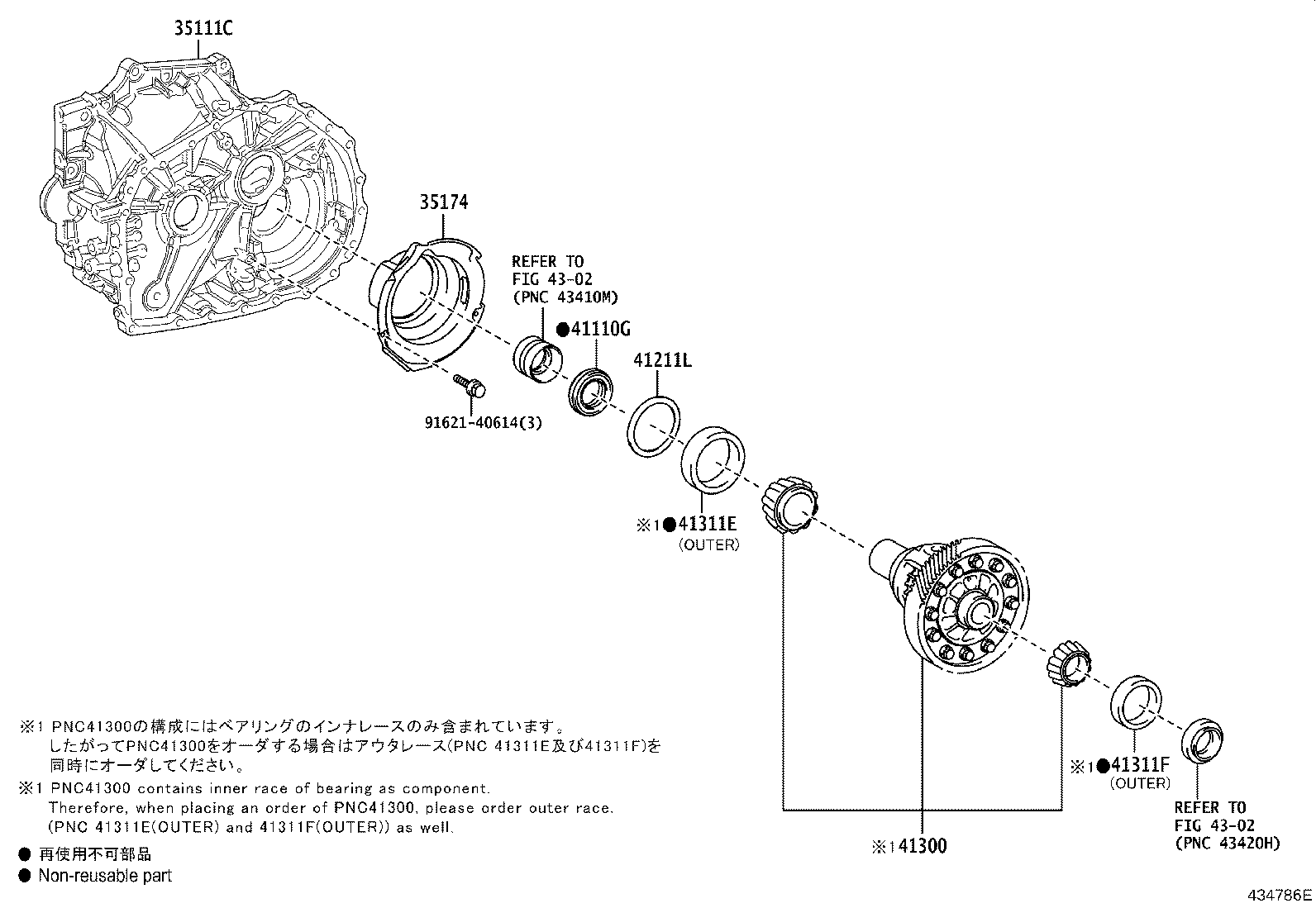

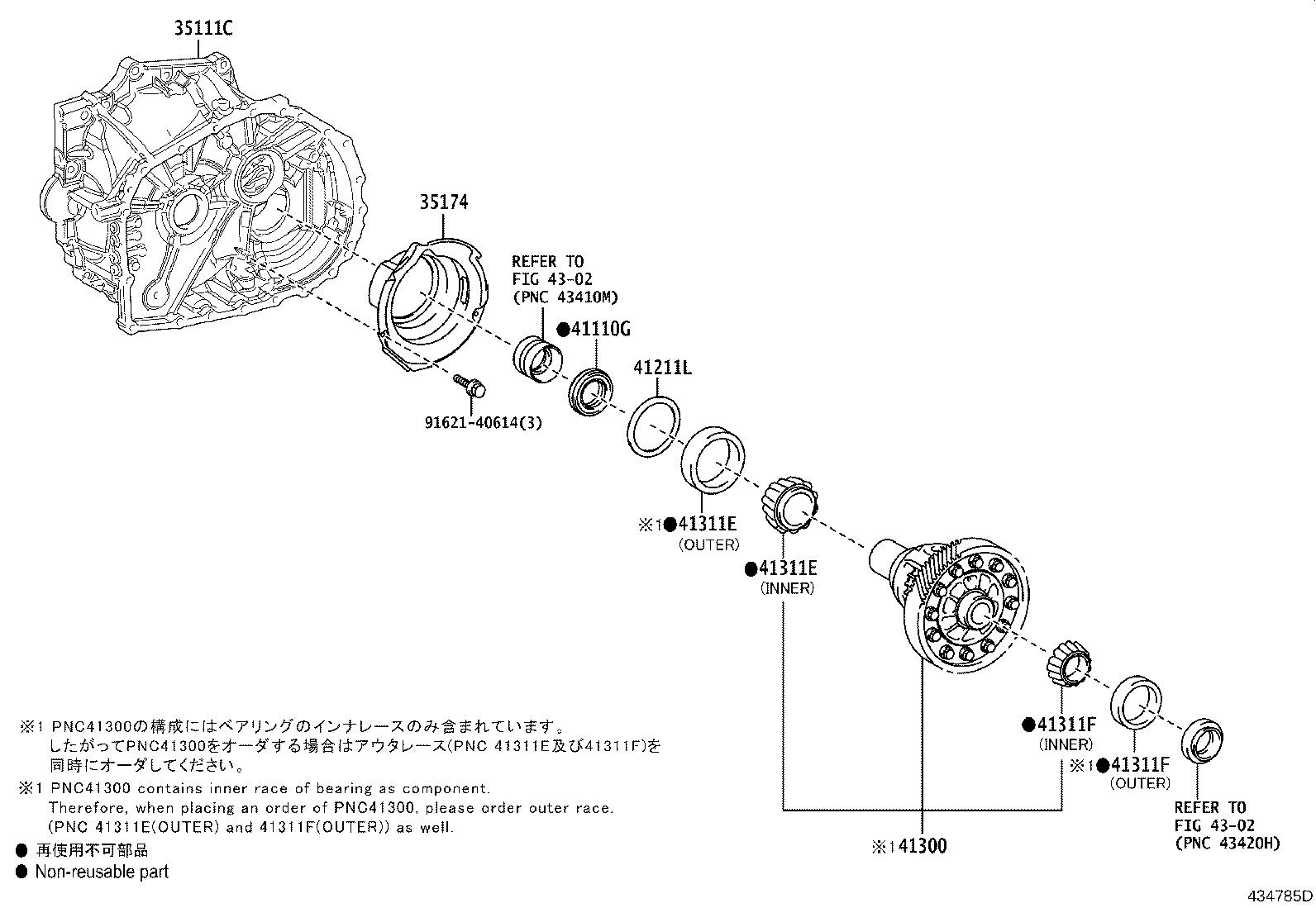

Figure 434784E 434784E 2021-11 → — Figure 434785D 434785D 2021-11 → — Figure 434786E 434786E 2021-11 → —

Part groups

PNCDescription
35111C Housing, Transaxle
35174 Separator, Transaxle Housing Oil
41110G Seal, Oil (FOR DIFFERENTIAL SIDE)
41211L Shim (FOR DIFFERENTIAL DRIVE PINION)
41300 Case Assy, Front Differential, W/Ring Gear
41311E Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
41311F Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
41361F Washer, Front Differential Side Gear Thrust, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
