Toyota Lexus NX Series

2021-10 → present · chassis AAZA2#,AAZH2#,TAZA25 · catalogue 527120 · Japan

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

12 part groups · 3 illustrations

Illustrations

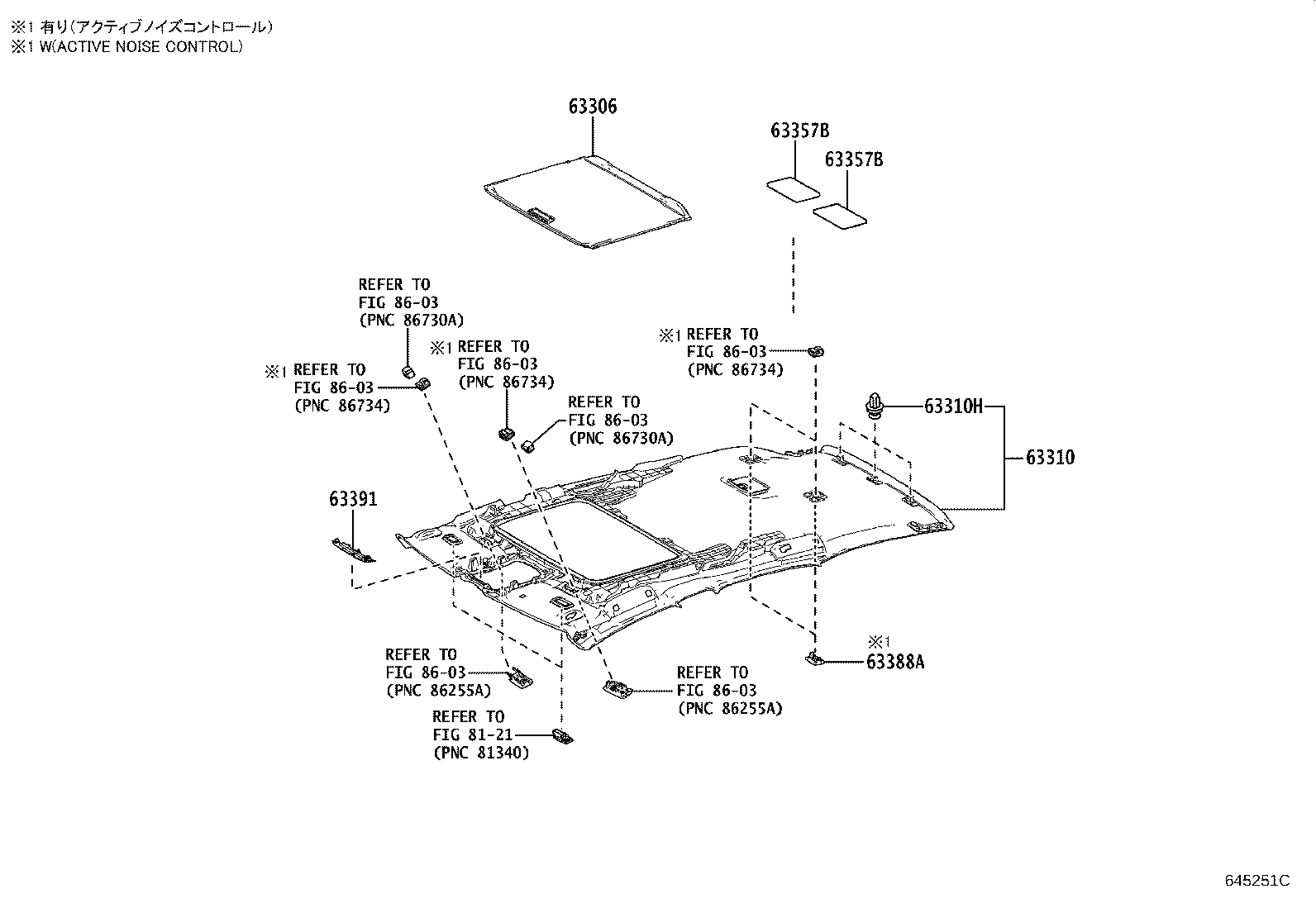

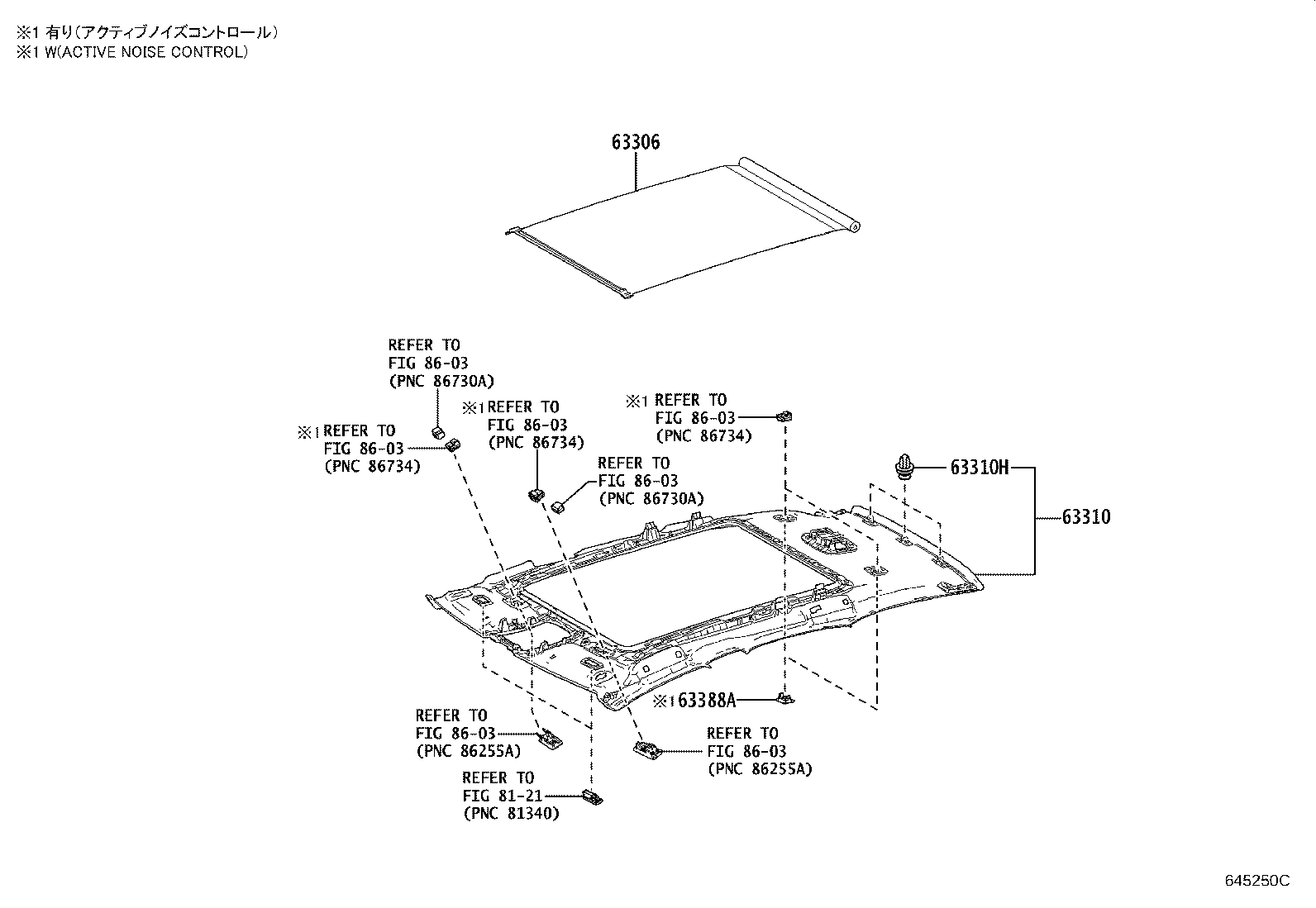

Figure 645249D 645249D 2021-11 → — Figure 645250C 645250C 2021-11 → — Figure 645251C 645251C 2021-11 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63327E Fastener, Roof Headlining, NO.1
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63351B Pad, Roof Headlining
63354C Pad, Roof Headlining Front Side
63357B Silencer, Roof
63388A Cover, Roof Headlining Holder
63391 Trim, Roof Headlining, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
