Toyota Lexus NX Series
2021-10 → present · chassis AAZA2#,AAZH2#,TAZA25 · catalogue 527120 · Japan
Supported model
Data version 2024-03

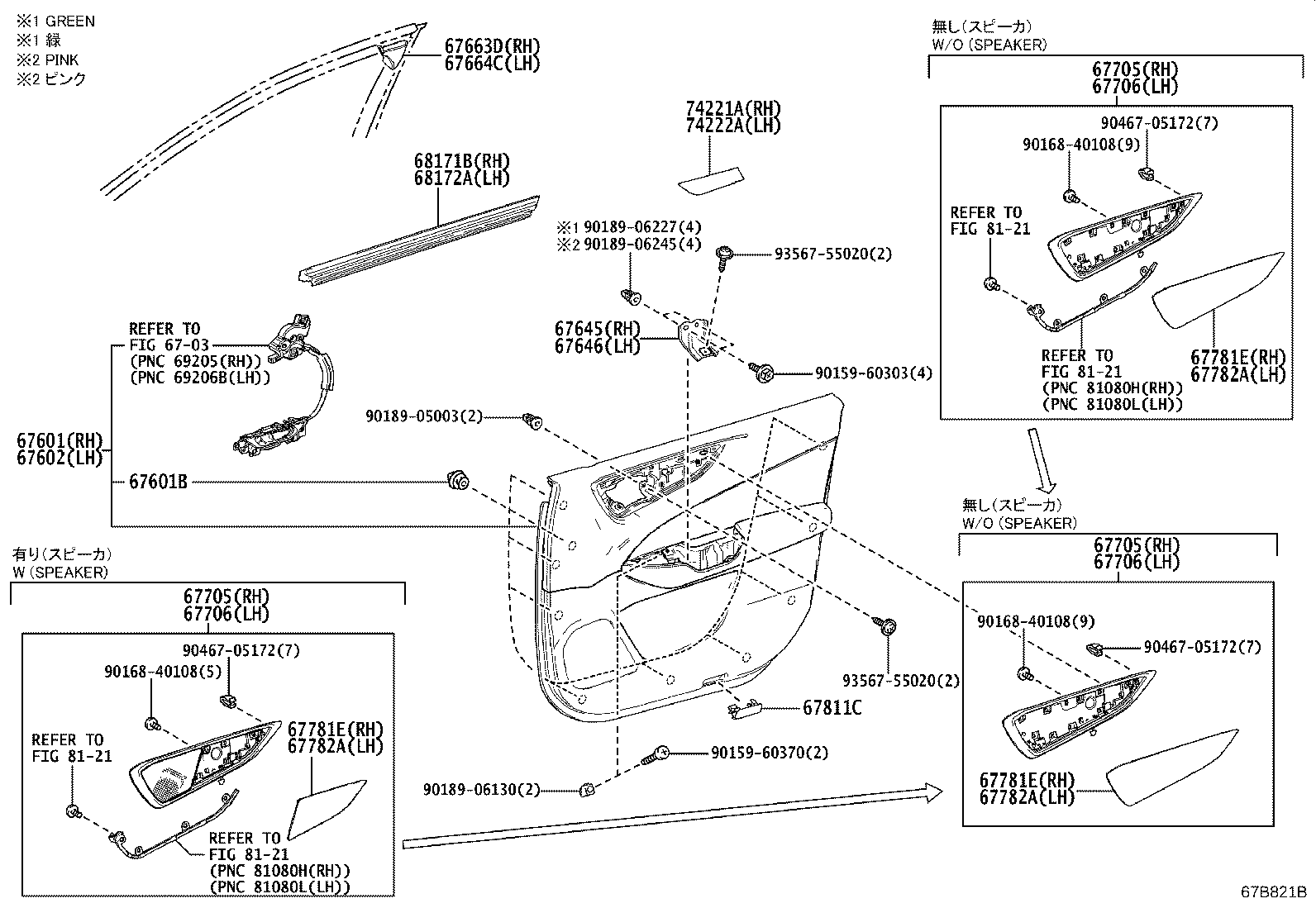

Front Door Panel & Glass
65 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67001B | Plug, Hole(FOR FRONT DOOR PANEL) |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67139 | Lining, Door Outside Panel Reinforcement |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67645 | Bracket, Front Door Armrest Set, RH |
| 67646 | Bracket, Front Door Armrest Set, LH |
| 67663D | Garnish, Door Frame, RH |
| 67664C | Garnish, Door Frame, LH |
| 67705 | Ornament Sub-assy, Front Door Trim, RH |
| 67706 | Ornament Sub-assy, Front Door Trim, LH |
| 67781E | Ornament, Front Door Trim, RH |
| 67782A | Ornament, Front Door Trim, LH |
| 67811C | Cover, Front Door Hole |
| 67831 | Cover, Front Door Service Hole, RH |
| 67831D | Clip(FOR FRONT DOOR SERVICE HOLE COVER) |
| 67832 | Cover, Front Door Service Hole, LH |
| 67837B | Seal, Front Door Dust Proof |
| 67853F | Protector, Front Door, Upper RH |
| 67854E | Protector, Front Door, Upper LH |
| 67855D | Protector, Front Door Panel, RH |
| 67856D | Protector, Front Door Panel, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67861A | Retainer(FOR FRONT DOOR WEATHERSTRIP) |
| 67862 | Weatherstrip, Front Door, LH |
| 67867 | Clip, Door Weatherstrip |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67867H | Retainer, Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67868L | Retainer, Door Weatherstrip, LH |
| 67869B | Clip, Front Door Weatherstrip |
| 67869J | Clip, Front Door Weatherstrip |
| 67875B | Weatherstrip, Front Door, NO.4 RH |
| 67876B | Weatherstrip, Front Door, NO.4 LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68125 | Glass, Front Door Fix Window, RH |
| 68126 | Glass, Front Door Fix Window, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151D | Run, Front Door Glass, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68192C | Seal, Front Door Belt, Front RH |
| 68193C | Seal, Front Door Belt, Front LH |
| 68194B | Seal, Front Door Belt, Rear RH |
| 68195B | Seal, Front Door Belt, Rear LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 74221A | Cover, Front Door Armrest, RH |
| 74222A | Cover, Front Door Armrest, LH |
| 75921C | Tape, Black Out, NO.1 RH |
| 75922M | Tape, Black Out, NO.1 LH |
| 75965B | Stripe, Front Door NO.4 RH |
| 75966B | Stripe, Front Door NO.4 LH |
| 75985G | Stripe, Front Door Outside, RH |
| 75986G | Stripe, Front Door Outside, LH |
| 87963 | Cover, Outer Mirror Install Hole, RH |
| 87964 | Cover, Outer Mirror Install Hole, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
