Toyota Lexus NX Series
2021-10 → present · chassis AAZA2#,AAZH2#,TAZA25 · catalogue 527120 · Japan
Supported model
Data version 2024-03

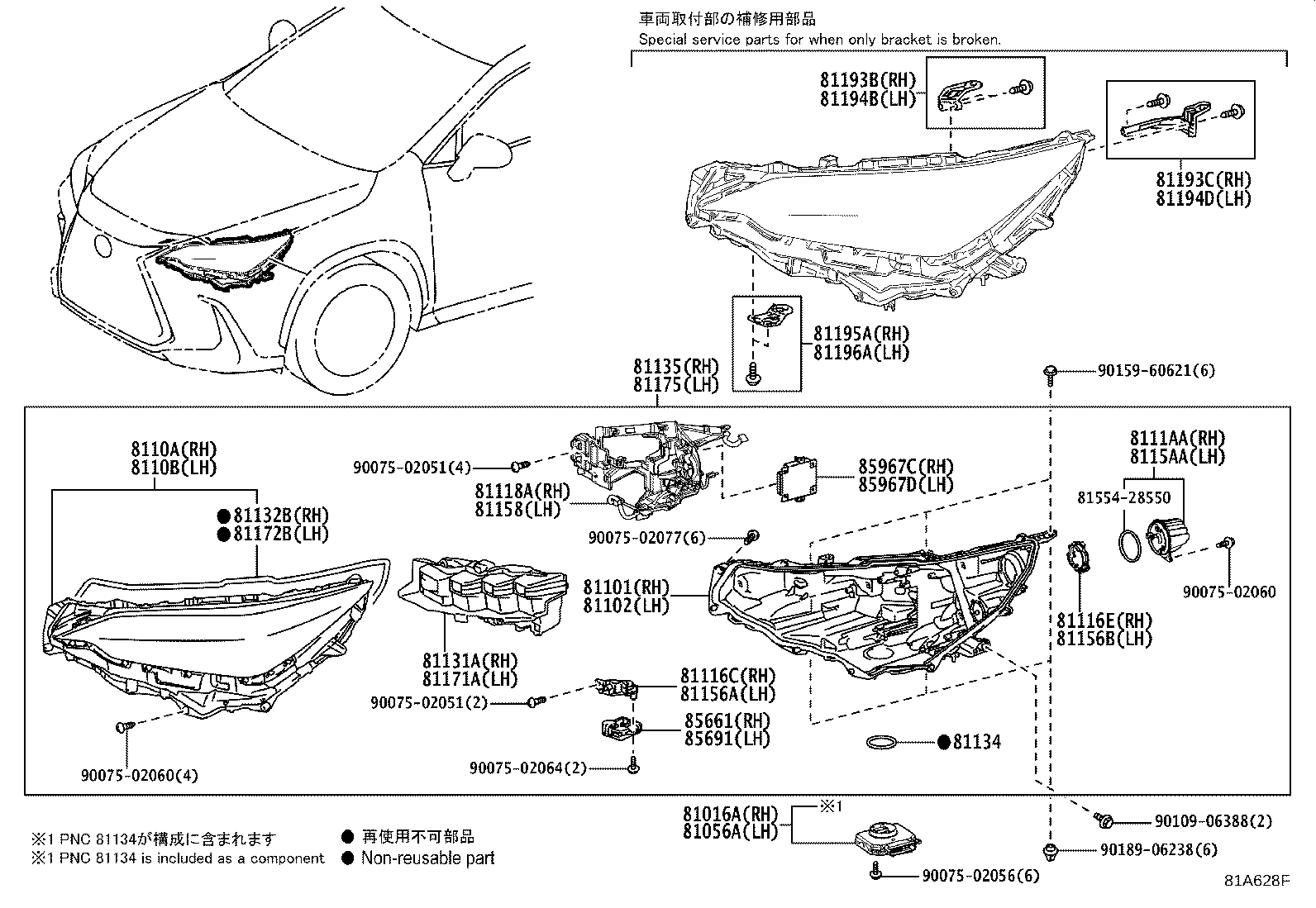

Headlamp
34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81016A | Computer Sub-assy, Headlamp, RH |
| 81056A | Computer Sub-assy, Headlamp, LH |
| 81101 | Housing Sub-assy, Headlamp, RH |
| 81102 | Housing Sub-assy, Headlamp, LH |
| 8110A | Lens Sub-assy, Headlamp, RH |
| 8110B | Lens Sub-assy, Headlamp, LH |
| 81116C | Bracket, Headlamp, RH |
| 81116E | Bracket, Headlamp, RH NO.2 |
| 81118A | Bracket, Headlamp, RH |
| 8111AA | Unit, Headlamp Turn Signal Led, RH |
| 81131A | Unit, Headlamp, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81135F | Cover, Headlamp Back |
| 81156A | Bracket, Headlamp, LH |
| 81156B | Bracket, Headlamp, LH NO.2 |
| 81158 | Bracket, Headlamp, LH |
| 8115AA | Unit, Headlamp Turn Signal Led, LH |
| 81171A | Unit, Headlamp, LH |
| 81172B | Gasket, Headlamp Lens |
| 81175 | Unit Assy, Headlamp, LH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81193C | Retainer, RH Headlamp Protector, Upper RH |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81194D | Retainer, LH Headlamp Protector, Upper LH |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81510D | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515G | Socket & Wire, Front Turn Signal Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85691 | Motor, Headlamp Leveling, LH |
| 85967C | Computer, Light Control Led, RH |
| 85967D | Computer, Light Control Led, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
