Toyota Lexus NX Series

2021-10 → present · chassis AAZA2#,AAZH2#,TAZA25 · catalogue 527120 · Japan

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

12 part groups · 3 illustrations

Illustrations

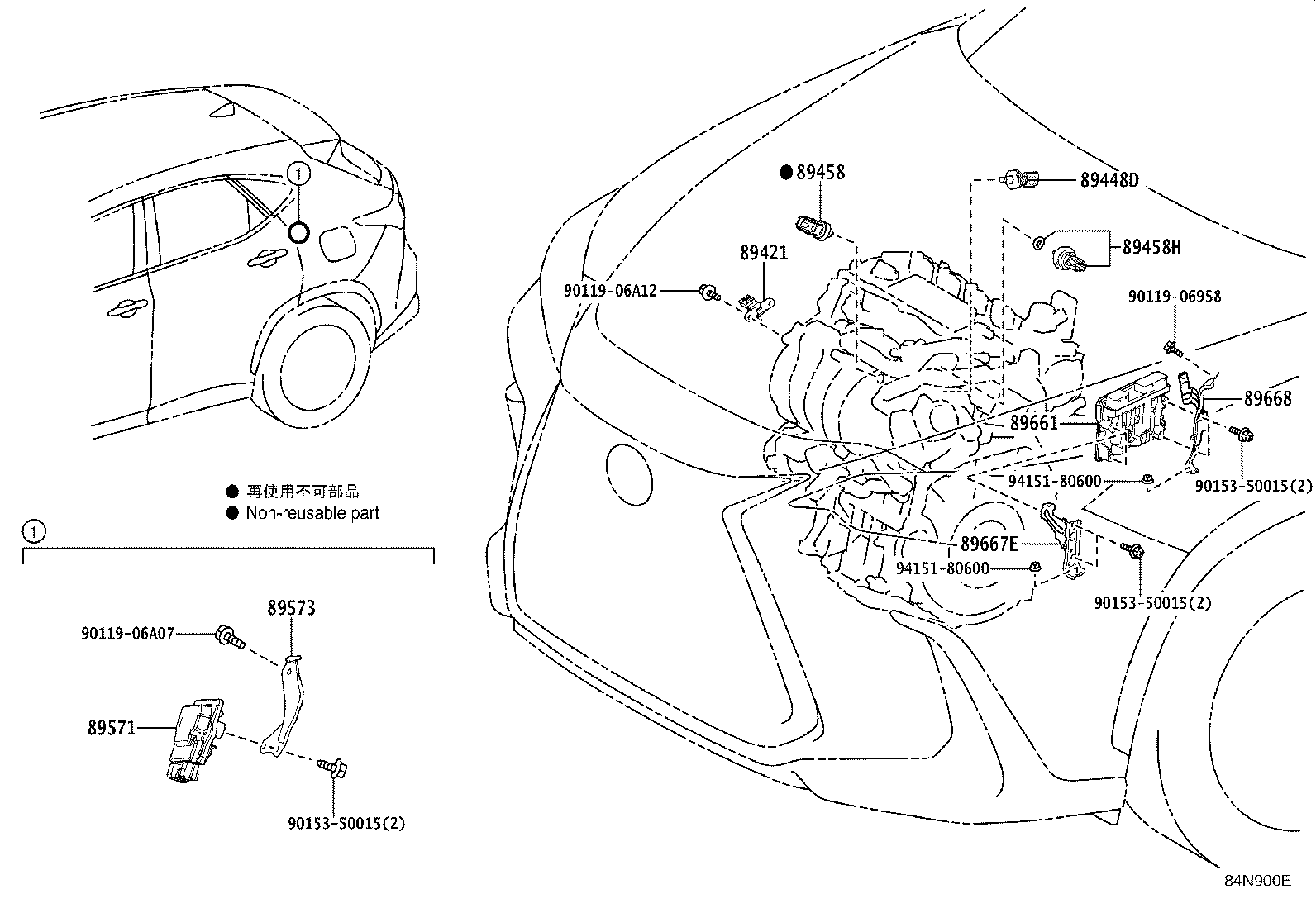

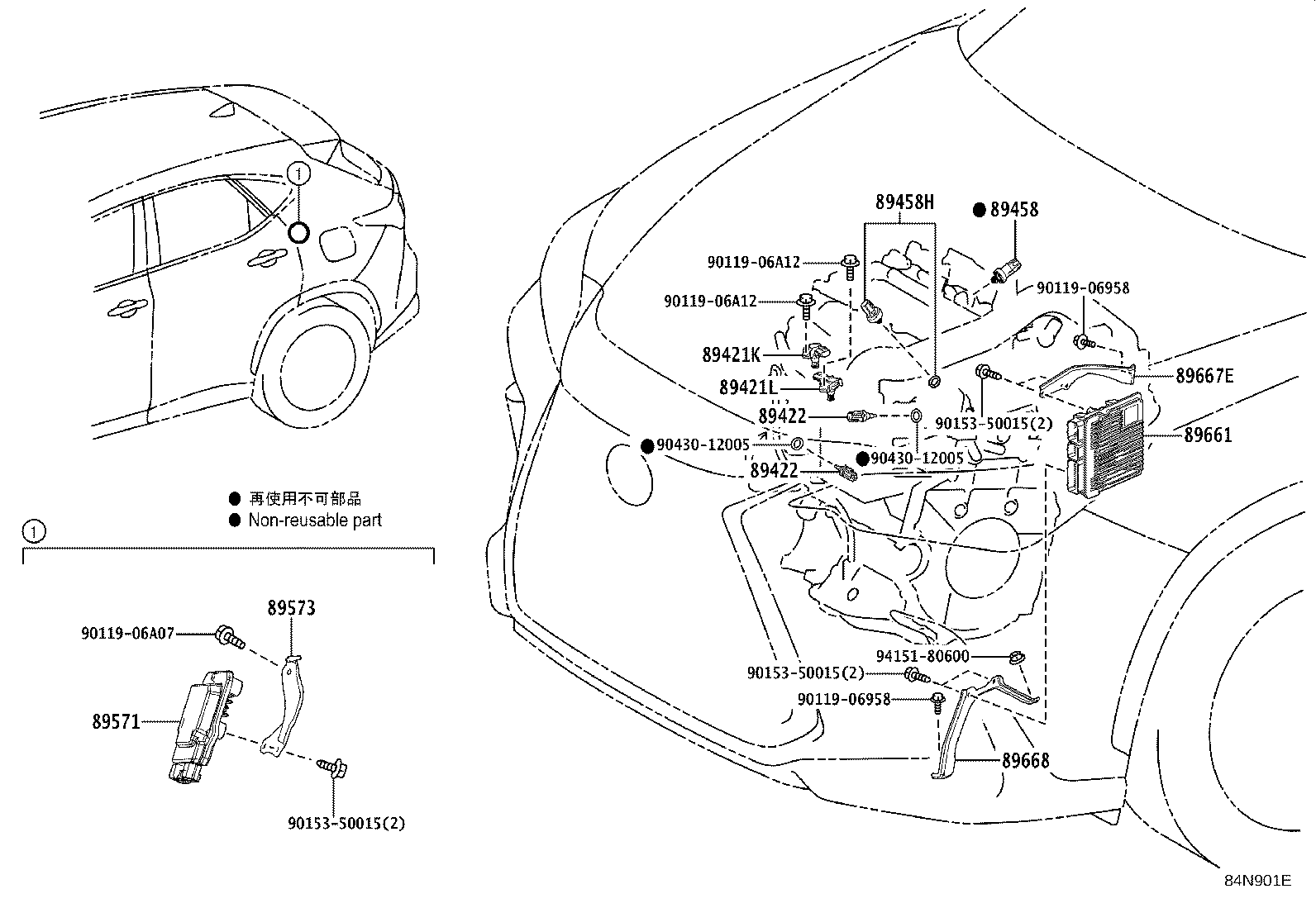

Figure 84N899D 84N899D 2021-11 → — Figure 84N900E 84N900E 2021-11 → — Figure 84N901E 84N901E 2021-11 → —

Part groups

PNCDescription
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89421K Sensor, Turbo Pressure, NO.1
89421L Sensor, Turbo Pressure, NO.2
89422 Sensor, Water Temperature (FOR E.F.I.)
89448D Sensor, Oil Pressure & Temperature
89458 Sensor, Fuel Pressure
89458H Sensor, Fuel Pressure, NO.2
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
