Toyota Lexus NX Series
2021-10 → present · chassis AAZA2#,AAZH2#,TAZA25 · catalogue 527120 · Japan
Supported model
Data version 2024-03
Abs & Vsc

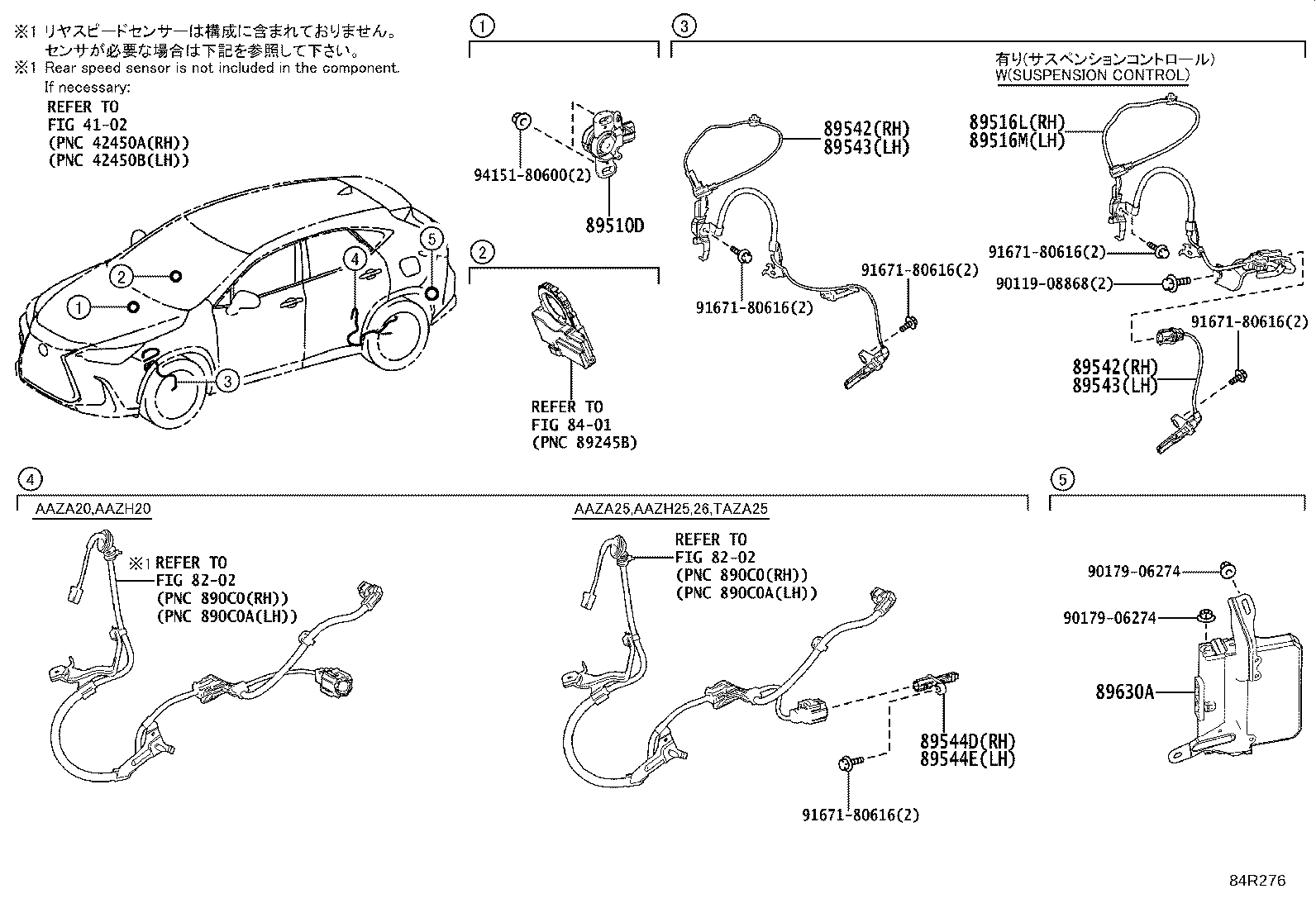

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89510D | Sensor Assy, Brake Pedal Stroke |
| 89516L | Wire, Skid Control Sensor W/Suspension Control, RH |
| 89516M | Wire, Skid Control Sensor W/Suspension Control, LH |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89544D | Sensor, Skid Control, Rear RH |
| 89544E | Sensor, Skid Control, Rear LH |
| 89630A | Computer Assy, 4WD |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
