Toyota C-hr

2016-12 → present · chassis NGX10,50,ZYX1# · catalogue 529110 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

13 part groups · 4 illustrations

Illustrations

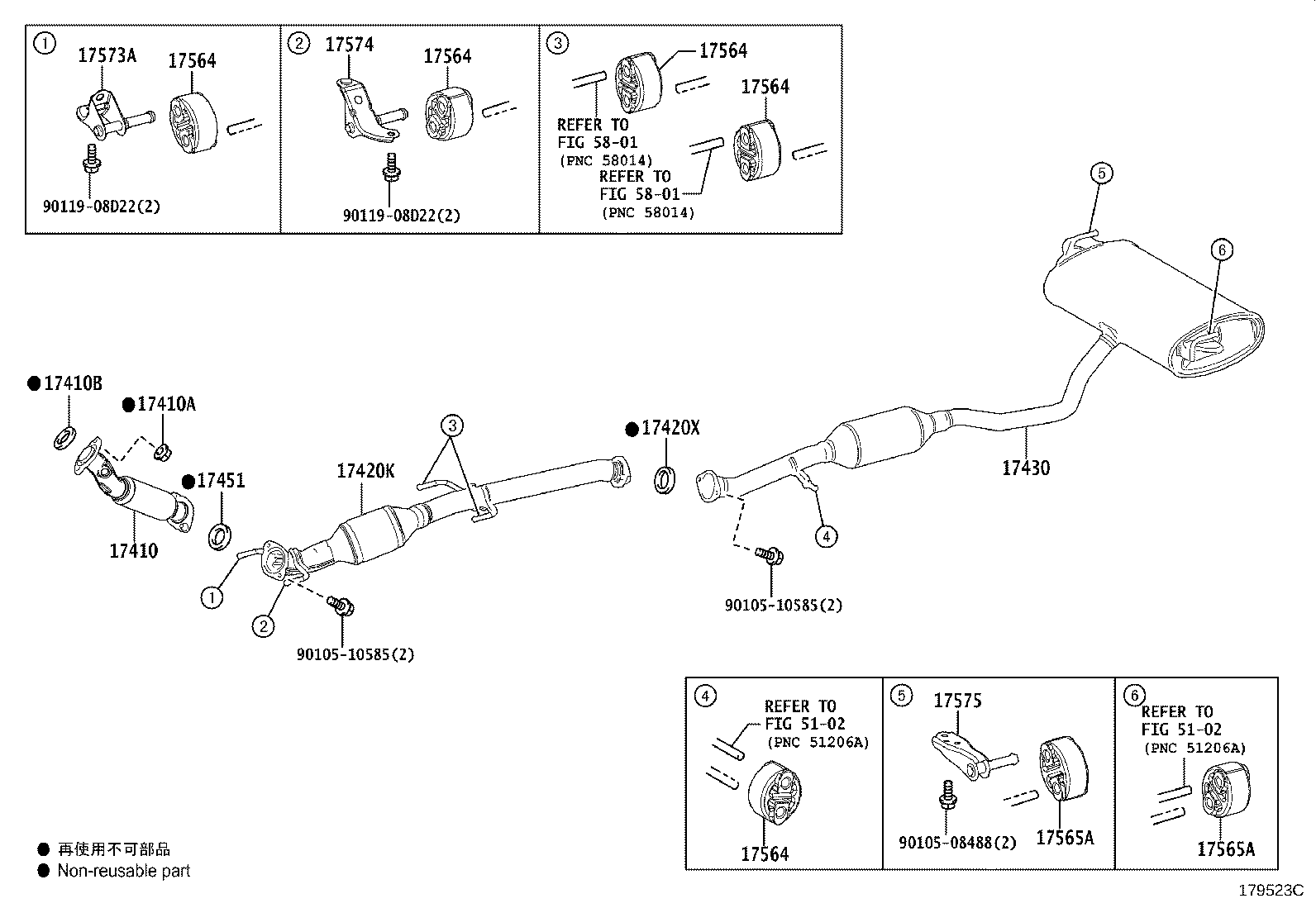

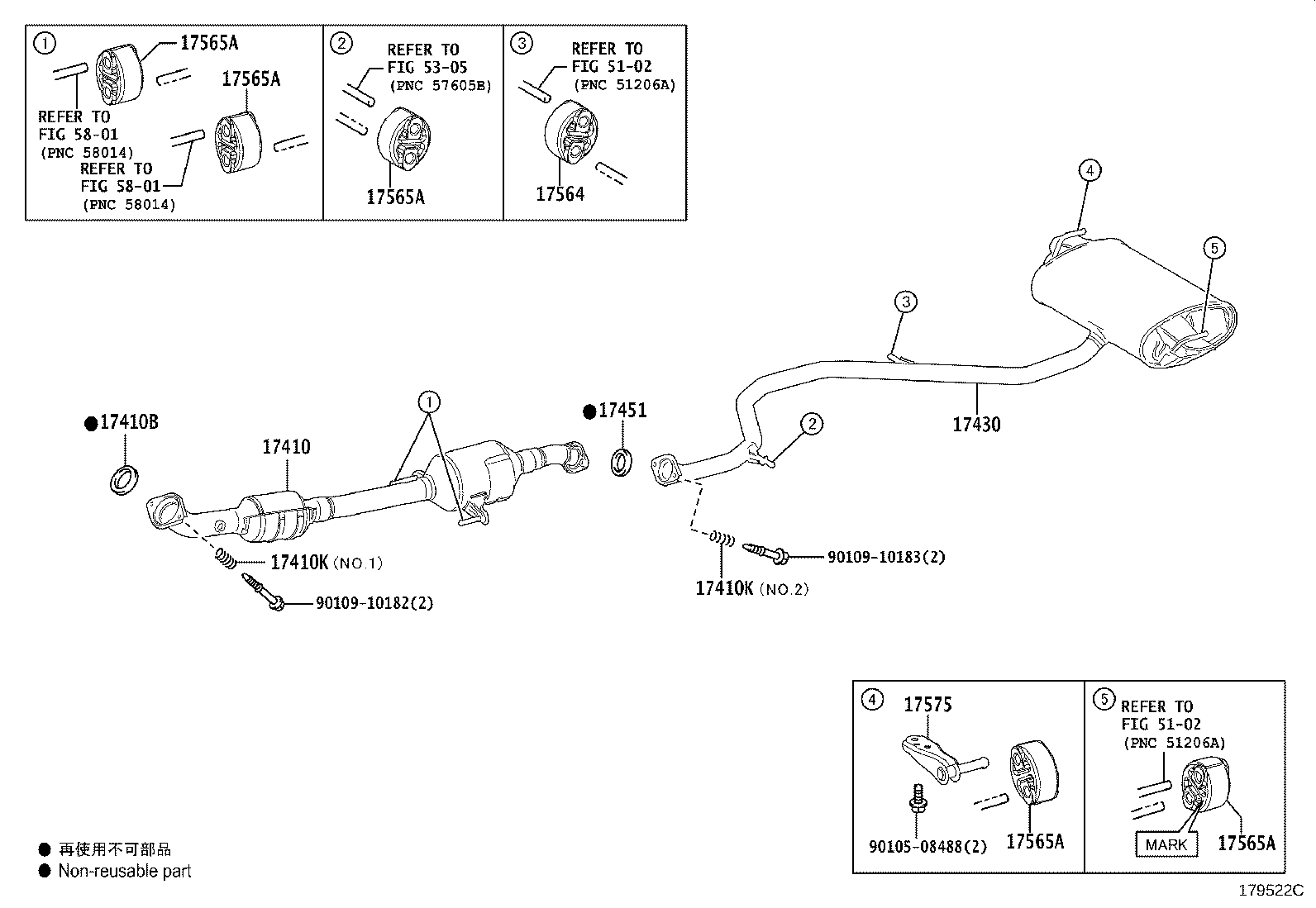

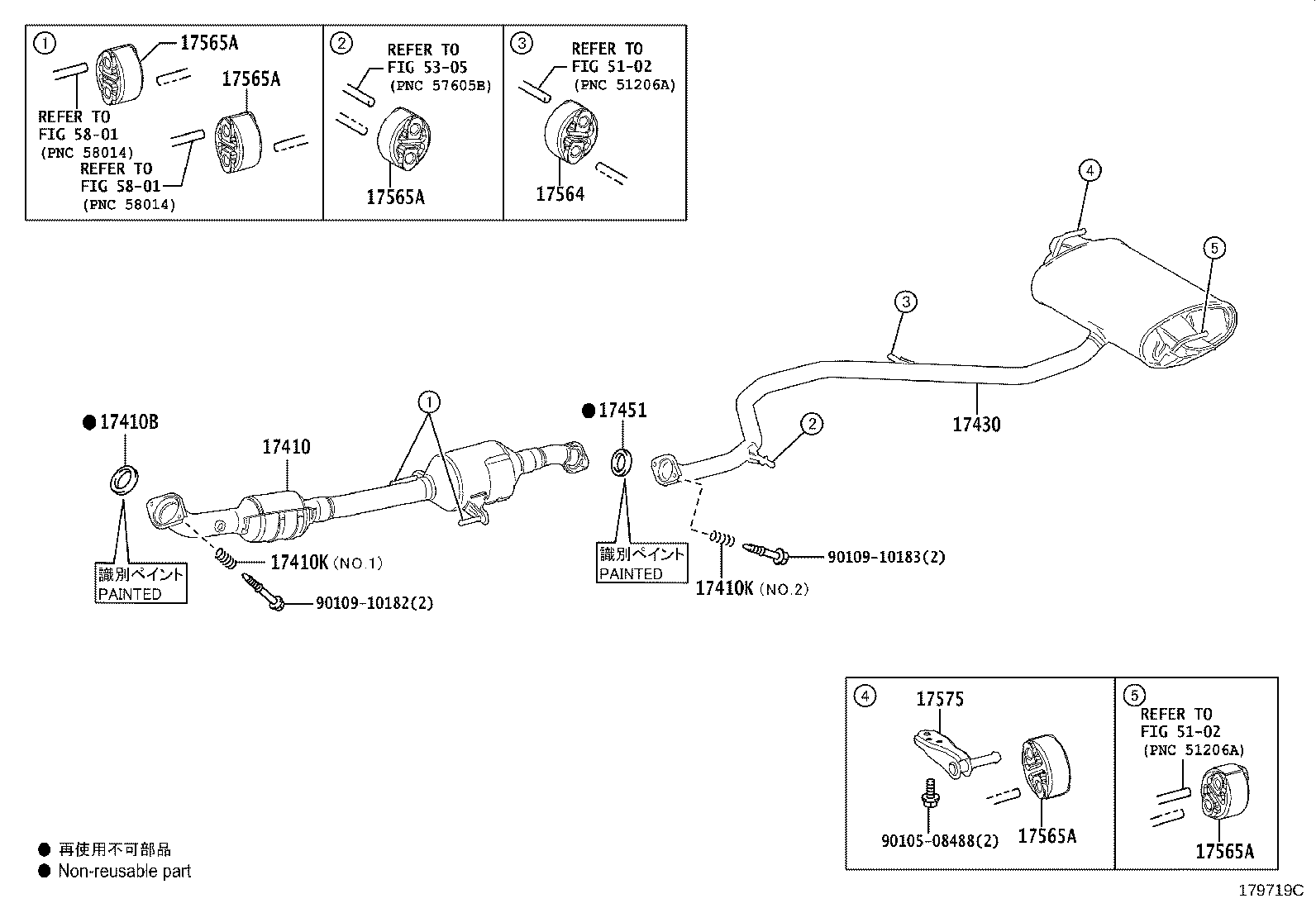

Figure 179524B 179524B 2018-05 → — Figure 179523C 179523C 2016-12 → — Figure 179522C 179522C 2016-12 → 2017-03 Figure 179719C 179719C 2017-03 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410K Spring, Exhaust Pipe
17420K Pipe Assy, Exhaust, Center NO.2
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17564 Support,Exhaust Pipe, NO.4
17565A Support, Exhaust Pipe, NO.4
17573A Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
