Toyota C-hr

2016-12 → present · chassis NGX10,50,ZYX1# · catalogue 529110 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

7 part groups · 3 illustrations

Illustrations

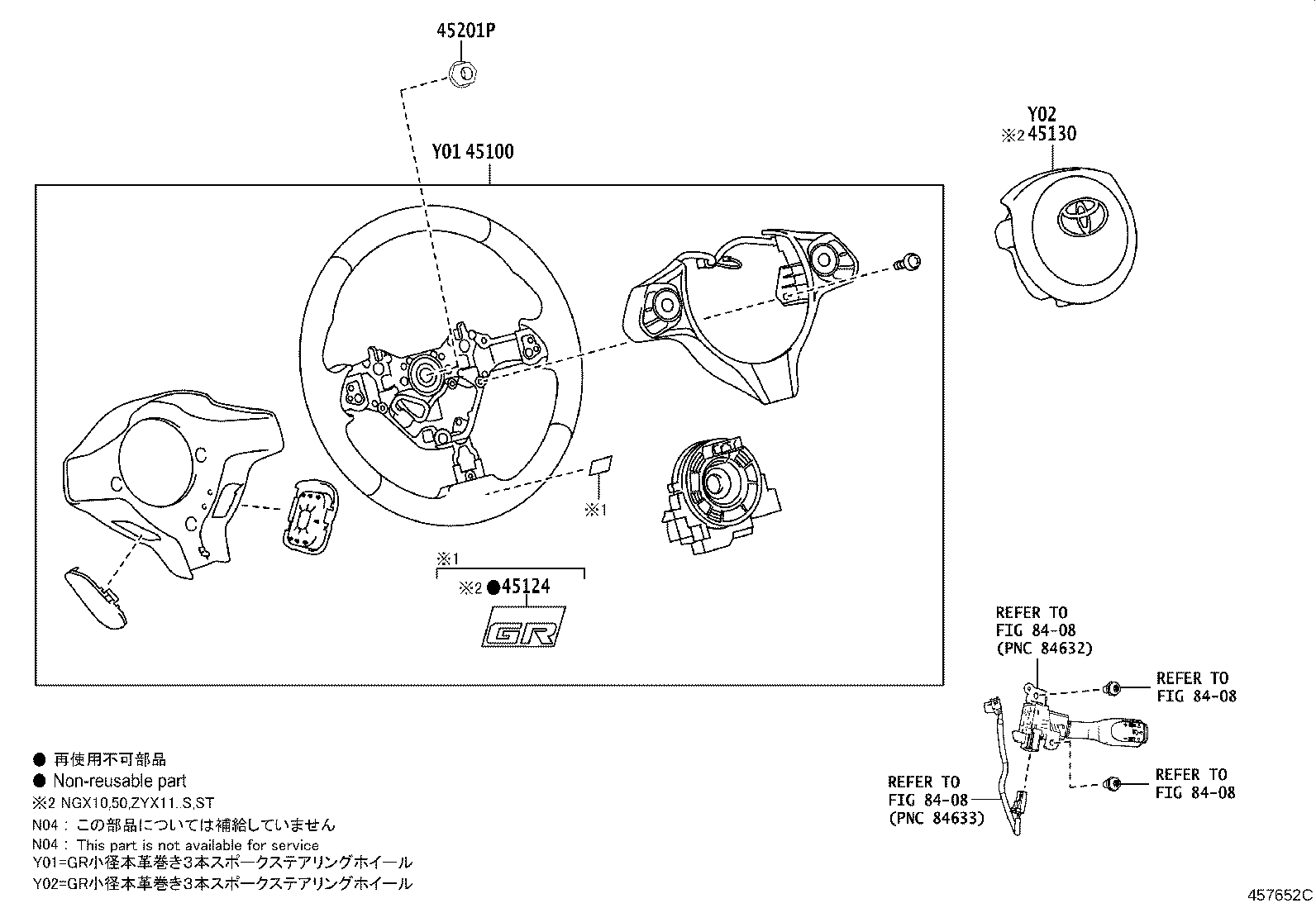

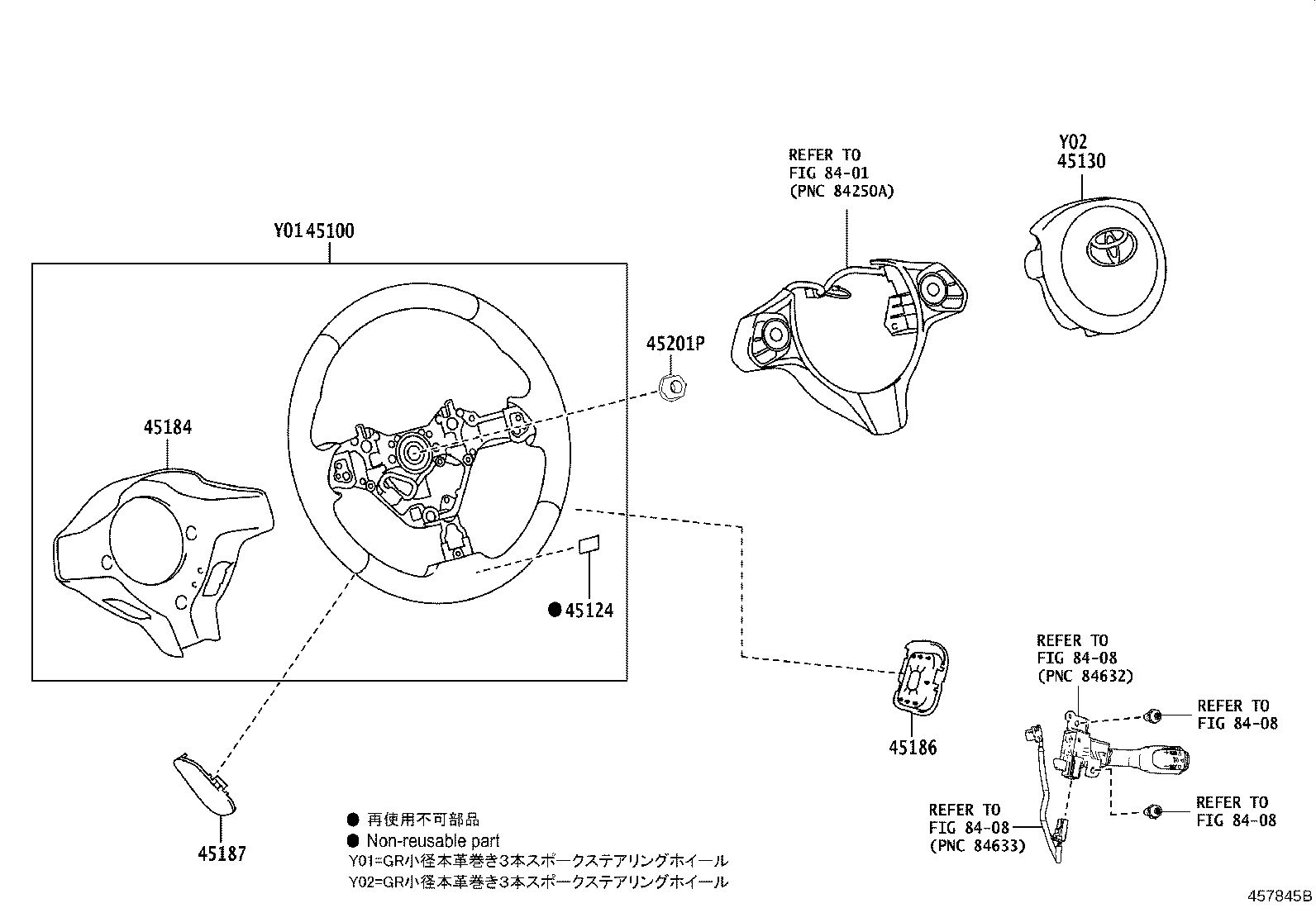

Figure 457120D 457120D 2016-12 → — Figure 457845B 457845B 2019-10 → — Figure 457652C 457652C 2019-10 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45124 Ornament, Steering Wheel Mark
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
