Toyota C-hr

2016-12 → present · chassis NGX10,50,ZYX1# · catalogue 529110 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

14 part groups · 8 illustrations

Illustrations

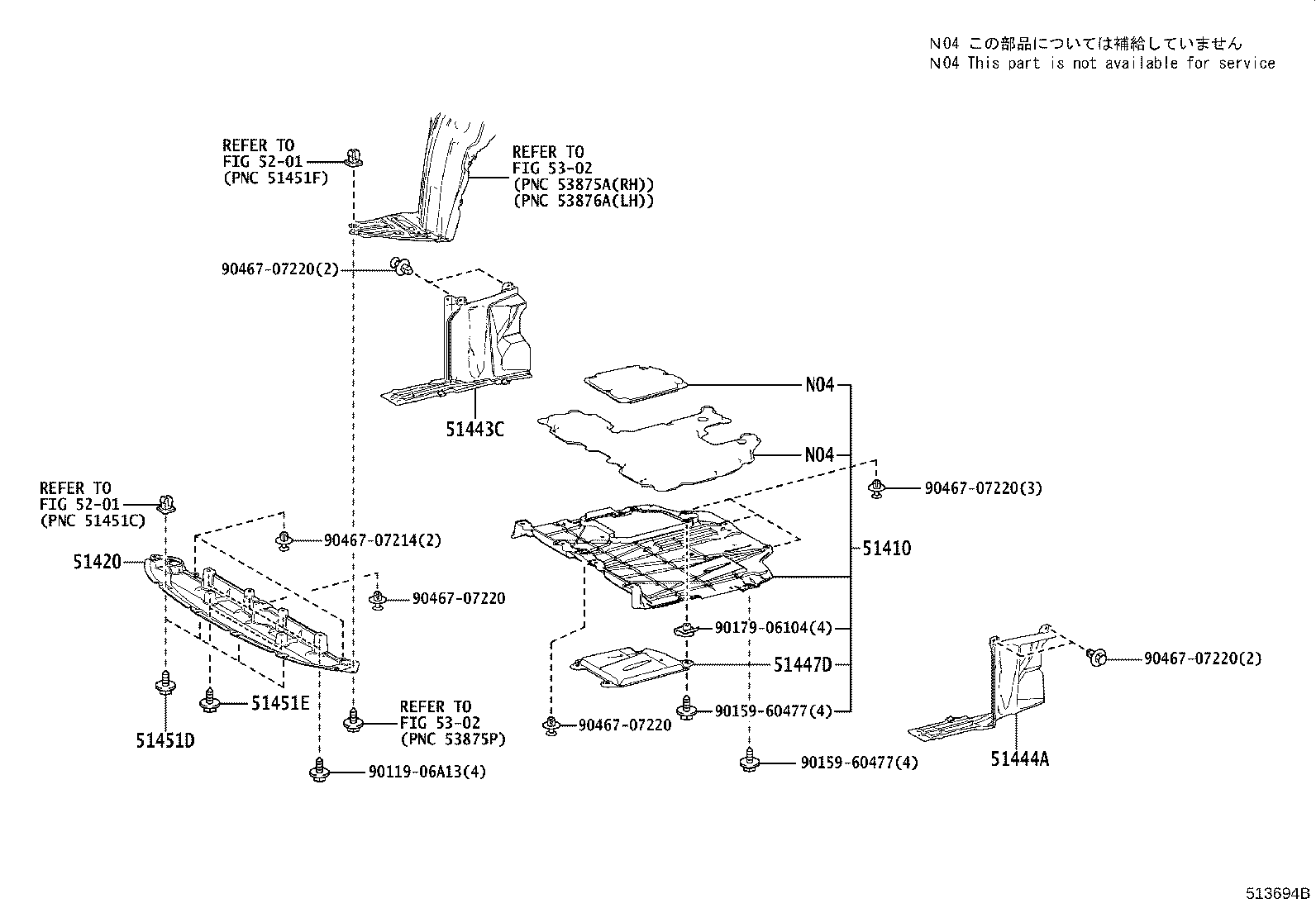

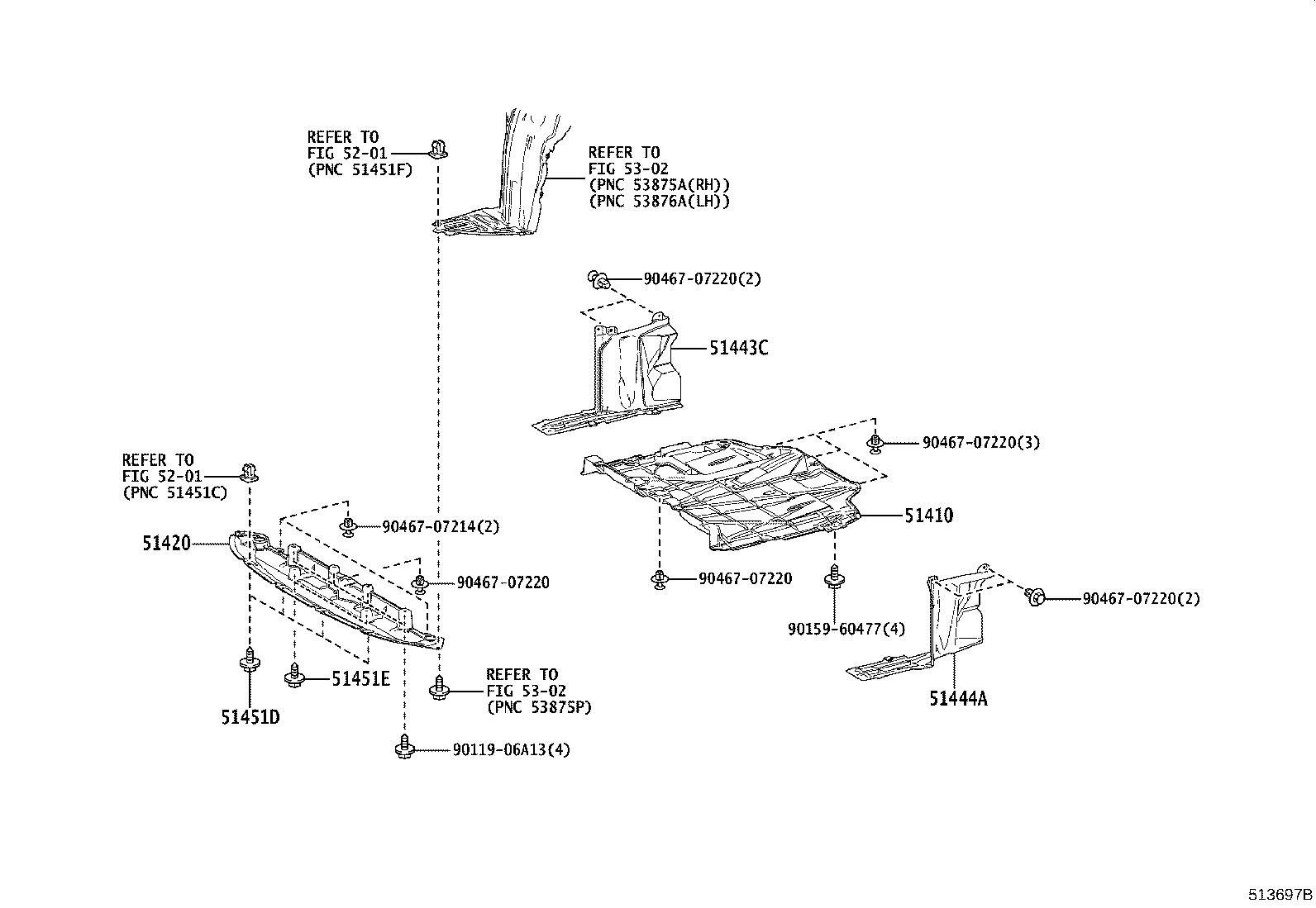

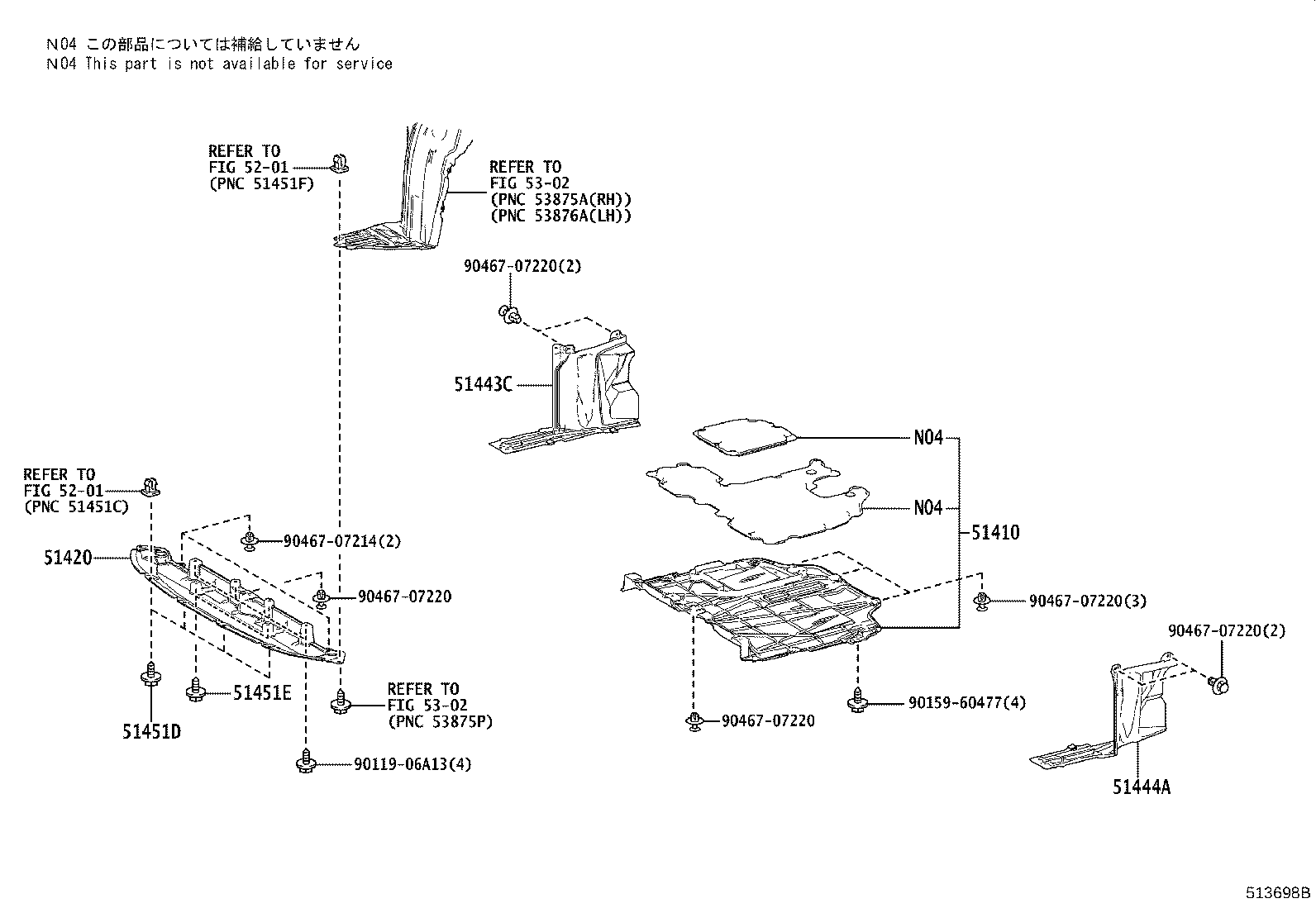

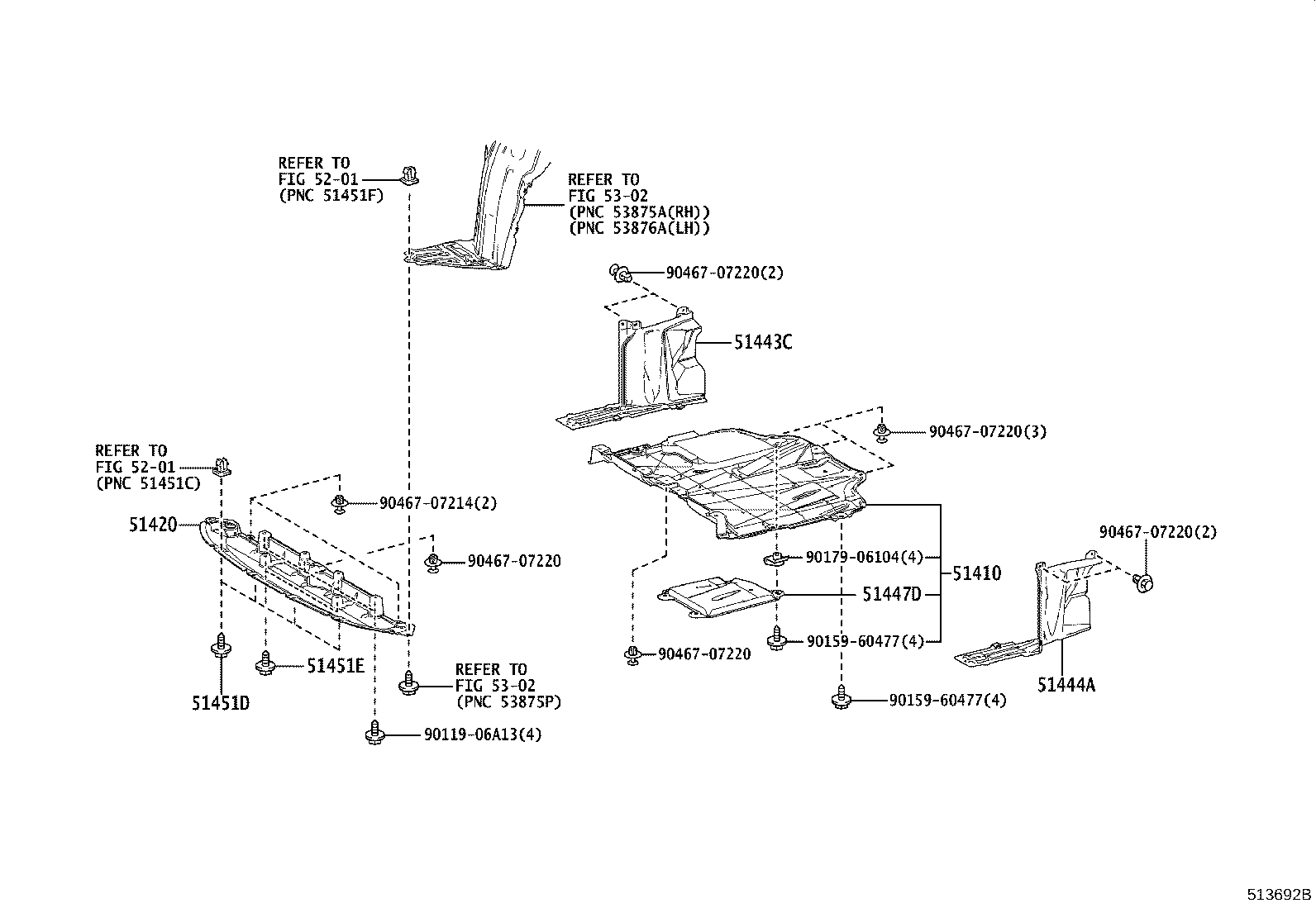

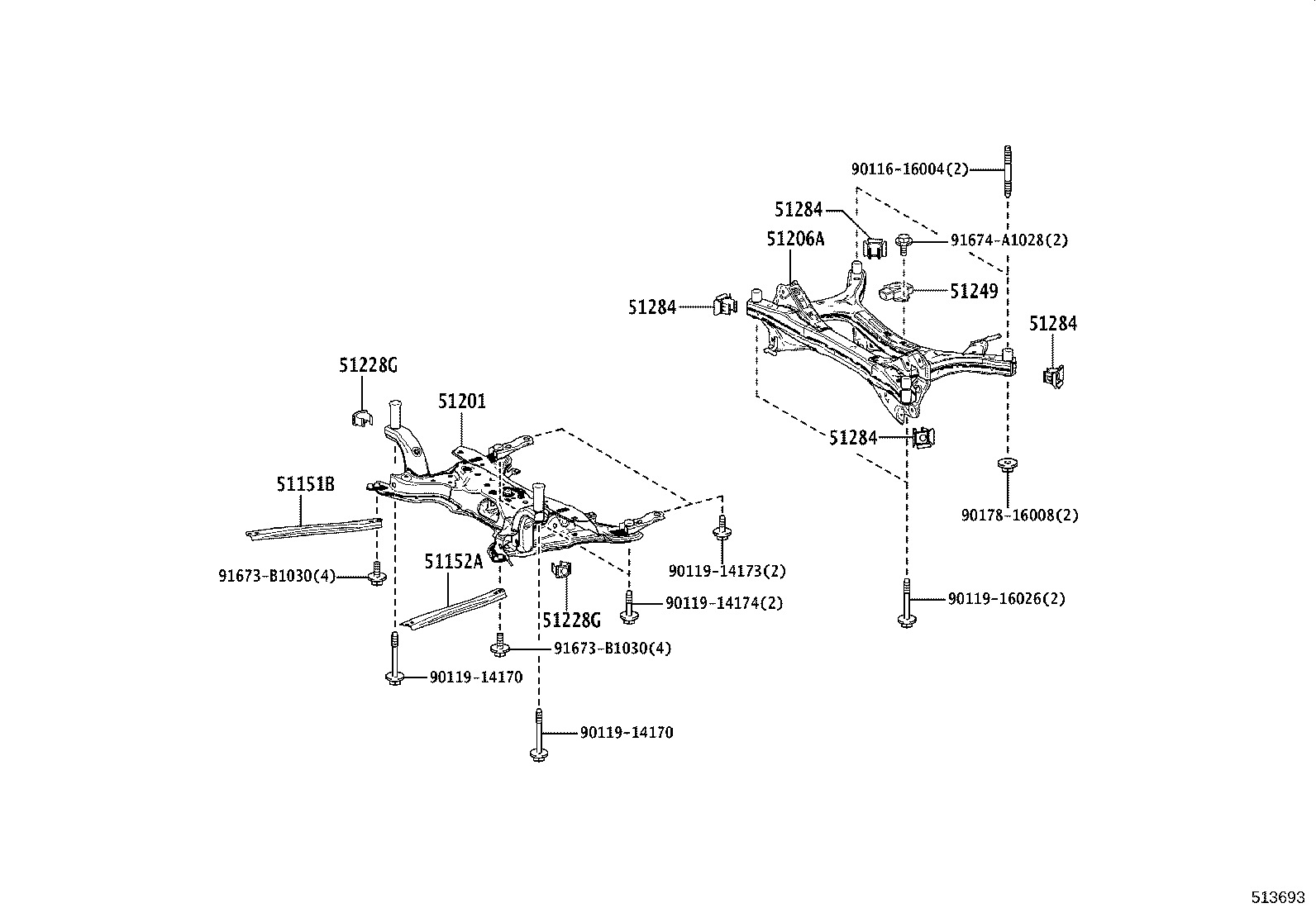

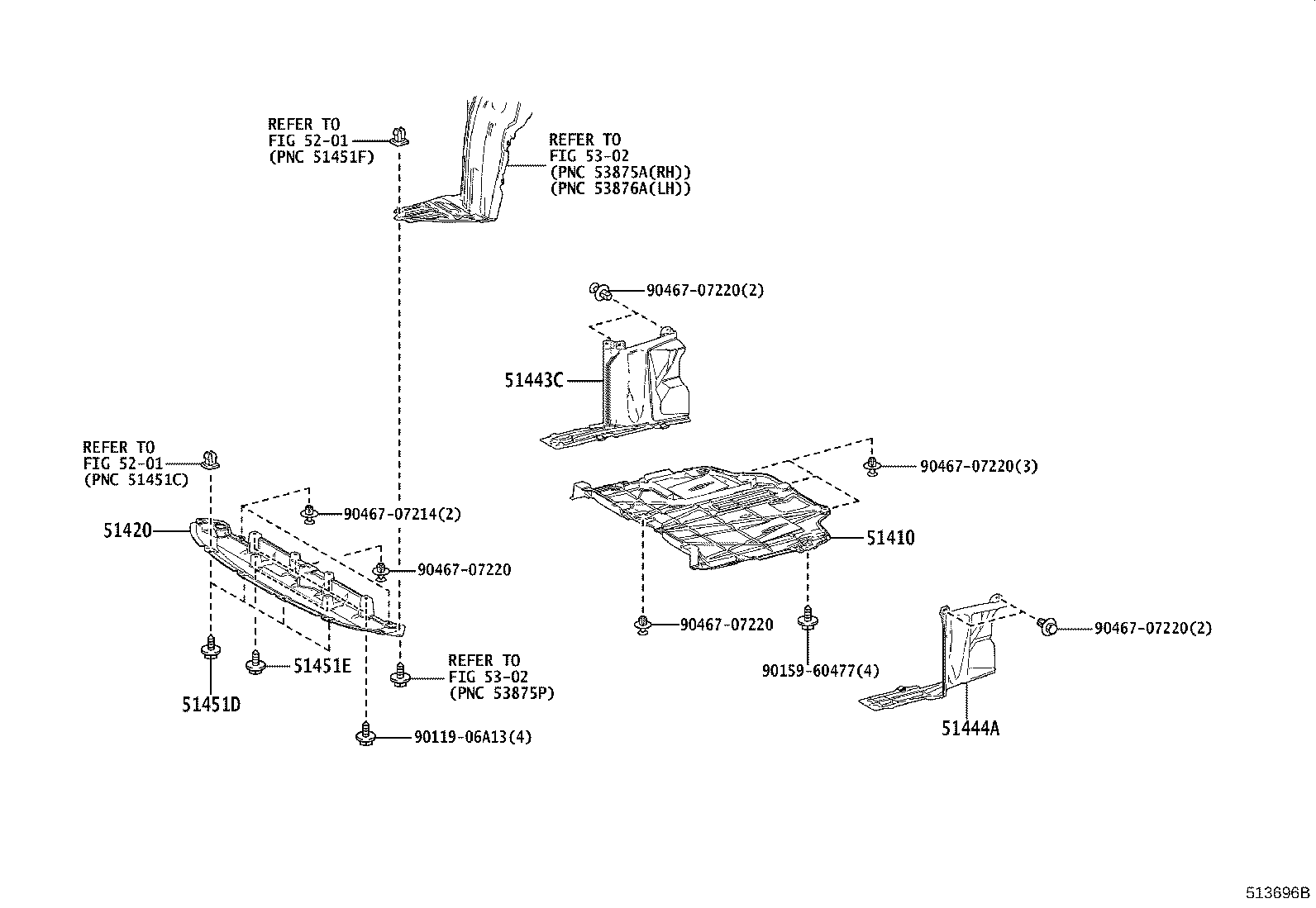

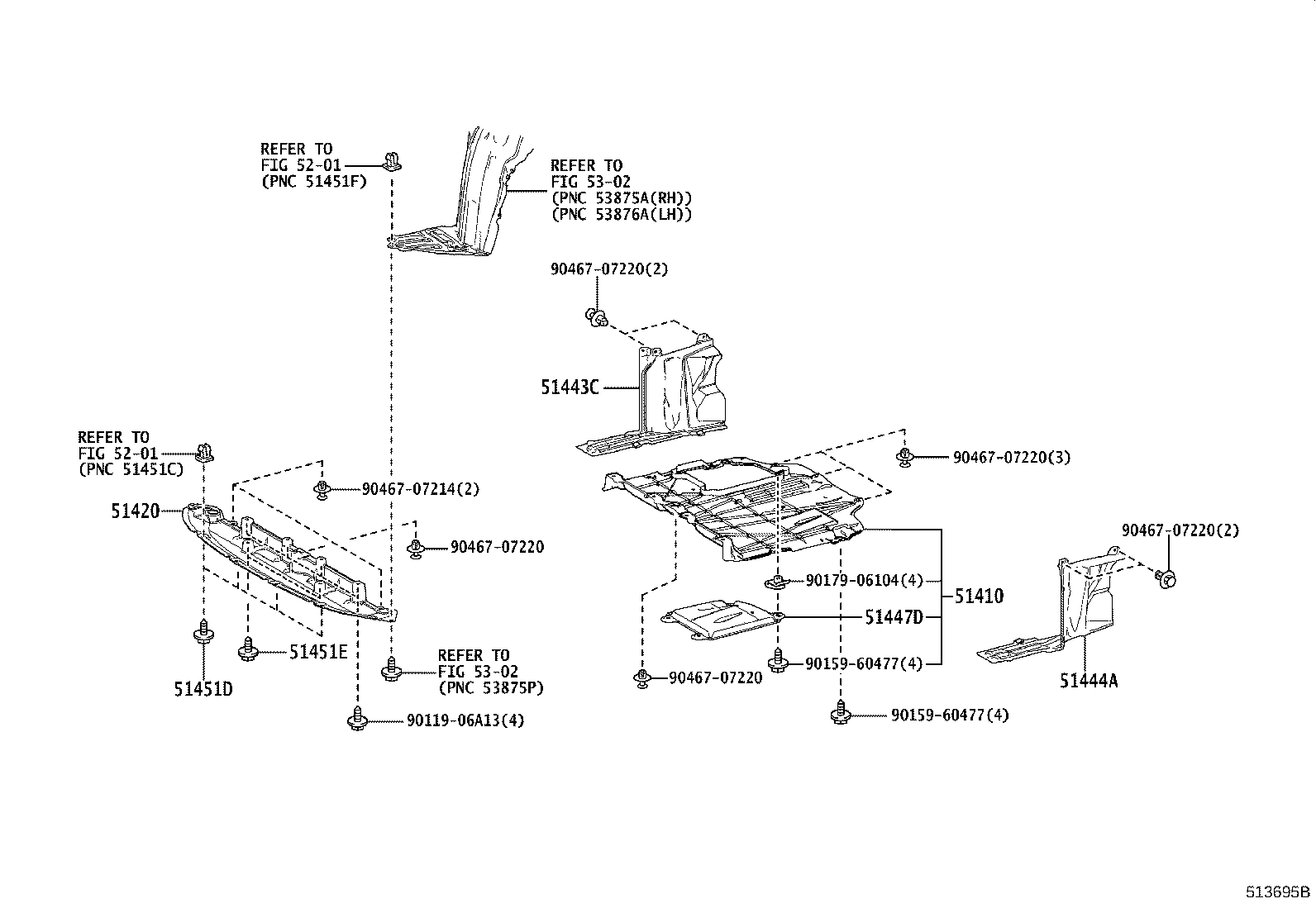

Figure 513691 513691 2016-12 → — Figure 513693 513693 2016-12 → — Figure 513692B 513692B 2016-12 → 2019-10 Figure 513694B 513694B 2016-12 → 2019-10 Figure 513695B 513695B 2018-05 → 2019-10 Figure 513696B 513696B 2019-10 → — Figure 513697B 513697B 2019-10 → — Figure 513698B 513698B 2019-10 → —

Part groups

PNCDescription
51151B Reinforcement, Side Rail, NO.1 RH
51152A Reinforcement, Side Rail, NO.1 LH
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51228G Plate, Front Suspension Member
51249 Damper, Rear Suspension Member
51284 Cover, Rear Suspension Member Hole
51410 Cover Assy, Engine Under, NO.1
51420 Cover Assy, Engine Under, NO.2
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51447D Cover, Engine Under, NO.4 Center
51451D Screw, NO.1
51451E Screw, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
