Toyota C-hr

2016-12 → present · chassis NGX10,50,ZYX1# · catalogue 529110 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

9 part groups · 3 illustrations

Illustrations

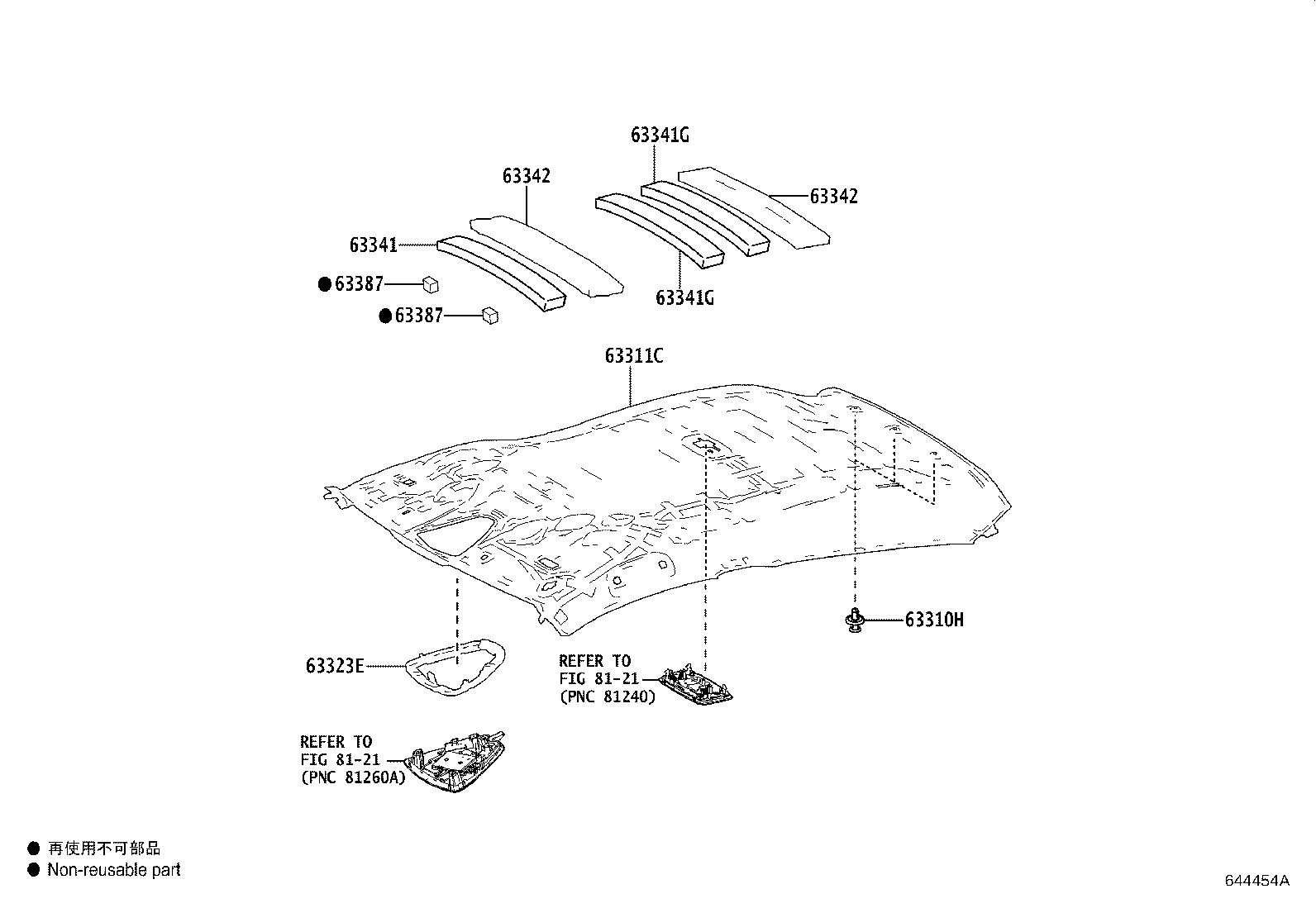

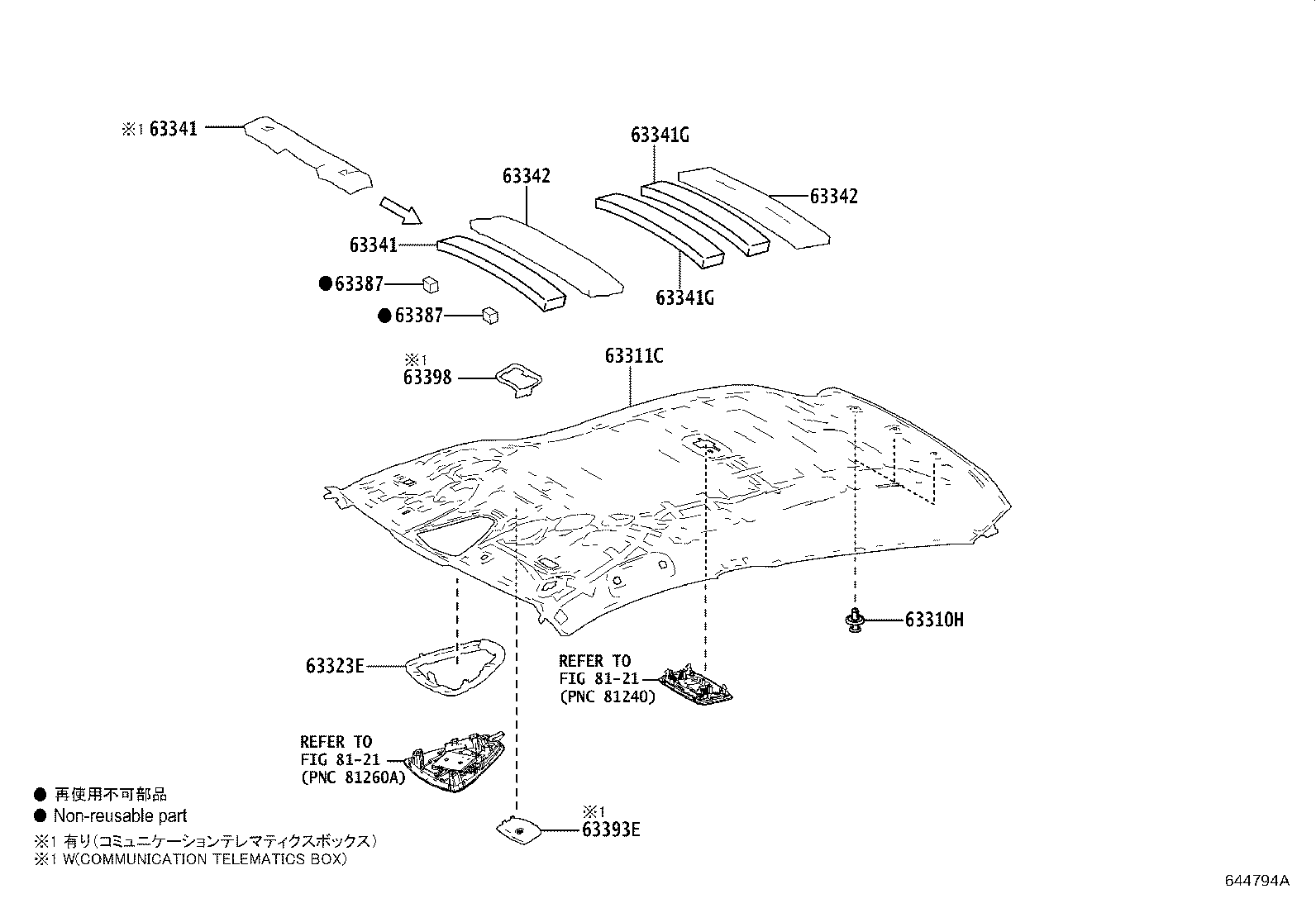

Figure 644068G 644068G 2016-12 → 2018-08 Figure 644454A 644454A 2018-08 → 2020-08 Figure 644794A 644794A 2020-08 → —

Part groups

PNCDescription
63310H Clip(FOR ROOF HEADLINING)
63311C Headlining, Roof
63323E Case, Headlining Lamp
63341 Pad, Roof Silencer, NO.1
63341G Pad, Roof Silencer
63342 Pad, Roof Silencer, NO.2
63387 Pad, Roof Headlining Forming
63393E Trim, Roof Headlining
63398 Plate, Roof Headlining Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
