Toyota C-hr

2016-12 → present · chassis NGX10,50,ZYX1# · catalogue 529110 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Horn

4 part groups · 2 illustrations

Illustrations

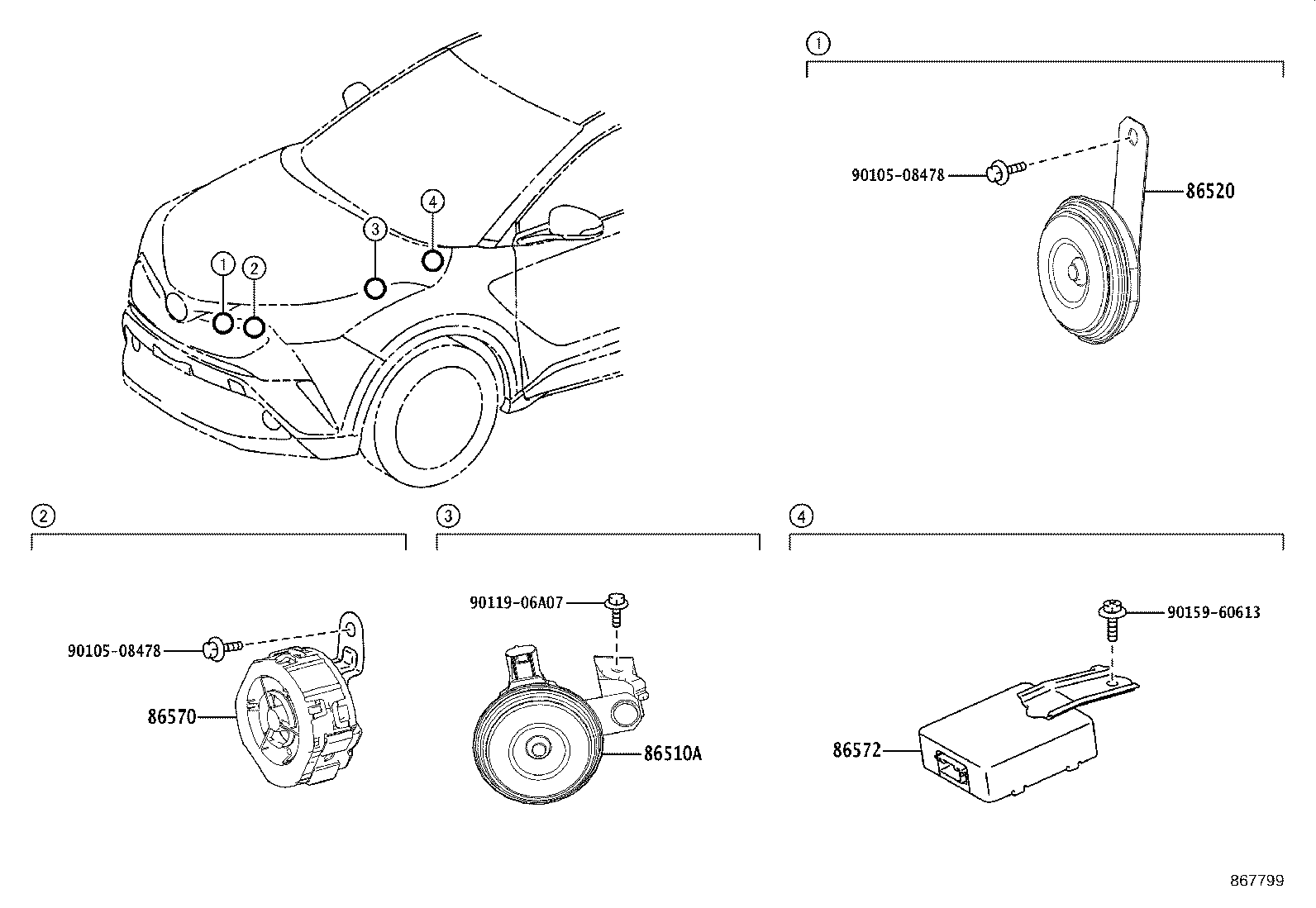

Figure 866732 866732 2016-12 → 2019-10 Figure 867799 867799 2019-10 → —

Part groups

PNCDescription
86510A Horn Assy, Security
86520 Horn Assy, Low Pitched
86570 Speaker Assy, Vehicle Approaching
86572 Controller, Vehicle Approaching Speaker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
