Toyota C-hr

2016-12 → present · chassis NGX10,50,ZYX1# · catalogue 529110 · Japan

Supported model Data version 2019-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

3 part groups · 4 illustrations

Illustrations

Figure 87G192A

87G192A 2016-12 → —

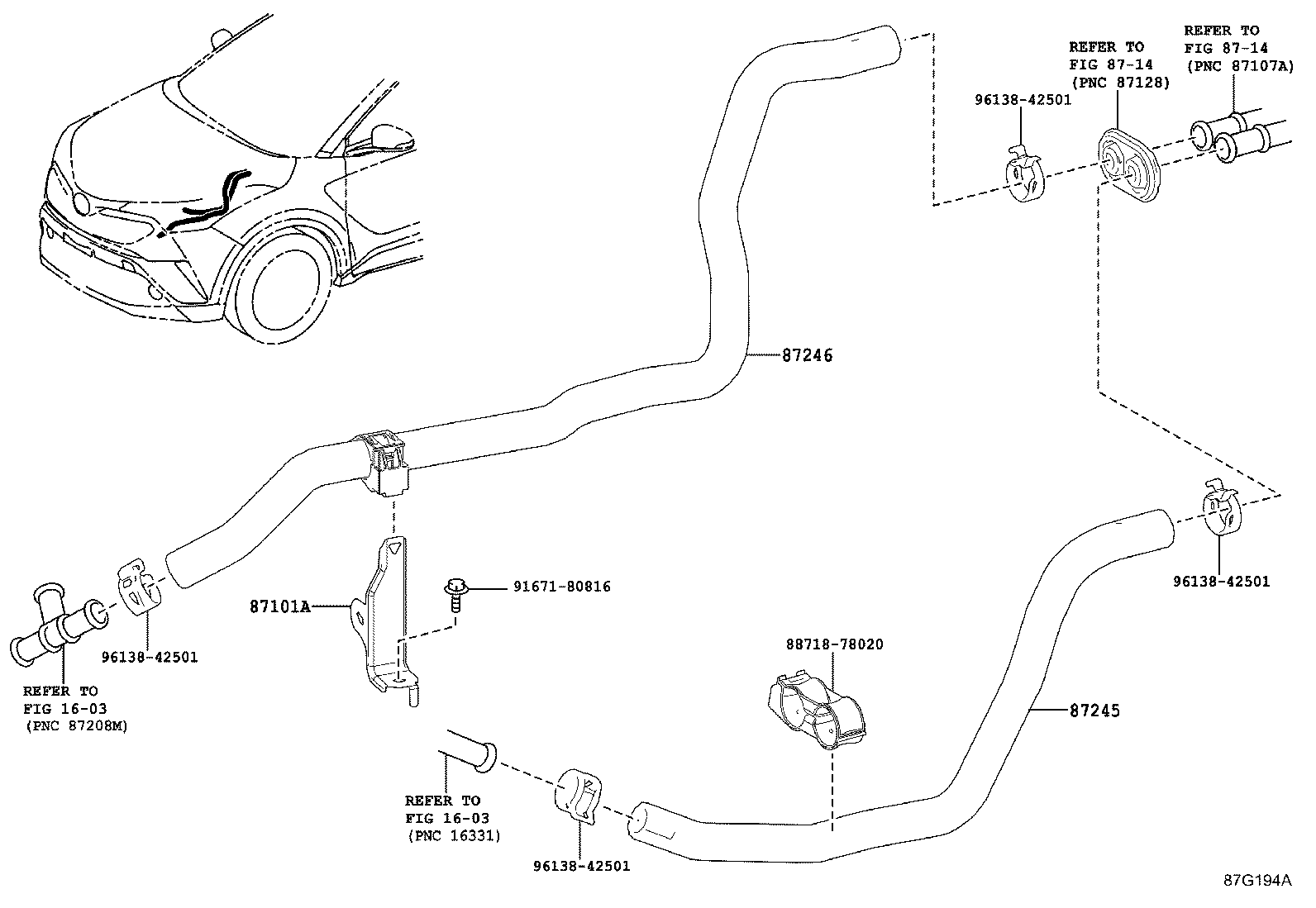

Figure 87G194A

87G194A 2019-10 → —

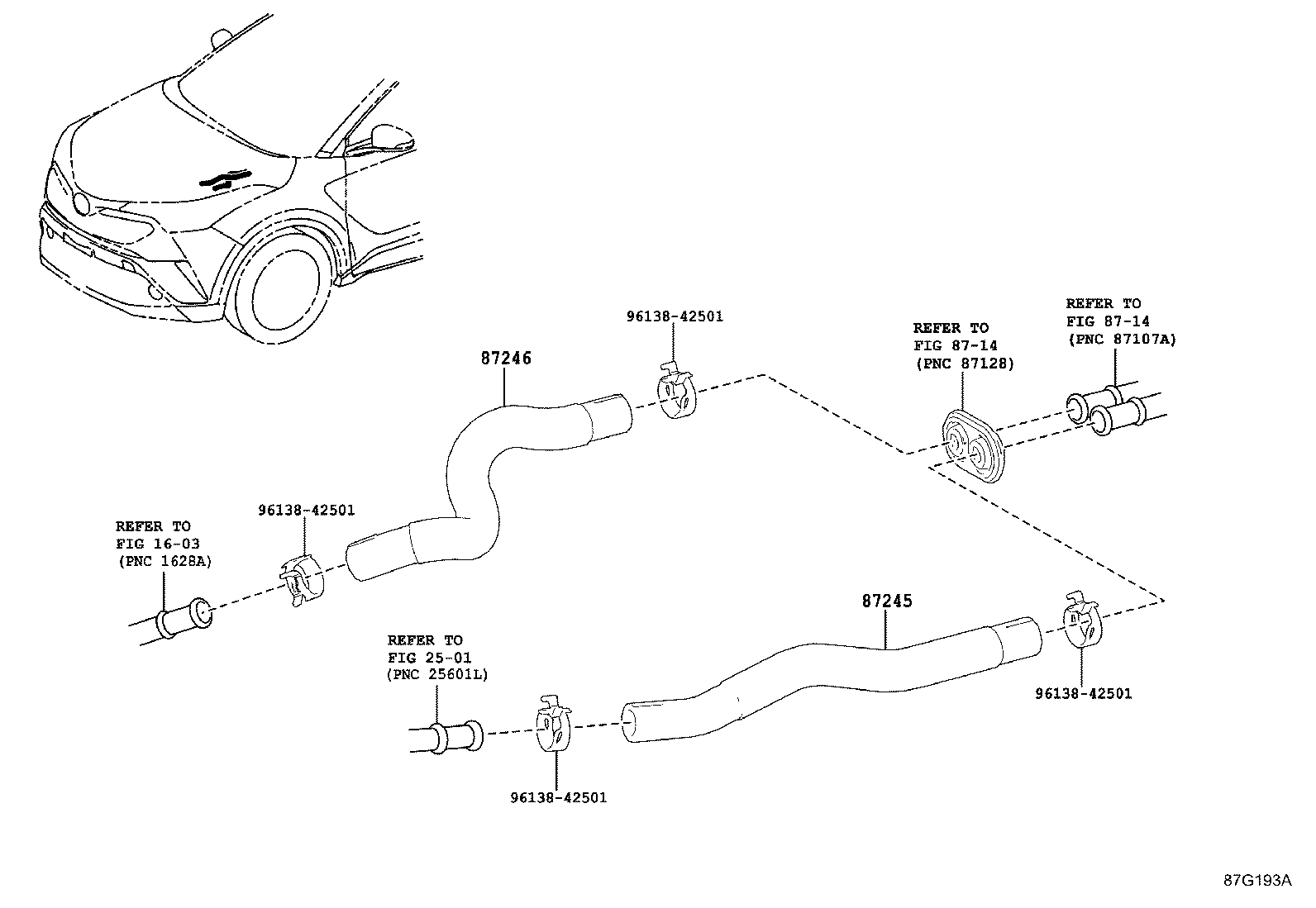

Figure 87G193A

87G193A 2016-12 → 2019-10

Figure 87G193A

87G193A 2019-10 → —

Part groups

PNC	Description
87101A	Bracket Sub-assy, Heater NO.1
87245	Hose, Heater Water, Inlet
87246	Hose, Heater Water, Outlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
