Toyota Lexus UX250H/200

2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537110 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

10 part groups · 3 illustrations

Illustrations

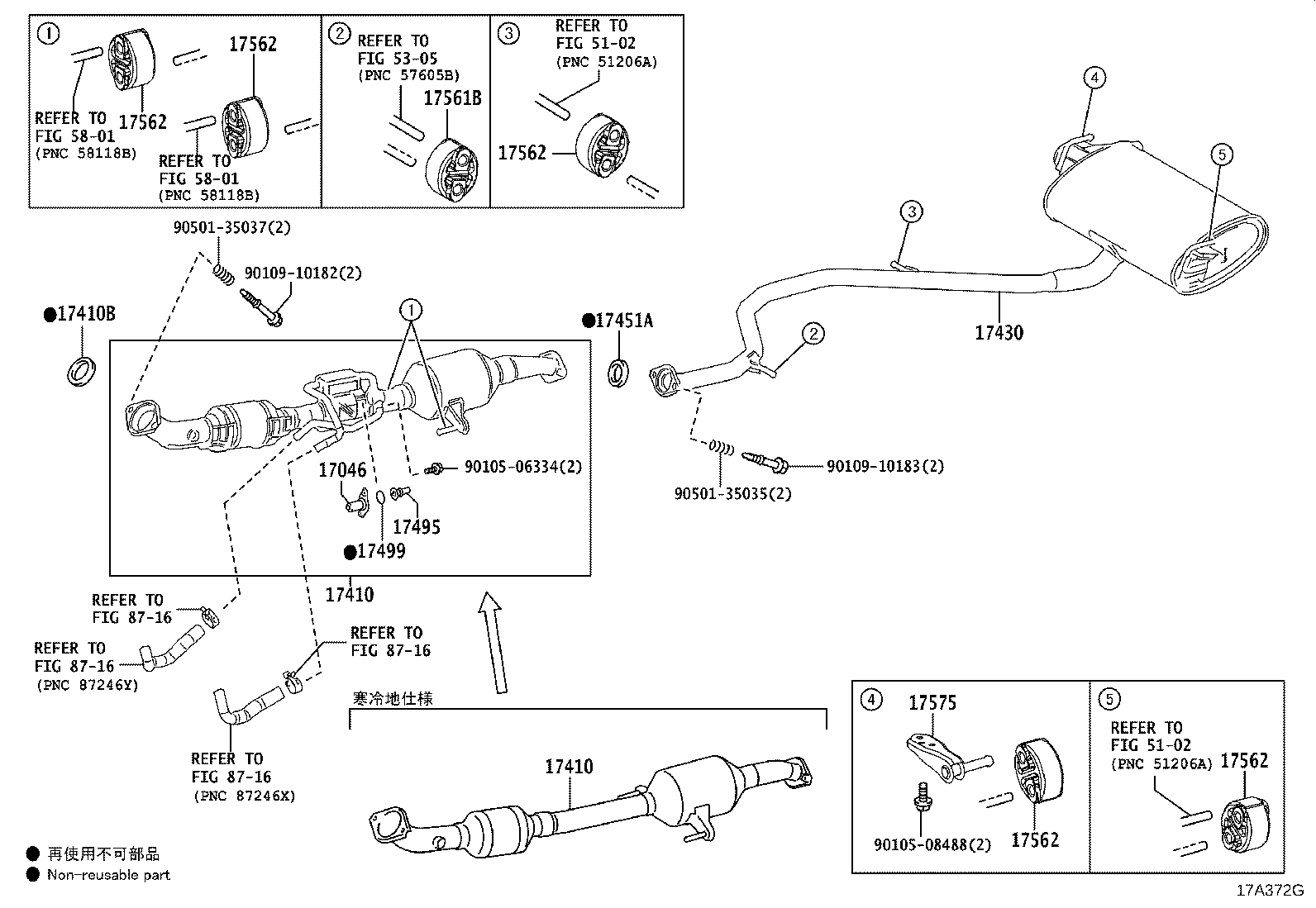

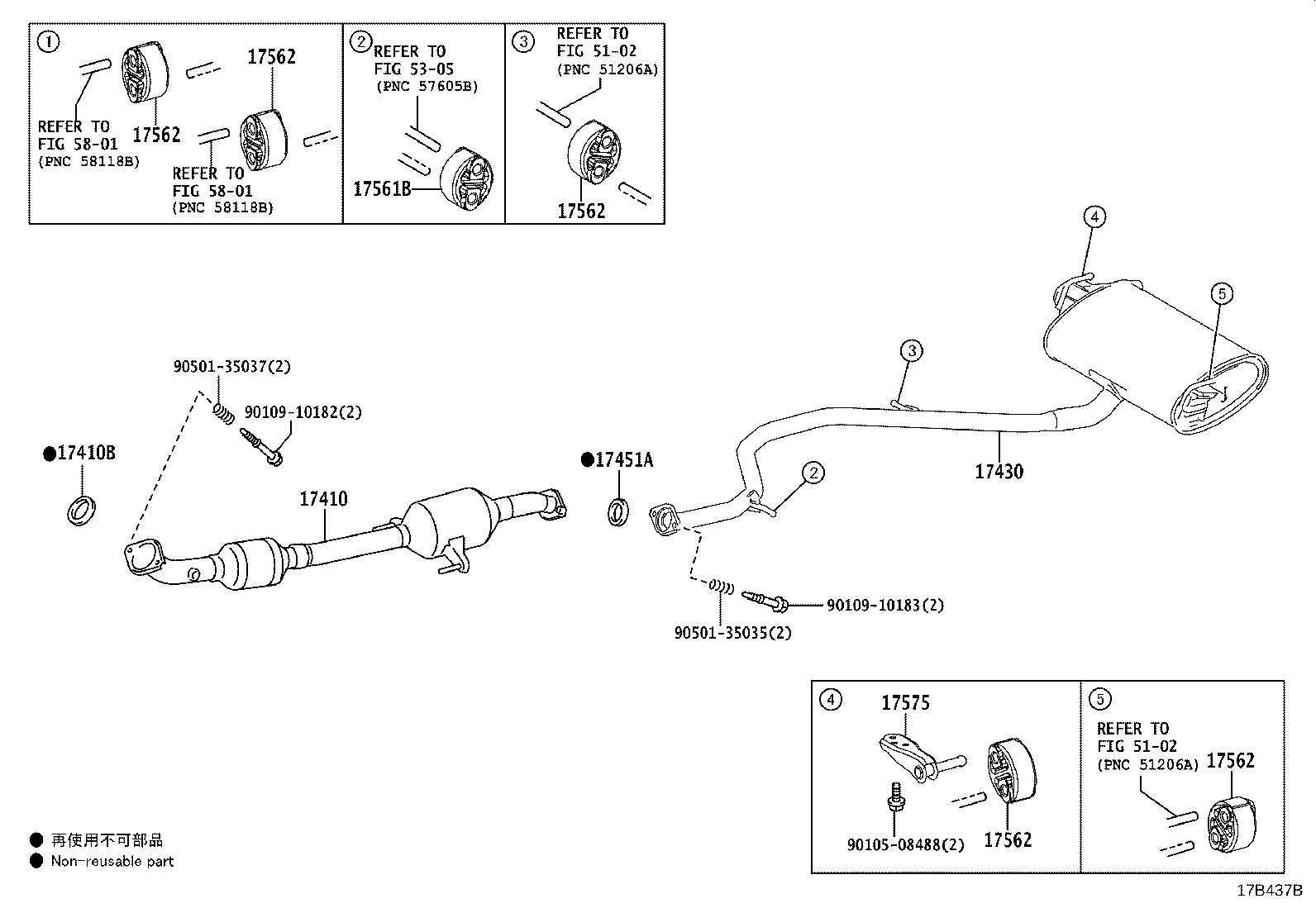

Figure 17A367C 17A367C 2018-10 → — Figure 17A372G 17A372G 2018-11 → 2021-08 Figure 17B437B 17B437B 2021-08 → —

Part groups

PNCDescription
17046 Actuator Sub-assy, Exhaust Pipe Gas Control
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451A Gasket, Exhaust Pipe, NO.2
17495 Actuator, Exhaust Pipe Gas Control
17499 Gasket, Exhaust Pipe Gas Control Actuator
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17575 Bracket, Exhaust Pipe Support, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
