Toyota Lexus UX250H/200
2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537110 · Japan
Supported model
Data version 2022-07
Caution Plate (EXTERIOR & INTERIOR)
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11293D | Label, Engine Caution |
| 11296C | Label, Engine Service Information |
| 16793B | Label, Cooling Fan Information |
| 41992 | Label, Differential Notice |
| 42668 | Label, Compact Spare Tire Caution |

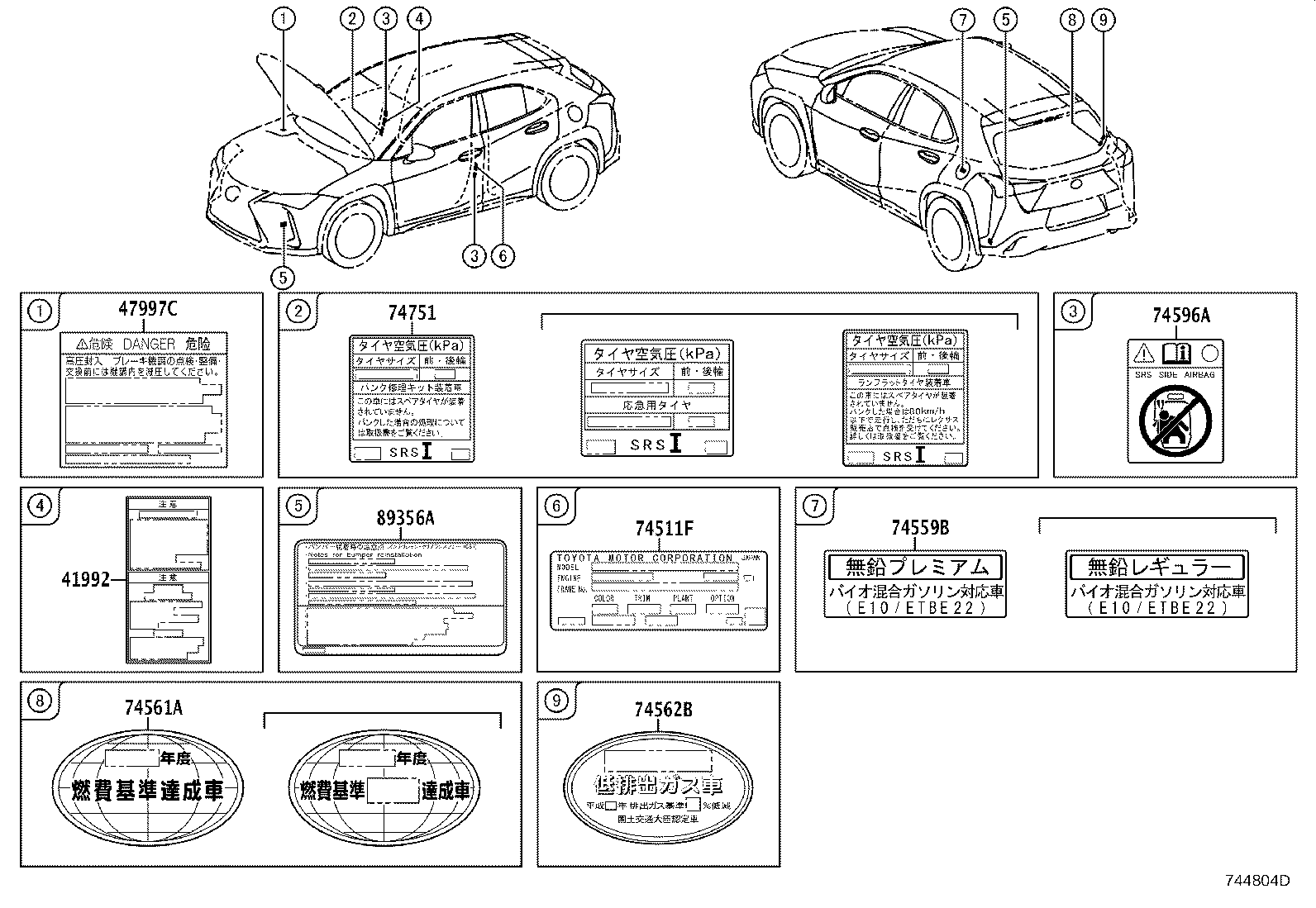

| 47997C | Label, Accumulator Caution, NO.1 |
| 69339C | Label, Child Protector Information |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |

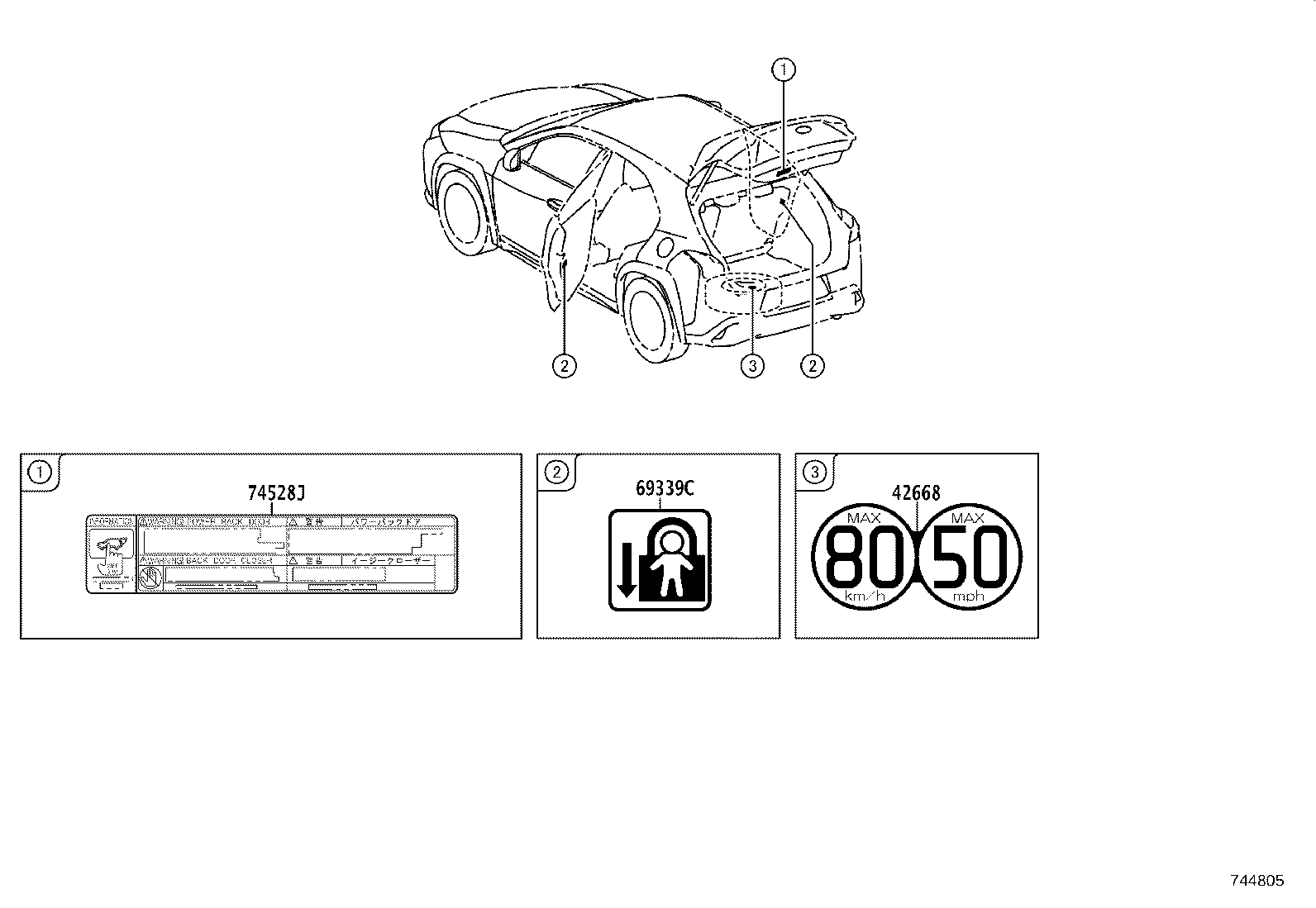

| 74528J | Label, Power Back Door Caution |
| 74559B | Label, Fuel Information |
| 74561A | Label, Fuel Consumption Information |
| 74562B | Label, Emission Information |
| 74596A | Label, Side Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 88723H | Label, Cooler Service Caution |
| 89356A | Label, Clearance Warning Information |
| G9275 | Label, Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
